AUBO i10 - 10KG Payload Collaborative Robot 6 Axis Industrial Robotic Arm
Overview
The AUBO i10 is a high-performance collaborative robot (cobot) from AUBO Robotics, designed to meet diverse automation needs across industries. This 6-axis robot features a 10 kg payload capacity and extended reach, making it suitable for a wide range of tasks from material handling to quality inspection.
Built for close human interaction, the AUBO i10 includes collision detection, force-limiting joints, and user-friendly programming, supporting rapid deployment even in dynamic manufacturing environments. Its open interface architecture (supporting ROS, MODBUS, CAN, Ethernet/IP, etc.) allows easy integration into smart factories and flexible cells.
Key Features
- 10 kg Payload Capacity - Ideal for heavier collaborative tasks
- 1350 mm Maximum Reach - Covers a wide working envelope
- 6 Degrees of Freedom - Enables complex, flexible motions
- ± 0.03 mm Repeatability - High precision for delicate operations
- User-Friendly Programming - Supports hand-guiding, flowchart & script modes
- Safety-Certified - Force-limited design meets ISO/TS 15066 standards
- Open Control Platform - Supports secondary development via multiple protocols
- Lightweight & Modular - Easy to redeploy across different stations
- Energy Efficient - Low power consumption with minimal operating costs
Technical Specifications
| Payload | 10 kg |
| Reach | 1350 mm |
| Degrees of Freedom | 6 axes |
| Repeatability | ±0.03 mm |
| Joint Speed | Up to 2.1 rad/s (depending on axis) |
| Tool I/O | Digital/Analog I/O + Power supply |
| Programming Interface | Teach pendant, PC, ROS, mobile interface |
| Communication Protocols | Ethernet/IP, Modbus, TCP/IP, CAN, ROS, PROFINET |
| Weight | ~38 kg |
| Mounting Orientation | Any (floor, ceiling, wall) |
| Power Supply | 100-240 VAC |
| IP Rating | IP54 (standard) |
| Safety Compliance | ISO 10218-1, ISO/TS 15066 compliant |
Typical Applications

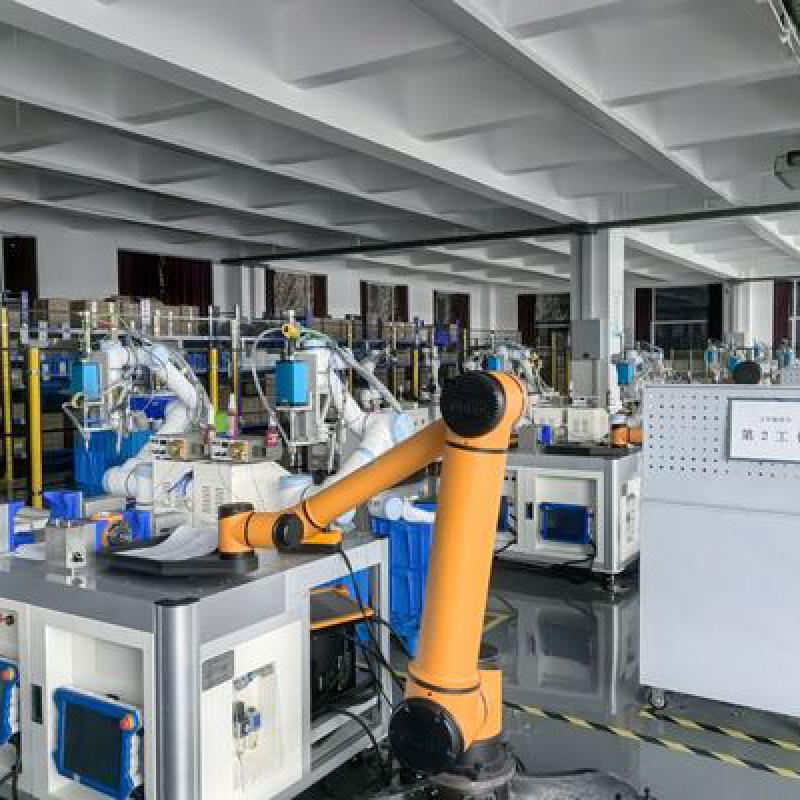

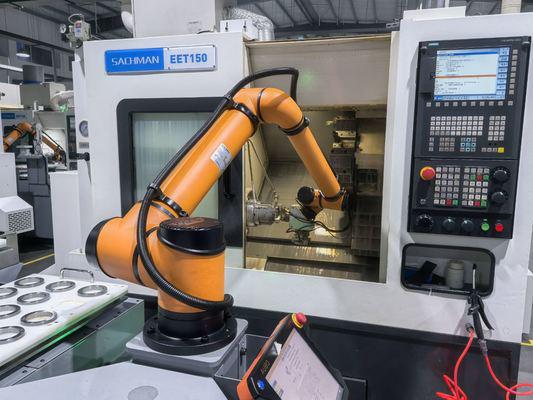

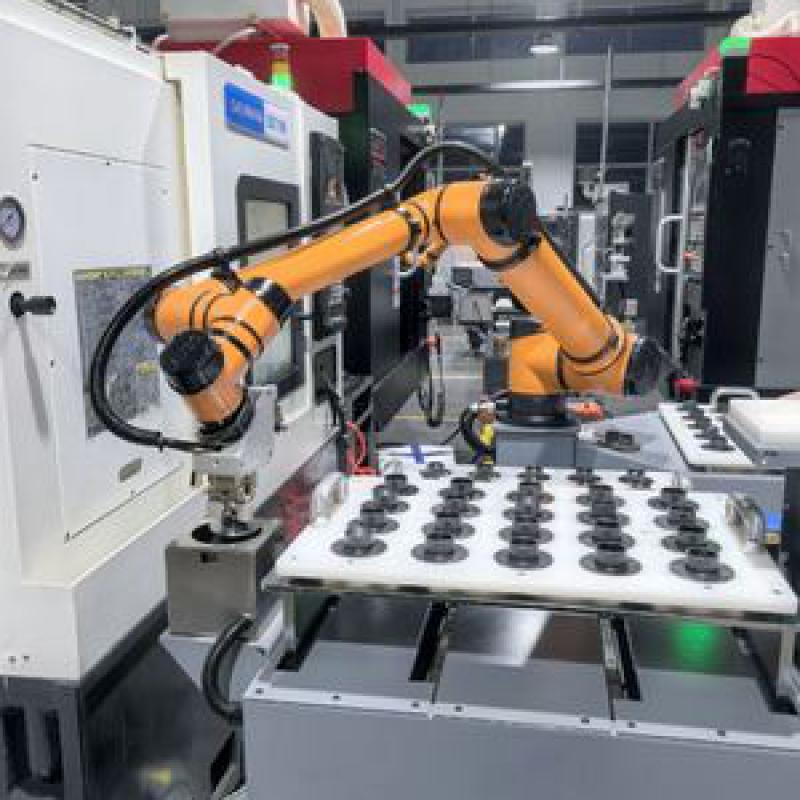

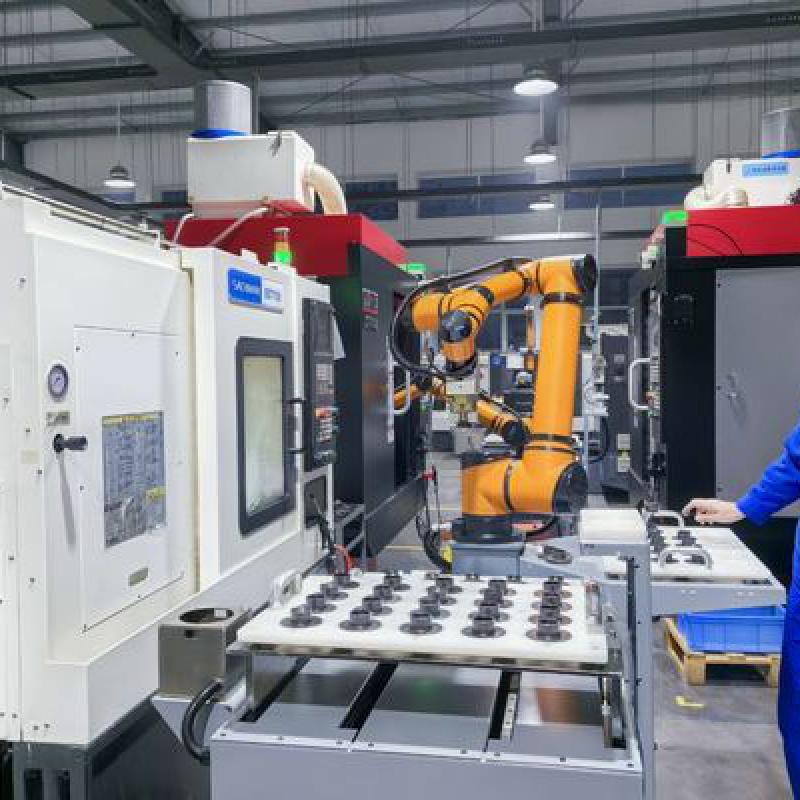

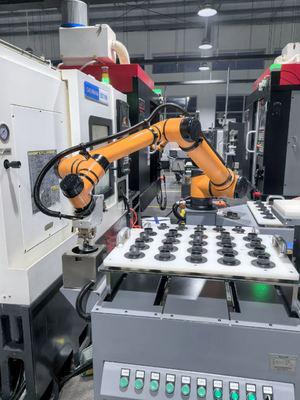

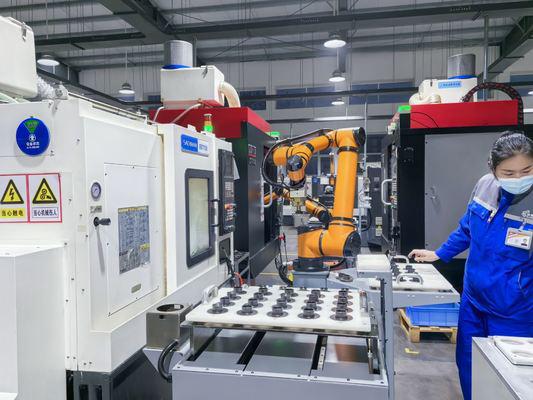

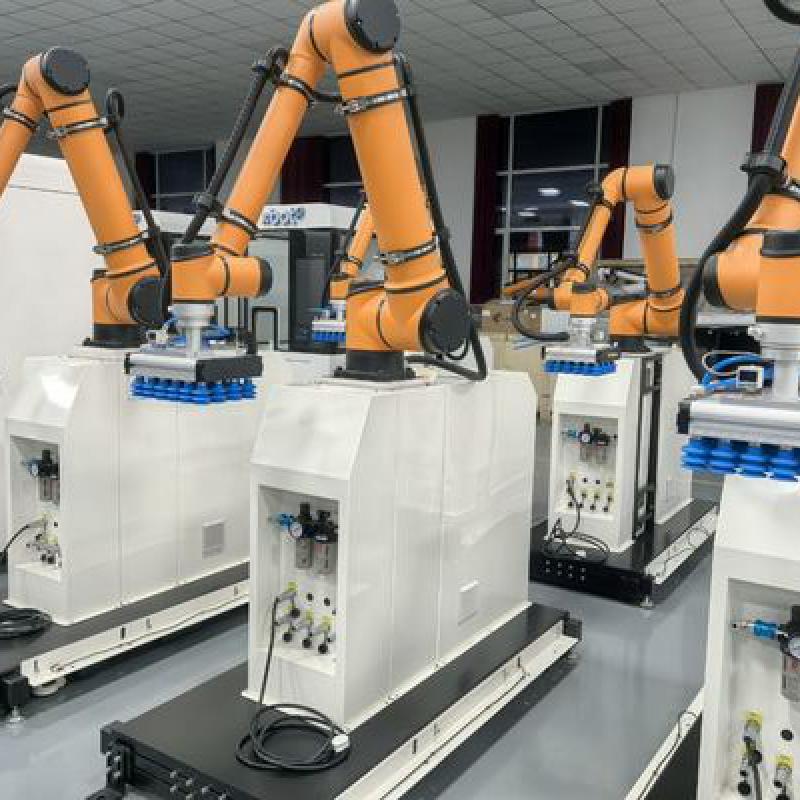

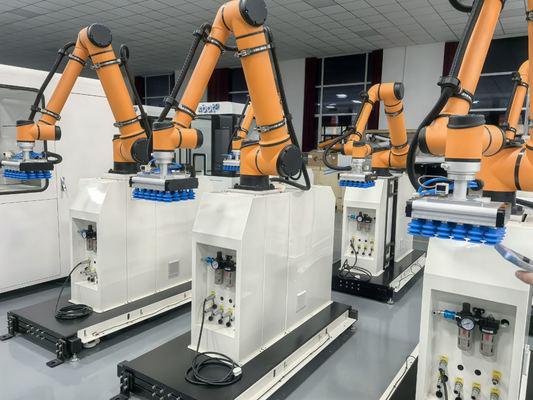

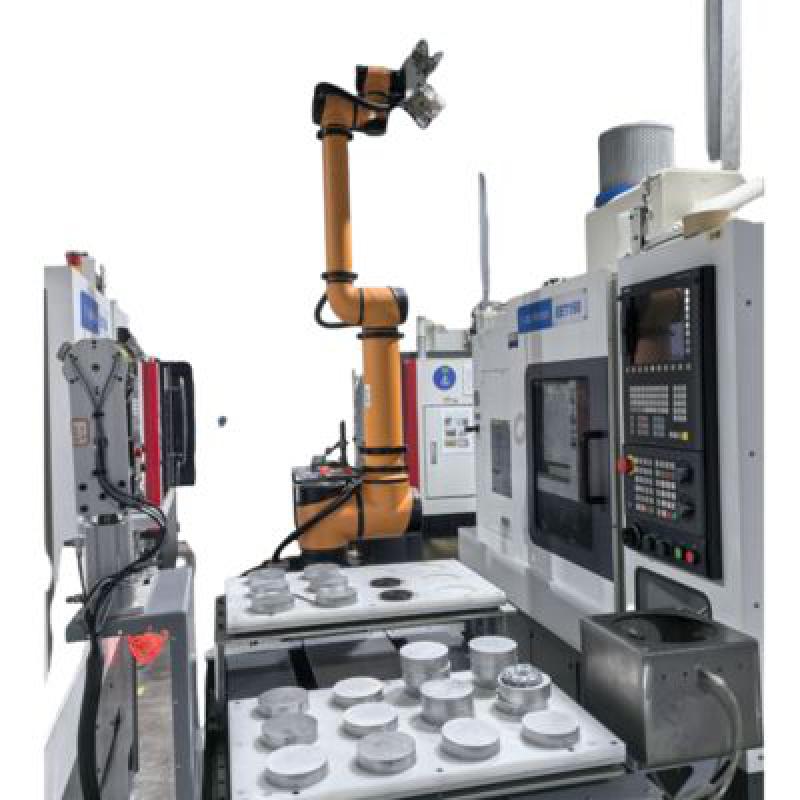

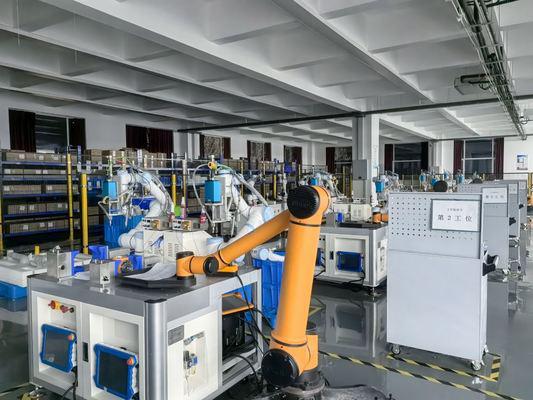

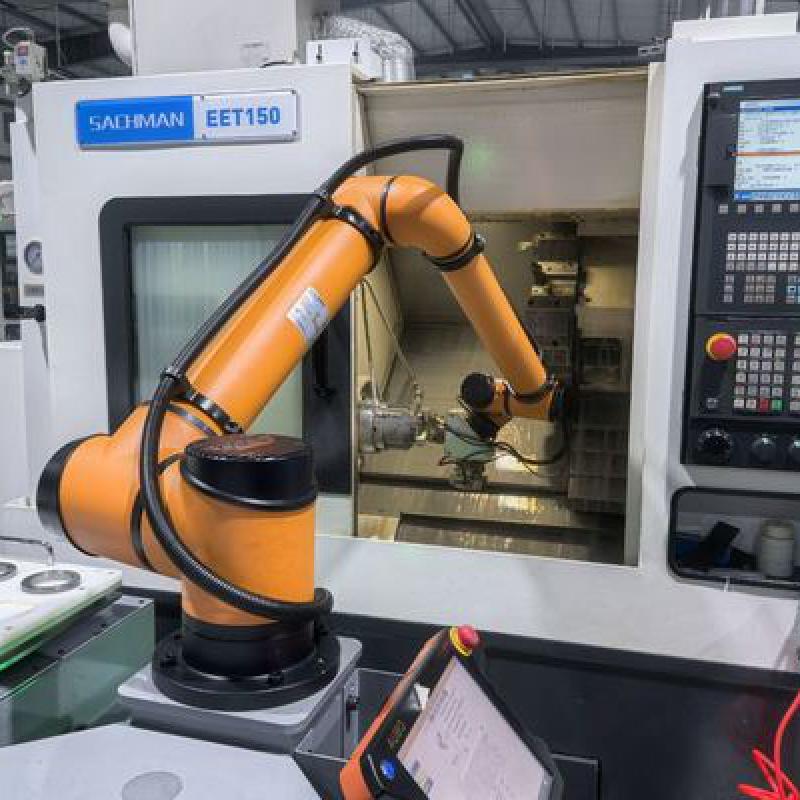

The AUBO i10 collaborative robot is designed for versatile industrial applications including material handling, assembly, packaging, quality inspection, and machine tending in manufacturing environments.
-
