air 3 fingers robot gripper mechanical pneumatic parallel
gripper for robotic arm china
Specification
| Specification | |
| Product name | 3 fingers pneumatic manipulator robot handset gripper |
| Type | A |
| Model | FM-A3V4/___ |
| Hr | 16.5mm |
| Hmax | 8mm |
| Hmin | 8.5mm |
| H | 51mm |
| W | 31mm |
| Lf | 41mm |
| L | 78mm |
| Load | 300g |
| Self weigh | 70g |
Product Description

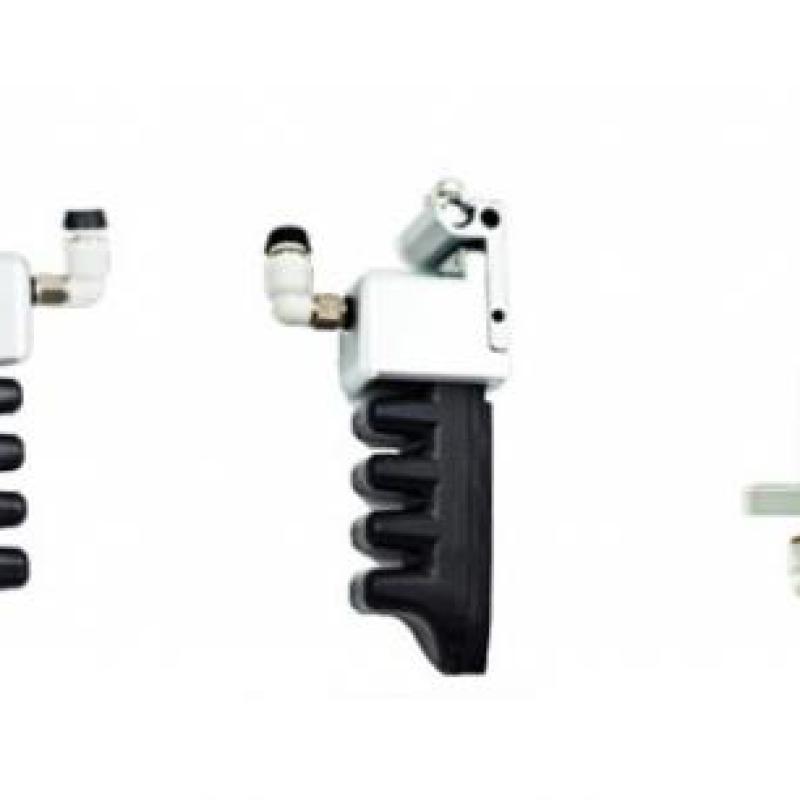

FM Style
According to the installation mode and characteristics, Rochu finger module is divided into V4 style and V5 style.

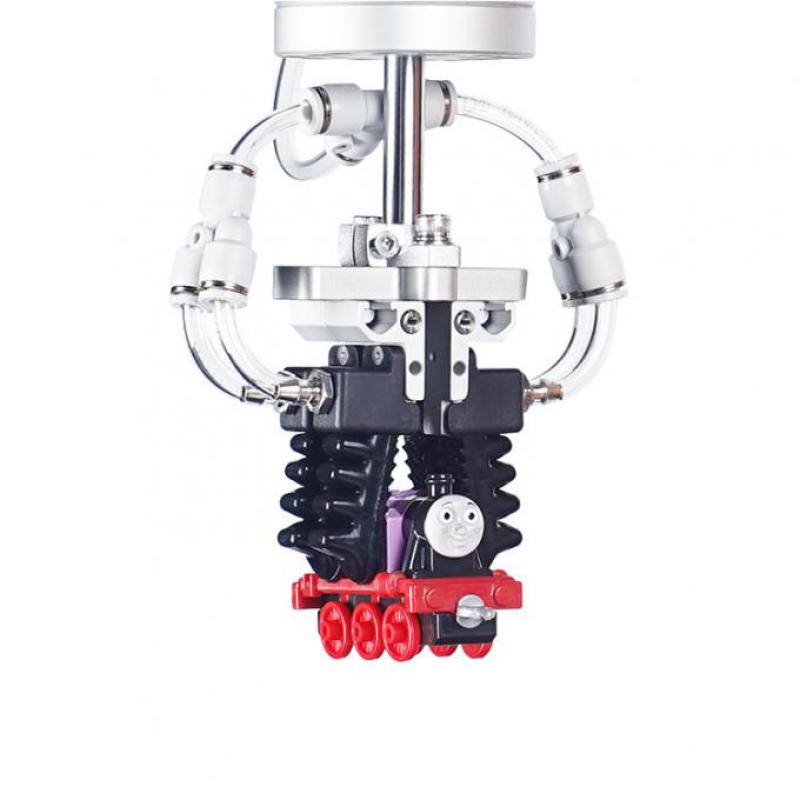

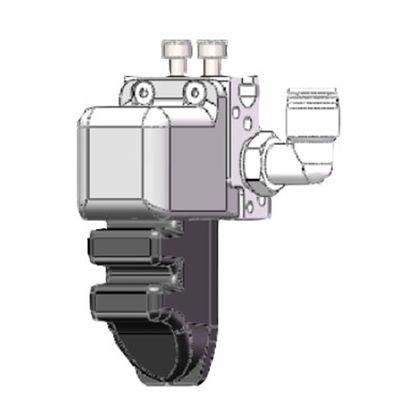

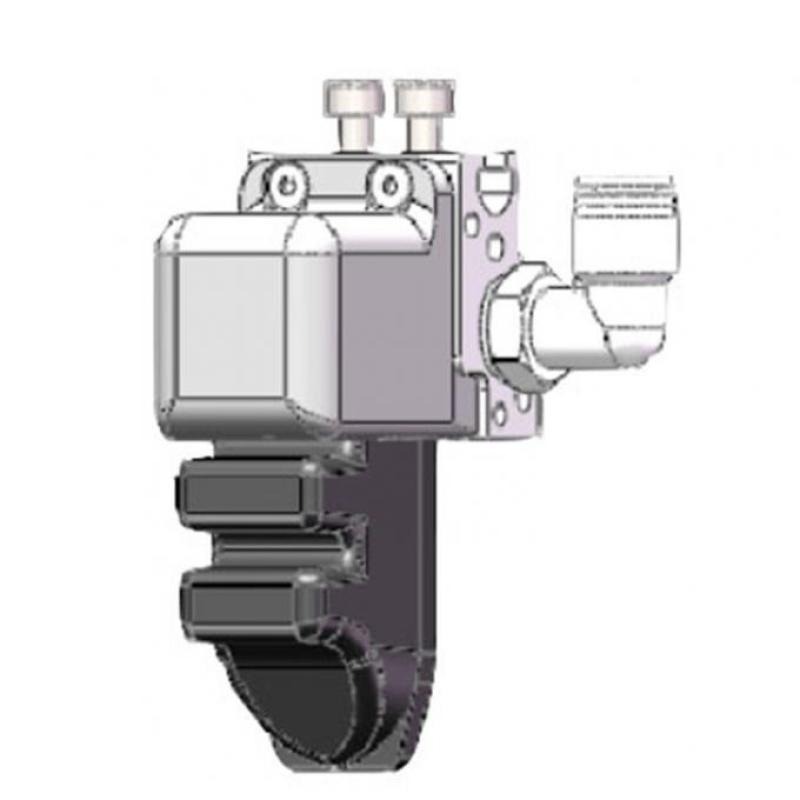

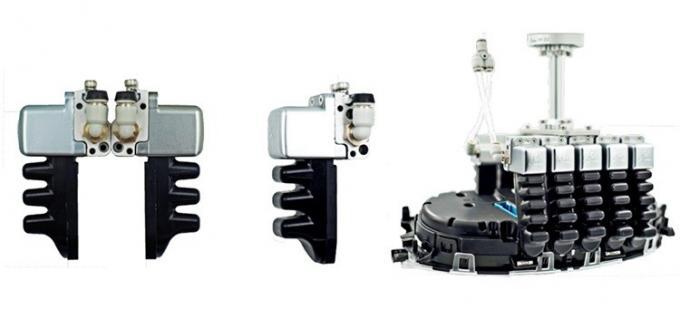

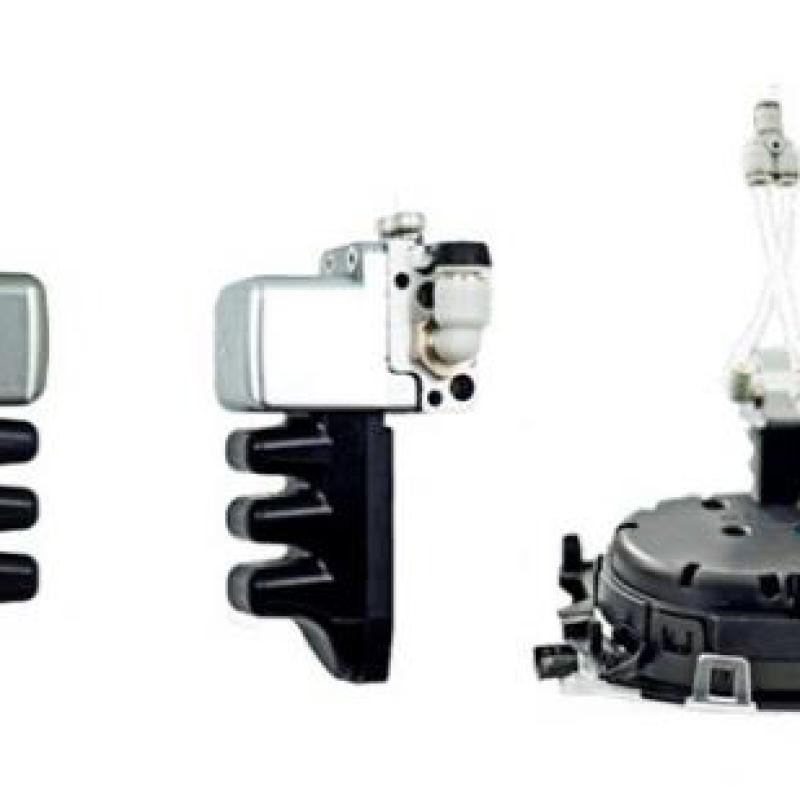

V4 style--- High load in series air circuit

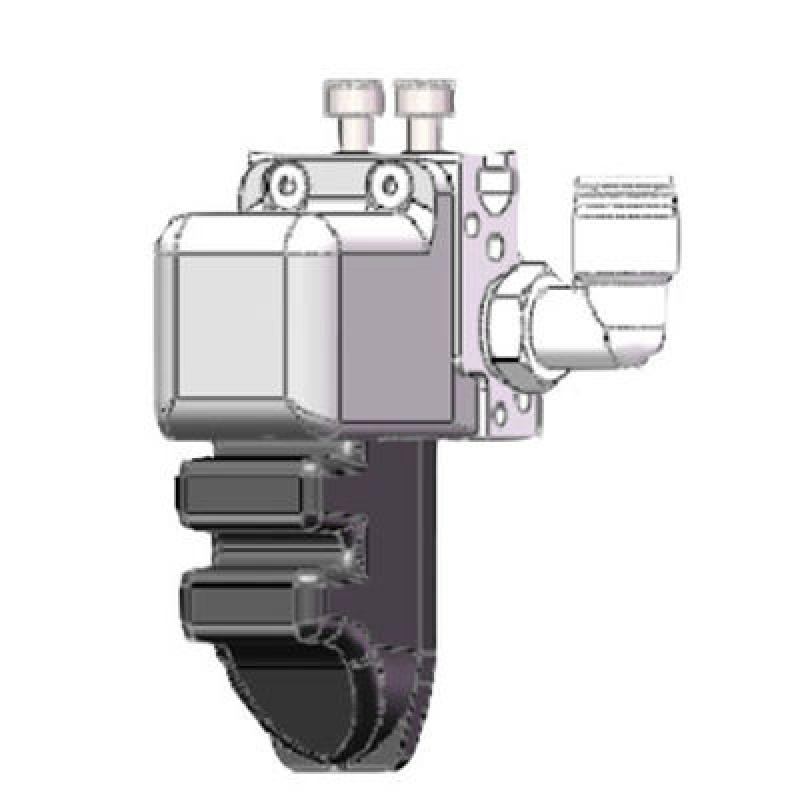

The V4 style finger module air pipe is installed on the side. The advantage is that only need one air pipe to drive multiple
fingers when multiple fingers are installed together. It is mainly used in the application with diameter over 50mm, weight
over 200g, and more than two fingers working at the same time.The air pipe is simple and convenient, saving space,
reducing space interference, and suitable for compact space scene.

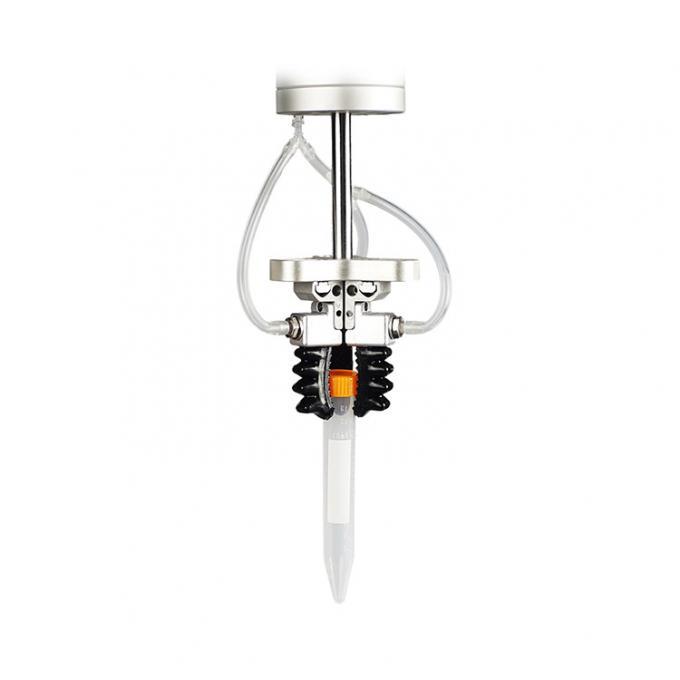

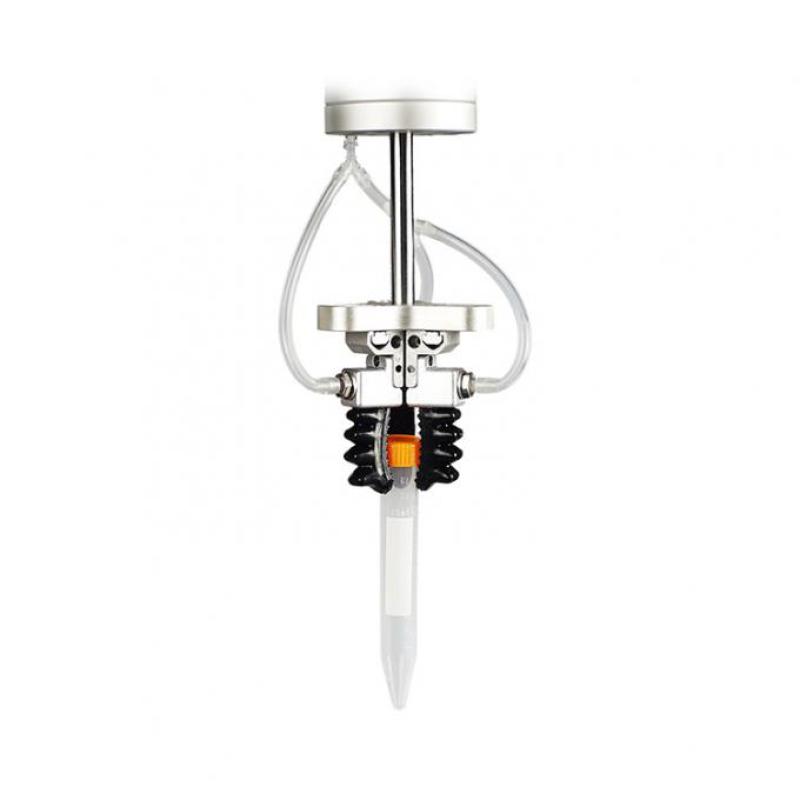

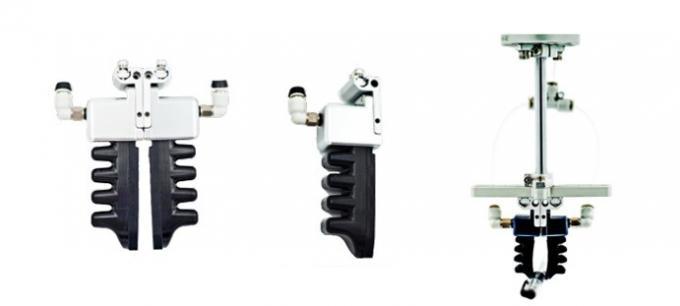

V5 style--- Flexible and thin, small finger distance
The air pipe of V5 style finger module is installed on the back, and each finger module needs independent air pipe. V5style finger module is thinner and lighter. The space is only 8mm when placed opposite, suitable for grabbing small and light products.
The air pipe of V5 style finger module is installed on the back, and each finger module needs independent air pipe. V5style finger module is thinner and lighter. The space is only 8mm when placed opposite, suitable for grabbing small and light products.
