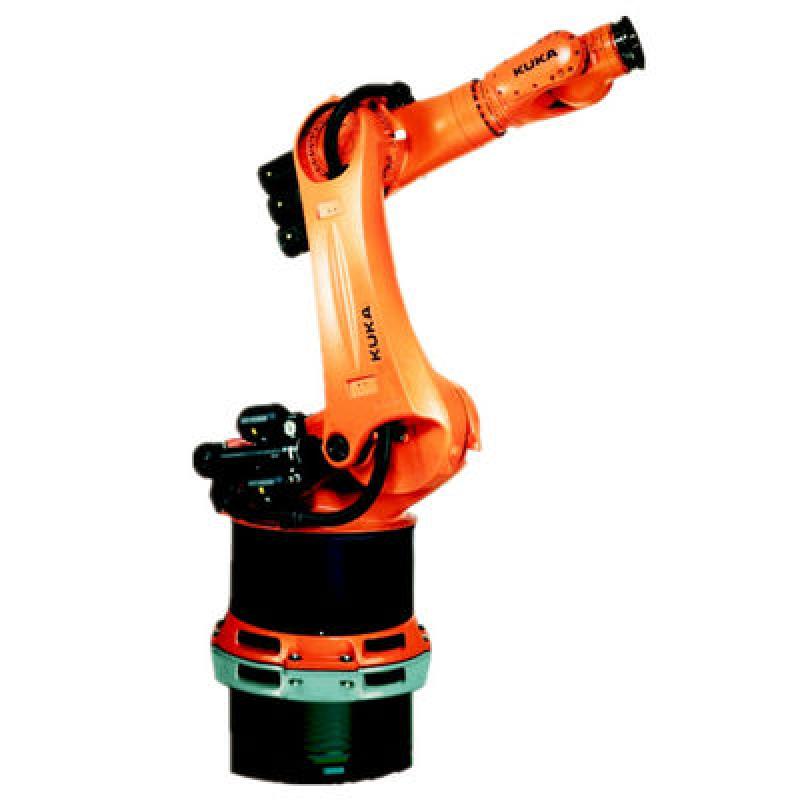

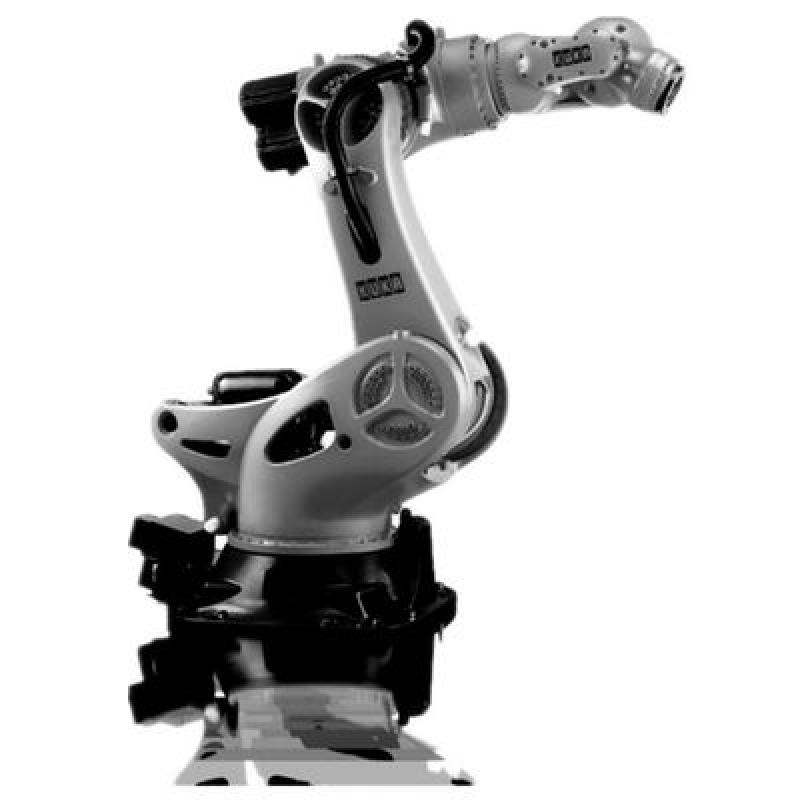

6 dof robot arm KUKA payload 500 kg reach 2830 mm arm robot milling robot
Main Specification
Self weight:2385Kg
Payload: 500Kg
Degree of freedom:6
Working radius:2830mm
Maximum speed:2.8 m/S
Pose repeatability:± 0.08mm
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
Product Description
| Specification | |
| Maximum reach | 2826 mm |
| Maximum payload | 500 kg |
| Pose repeatability (ISO 9283) | ± 0.08 mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Footprint | 1050 mm x 1050 mm |
| Weight | approx. 2385 kg |
| Protection rating | IP65 |
| Controller | KR C4 compact |
| Teach pendant | KUKA smartPAD |
| Motion range | |
| A1 | ±185° |
| A2 | (-130° / 20°) |
| A3 | (100°- 144°) |
| A4 | ±350° |
| A5 | ±125° |
| A6 | ±350° |
Detailed Images
-
Address:
No. 668, East Beijing Road, Huangpu District, Shanghai, China
-
Contact Seller:
+861512102****
Xiangjing (Shanghai) M&E Technology Co., Ltd is a leading provider of industrial robot solutions, specialized in ABB, KUKA, FANUC, and YASKAWA robots, as well as their own brand CNGBS. We provide integrated solutions for welding, palletizing, handling, and collaborative robot applications.
