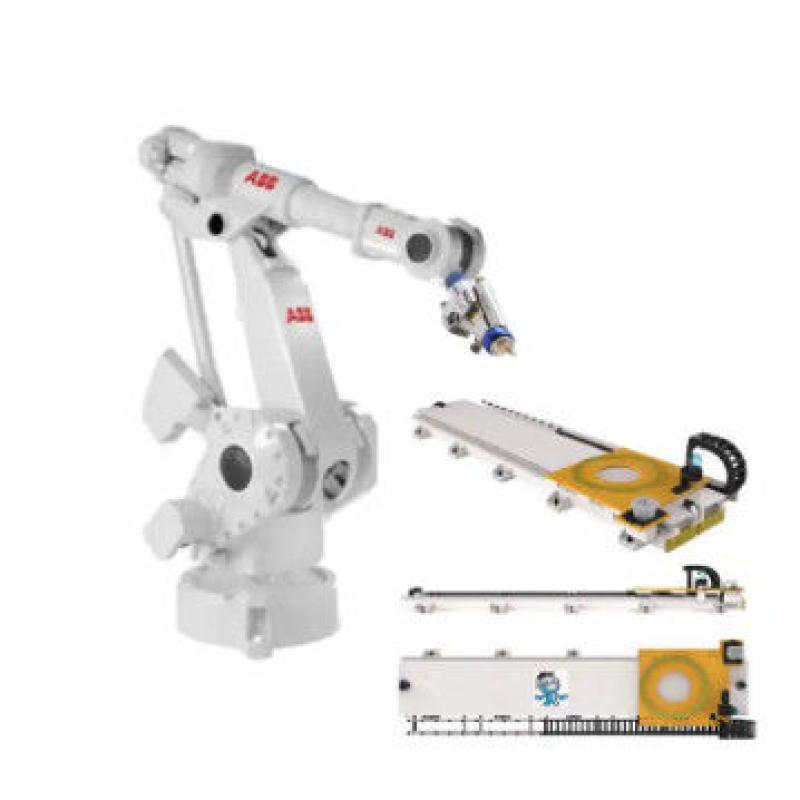

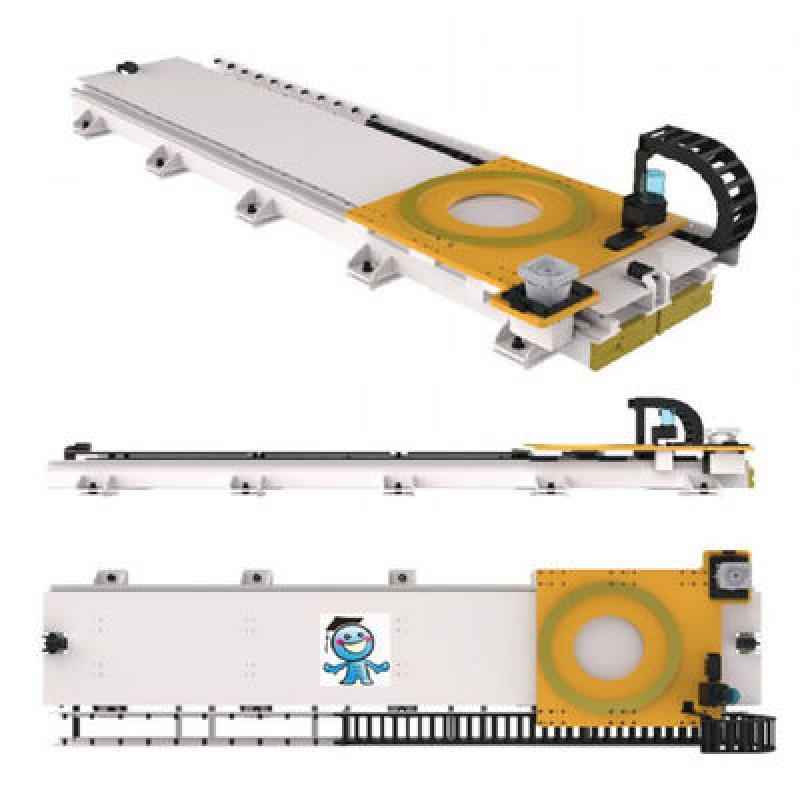

industrial painting robot arm ABB IRB4400 6 axis cnc robot arm with linear tracker and robotic cover and linear tracker
Product image
| Robot version | Reach (m) | Payload (kg) | ||
| IRB 4400-60/1.96 | 1.96 | 60 | ||
| IRB 4400L-10/2.53 | 2.53 | 10 | ||
| Supplementary load | ||||
| on axis 2 | 35 kg | |||
| on axis 3 | 15 kg | |||
| on axis 4 | 0-5 kg | |||
| Number of axes | 6 | |||
| Protection | Standard version IP 54, Foundry Plus 2 IP 67 and high pressure steam washable | |||
| Mounting | Floor | |||
| Controller | IRC5 Single Cabinet | |||
| Integrated signal supply | 23 signals and 10 power on upper arm | |||
| Integrated air supply | Max. 8 bar on upper arm | |||
Performance (according to ISO 9283)
| Robot version | Position repeatability RP (mm) | Path repeatability RT (mm)*: |
| IRB 4400-60/1.96 | 0.06 | 0.09 |
| IRB 4400L-10/2.53 | 0.05 | 0.16 |
Product Description

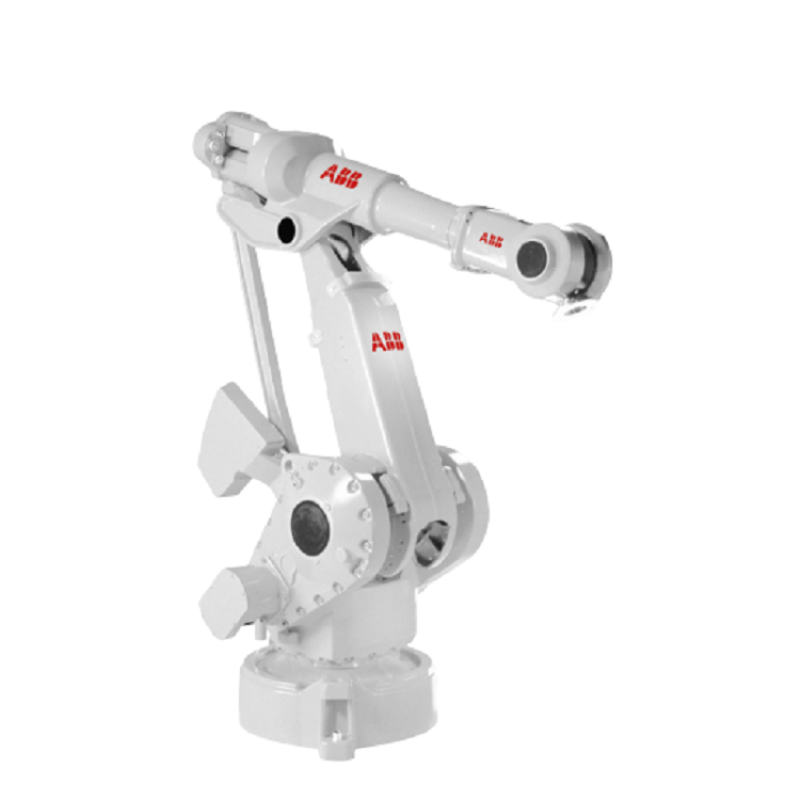

IRB 4400 is an extremely fast, compact robot for medium to heavy handling. It has exceptional all-round capabilities which makes it suitable for a variety of manufacturing
applications. The load capacity of 60 kg at very high speeds usually permits handling of two parts at a time.
Fast, compact and versatile industrial robot
IRB 4400 is a rigid, well-balanced design and patented TrueMoveTM function provide smooth and fast movement throughout the entire working range. This ensures very high quality in applications such as cutting. Rapid maneuverability makes the IRB 4400 perfectly matched for applications where speed and flexibility are important. The compact design and protected versions enables use in situations where conventional robots cannot work, such as foundry and spraying applications. The Foundry Plus 2 version is IP 67 protected and can be washed with high pressure steam, which makes it ideal for use in harsh environments.
