Technical Specifications
| Parameter | Value |
|---|---|

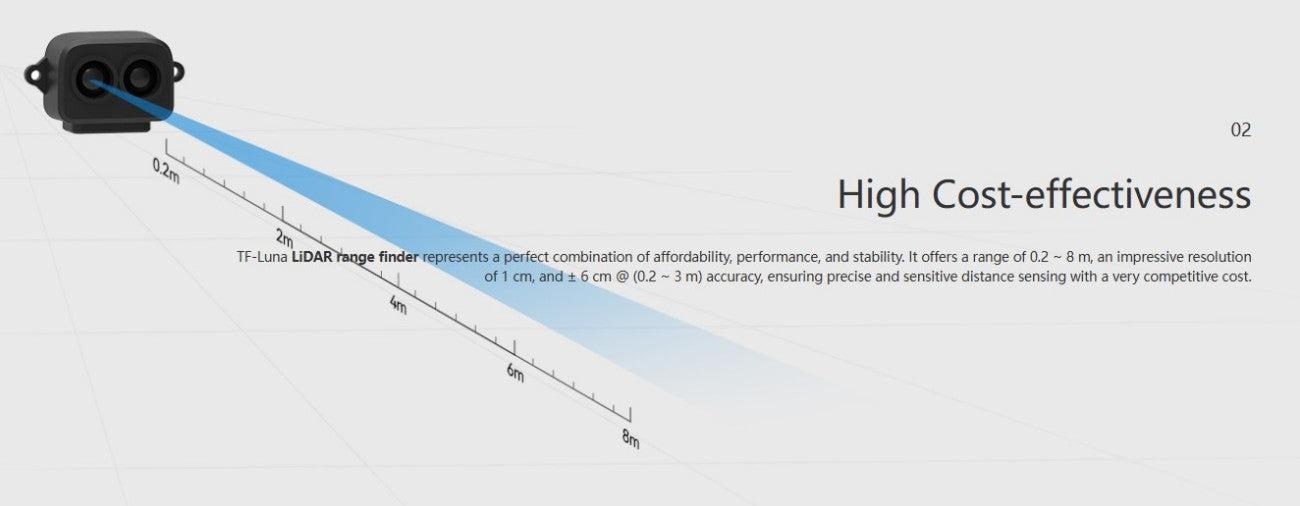

| Operating range | 0.2m ~ 8m@90% reflectivity (indoor 0klux) ; 0.2m ~ 2.5m@10% reflectivity (indoor 0klux) ; 0.2m ~ 8m@90% reflectivity (outdoor 90klux) ; 0.2m ~ 2.5m@10% reflectivity (outdoor 90klux) |
| Accuracy | ±6cm @(0.2m-3m), ±2% @(3m-8m) |
| Distance resolution | 1cm |
| Frame rate | 1-250Hz |
| Ambient light immunity | 70Klux |
| Operation temperature | -10℃ ~ 60℃ |
| Enclosure rating | / |
| Light source | VCSEL |
| Central wavelength | 850nm |
| Photobiological safety | Class 1 (IEC60825) |
| Field of View (FOV) | 2^5° |
| Supply voltage | 3.7V - 5.2V |
| Average current | ≤70mA |
| Power consumption | ≤0.35W |
| Peak current | 150mA |
| Communication level | LVTTL (3.3V) |

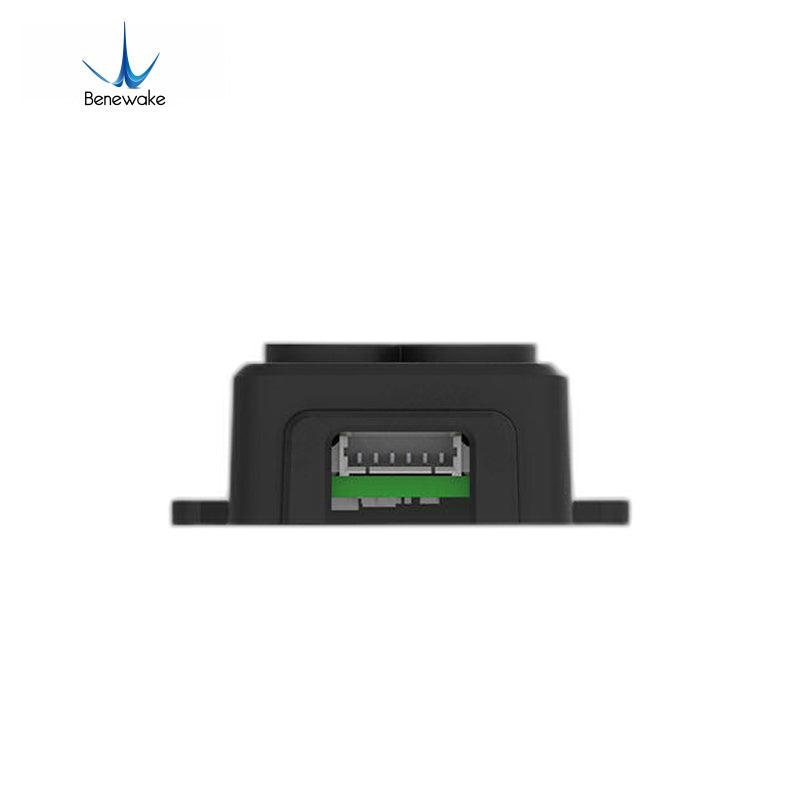

| Communication interface | UART, I²C, I/O |
| Dimension (L×W×H) | 35mm × 21.25mm × 12.5mm |
| Housing | ABS+PC |
| Storage temperature | -20℃ ~ 75℃ |
| Weight | <5g |
| UART default baud rate | 115200 (adjustable) |
| UART max transmission rate | 400kbps |
| UART data bit | 8 |
| UART stop bit | 1 |
| UART parity | None |
| I²C master/slave mode | Slave |
| I²C default address | 0x10 |
| I²C address range | 0x08 ~ 0x77 |
