Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection range | ≥14m @90% reflectivity, 0Klux ≥13m @10% reflectivity, 0Klux ≥7m @90% reflectivity, 100Klux ≥4m @10% reflectivity, 100Klux |
| Blind zone | ≤ 0.1m |
| Accuracy | ±5cm @ 0.1–4m |
| Repeatability | < 1cm (1 sigma) @ 0.1–4m |
| Distance resolution | 1cm |
| Default frame rate | Default 100Hz, 1–900Hz customizable |
| Light source | VCSEL |
| Central wavelength | 905nm |

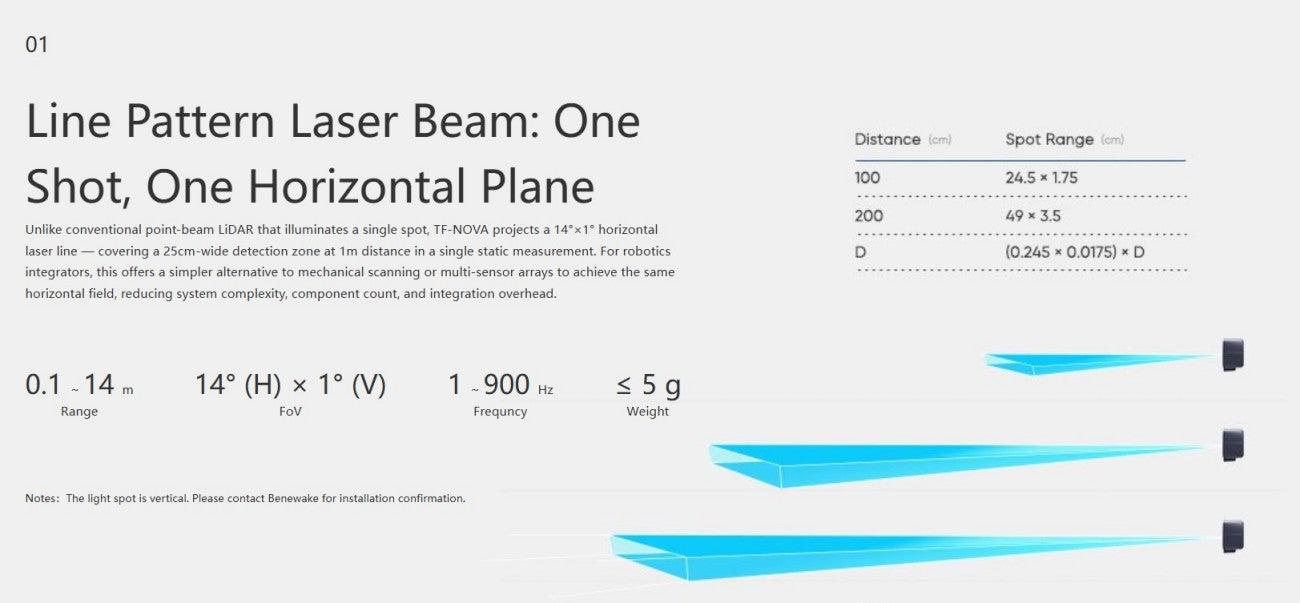

| FoV of laser emission | Typ. 14°×1° |
| Eye safety | Class 1 Eye-safe [EN60825] |
| Average power consumption | < 500mW |
| Peak current when starting | < 850mA |
| Start-up time | < 1s |
| Power supply | DC 5±5%V |
| Operating temperature | -25℃ ~ +70℃ |
| Storage temperature | -30℃ ~ +80℃ |

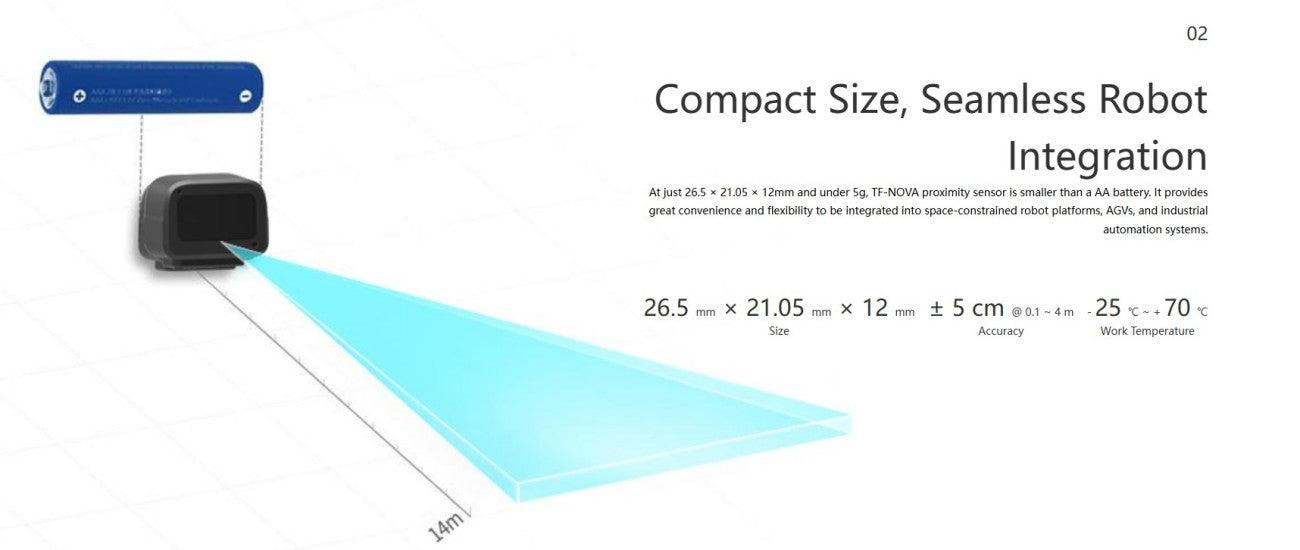

| Dimensions | TYP. 26.5 × 21.05 × 12.0 mm³ |
| Weight | <5g |

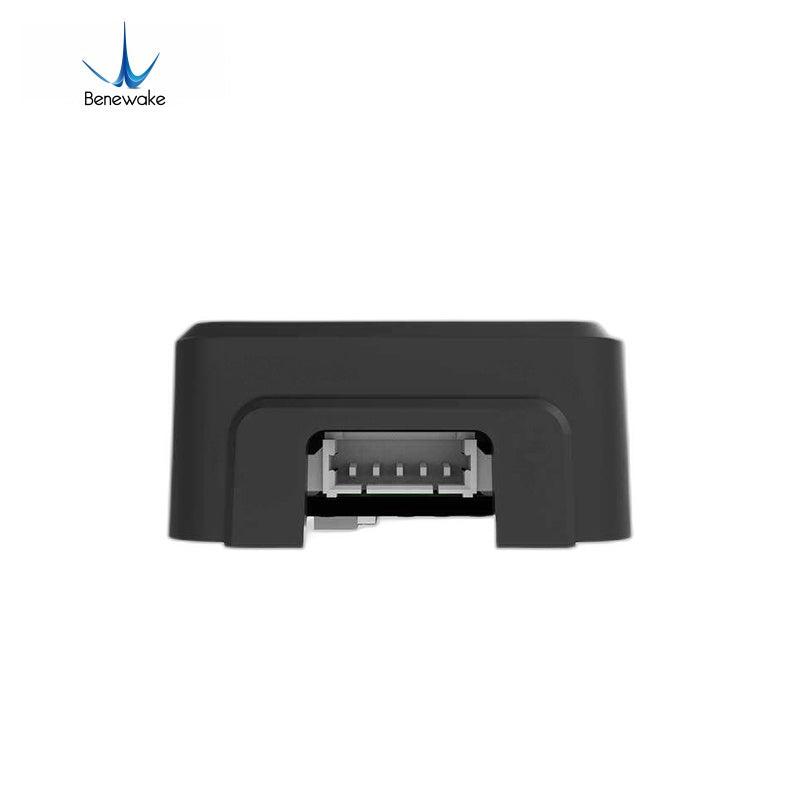

| Connector | 1.25mm-5P |
| Protection Level | N.A. |
| Front window protection level | IP65 |
| Cable length | 10cm |

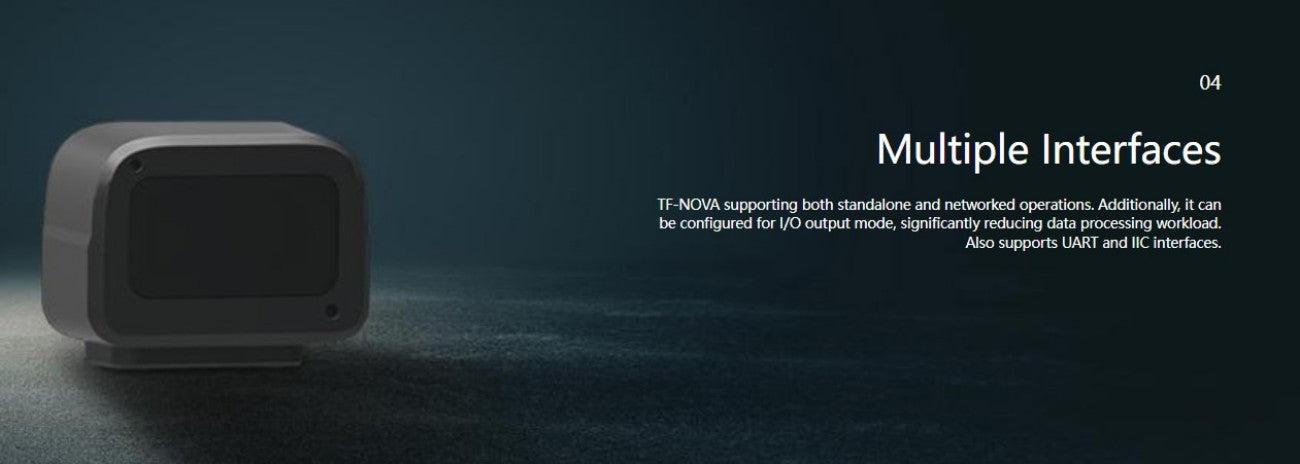

| Communication Interface | UART, IIC, I/O |
| Baud rate | Default 115200 |
| Data bit | 8 |
| Stop bit | 1 |
| Parity | None |
BENEWAKE-TF-NOVA_Datasheet.pdf
BENEWAKE-TF-NOVA_User_Manual.pdf
-
Contact Seller:
+861368646****
Benewake presents 21 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from Benewake.
