Technical Specifications
| Parameter | Value |
|---|---|
| Usage | Vehicle testing |
| Theory | TOF |
| Interface | RS-485 |
| Resolution (Bits) | 1cm |
| Amplifier Type | VCSEL |
| Manufacturer Part Number | TF02-i |
| Operating Temperature | -20~60°C |
| Brand Name | Benewake |
| Place of Origin | Beijing, China |
| Brand | Benewake tf02-i lidar |
| Voltage - Supply | 7~30V |
| Current - Supply | ≤70mA@12V |
| Package / Case | PC/ABS/PMMA |
| Frequency | 100Hz |
| Size / Dimension | 69mm x 41.5mm x 31.5mm (L*W*H) |
| Measuring Range | 0.1~40m @90% reflectivity |
| Cross Reference | no |

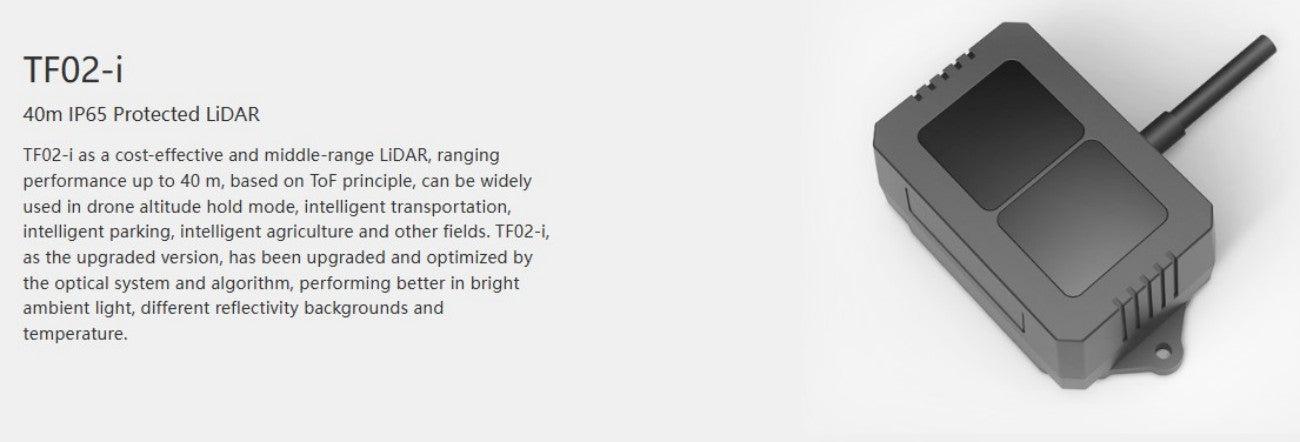

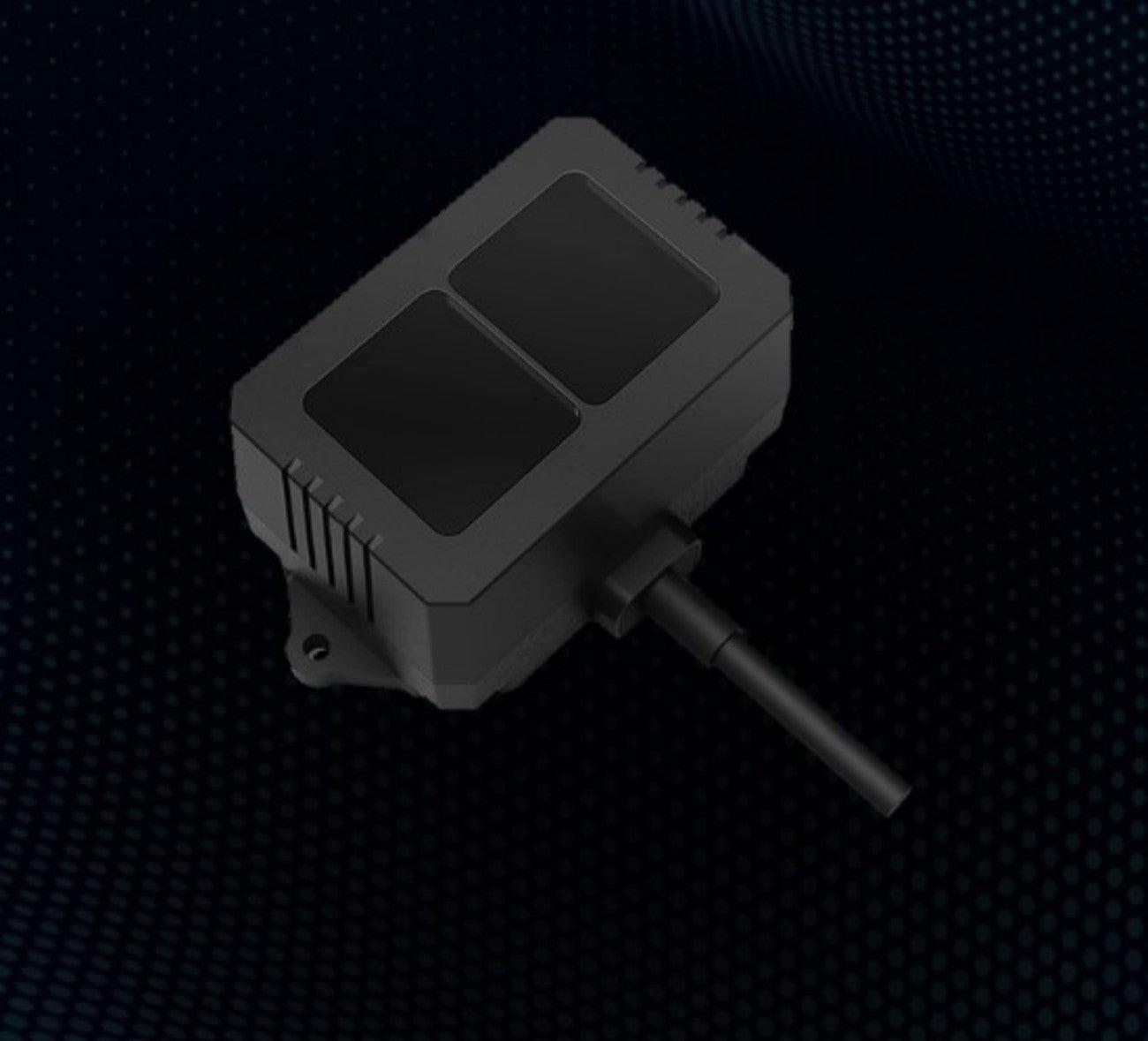

| Product name | Pedestrian detection benewake tf02-i lidar medium range sensor |
| Distance resolution | 1cm |
| Frame rate | 100Hz |
| Ambient light immunity | 100Klux |
| Operation temperature | -20~60°C |
| Enclosure rating | IP65 |
| Light source | VCSEL |
| Central wavelength | 850nm |
| FOV | 3° |
| Supply voltage | 7~30V |
| Selling Units | Single item |
| Single package size | 12.5 x 9.5 x 5 cm |
| Single gross weight | 0.500 kg |
BENEWAKE-TF02-i_User_Manual.pdf
-
