Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Range | 0.04-40m @90% reflectivity, 0.04-20m @10% reflectivity |
| Accuracy | ±2mm |
| Distance resolution | 1mm |
| Frame rate | 5Hz |
| Repeatability | 1σ: <2mm |
| Working temperature | -10~50℃ |
| Enclosure rating | / |
| Light source | LD |
| Wavelength | 635nm |
| Laser class | CLASS 2 (EN 60825) |
| Detection angle | <1mrad |
| Supply voltage | 3.3V |
| Average current | ≤180mA |
| Power consumption | ≤0.6W |
| Peak current | ≤180mA |
| Communication voltage level | LVTTL (3.3V) |

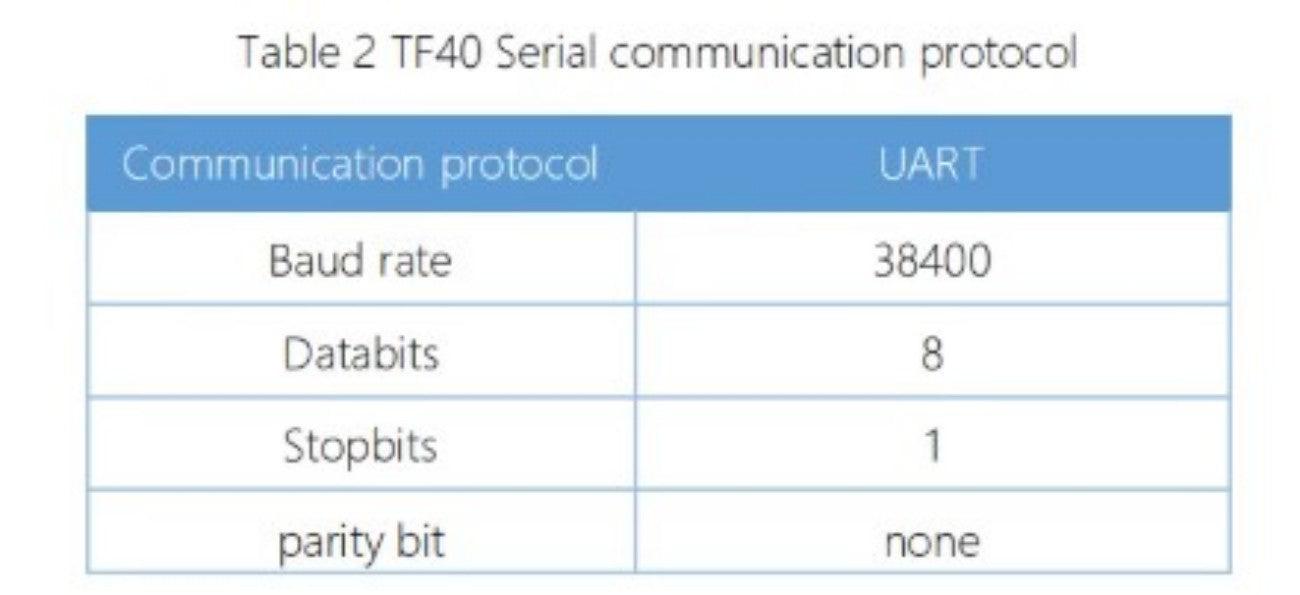

| Communication protocol | UART |
| Dimension (L×W×H) | 44mm × 64.5mm × 23mm |
| Enclosure Material | Aluminum alloy + ABS |
| Storage temperature | -30~70°C |
| Weight | 57g ± 3g |
| Cable length | 35cm |
-
