Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Ranging capability | 0.5 ~ 1500 m |
| Precision | ±0.5m (≤80m), ±1.0m (>80m) |
| Distance resolution | 1 cm |
| Default frame rate | 60 ~ 800Hz (adaptive) |
| Beam divergence | ~6 mrad |
| False detection rate | ≤1% |
| Target discrimination | ≤30 m |
| Central wavelength | 905 ± 5 nm |

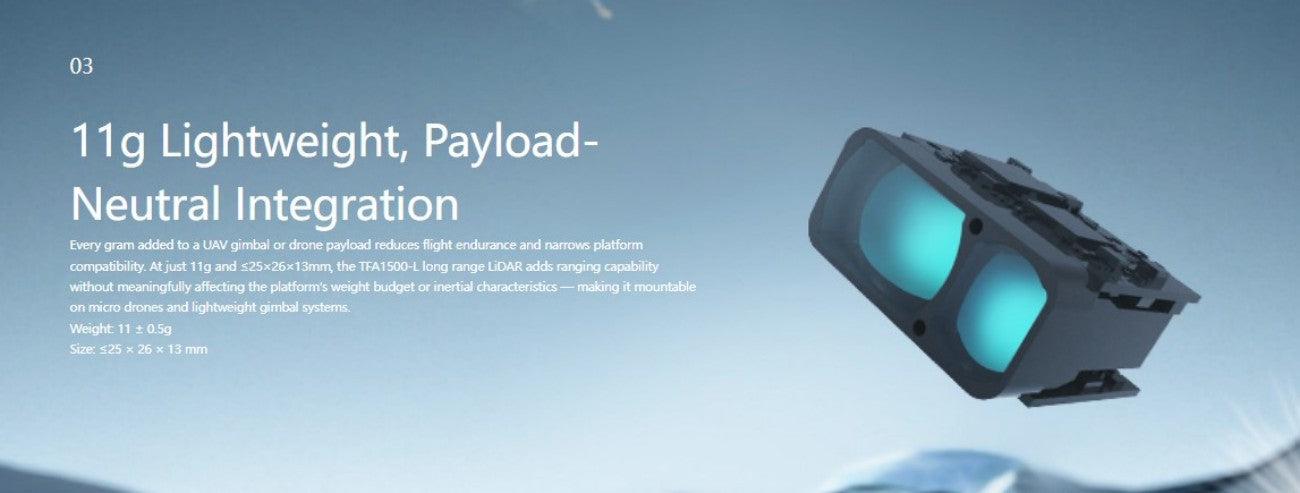

| Size (L × W × H) | ≤25 mm × 26 mm × 13 mm |
| Weight | 11 ± 0.5 g |
| Operating temperature | -20 ~ +60 °C |
| Storage temperature | -45 ~ +70 °C |
| Supply voltage | DC 3.0 ~ 5.0 V |
| Shock resistance | 1000 g, 20 ms |
| Vibration resistance | 5 to 50 to 5 Hz, 1 oct/min, 2.5 g |
| Operating power consumption | ≤1.8W |
| Standby power consumption | ≤0.8W |
| Communication Interface | UART |
| Baud rate | 500000 bps |
BENEWAKE-TFA1500-L_Datasheet_and_Manual.pdf
-
Contact Seller:
+861368646****
Benewake presents 21 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from Benewake.
