Technical Specifications

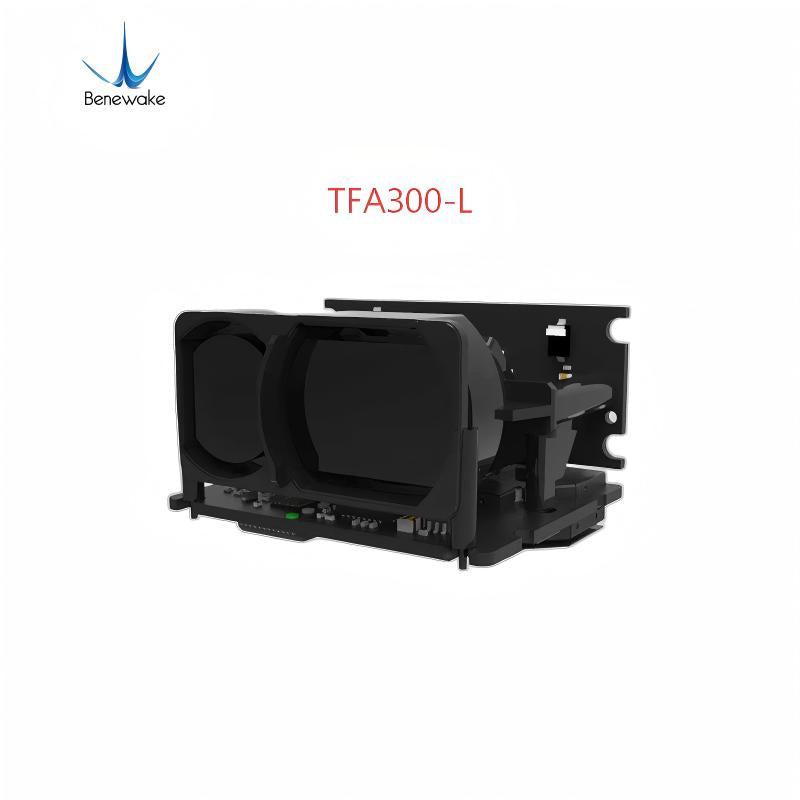

| Parameter | TFA300 | TFA300-L |
|---|---|---|
| Detection range | 270m@90%ref.100KLux | 290m@90%ref.100KLux |
| Detection range | 150m@30%ref.100KLux | 170m@30%ref.100KLux |
| Detection range | 90m@10%ref.100KLux | 100m@10%ref.100KLux |
| Blind zone | ≤ 0.1 m | |
| Accuracy | ±10 cm (< 10 m), 1% (≥ 10 m) | |
| Repeatability | < 3 cm @ 1σ | |
| Distance resolution | 1 cm | |
| Default frame rate | Up to 10,000 Hz (1 ~ 10,000 Hz configurable, default 50 Hz) | |
| Ambient light resistance | 100 KLux | |
| Light source | EEL | |
| Central wavelength | 905 nm | |
| Field of View (FoV) | < 0.5° | |
| Eye safety | Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021) | |
| Average power consumption | ≤ 0.45 W | |
| Peak current | < 0.75 A | |
| Power supply | DC 5 V ± 10% | |
| Logical voltage | 3.3 V TTL | |
| Connector | JST GH 1.25 mm 6 pin | |
| Operating temperature | -20 °C ~ +60 °C | |
| Storage temperature | -40 °C ~ +80 °C | |

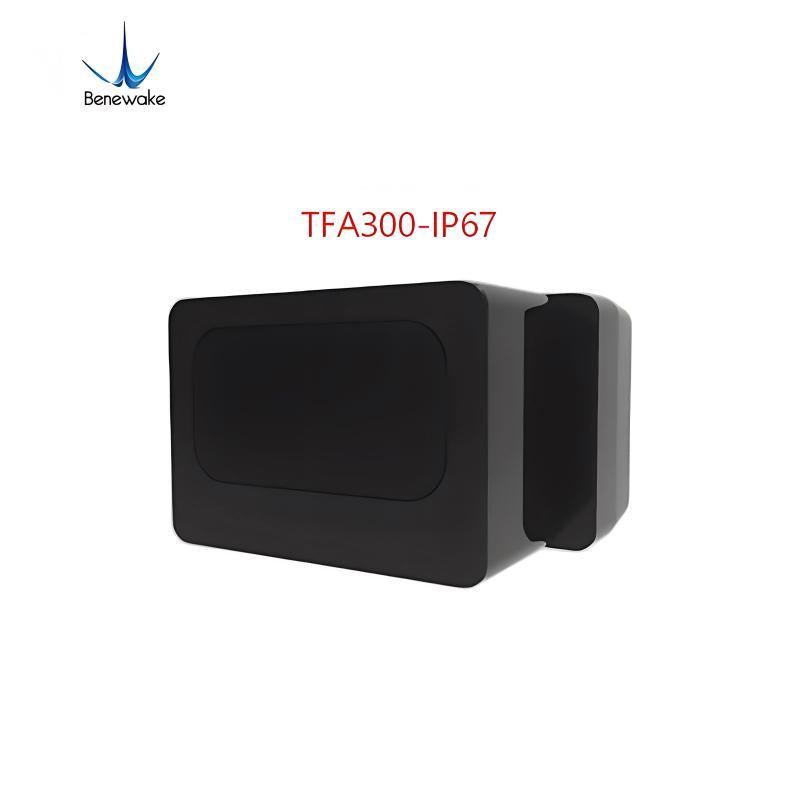

| Protection level | IP67 | NA |
| Typ. Dimensions | 49.4 mm × 37.0 mm × 28.6 mm | 32.0mm×30.2mm×20.2mm |
| Typ. Weight | 34.5 g | 10.5g |
| Communication Interface | UART / CAN (switchable by command) | |
| Baud rate | Default 115200 (configurable) | |
| Data bit | 8 | |
| Stop bit | 1 | |
| Parity | None | |
