Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Range | 0.1m~12m @90% reflectivity 0.1m~7m @10% reflectivity 0.1m~12m @90% reflectivity (70Klux) 0.1m~7m @10% reflectivity (70Klux) |
| Accuracy | ±6cm @ (0.1-6m), ±1% @ (6m-12m) |
| Distance resolution | 1cm |
| Frame rate | 1-1000Hz (default 100Hz) |
| Ambient light resistance | 70Klux |
| Protection Level | / |
| Operation temperature | 0°C ~ 60°C |
| Photobiological safety | Class 1 (EN60825) |
| Central wavelength | 850nm |
| Light source | VCSEL |
| Field of View (FoV) | 2° |
| Supply voltage | 5V ± 0.1V |
| Average current | ≤140mA |
| Power consumption | ≤0.7W |
| Peak current | 200mA |
| Communication level | LVTTL (3.3V) |
| Communication interface | UART, I²C, I/O |
| Dimension (L×W×H) | 42mm × 15mm × 16mm |
| Housing | PC/ABS |
| Storage temperature | -20℃ ~ 75℃ |
| Weight | 5g ± 0.3g |

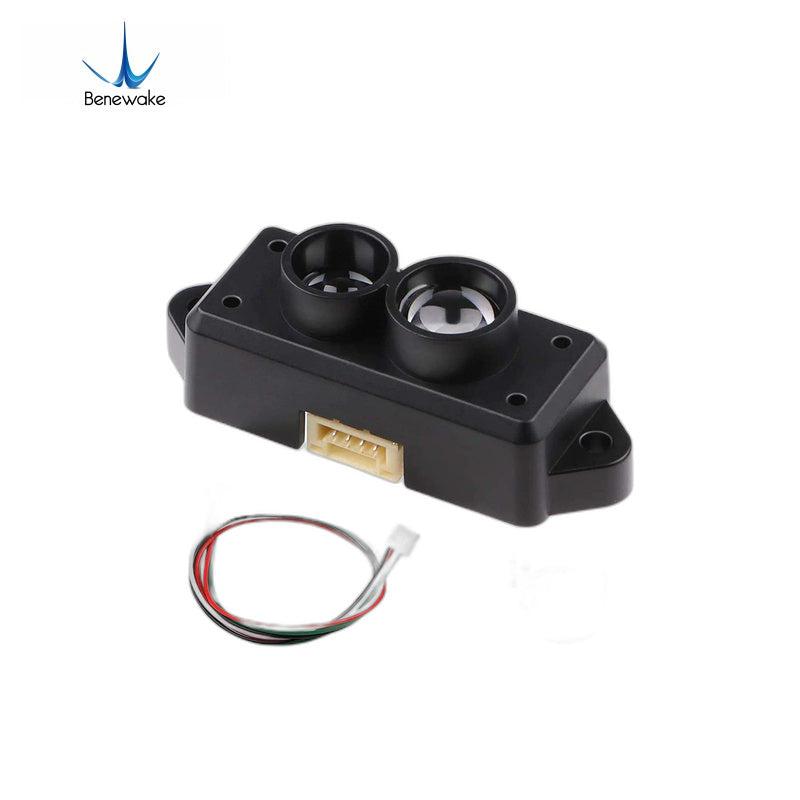

| Cable length | 10cm |
| UART default baud rate | 115200 (adjustable) |
| I²C max transmission rate | 400kbps |
| UART data bit | 8 |
| UART stop bit | 1 |
| UART parity | None |
| I²C master/slave mode | Slave |
| I²C default address | 0x10 |
| I²C address range | 0x01 ~ 0x7F |
BENEWAKE-TFmini-S_Datasheet.pdf
BENEWAKE-TFmini-S_User_Manual.pdf
-
Contact Seller:
+861368646****
Benewake presents 21 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from Benewake.
