Technical Specifications
| Parameter | Value | |
|---|---|---|
| Detection range |
0.2-20m @90% reflectivity @0Klux, 0.2-15m @90% reflectivity @100Klux 0.2-12m @10% reflectivity @0Klux, 0.2-9m @10% reflectivity @100Klux |
|
| Accuracy | ±6cm (0.2~6m), 1% (>6m) | |
| Precision | 2cm (0.2~6m) @1σ | |
| Default frame rate | 0 / 20 / 50 / 100 (Default) / 250Hz | |
| Ambient light resistance | 100Klux | |
| Light source | VCSEL | |
| Central wavelength | 905nm | |
| Field of View (FoV) | <2° | |
| Eye safety | Class 1 Eye-safe [IEC60825] | |
| Average power consumption | ≤0.43W | |
| Peak current | 130mA @3.3V | |
| Power supply | DC 3.3 ± 9% V | |
| Communication level | LVTTL (3.3V) | |
| Operating temperature | -20°C ~ +60°C | |
| Storage temperature | -40°C ~ +85°C | |

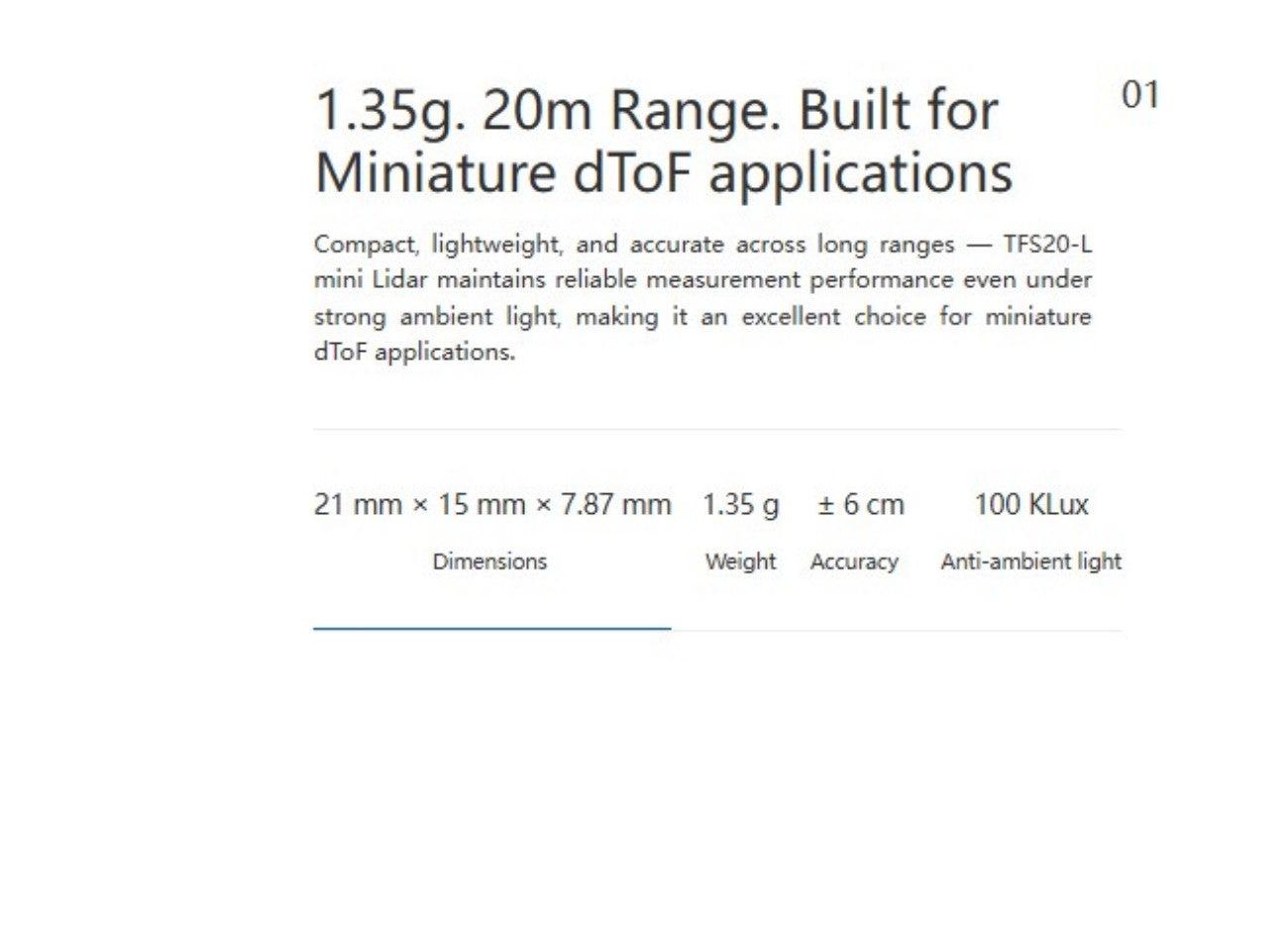

| Dimensions | 21 × 15 × 7.87 mm³ | |
| Weight | ~1.35g | |
| Connector | 0.8mm-6P (Model: WF08006-01207) | |
| Protection Level | N/A | |
| Communication Interface | UART | I²C |
| Baud rate / Max transmission rate | 115200 | 400kbps |
| Data bit / Master/Slave mode | 8 | Slave |
| Stop bit / Default address | 1 | 0x10 |
| Parity / Address range | None | 0x10 ~ 0x7F |
