Technical Specifications
| Parameter | Basic | Touch |
|---|---|---|
| Size | ||
| Weight | 540g ±5g |
540g ±5g |
| Length | 183mm | 183mm |
| Width | 100mm | 100mm |
| Operating Specifications | ||
| Voltage | 9.5 ~ 28V | 9.5 ~ 28V |
| Maximum Current | 3A | 3A |
| Maximum opening distance (between index finger and thumb） | 113mm | 113mm |

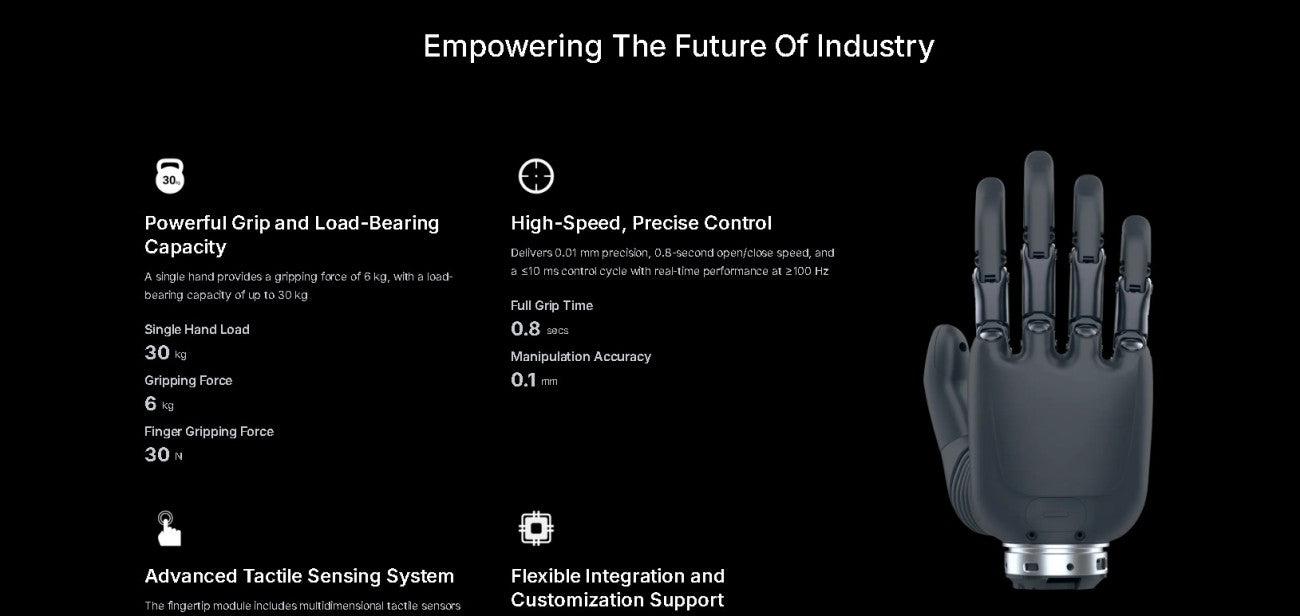

| Maximum Finger Pinch Force | 30N | 30N |
| Power Grasp Force | 50N | 50N |
| Opening/Closing Time | 0.8s | 0.8s |
| Manipulation Accuracy |
0.1mm | 0.1mm |
| Maximum Single Finger Load |
8kg
|
8kg
|

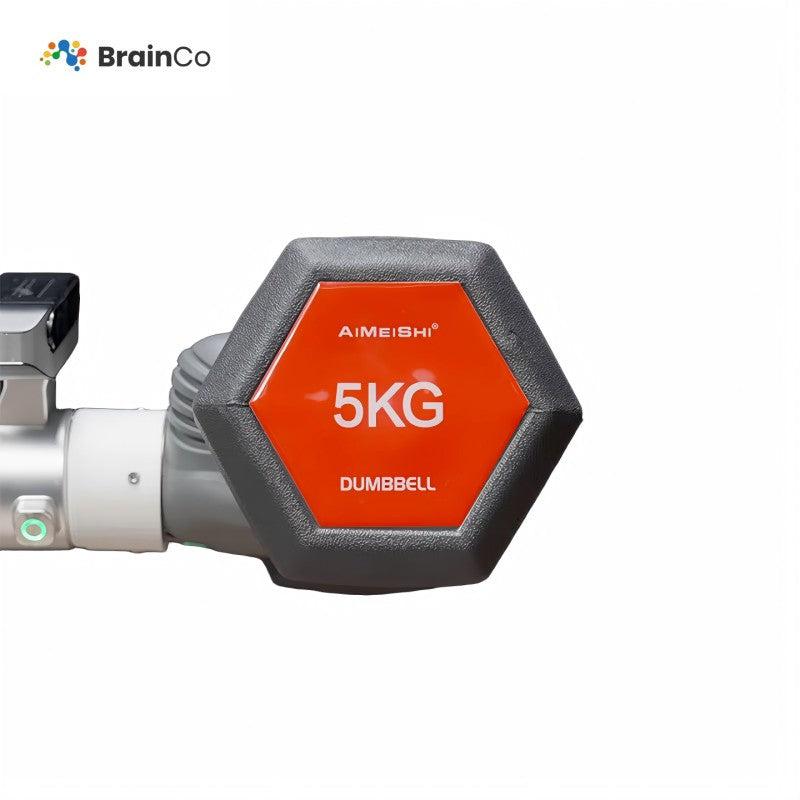

| Maximum Single Hand Load | 30kg | 30kg |
| Hardware Configuration | ||
| Standard Port | RS485，CAN | RS485，CAN |
| Sensor Configuration | Position Sensor, Current Sensor | Position Sensor, Current Sensor |
| Materials | Aerospace-grade Aluminum Alloy & Food-grade Plastic | Aerospace-grade Aluminum Alloy & Food-grade Plastic |
| Degrees of Freedom（DoFs） | 10-DOF Bionic Joint | 10-DOF Bionic Joint |
| Active Joints | 6 High-Precision Micro Motors | 6 High-Precision Micro Motors |
| Intelligent Control | Intelligent Movement Control, Anti-blocking Control, Anti-fall and Shake Protection | Intelligent Movement Control, Anti-blocking Control, Anti-fall and Shake Protection |
| Tactile Sensor | ||

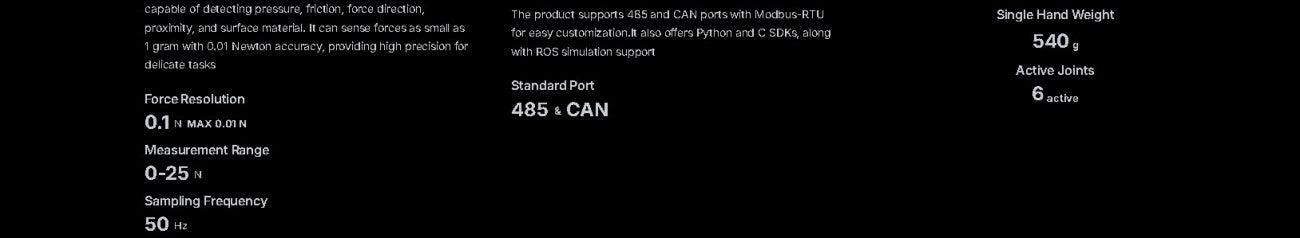

| Multi-Modal Fingertip Tactile Perception | / | Pressure, Friction, Force Direction, Proximity, Surface Material |
| Force Range (Configurable) | / | 0-5N/0-15N/0-25N |
| Force Resolution | / | 0.1N（Max 0.01N at Highly Sensitive Mode） |
| Measurement Accuracy | / | 5%FS |
| Overload Threshold | / | ≥50N |
| Proximity Distance Sensing Range | / | 0–1 cm (Tested with human hand) |
| Manipulation Accuracy | / | 0.01mm |
| Sampling Frequency | / | ≥50Hz |
-
