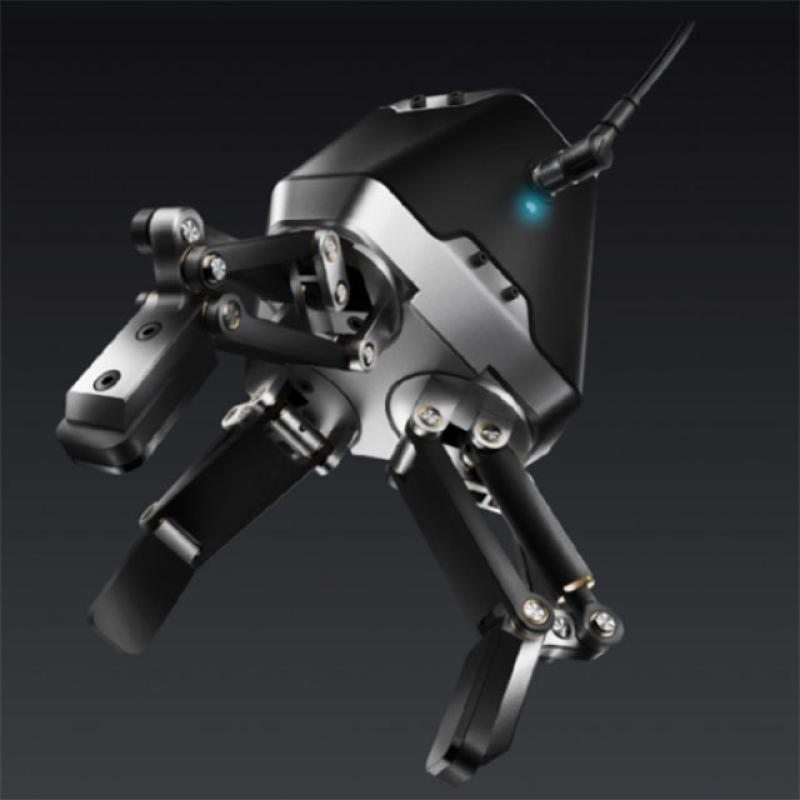

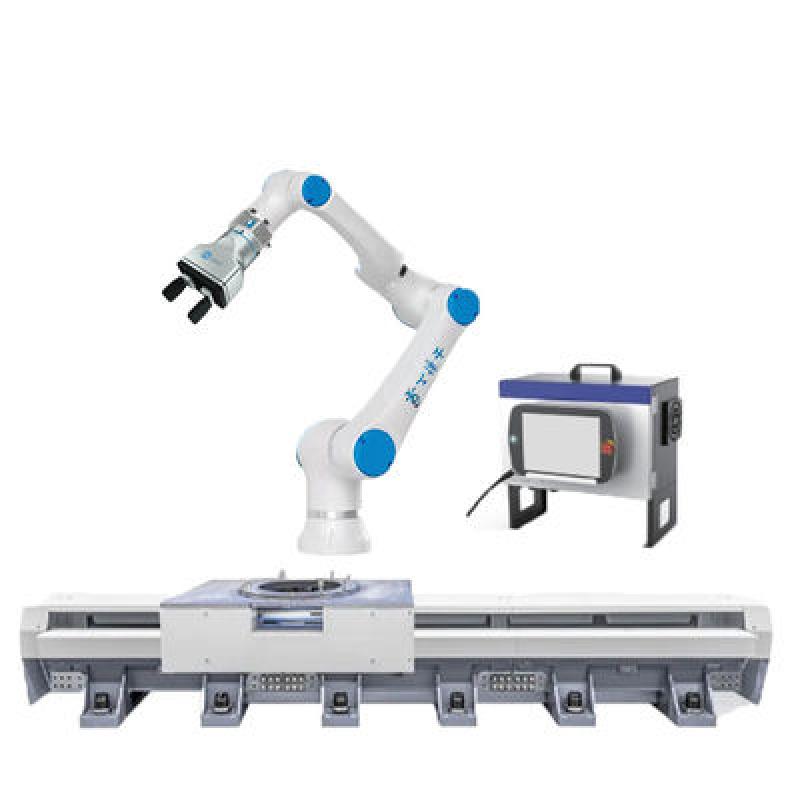

Chinese brand DH-ROBOTICS clamping device match with collaborative robot arm

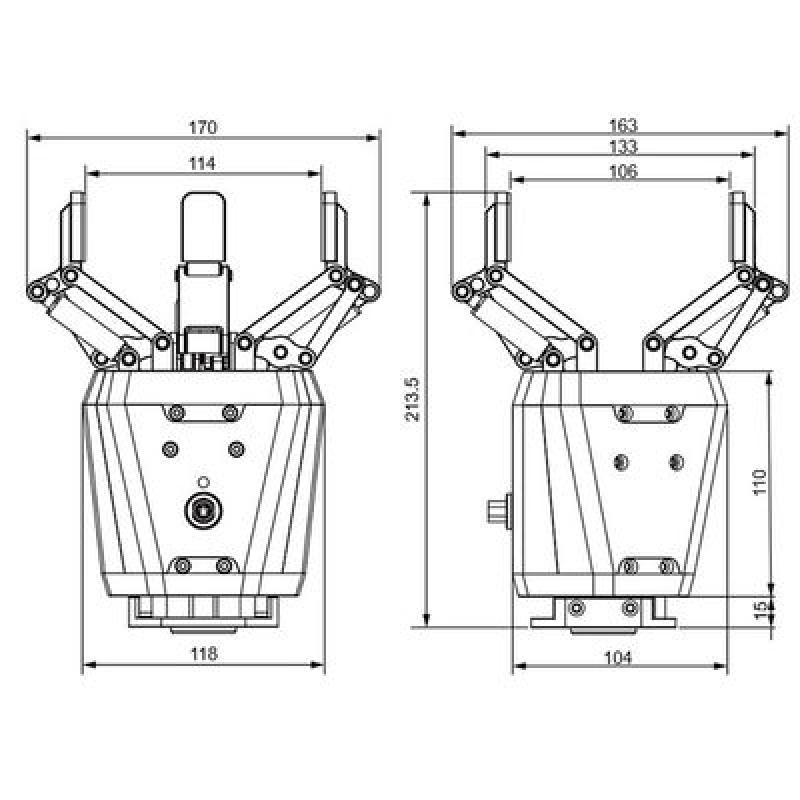

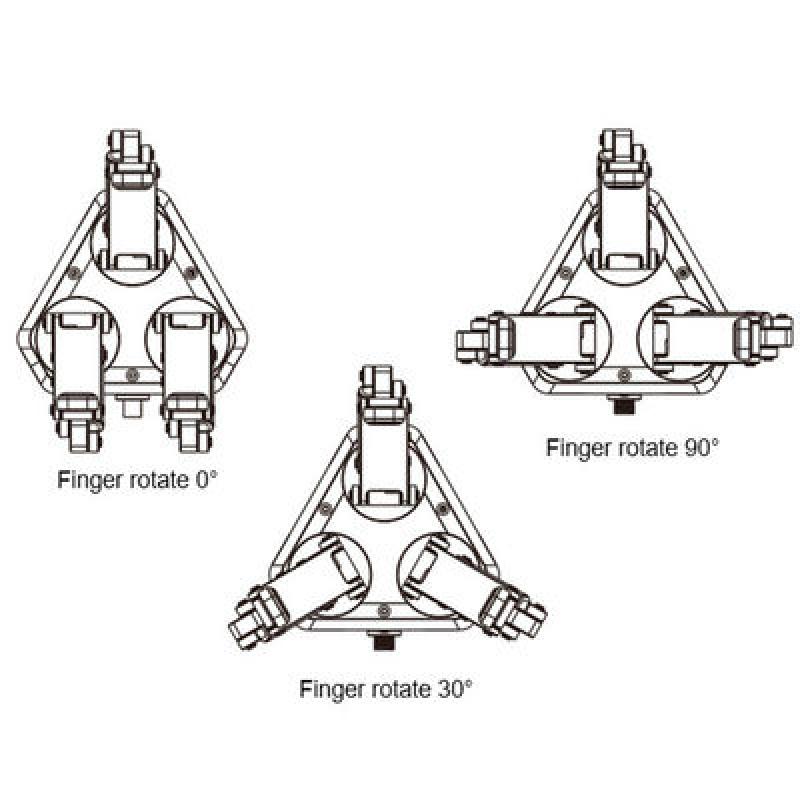

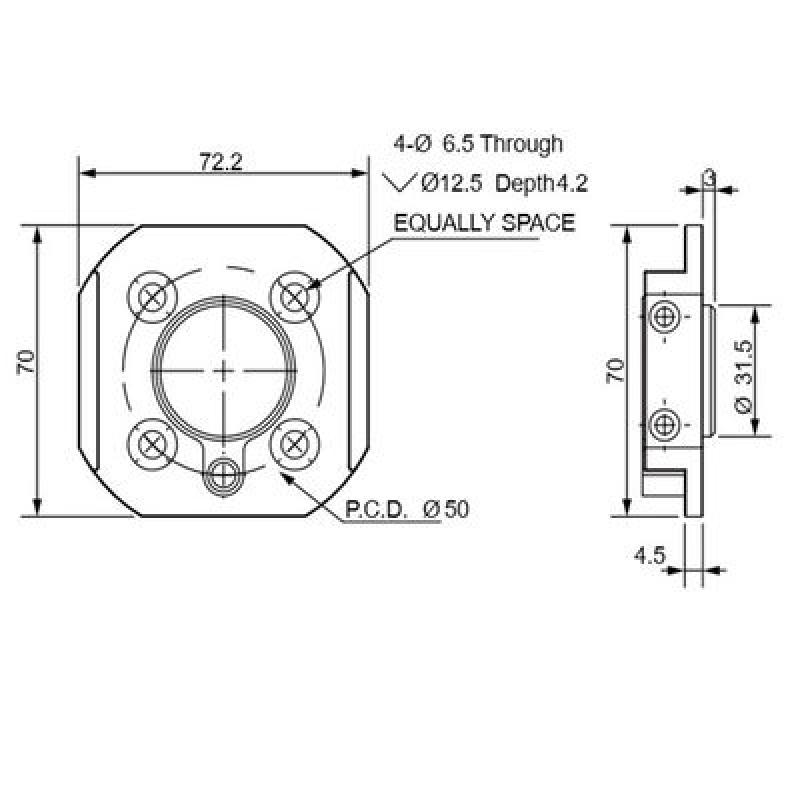

Detailed Images

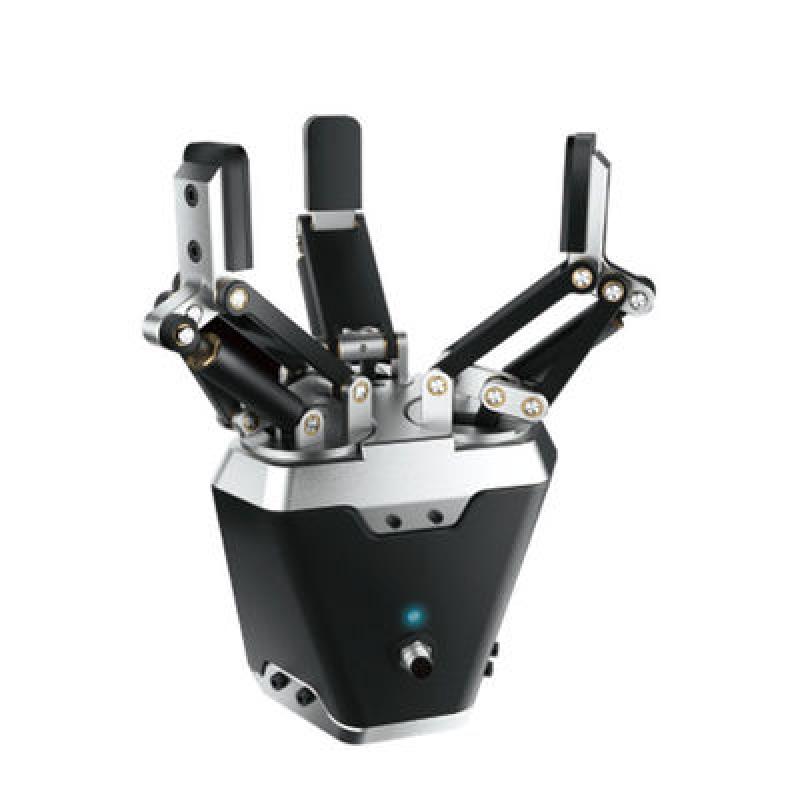

| Production Name | Chinese brand DH-ROBOTICS clamp device DH-3 matched with collaborative robot arm |
| Model | DH-3 robotic clamp device |
| Application | robotic clamp device |
| Stroke (adjustable) | 106/122 mm |
| Form-fit grip payload | 1-2 kg |
| Friction grip payload | 1.68 kg |
| Grip force (adjustable) | 10-65 N |
| Gripper mass | 1.68 kg |
| Position resolution (fingertip) | ±0.05 mm |
| Nominal supply voltage | 24VDC±10% |
| Full-stroke closing time | 0.7 S |
| Communication protocol | TCP/IP,USB2.0, RS485,I/O |
-
