Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Application | Legged Robot, Exoskeleton, AGV |
| Driving Way | FOC |
| Operation Ambient Temperature | -20~50℃ |
| Winding Type | Delta |
| Insulation Level | F |
| Insulation High-Voltage | 500V 5mA/2s |
| Insulation Resistance | 500V 10MΩ |
| Number Of Slots |
36 |
| Pole Pairs | 21 |

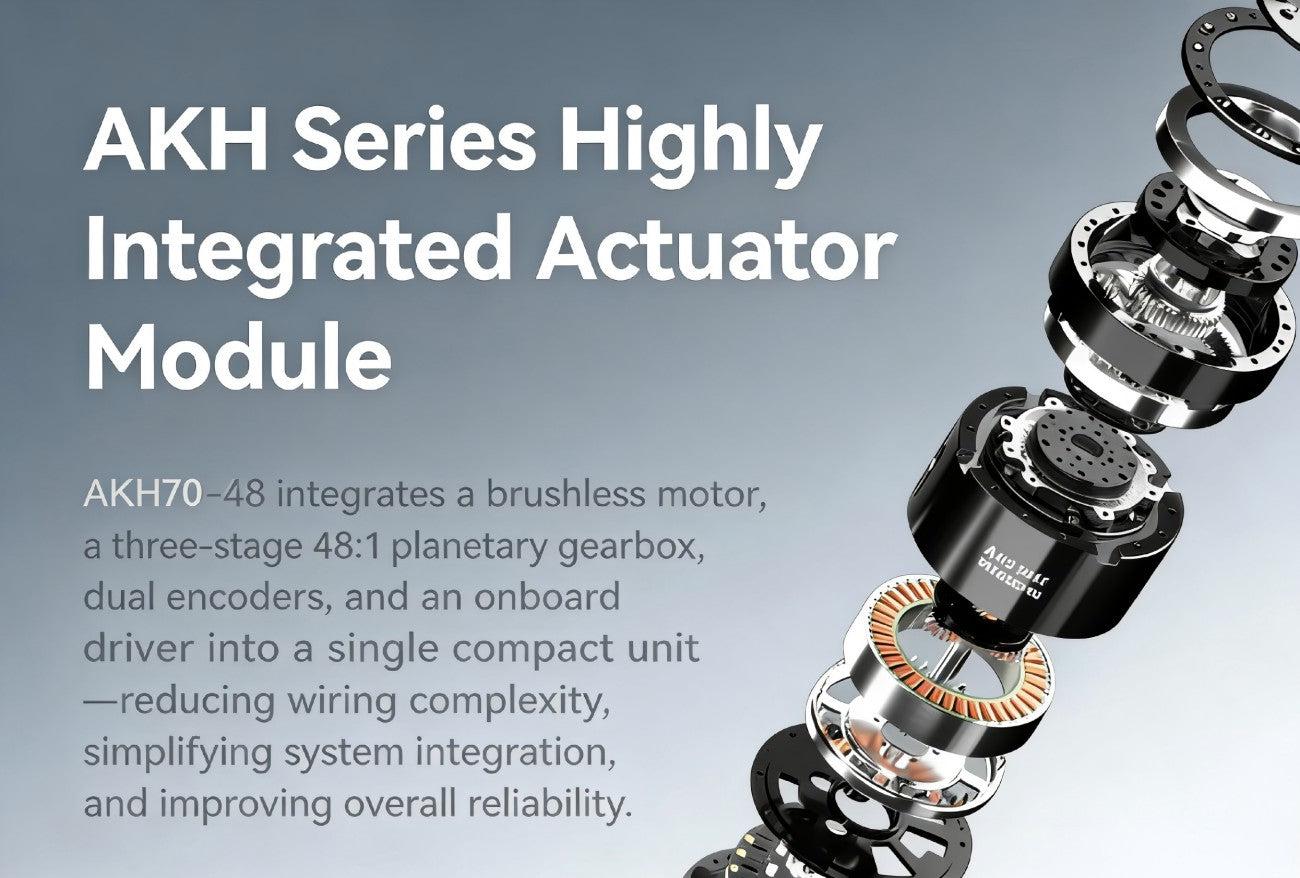

| Reduction Ratio | 48:1 |
| Back Drive (N·m) |
2.22 |
| Backlash (arcmin) | 12 |
| Temperature Sensor | NTCMF51B103F3950 |
| Noise dB (65cm Away The Motor) | 65 |
| Basic Dynamic Load Rating (CN) | 5680 |
| Basic Static Load Rating (C₀N) | 8680 |
| Rated Voltage (V) |
48 |
| Rated Torque (N·m) | 74 |
| Rated Speed (RPM) | 28 |
| Rated Current (ADC) | 6 |
| Weight (g) | 1396 |
| Peak Torque (N·m) | 222 |
| Peak Current (ADC) | 18 |
| No-Load Speed (RPM) |
35 |
| KV (RPM/V) | 41 |
| KT (N·m/A) | 0.23 |
| KE (V/KRPM) | 2.4 |
| Phase to Phase Resistance (Ω) | 0.56 |
| Phase to Phase Inductance (mH) | 0.6 |
| Rotor Inertia (gcm²) | 1170 |
| Motor Constant (N·m/√W) | 0.31 |
| Mechanical Time Constant (ms) | 2.28 |
| Maximum Torque Density (N·m/kg) | 159 |

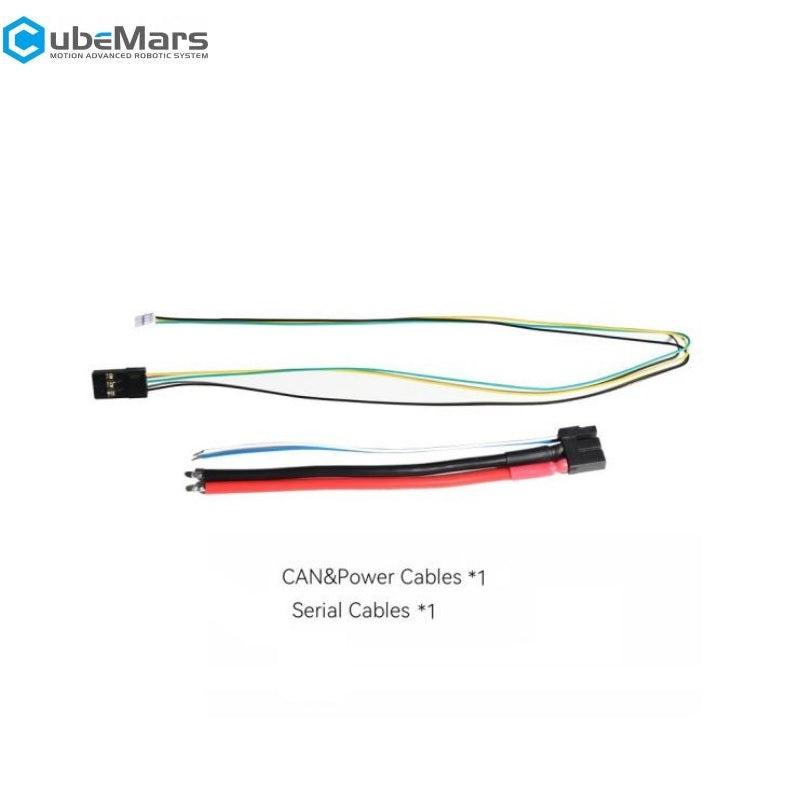

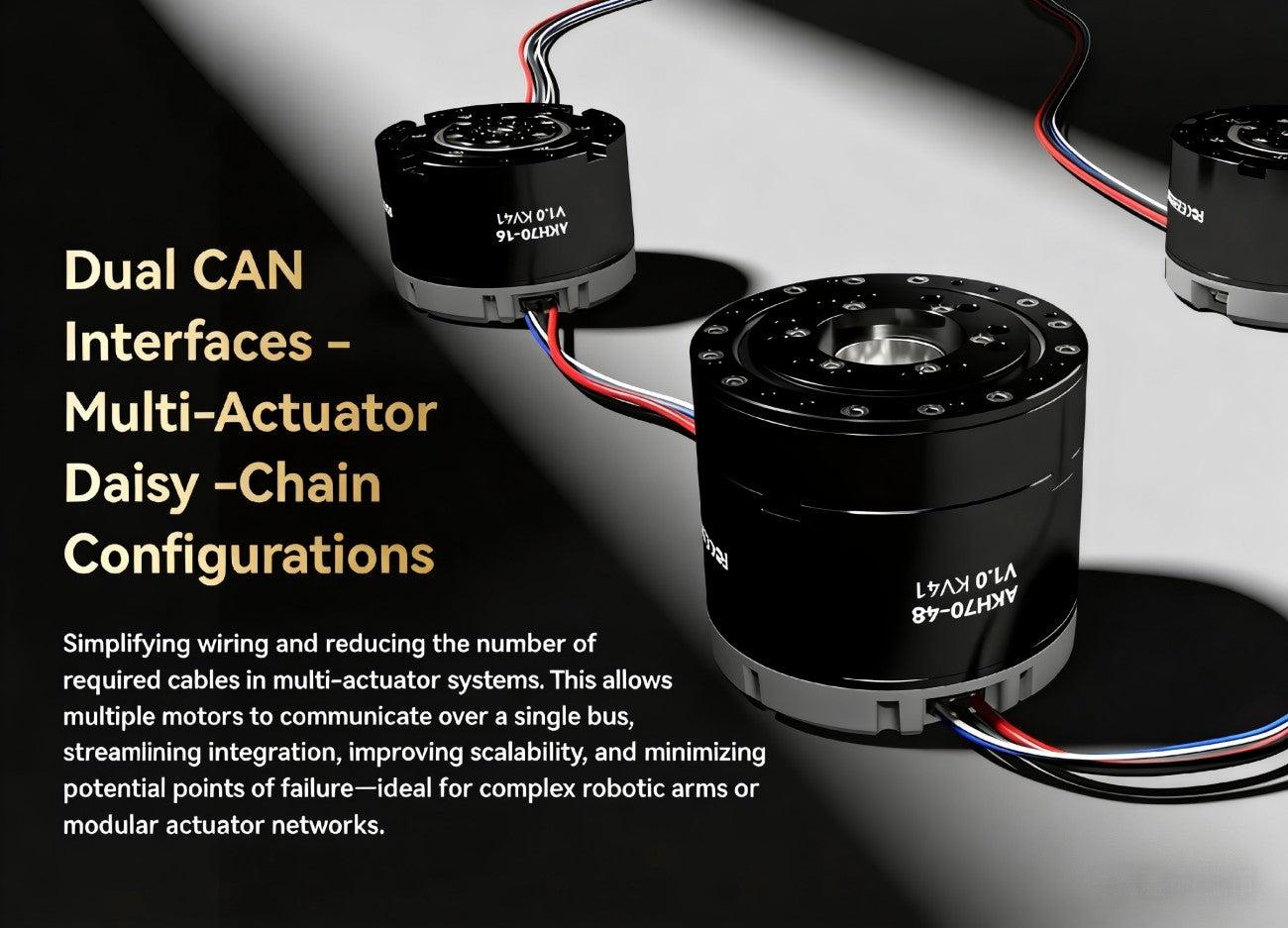

| CAN Connector | XT30PW (2+2)-M |
| UART Connector | A1257WR-S-3P |
| Power Connector | XT30PW (2+2)-M |

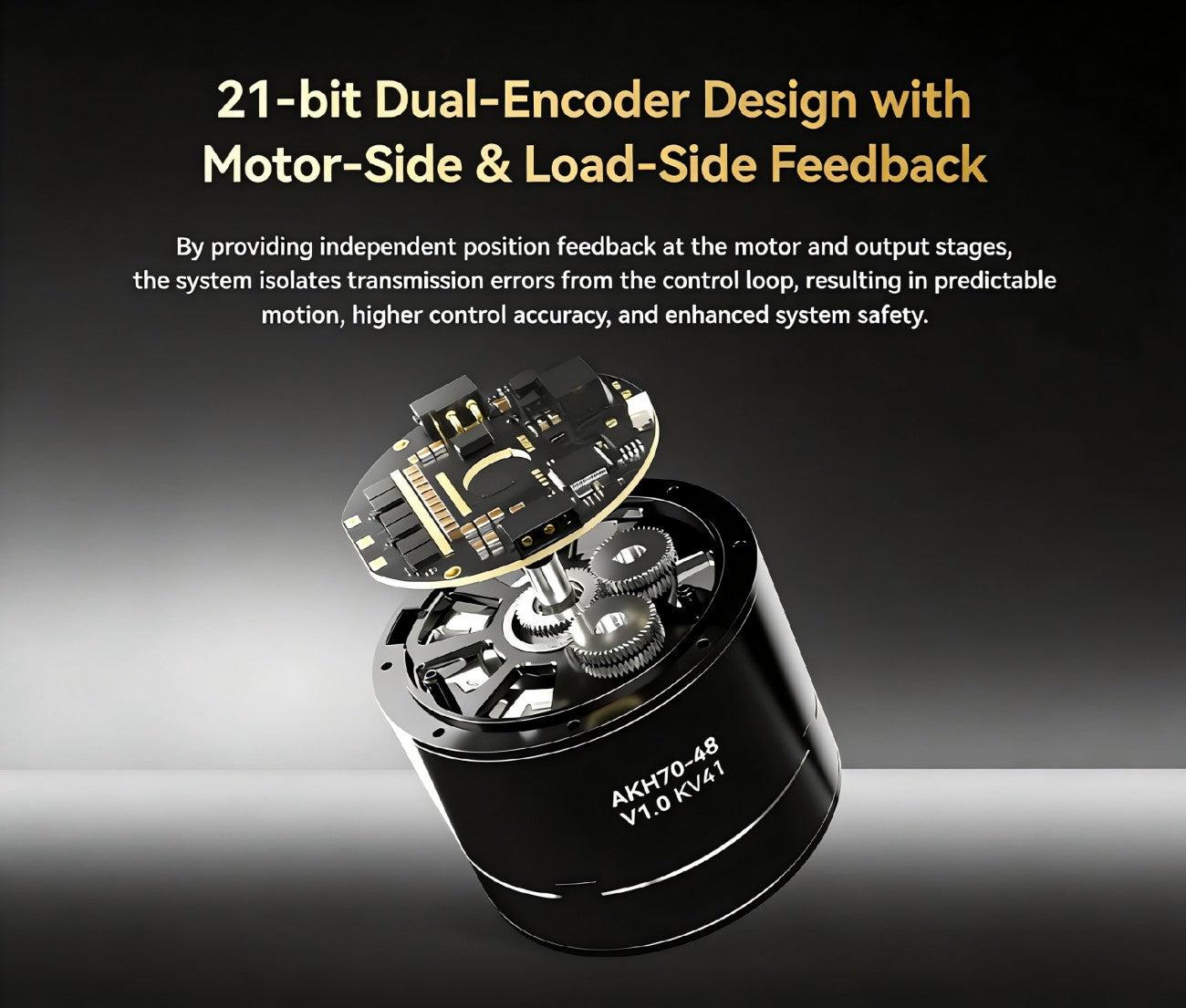

| Inner Loop Encoder Type | Magnetic |
| Inner Loop Encoder Resolution | 21bit |
| Outer Loop Encoder Type | Magnetic |
| Outer Loop Encoder Resolution | 21bit |
| Number of Encoder | 2 |
-
