Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china
Main Specifications:
Maximum reach:924.5 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
Product Description
| Product Name | Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china |
| Application | Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china; 6 axis industrial robot arm ;low cost industrial robot ;welding robot china; |
| Model | Aubo i5 |
| Robot Arm | |
| Maximum reach | 924.5 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 24 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 200W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±175° |
| A2 | ±175° |
| A3 | ±175° |
| A4 | ±175° |
| A5 | ±175° |
| A6 | ±175° |
| Controller | |
| Size | 727mm*623mm*235mm |
| Weight | 20Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |

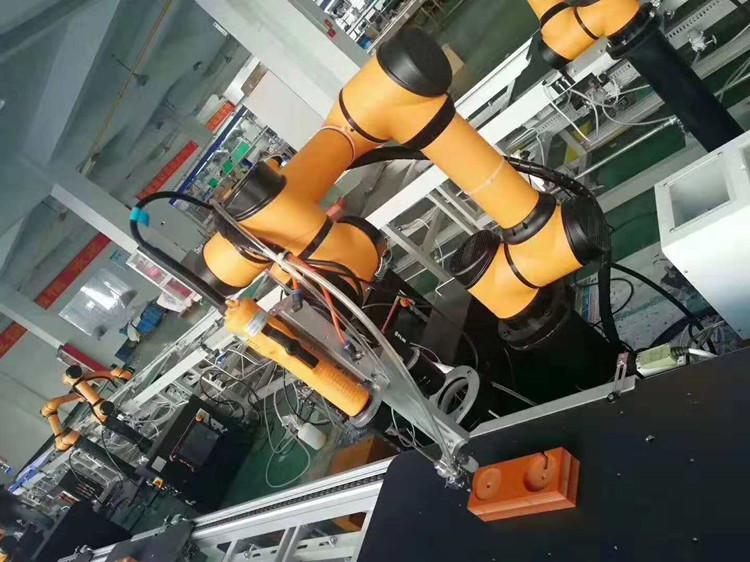

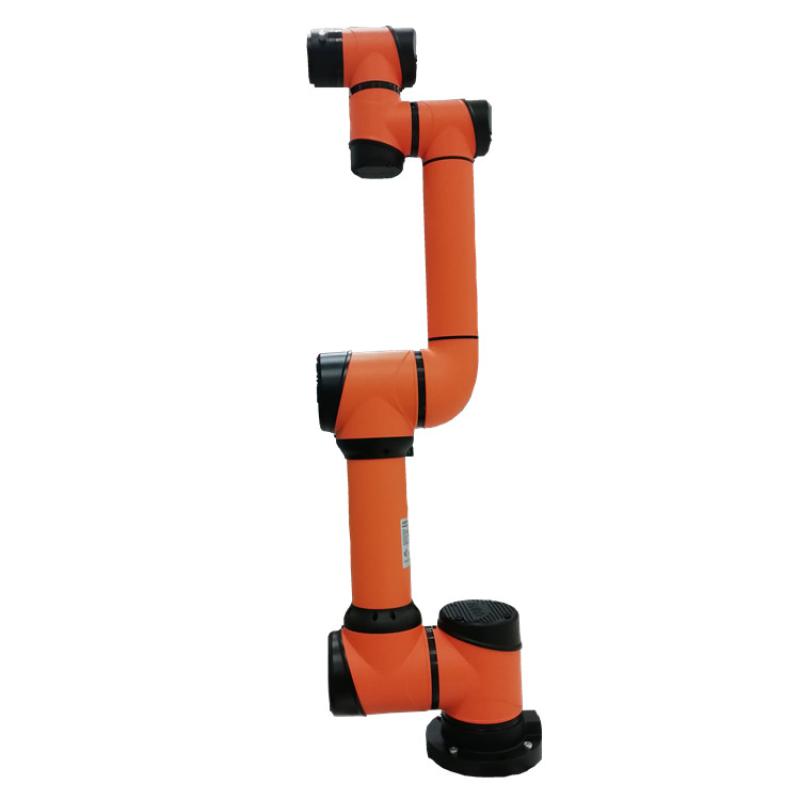

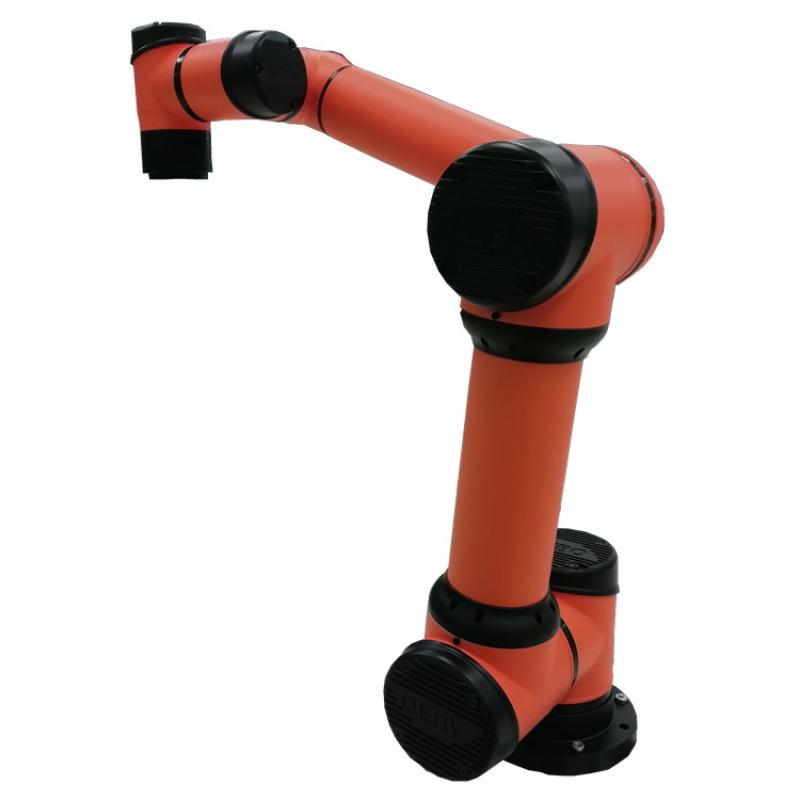

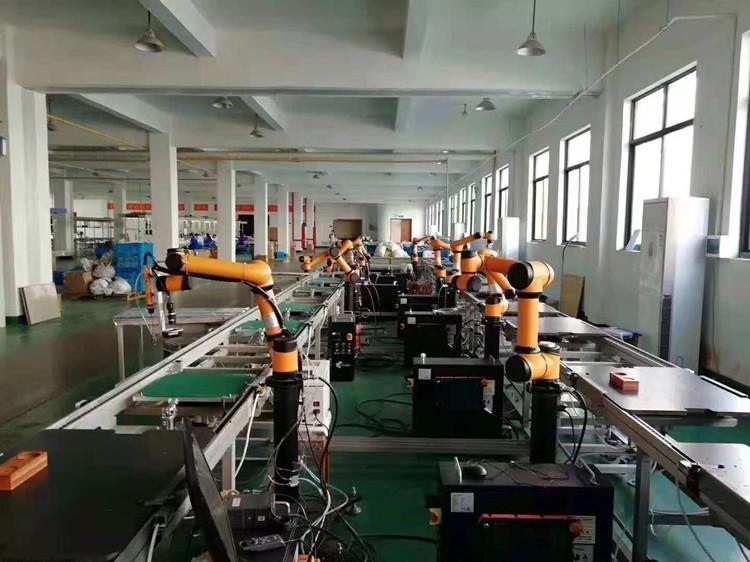

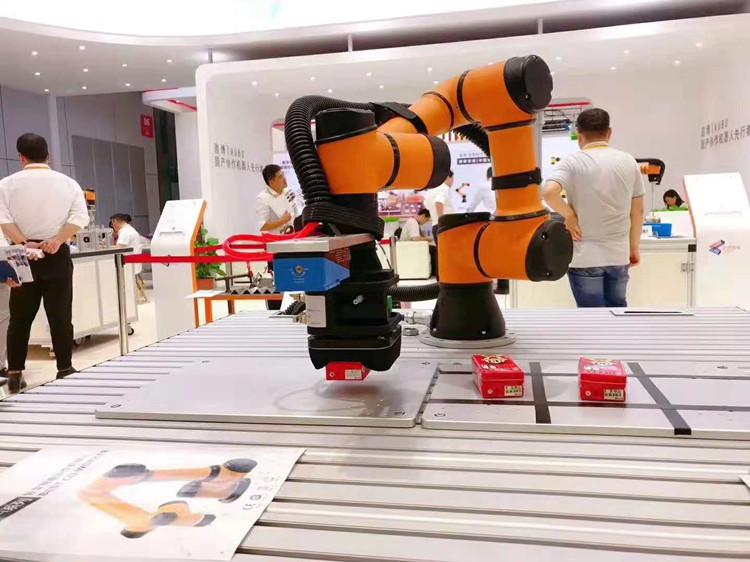

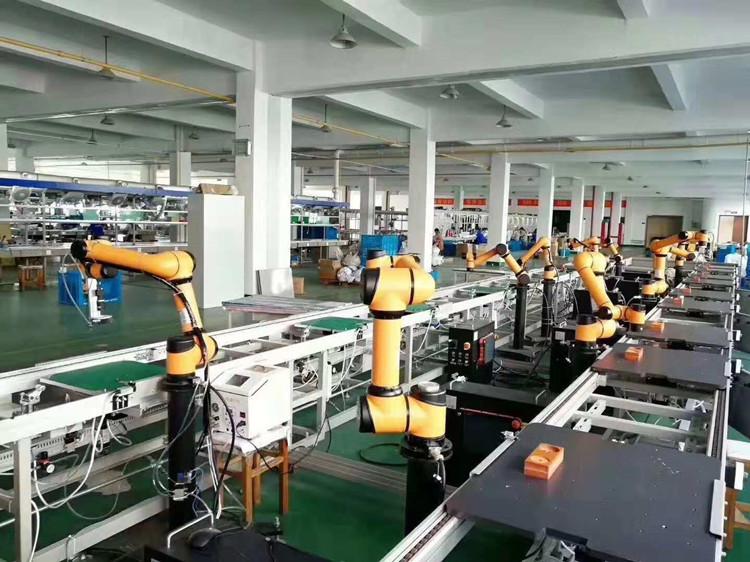

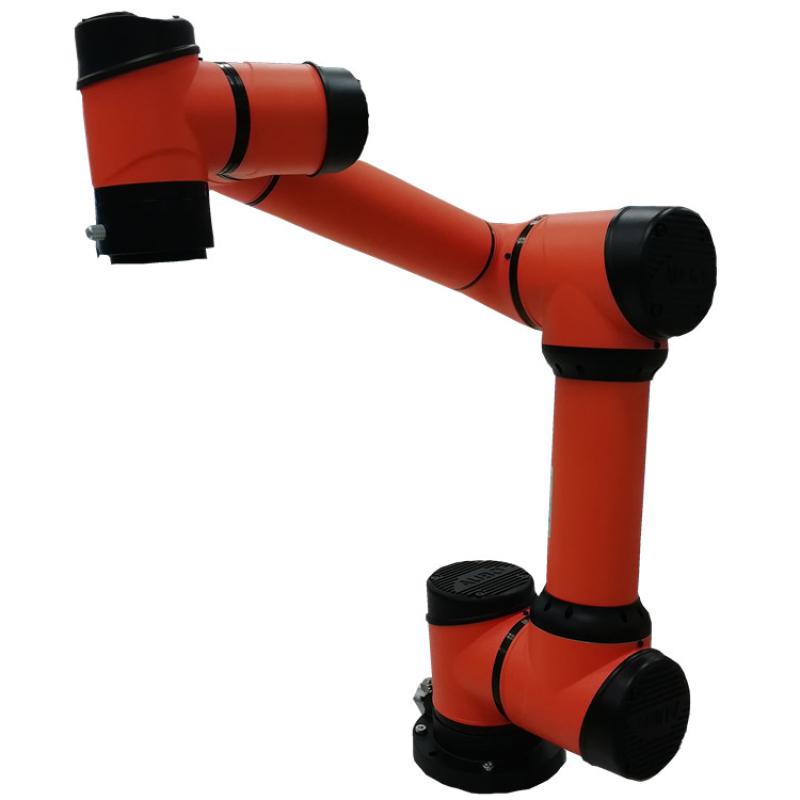

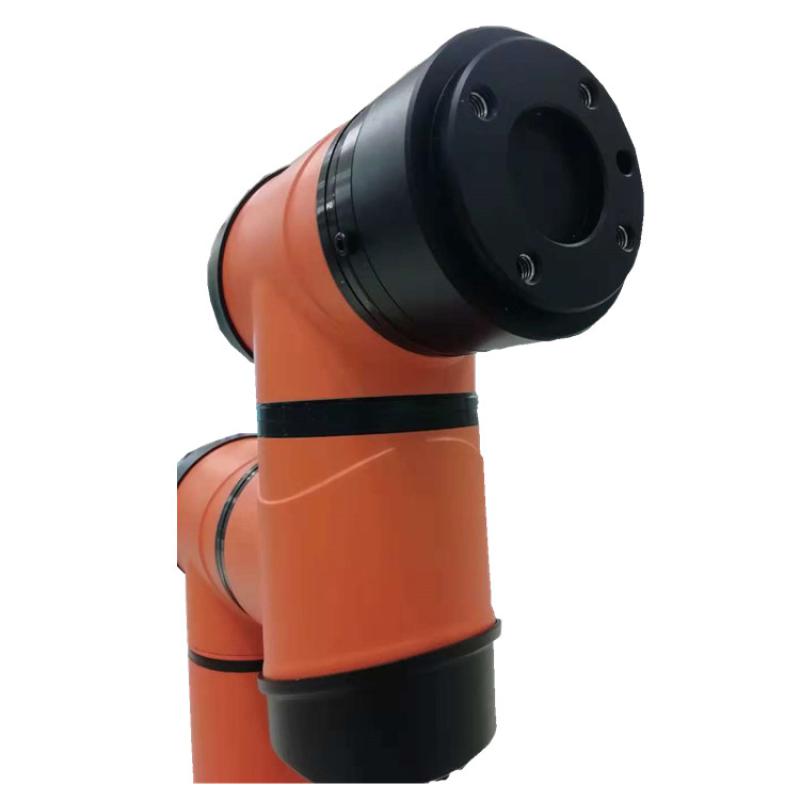

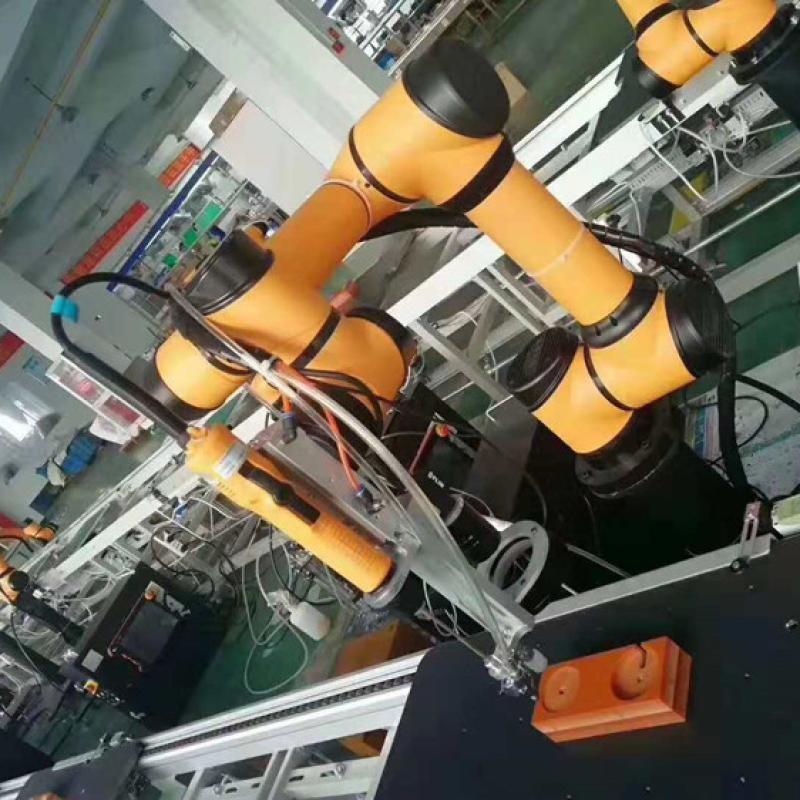

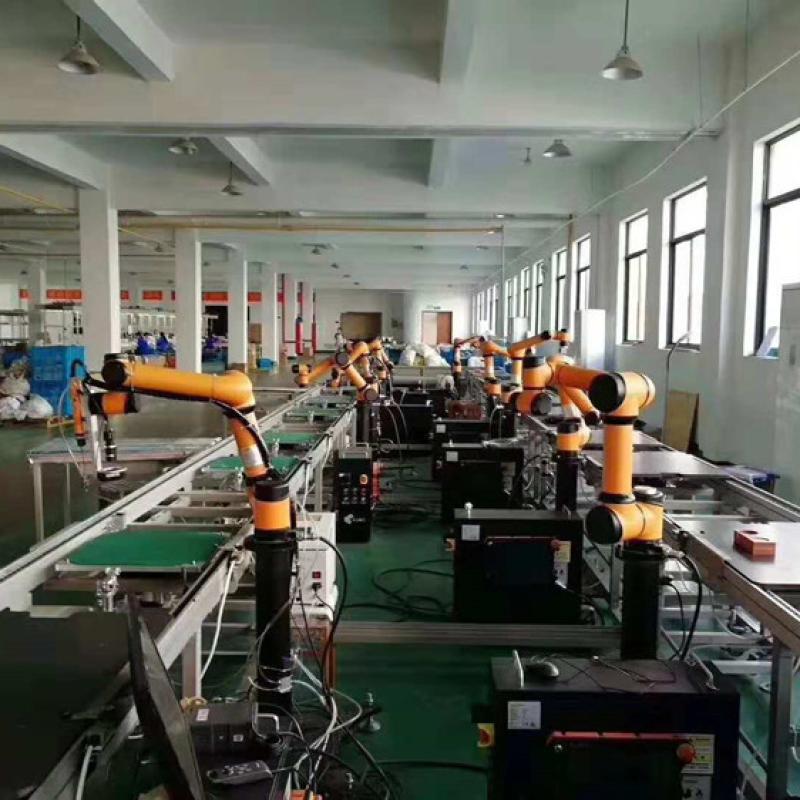

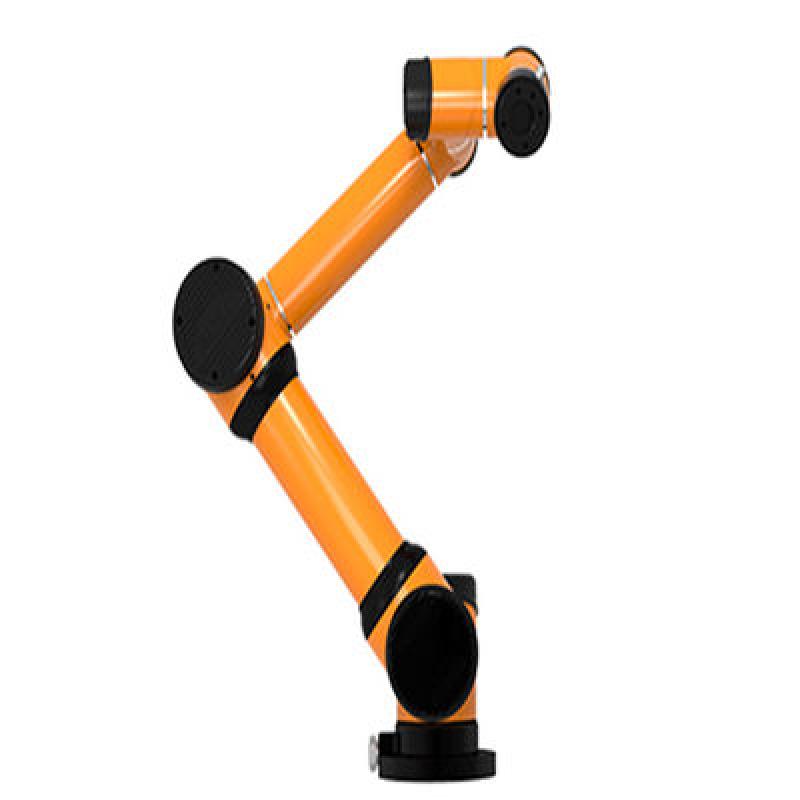

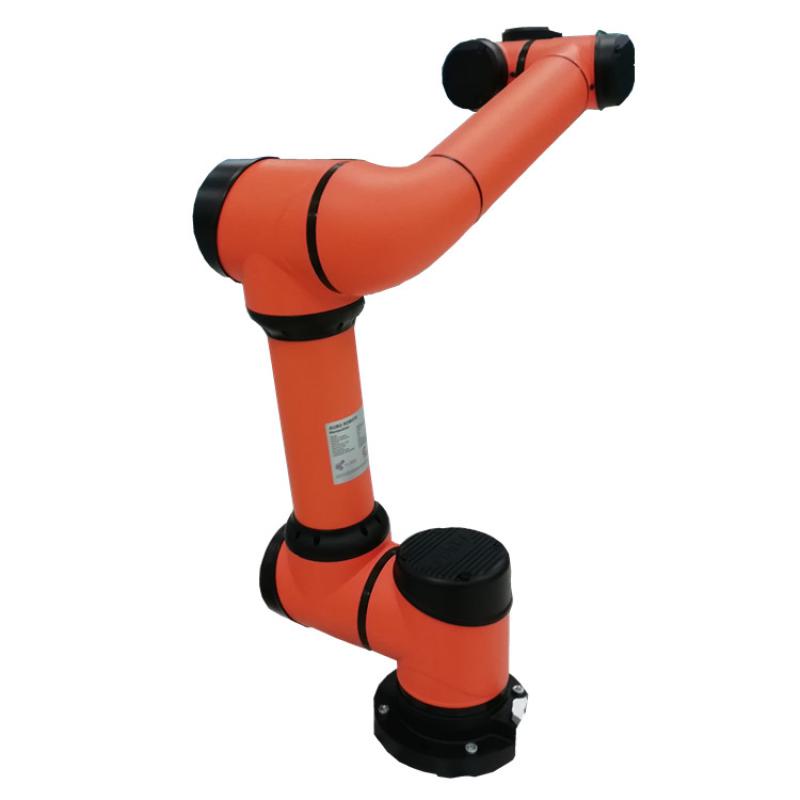

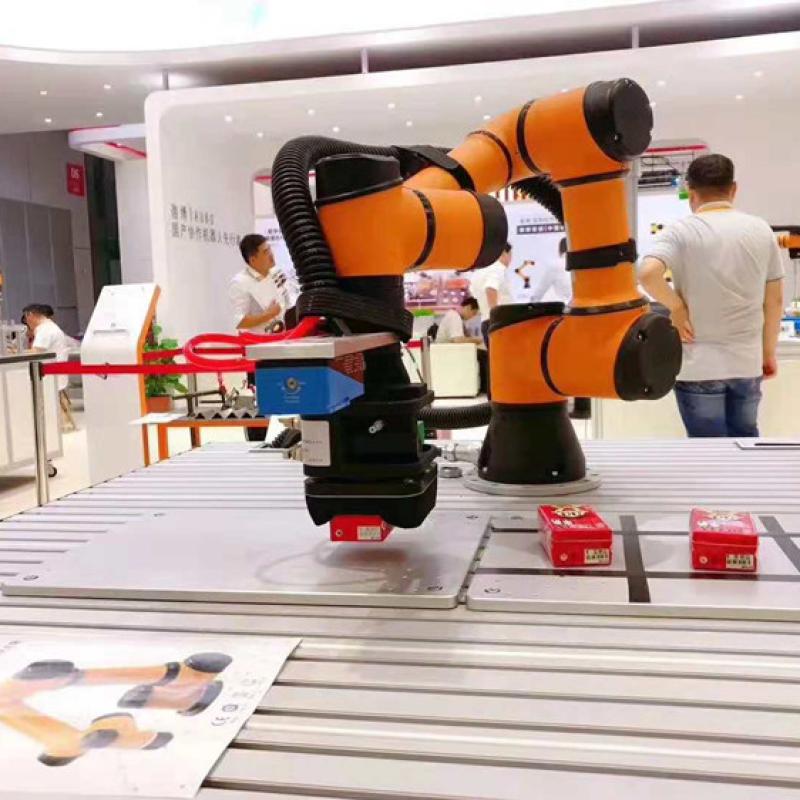

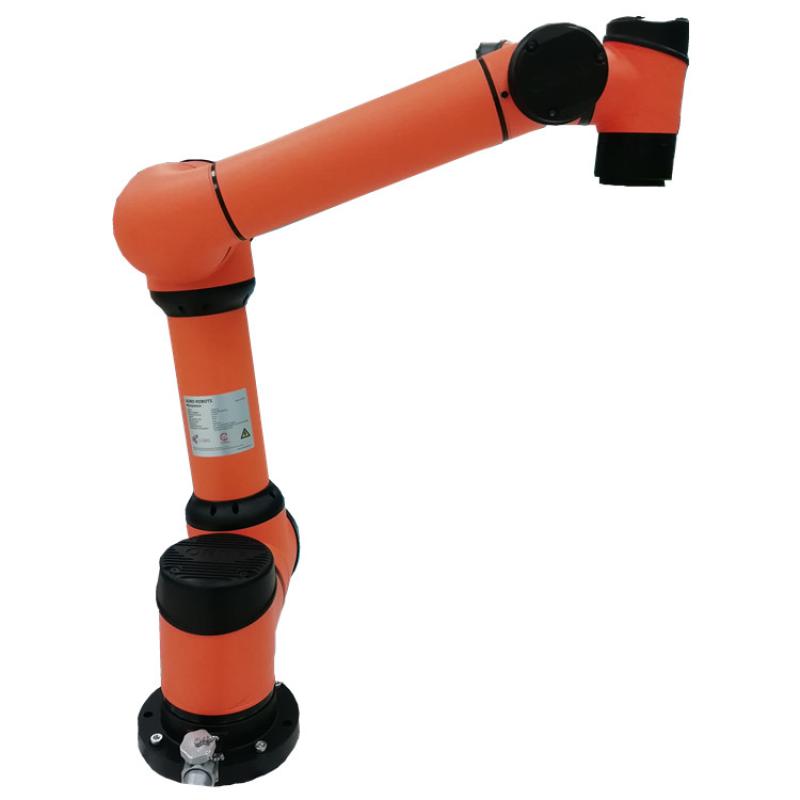

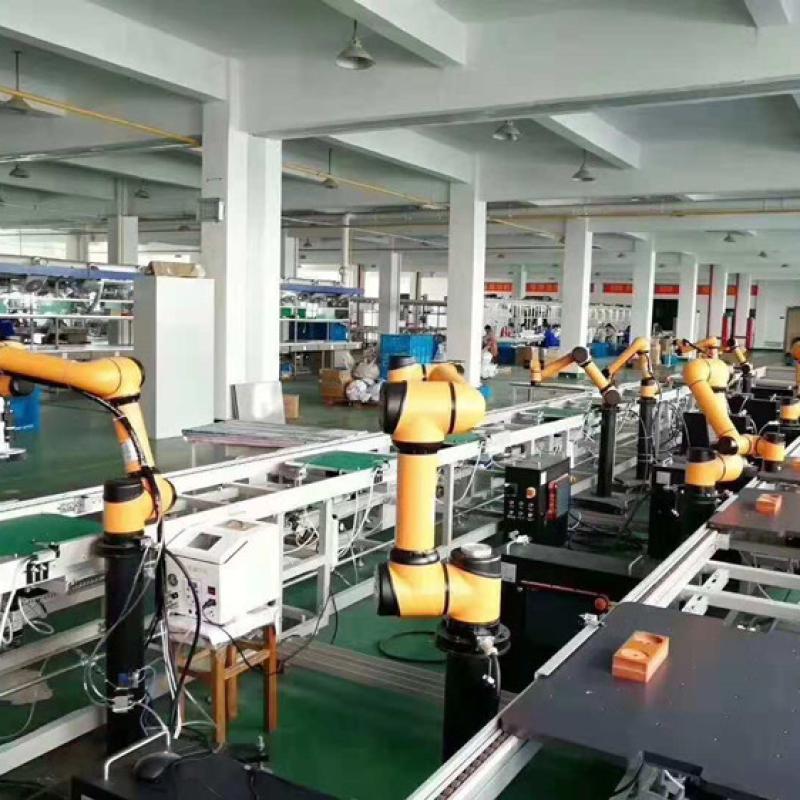

Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
