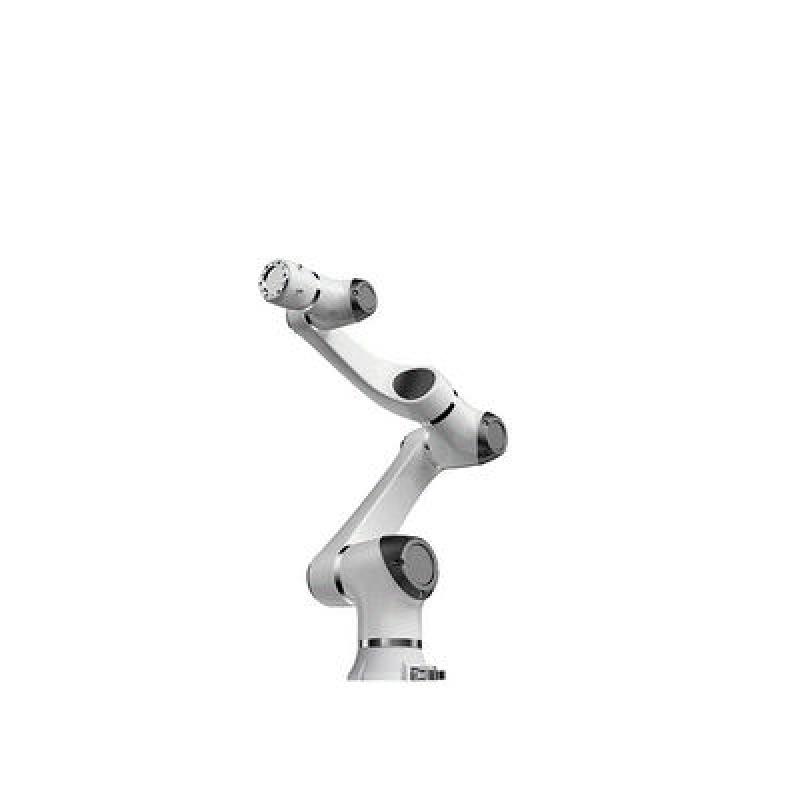

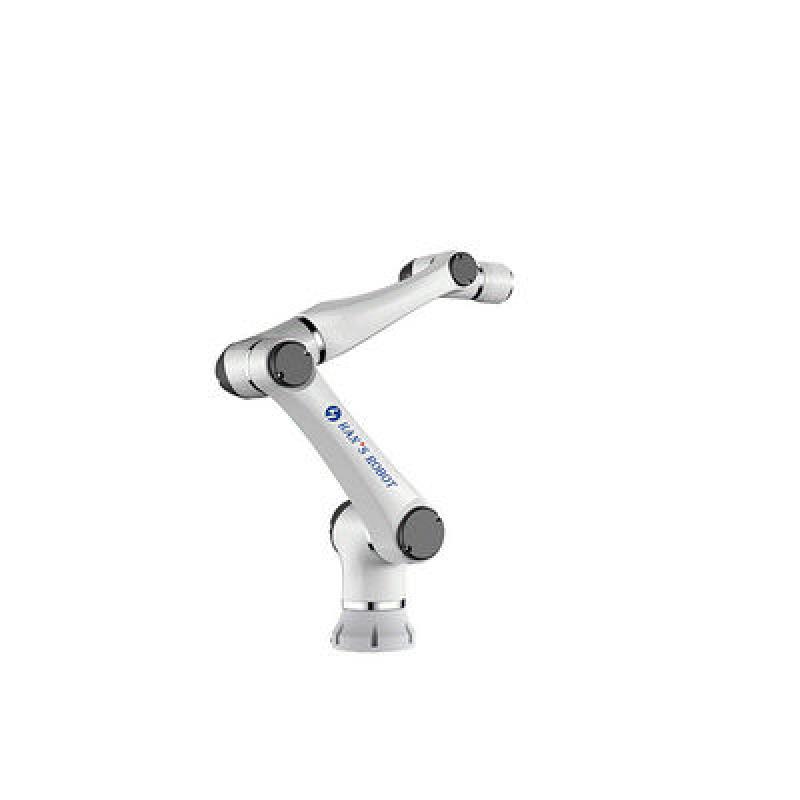

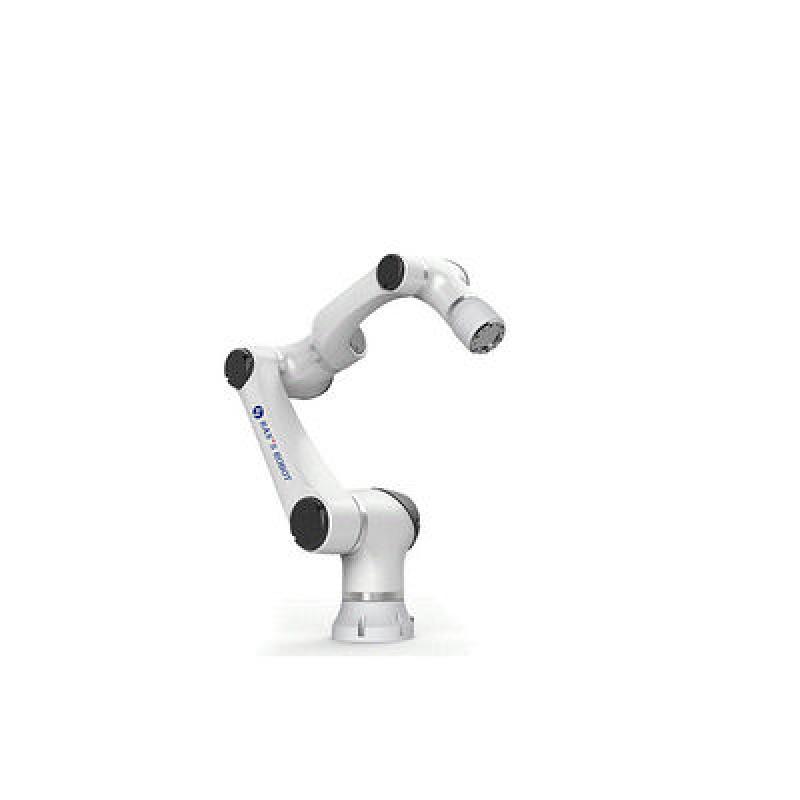

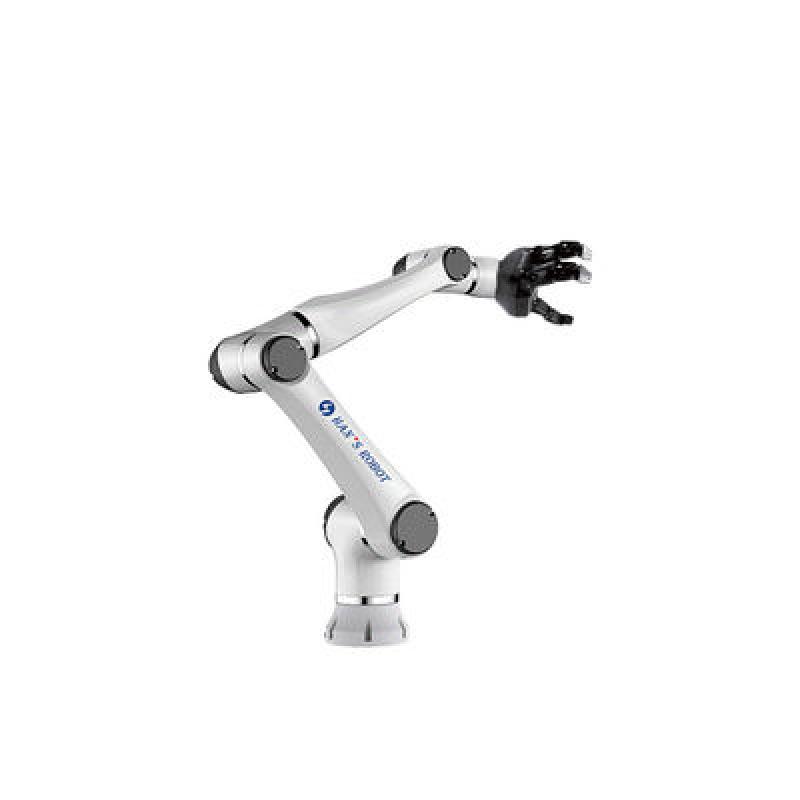

E3 Collaborative Painting Robot for Industry
Introduction
HAN'S Elfin robots are useful for integrated automatic production line, assembly, pickup,welding, grinding,painting,etc.
5kg in rated load with 23kg in weight
Modularity: All-in-one module of reducer, motor, encoder and drive
High accuracy: Repeatability up to ±0.05mm
| Type | E3 | Tool Speed | 1 m/s | Programming | graphical programming, remote process call |
| Weight | 17kg | Repeatability | ±0.05(in normal condition) | IP Class | IP54 |
| Payload | 3kg | Degree of Freedom | 6 | Cooperative Operation | 10 advanced configurations for safety |
| Reach | 590mm | Control Box Size | 400*366*263mm | Main Material | aluminum alloy |
| Power | 100w in typical cycle | I/O Port | digital input/output:4, analog input:2 | Working Temperature | 0-50º |
| Joint Range | ±360º | I/O Source | 24V 2A | Power Input | 100-240VAC,50-60Hz |
| Joint Speed | 90º/s | Communication | TCP/IP | Cable | cable to connect the control box:5m, cable to connect teach pendant:5m |
-
