Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

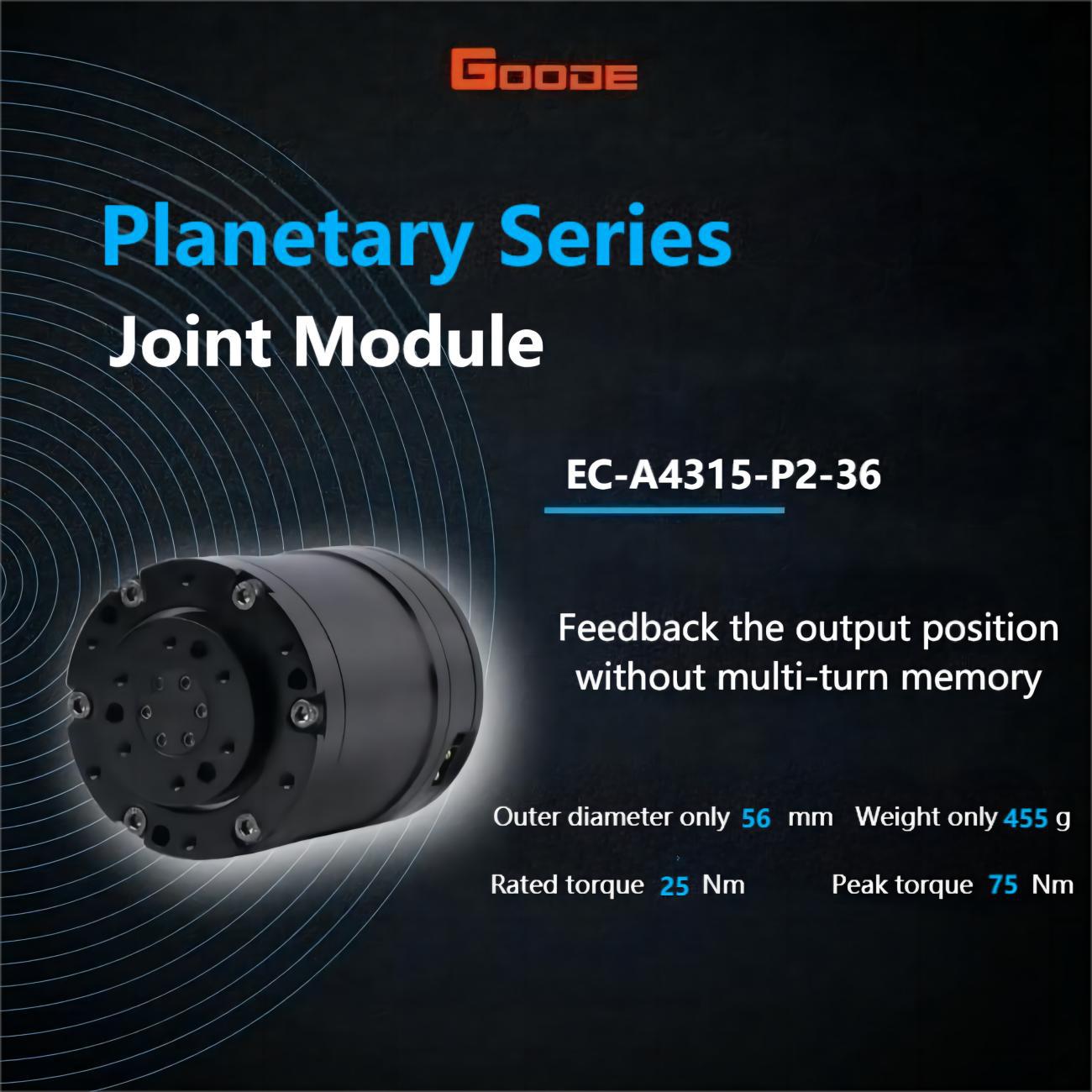

Technical Specifications
| Parameter | Value |
|---|---|
| Reduction Ratio | 36 |
| Rated Voltage | 48 V |
| Rated Bus Current | 8.28 A |
| Rated Phase Current | 10.22 A |
| Rated Power | 397 W |
| Rated Speed | 109 RPM |
| Rated Torque | 25 Nm |
| Peak Speed | 117 RPM |
| Peak Phase Current | 30 A |
| Peak Torque | 75 Nm |
| Efficiency | 74% |
| Torque Constant | 2.8 Nm/A |
| Weight | 485 g |
| Backlash | 10 Arcmin |
| Motor Size | 56 x 69.5 mm |
| Communication Mode | CAN |
| Communication Baud Rate | 1M |
| Double Encoder | Yes |
| Axial And Radial Loads | 1.89 KN |
| Bending Moment Resistance | 28 Nm |
| Cross Roller Bearing Type | 3005 |
| The Rotor Inertia Of The Motor | 25 kgmm² |
| Torque Density | 154.6 Nm/kg |
-
