Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform

$*.** 100% Off $*.**

Sold By: CNGBS Store

Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform
100 products available

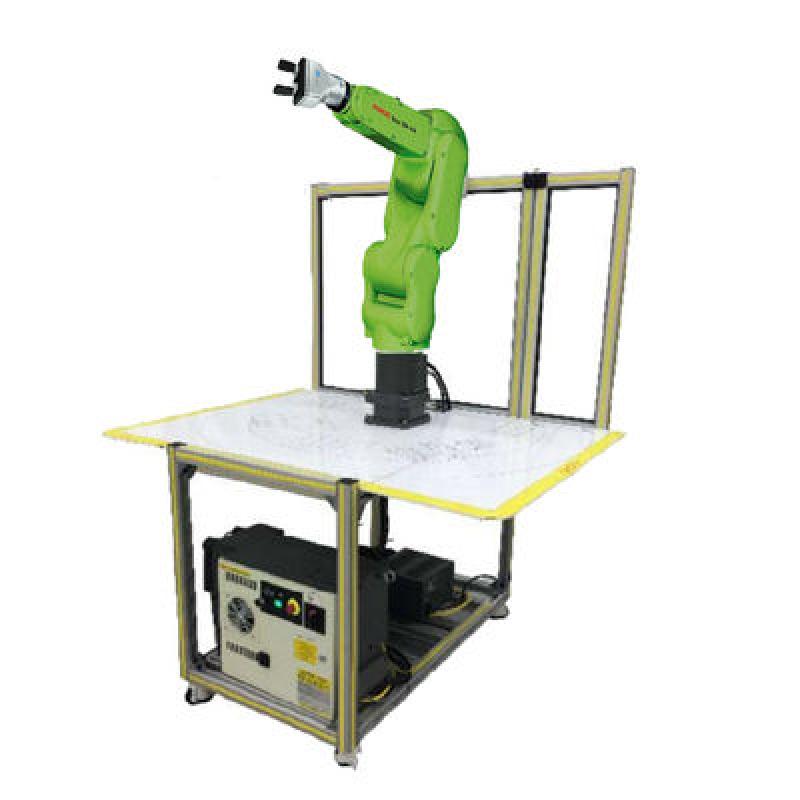

robot arm for sale Fanuc CR-4iA 6 axis robot arm with onrobot 2 finger gripper and service platform for material handing

Product image

Product Description



DESCRIPTION
Product name
Model CR-4iA
Controlled axes 6
Reach 550mm
Installation Floor/Upside-down ,Angle mount
Motion range J1 340° 5.93rad
J2 150° 2.61rad
J3 354° 6.17rad
J4 380° 6.63rad
J5 200° 3.49rad
J6 720° 12.57rad
Max.load capacity at wrist 4kg
Maximun speed 1000mm/s
Allowable load moment at wrist J4 8.86N.m
J5 8.86N.m
J6 4.9N.m
Allowable load inertia at wrist J4 0.20kg.m2
J5 0.20kg.m2
J6 0.067kg.m2
Repeatability ±0.01mm
Mass 48kg
