Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT-2806-C001 |

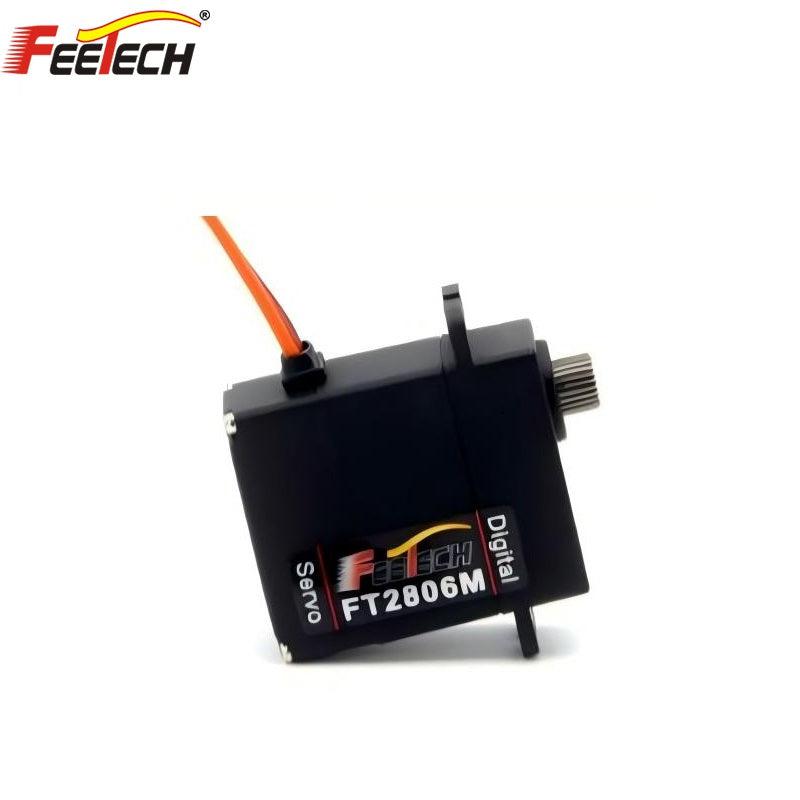

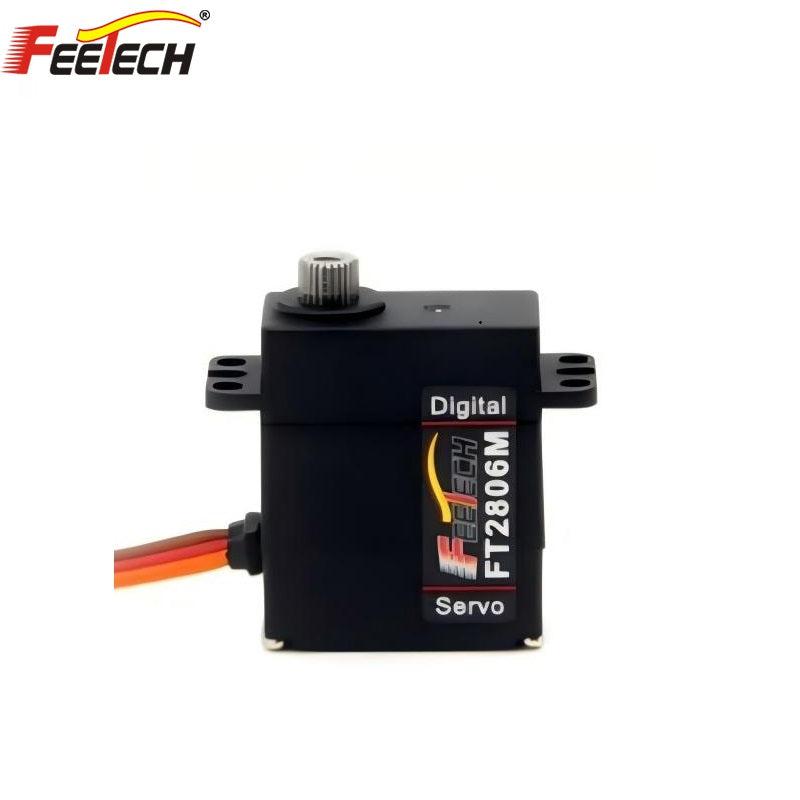

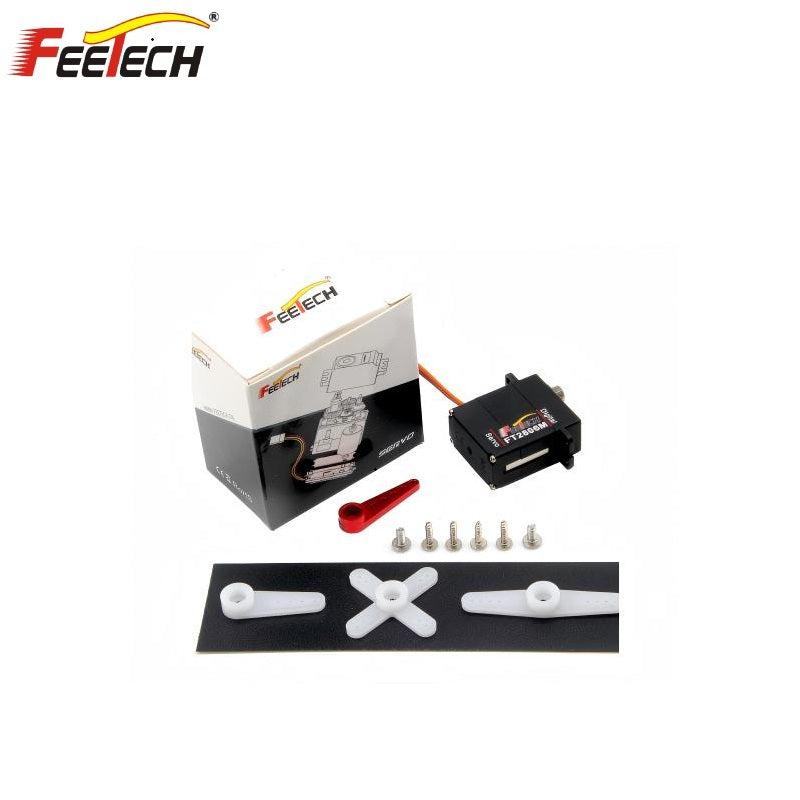

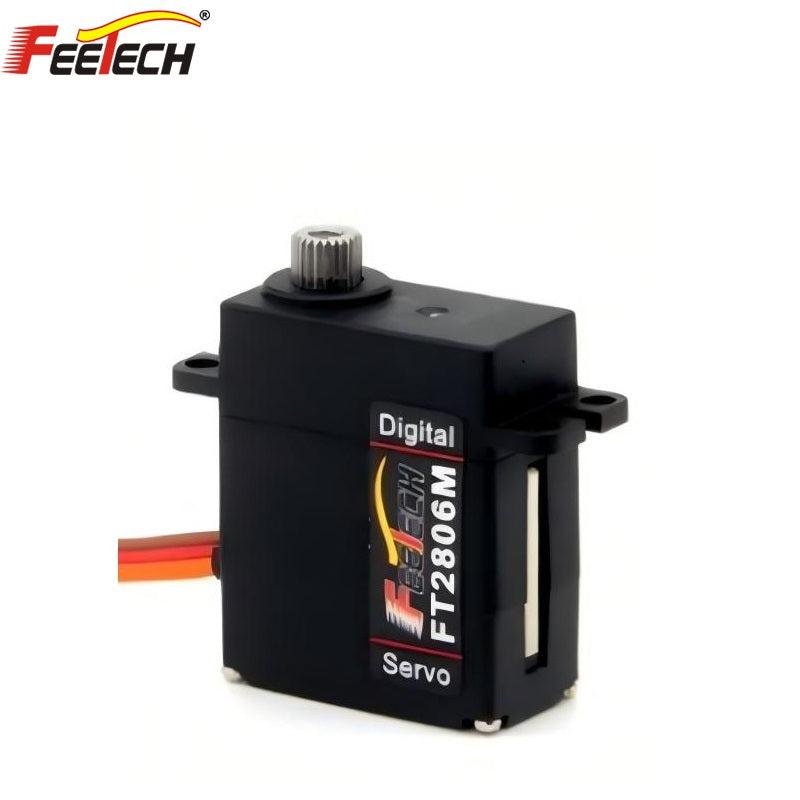

| Product Name | 6V 6kg-cm Digital Servo |
| Storage Temperature Range | -30°C ~ 70°C |
| Operating Temperature Range | -20°C ~ 60°C |
| Size | A: 23mm, B: 12mm, C: 27.5mm |
| Weight | 18.3±2g |
| Gear Type | Metal |
| Limit Angle | No limit |
| Bearing | Ball bearings |
| Horn Gear Spline | 25T/4.95mm |
| Horn Type | Plastic,POM |
| Case | PA66+GF |
| Connector Wire | 25±1CM |
| Motor | Coreless Motor |
| Operating Voltage Range | 4.8-8.4V |
| Idle Current (at stopped) | 6mA@7.4V |
| No Load Speed | 0.073 sec/60°@7.4V |
| Running Current (at no load) | 80mA@7.4V |
| Peak Stall Torque | 7.2kg.cm@7.4V |
| Rated Torque | 2.4kg.cm@7.4V |
| Stall Current | 2.0A@7.4V |
| Command Signal | Pulse width modification |
| Amplifier Type | Digital Controller |
| Pulse Width Range | 500–2500 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 180±5°(at 500–2500μsec) |
| Dead Band Width | ≤4 μsec |
| Rotating Direction | Counterclockwise(at 500–2500 μsec) |
-
