Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT835BL |

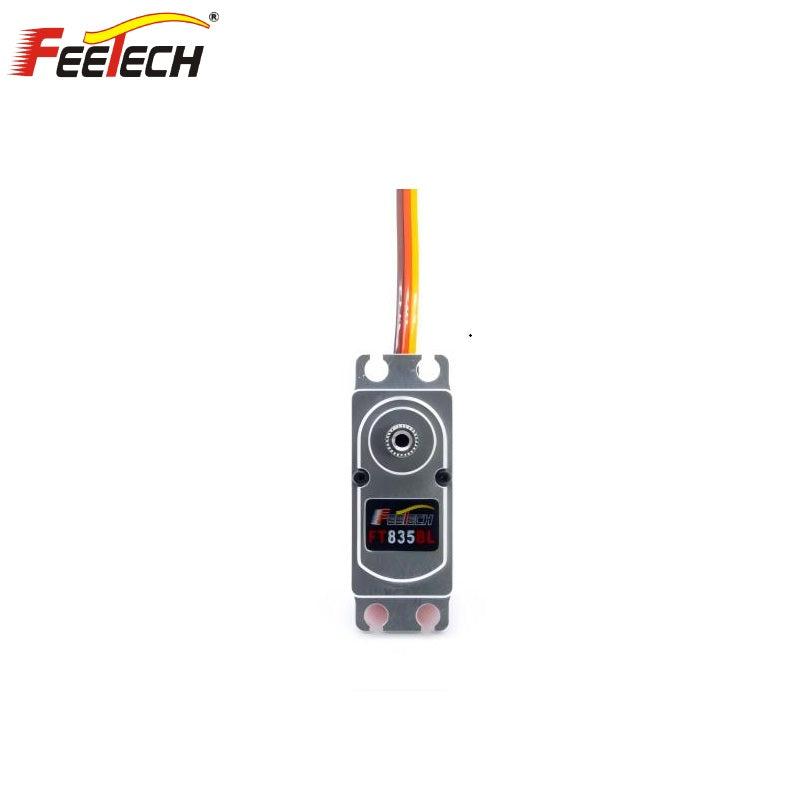

| Product Name | 6V 30kg.cm Brushless Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -15°C ~ 70°C |
| Size | A: 40mm, B: 20mm, C: 36.4mm |
| Weight | 77.2±1g |
| Gear Type | Steel |
| Limit Angle | 200 degree |
| Bearing | Ball bearings |
| Horn Gear Spline | 25T/5.9mm |
| Case | Aluminum |
| Connector Wire | 30cm |
| Motor | Brushless Motor |
| Operating Voltage Range | 4V-8.4V |
| Idle Current (at stopped) | 6mA@8.4V |
| No Load Speed | 0.125sec/60°@8.4V |
| Running Current (at no load) | 230mA@8.4V |
| Peak Stall Torque | 40kg.cm@8.4V |
| Rated Torque | 13.3kg.cm@8.4V |
| Stall Current | 4.5A@8.4V |
| Command Signal | Pulse width modification |
| Control System Type | Digital comparator |
| Pulse Width Range | 500-2500 μsec |
| Stop Position | 1500 μsec |
| Running Degree | 180°±5°(at 500→2500μsec) |
| Dead Band Width | ≤4 μsec |
| Rotating Direction | Counterclockwise (at 1500→2000 μsec) |
-
