Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-1500-C001 |

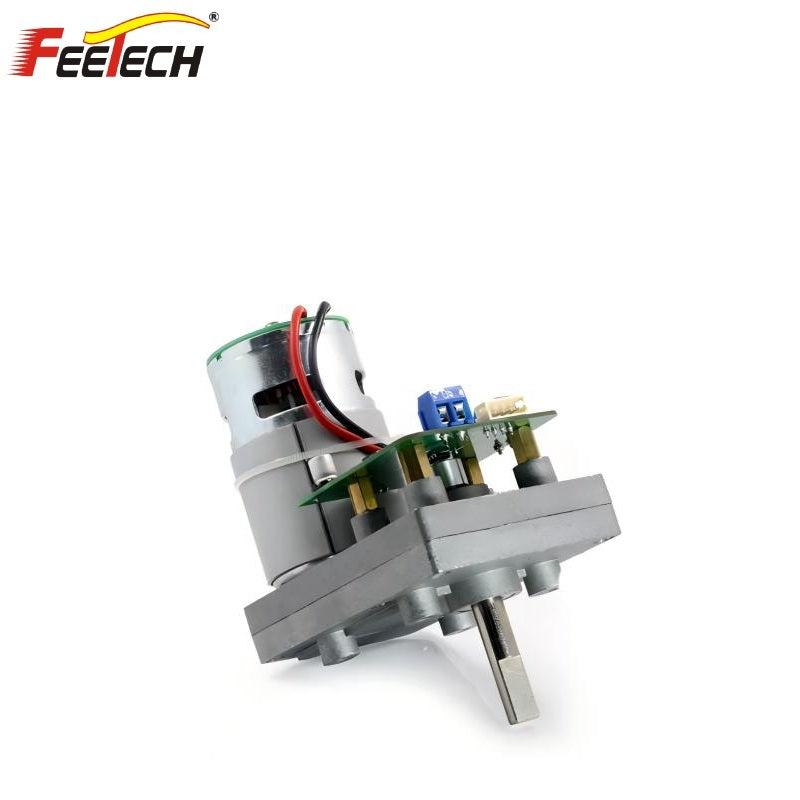

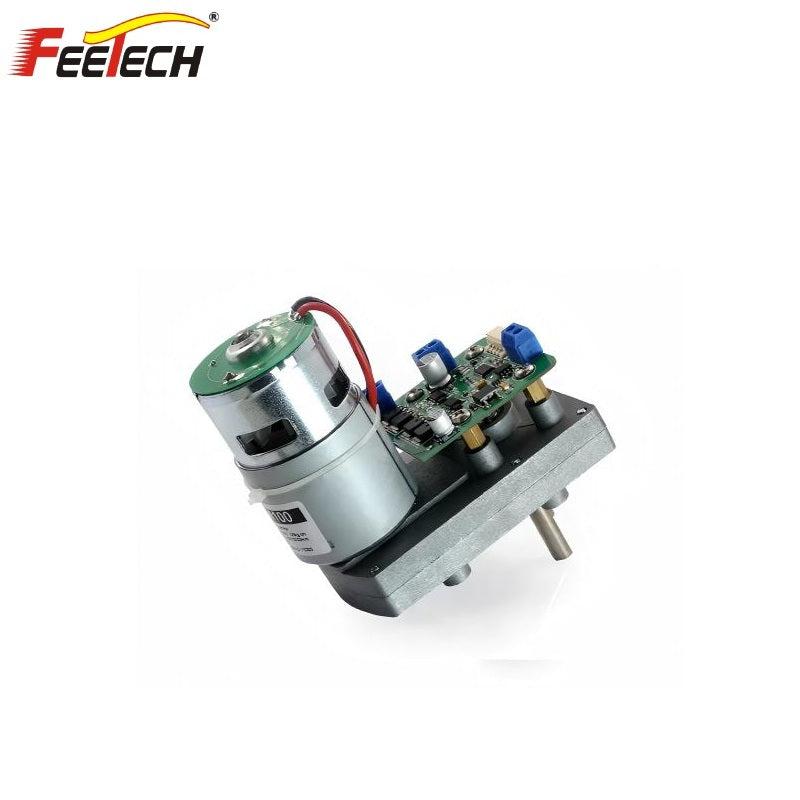

| Product Name | 12V 180kg.cm 485/Magnetic Coded Serial Control BUS Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -20°C ~ 70°C |
| Size | A: 95.5mm, B: 65mm, C: 85mm |
| Weight | 860g ±0.2 |
| Gear Type | Metal Gear |
| Limit Angle | 360degree (4096) |
| Bearing | 2 Ball bearings |
| Horn Gear Spline | D shape dia=8.0mm |
| Case | metal |
| Connector Wire | 150mm ±5 mm |
| Motor | carbon motor |
| Operating Voltage Range | 12V |
| Idle Current (at stopped) | 15mA |
| No Load Speed | 0.67sec/60degree 15RPM |
| Running Current (at no load) | 200mA |
| Peak Stall Torque | 180kg.cm@12V |
| Rated Torque | 60kg.cm@12V |
| Stall Current | 4500mA@12V |
| Command Signal | Bus Packet Communication RS485 |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID Range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running Degree | 360°(when 0~4096) |
| Feedback | Load, Speed, Input Voltage, Current |
| Position Sensor Resolution | 360° (when 0-4095)-CVV |
-
