Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-3035-C001 |

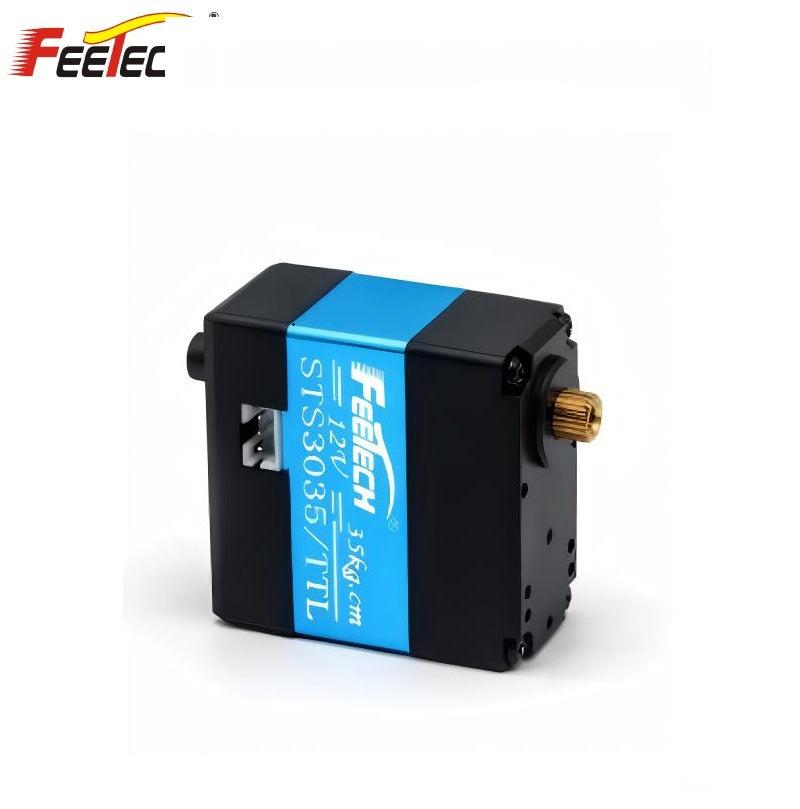

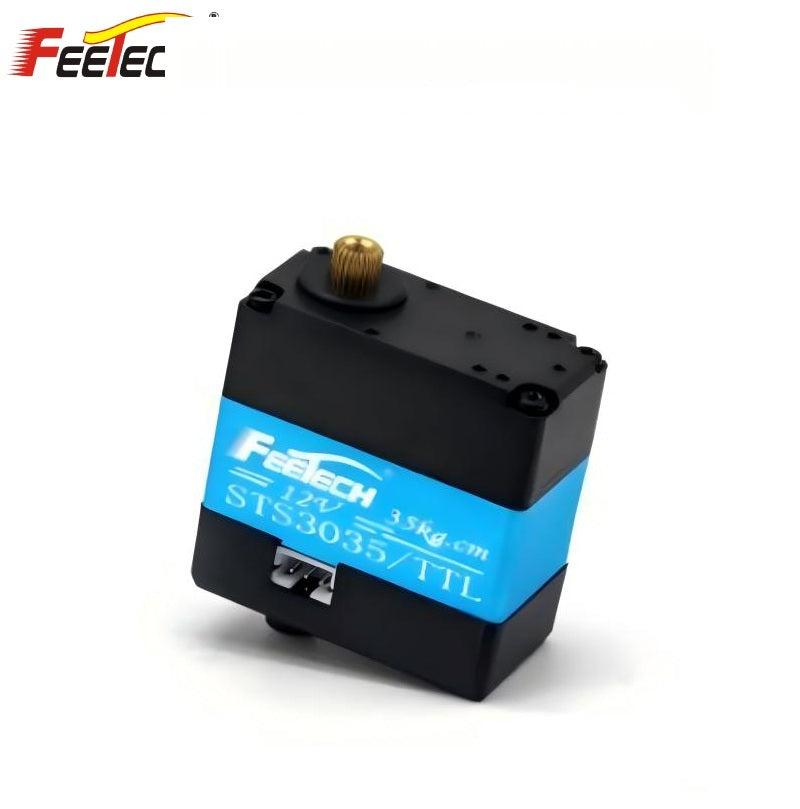

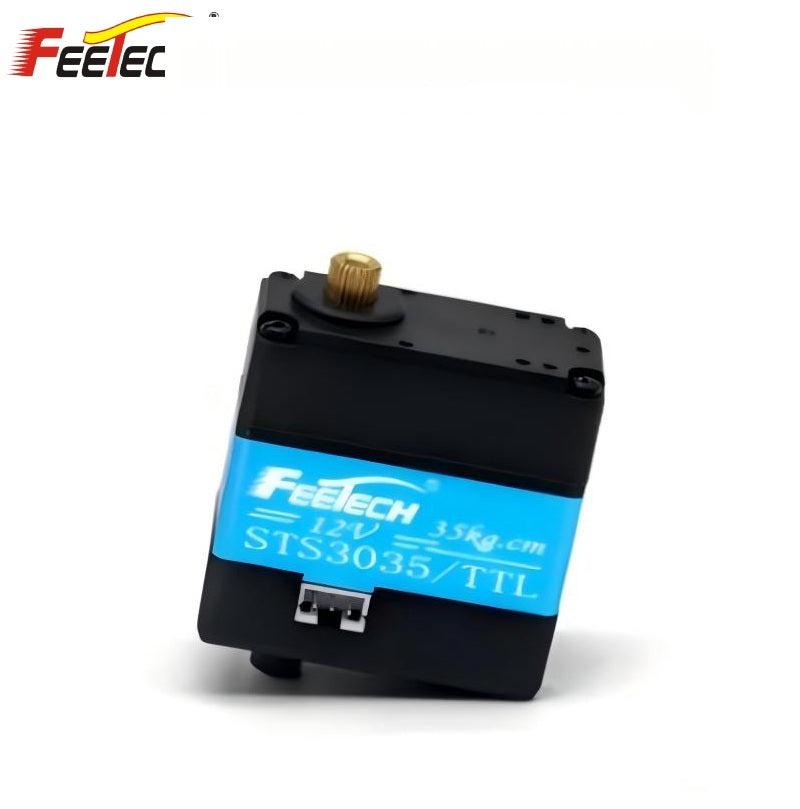

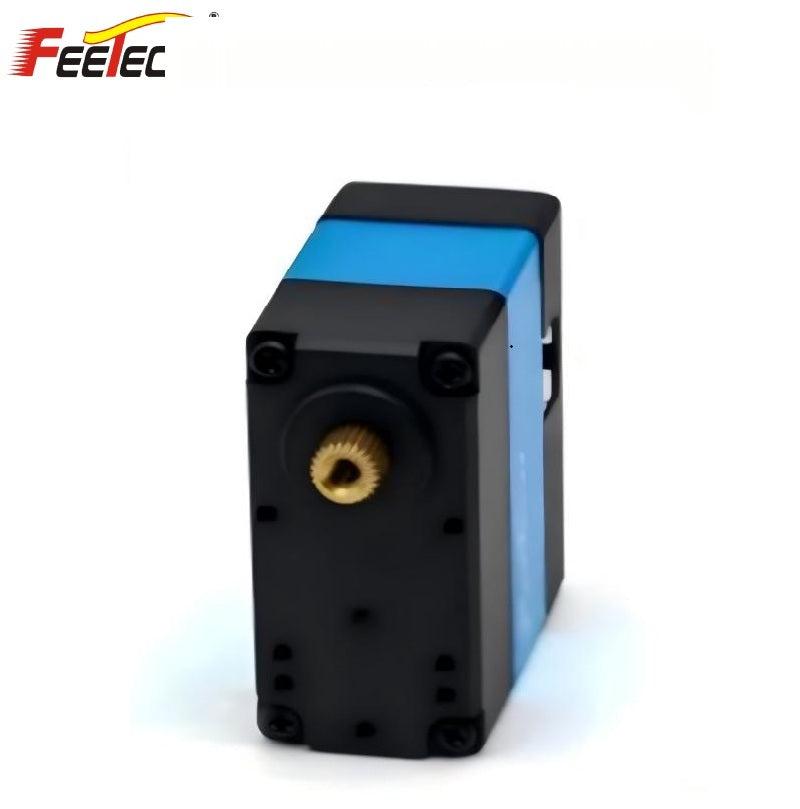

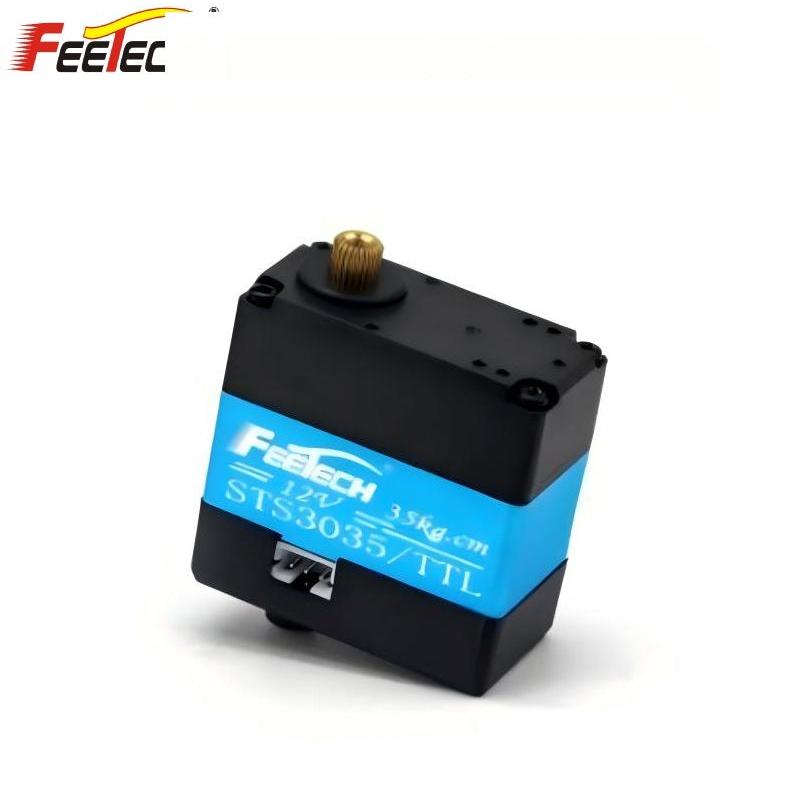

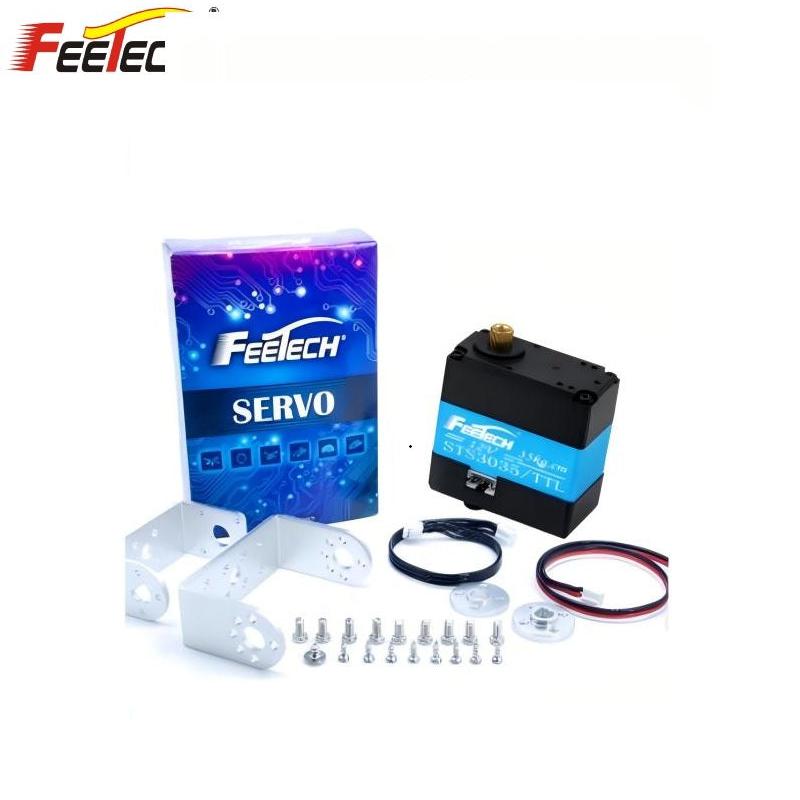

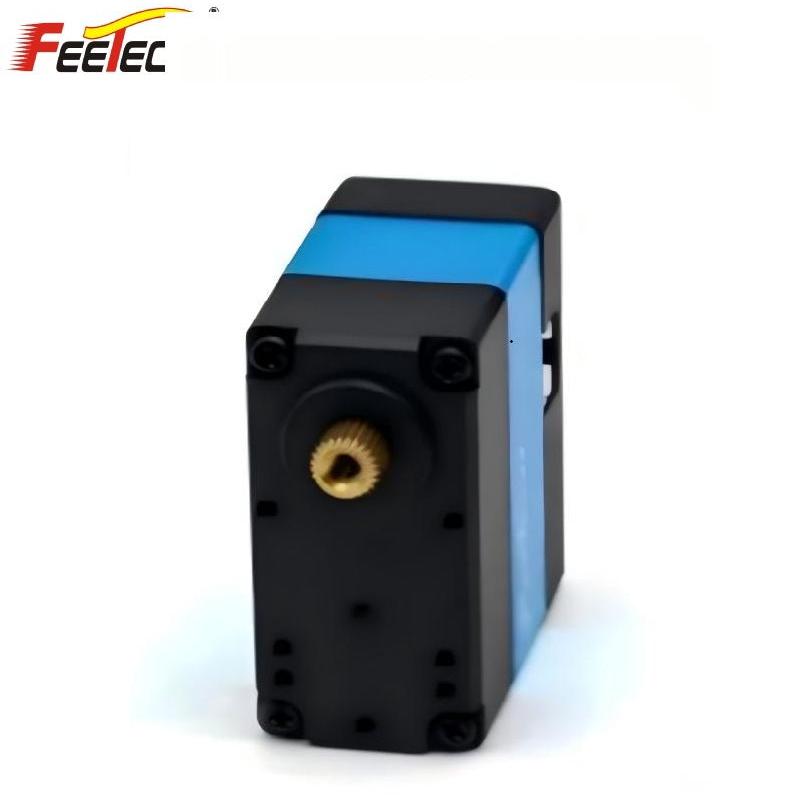

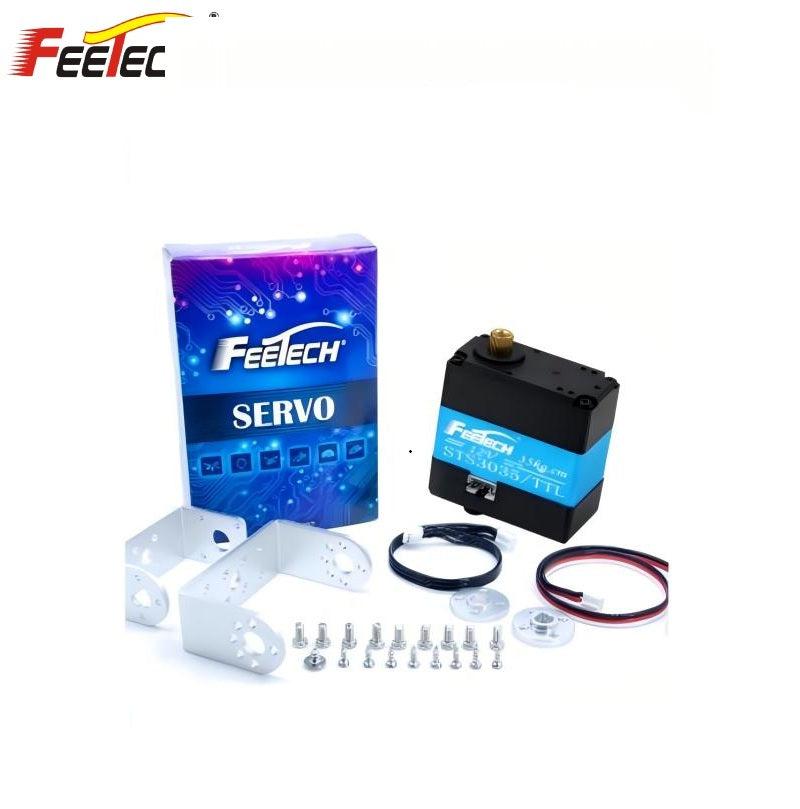

| Product Name | 12V 35kg.cm TTL Serial Control Servo |
| Storage Temperature Range | -30°C~80°C |
| Operating Temperature Range | -10°C~60°C |
| Size | A: 40.2mm B: 20.2mm C: 40mm |
| Weight | 62.5±2g |
| Gear Type | Copper |
| Limit Angle | NO limit |
| Bearing Type | Ball bearings |
| Horn Gear Spline (Output Shaft) | 25T/OD5.9mm |
| Case | PA+Aluminum |
| Type | PH2.0-3P |
| Connector Wire | 15cm |
| Motor | Core Motor |
| Operating Voltage Range | 9V-12V |
| Idle Current (at stopped) | 32mA@12V |
| No Load Speed | 0.22sec/60°(45RPM)@12V |
| Running Current (at no load) | 220mA(Max)@12V |
| Peak Stall Torque | 35kg.cm@12V |
| Rated Torque | 11.6kg.cm@12V |
| Stall Current | 900mA@12V |
| Command Signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID Range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running Degree | 360° (when 0~4095) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
| Position Sensor Resolution | 12Bits Magnetic Coding(360°/4095) |
-
