Technical Specifications
| Parameter | |
|---|---|
| Overall Parameters | |
| Standard Posture Height | 1730mm |
| Torso Lift Range | 650mm |
| Chassis Dimensions (L×W) | 600X600mm |
| Arm Length (Shoulder to Wrist) | 710mm |
| Workspace (Wrist Center) |
Vertical 0-2100mm Horizontal 1900mm |
| Body Weight | 80kg |
| Battery Capacity | 48V 30Ah |
| Charging Specifications | 54.6V 6A |
| Full Charge Runtime | 10Hours |
| Perception | |
| Head | Binocular Camera x 1 |
| Wrist | Depth Camera x 2 6-Axis Force Sensor x 2 |
| Torso | RGB Camera x 4 IMU x 2 |
| Chassis | 3D LiDAR x 1 Ultrasonic Sensor x 8 IMU x 1 |
| System | |
| Speaker | 5W x 2 |
| Network | WiFi 2.4/5GHz BT |
| Display | 5.5" Touchscreen Resolution 1920 x 1080 |
| Microphone | Linear 4-Mic Array x 2 |
| Computing Platform | AGX Orin 64GB 275TOPS |
| Actuation | |
| Dual-Arm End Payload | Single Arm 5kg Total 10kg |

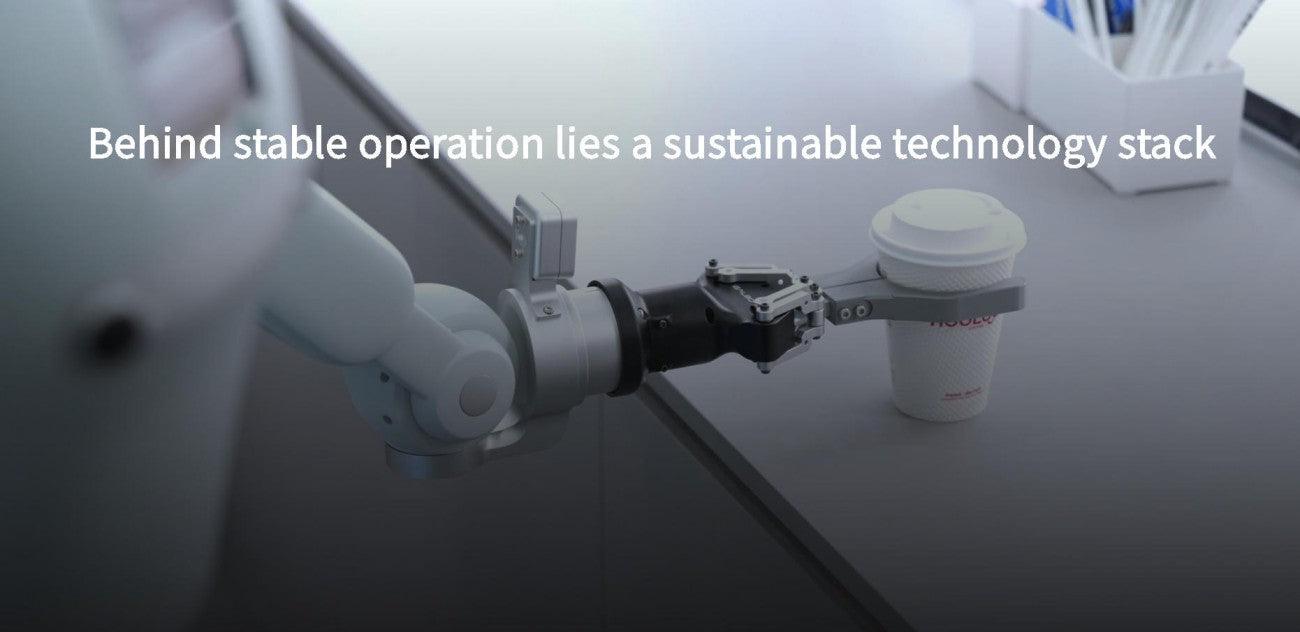

| Multiple End Effectors Supported | Parallel Gripper Electric Suction Cup, etc. |
| Driven Joints (Excl. End Effectors) | Legs 2 + Waist 2 + Neck 2 = 6 Dual Arms 7x2 = 14 Chassis Drive Wheels 4 Total 24 |
-
