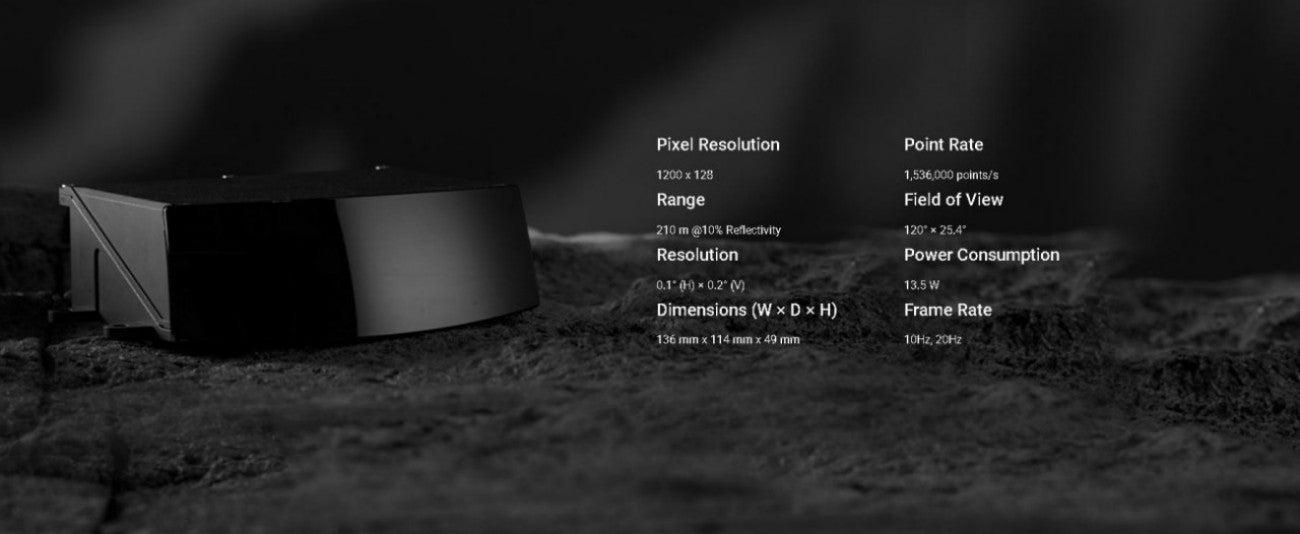

Technical Specifications
| Parameter | Value |
|---|---|

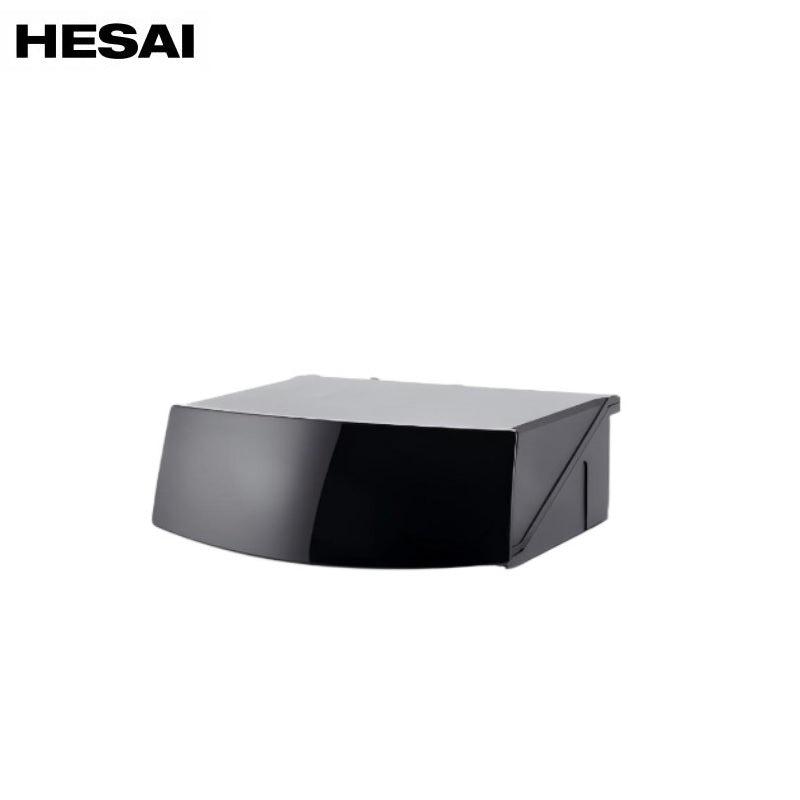

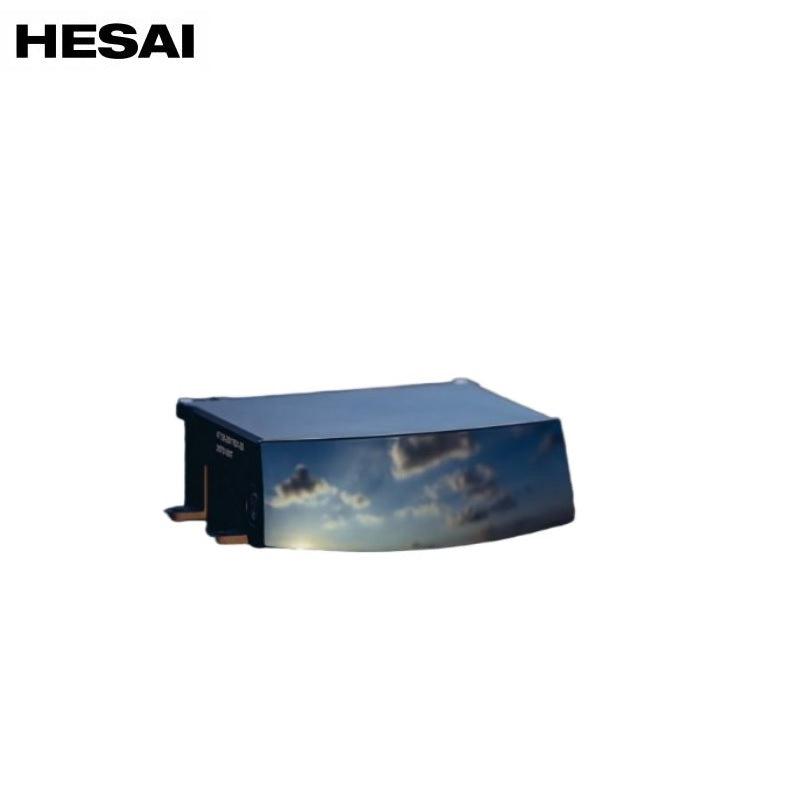

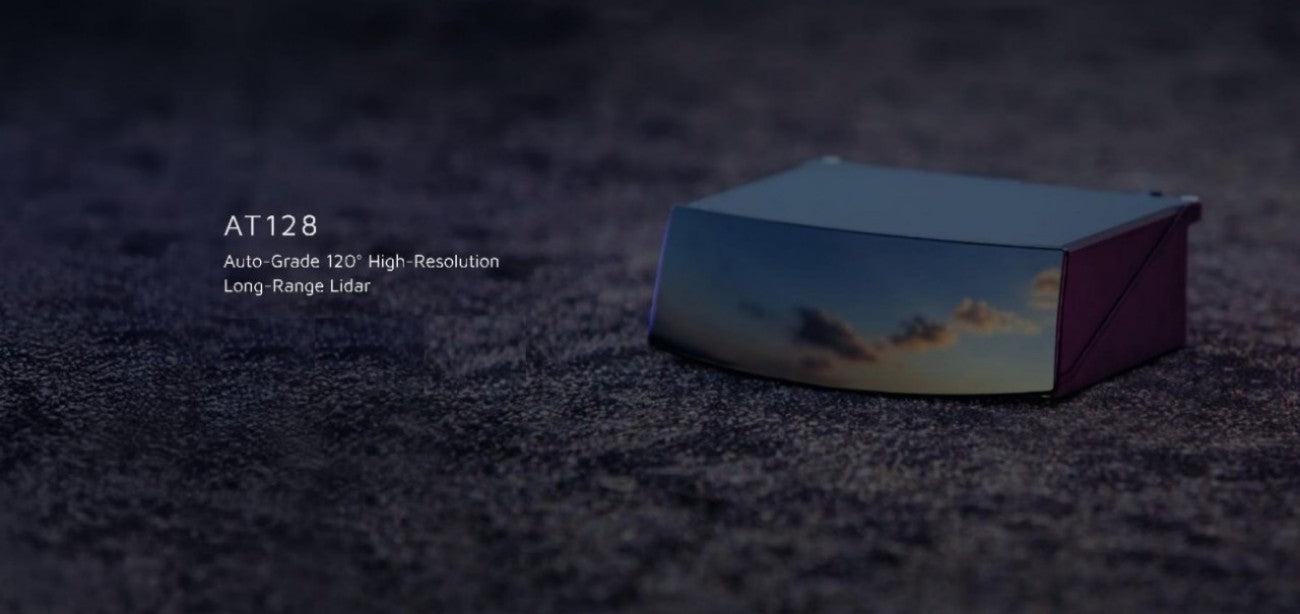

| Model | AT128P |
|
Scanning method
|
1-D rotating mirror (hybrid solid-state)
|
| Number of channels |
128
|
| Instrumented range | 0.5 to 260 m |

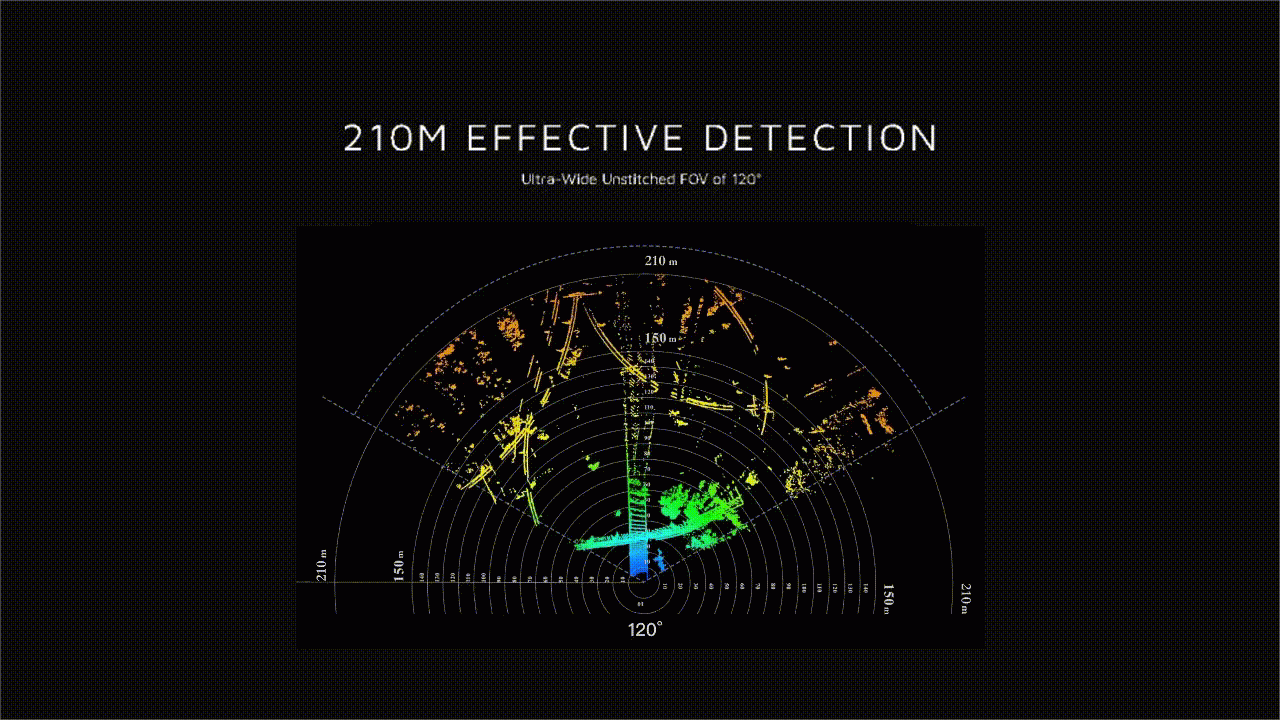

| Ranging capability | 1 to 210 m (at 10% reflectivity) |
| Ranging accuracy | ±5 cm (typical) |
| Horizontal FOV | 120° |

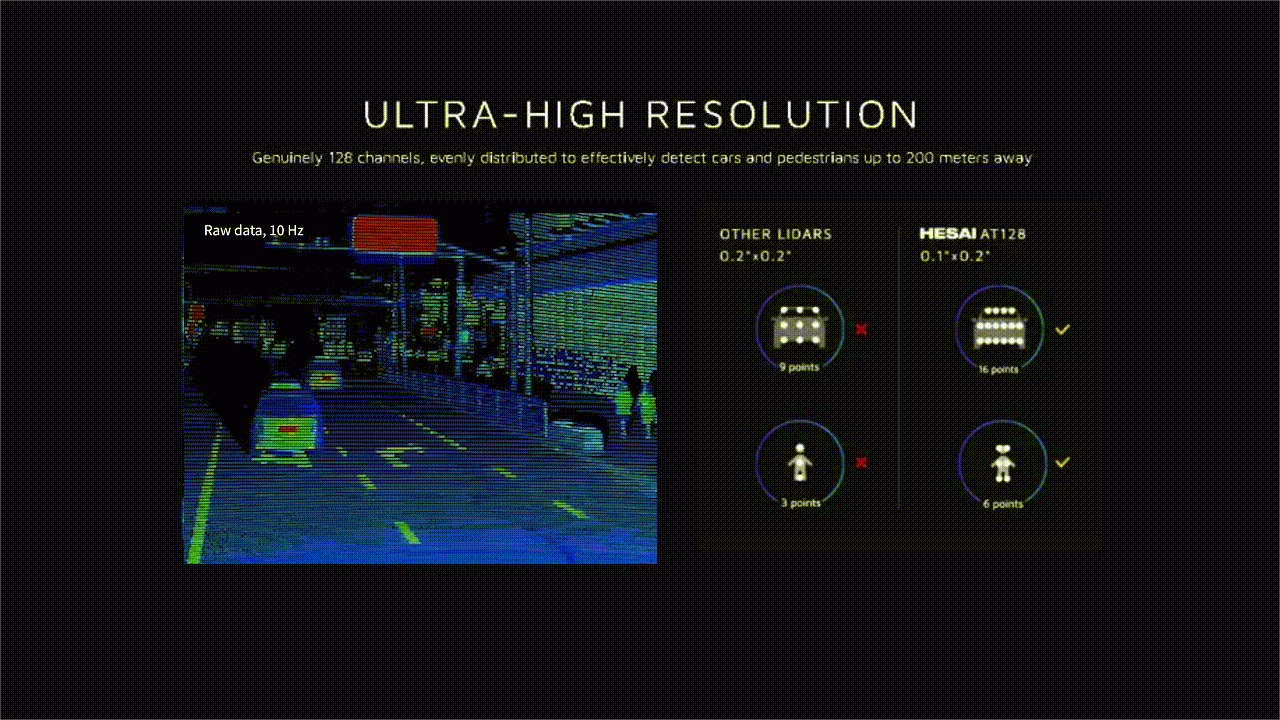

| Horizontal resolution | Far-field: 0.1° (10 Hz), 0.2° (20 Hz) Near-field: 0.2° (10 Hz), 0.4° (20 Hz) |
| Vertical FOV |
25.4° (-12.5° to 12.9°)
|
| Vertical resolution | Far-field: 0.2° Near-field: 0.8° |
| Frame rate | 10 Hz, 20 Hz |
|
Return mode
|
Single Return: Last/Strongest/First Dual Return: Last and Strongest, Strongest and First |
| Wavelength |
905 nm
|
|
Laser class
|
Class 1 Eye Safe
|
|
Ingress protection
|
IP6K7 & IP6K9K
|
|
Dimensions
|
136 × 114 × 49 (WDH, mm)
|
|
Rated voltage range
|
DC 9 to 32 V
|
|
Power consumption
|
13.5 W
|
|
Operating temperature
|
-40℃ to 85℃
|
|
Storage temperature
|
-40℃ to 105℃
|
|
Weight
|
940 g
|
|
Data transmission
|
Automotive Ethernet, 1000BASE-T1, slave mode
|
|
Measurements
|
Distance, azimuth angle, and reflectivity
|
|

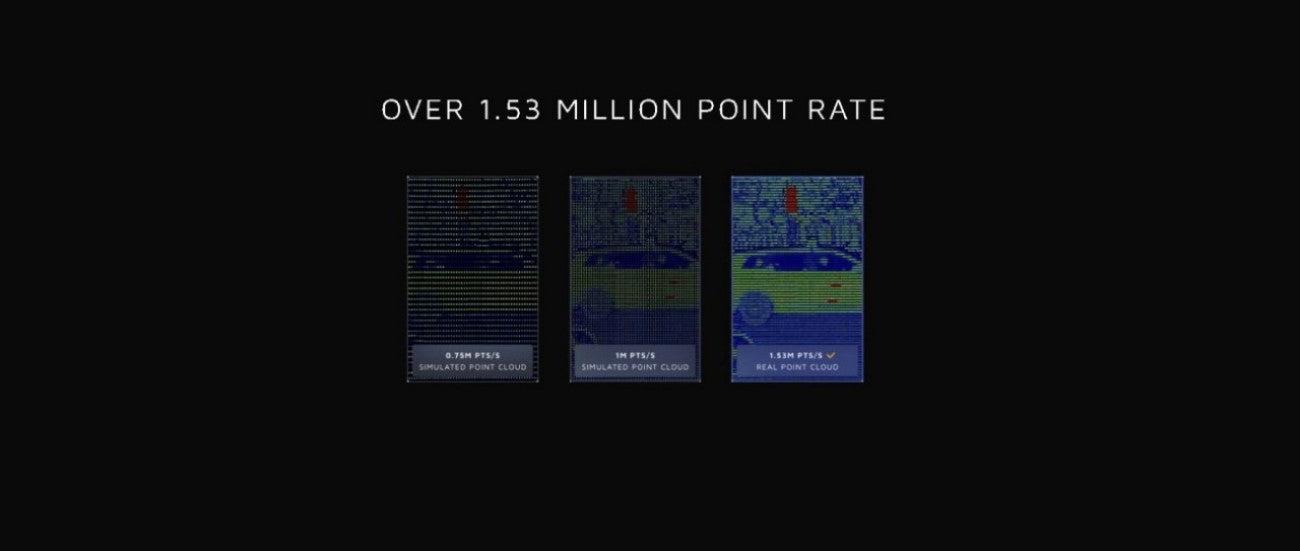

Valid point rate
|
Single Return: 1536000 pts/sec
Dual Return: 3072000 pts/sec |
|
Point cloud data rate
|
Single Return: 55.9/111.8 Mbps (avg/peak)
Dual Return: 111.8/223.6 Mbps (avg/peak) |
|
Clock source
|
PTP (802.1AS Automotive, 802.1AS AUTOSAR)
|
|
PTP clock accuracy
|
≤1 μs
|
|
PTP clock drift
|
≤5μs/s
|
-
