Technical Specifications
| Parameter | Value |
|---|---|

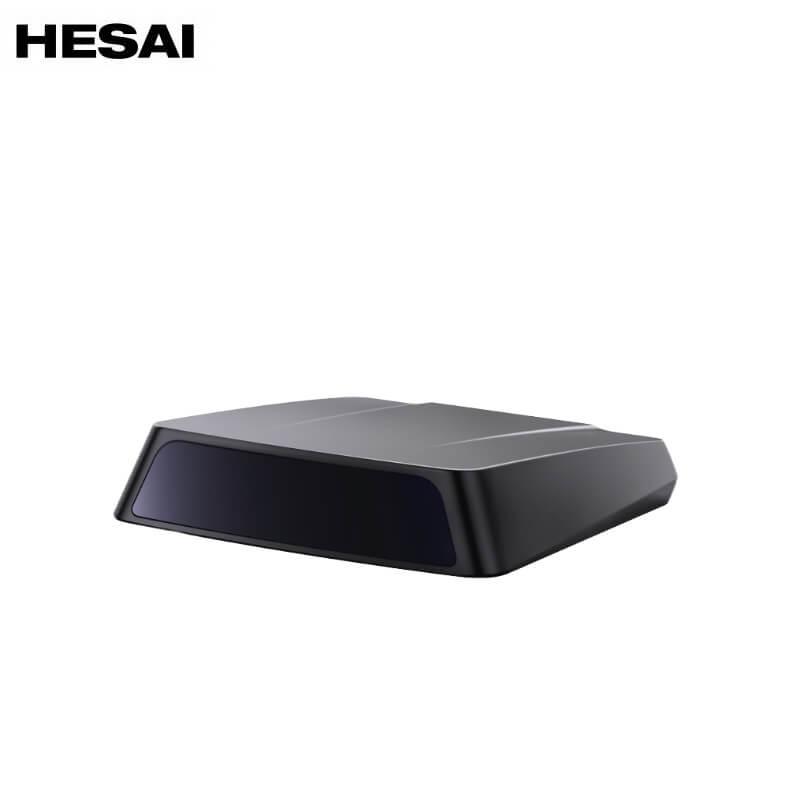

| Model | AT360 |
|
Scanning method
|
1-D rotating mirror (hybrid solid-state)
|
| Number of channels |
360 (300 enabled)
|
| Ranging capability | 250 m (at 10% reflectivity) |
| Ranging accuracy |
±5 cm (typical)
|
|
Ranging precision
|
3 cm (typical, 1σ)
|
| FOV (H × V) | 120° × 18° (-9° to +9°) |
|
ROI (H × V)
|
35° × 12° (-6° to +6°)
|
| Resolution (H × V) | ROI: 0.06° × 0.05° Non-ROI: 0.12° × 0.10° |
| Frame rate | 10 Hz |
|
Return mode
|
Dual Return: First and Strongest
|
| Wavelength | 905nm |
| Laser class | Class 1 Eye Safe |
|
Ingress protection
|
IP6K7 & IP6K9K
|
|
Dimensions
|
158 × 119 × 52 (WDH, mm)
|
|
Rated voltage range
|
DC 9 to 16 V
|
|
Power consumption
|
16 W
|
|
Operating temperature
|
-40℃ to 85℃
|
|
Storage temperature
|
-40℃ to 105℃
|
|
Weight
|
1080 g
|
|
Data transmission
|
Automotive Ethernet, 1000BASE-T1, slave mode
|
|
Measurements
|
Distance, azimuth angle, and reflectivity
|
|
Valid point rate
|
5700000 points/sec |
|
Point cloud data rate
|
233/672 Mbps (avg/peak)
|
|
Clock source
|
PTP (802.1AS AUTOSAR)
|
|
PTP clock accuracy
|
≤1 μs
|
|
PTP clock drift
|
≤5 μs/s
|
-
