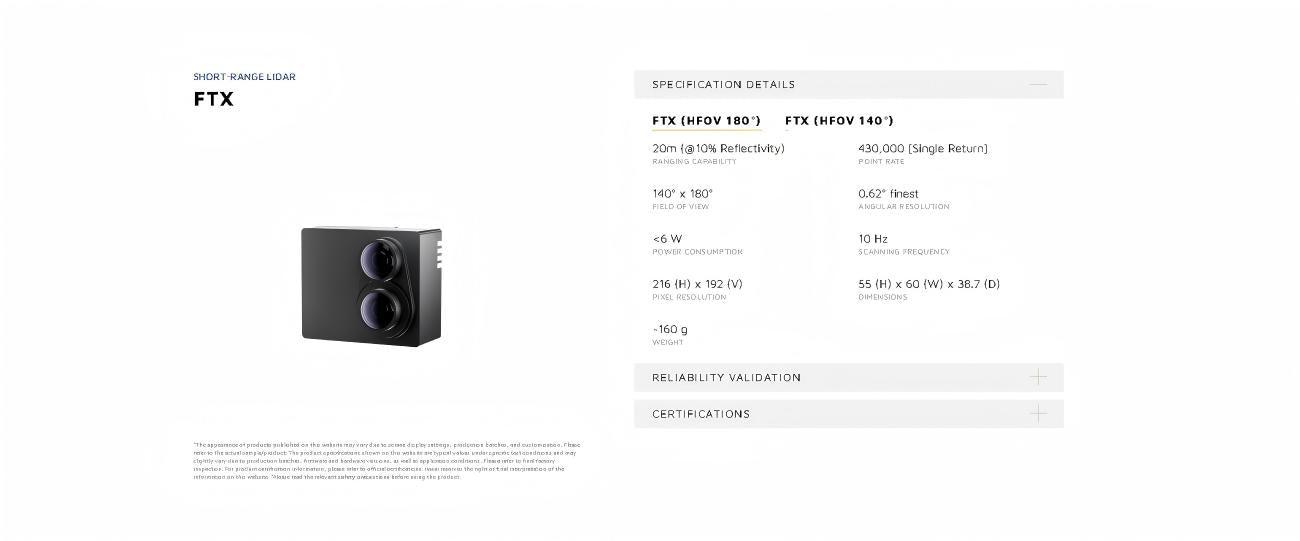

Technical Specifications
| Parameter | Value | Value |
|---|---|---|

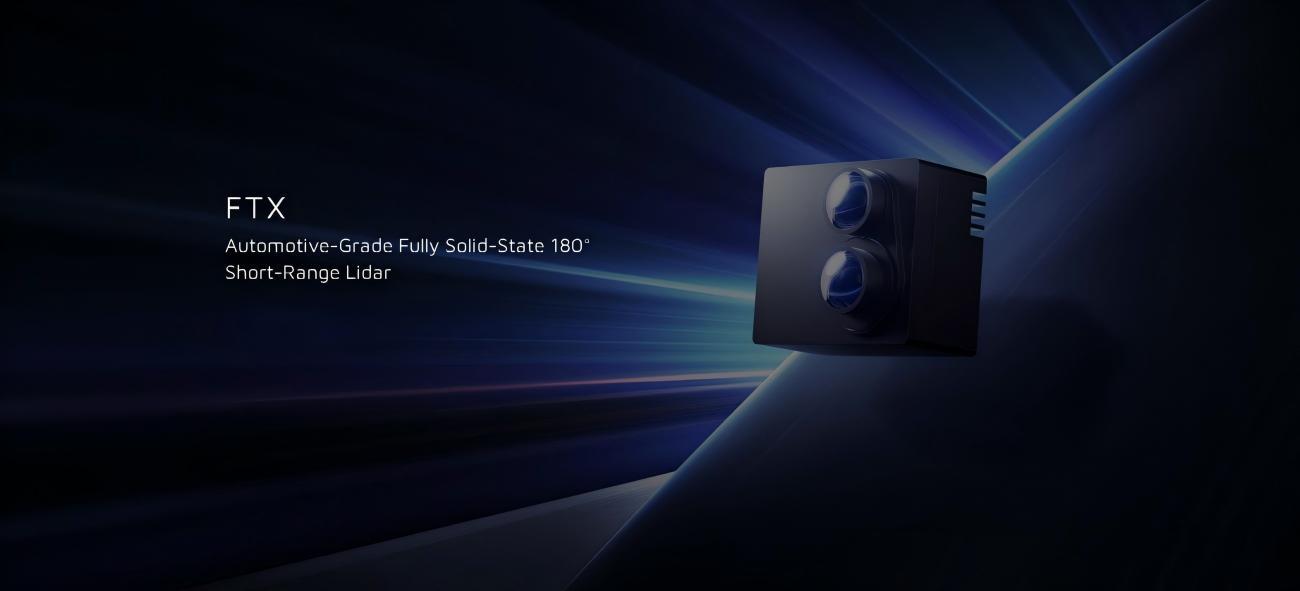

| Model | FTX（HFOV 180°） | FTX（HFOV 140°） |
| Ranging Capability |
20m (@10% Reflectivity)
|
30m (@10% Reflectivity)
|
| POINT RATE | 430,000 [Single Return] | 492,000 [Single Return] |

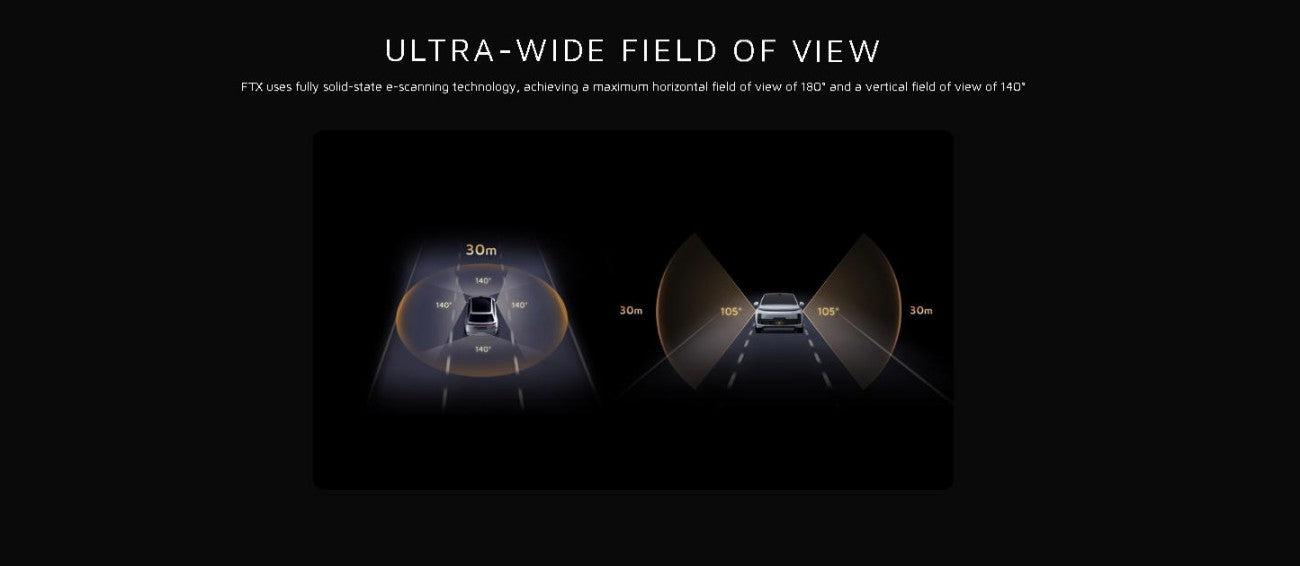

| Field of View | 140° x 180° | 105° x 140° |
| Angular Resolution | 0.62° finest | 0.56° (H) x 0.56° (V) |
| Power Consumption | <6 W | <6 W |
| Scanning frequency | 10 Hz | 10 Hz |
| Pixel Resolution |
216 (H) x 192 (V)
|
256 (H) x 192 (V)
|
| Dimensions | 55 (H) x 60 (W) x 38.7 (D) | 55 (H) x 60 (W) x 32 (D) |

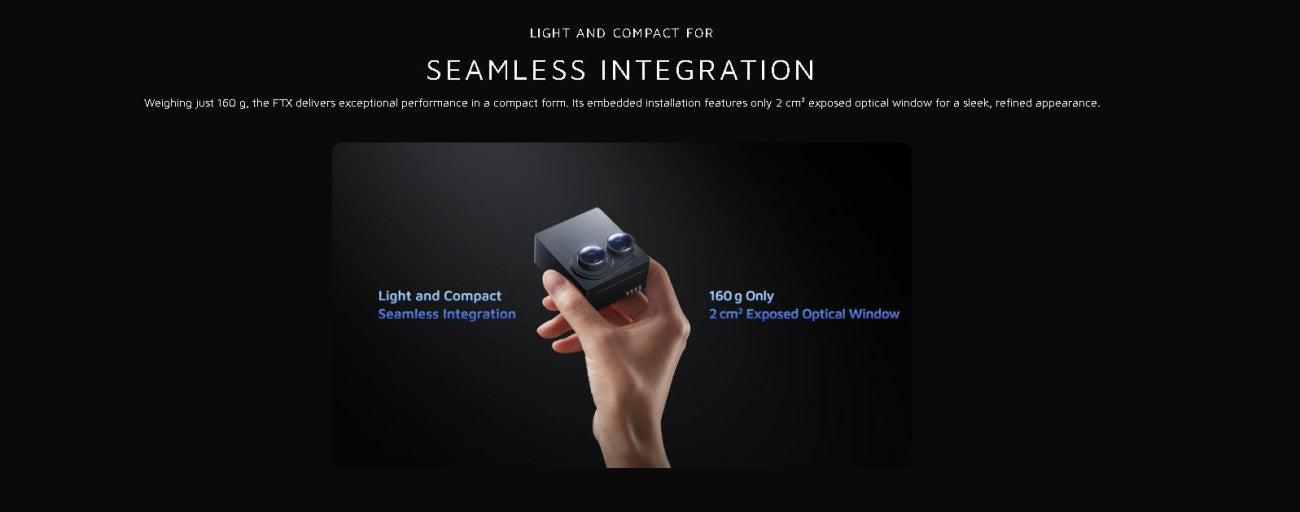

| Weight | 160 g | 160 g |
-
Contact Seller:
+861368646****
HESAI presents 9 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from HESAI.
