Technical Specifications
| Parameter | Value |
|---|---|

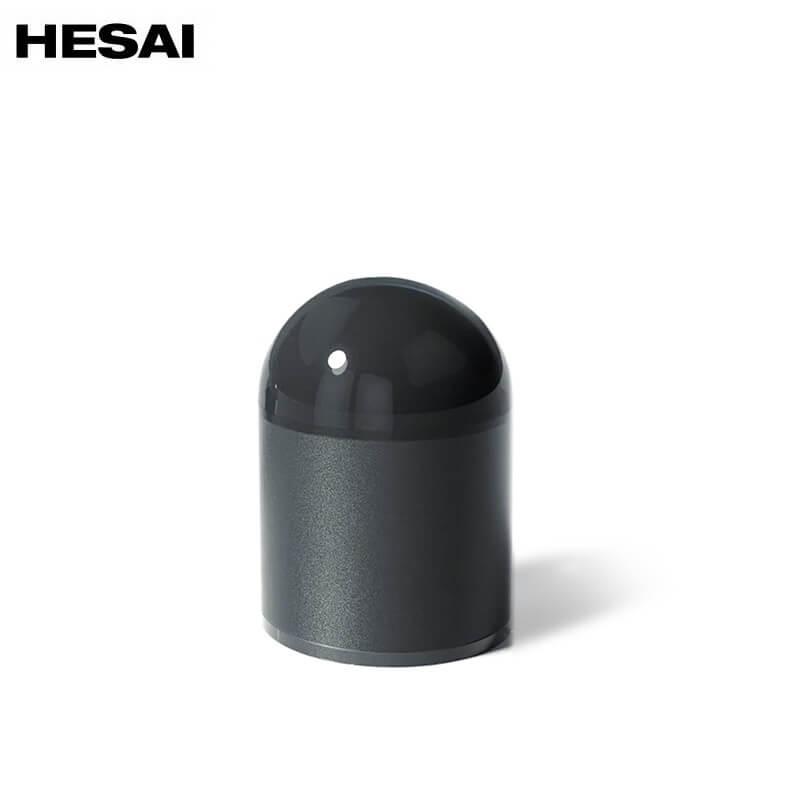

| Model | JT128 |
|
Scanning method
|
Mechanical rotation
|

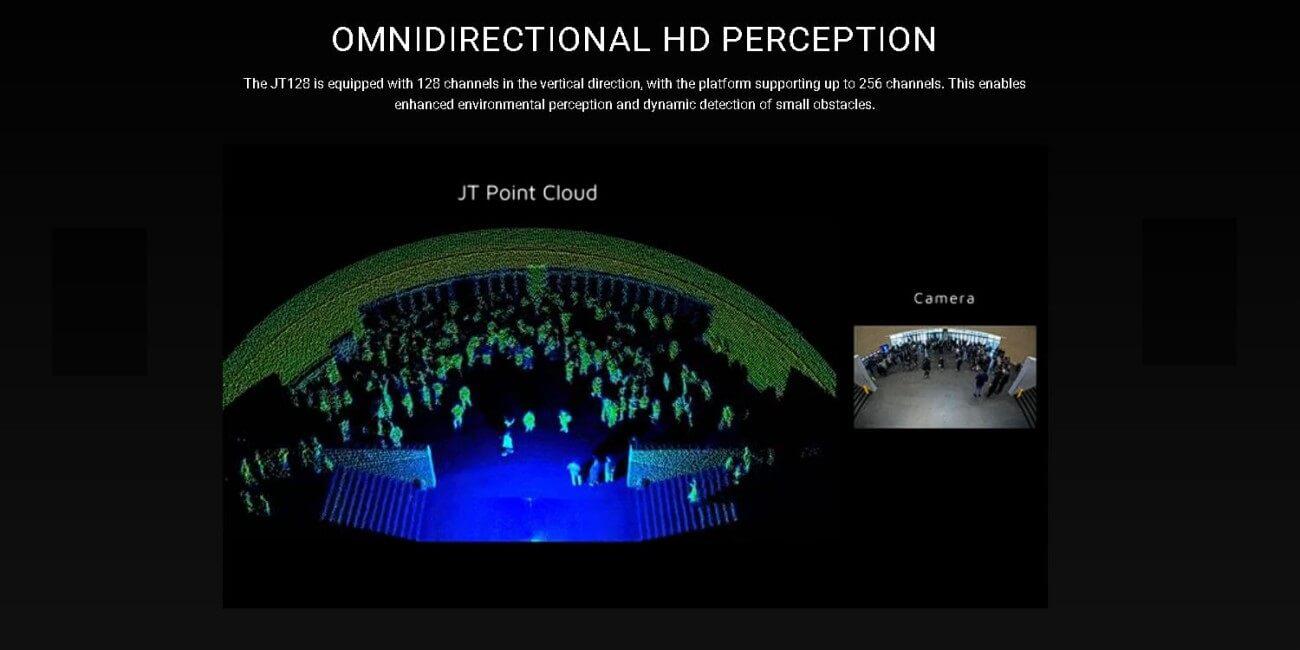

| Number of channels |
128
|

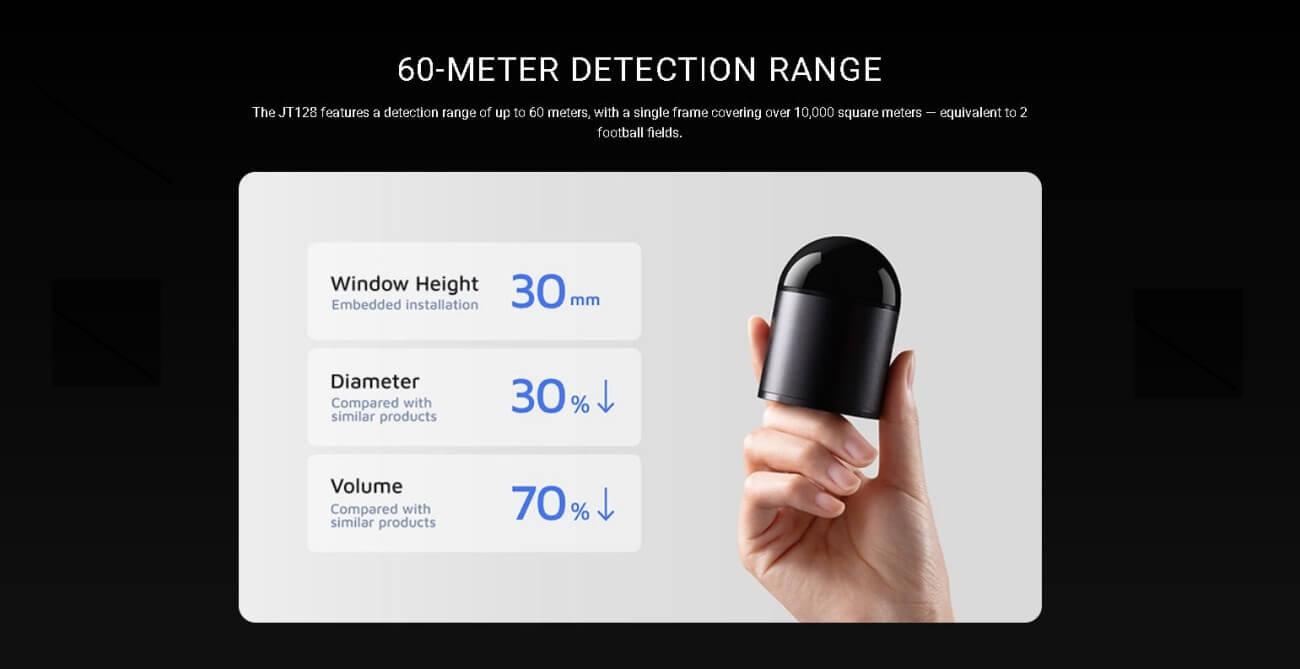

| Instrumented range | 0 to 60 m |
| Ranging capability | 40 m (at 10% reflectivity, for all channels) |
| Horizontal FOV | 360° |
| Horizontal resolution | Approx. 0.4° |

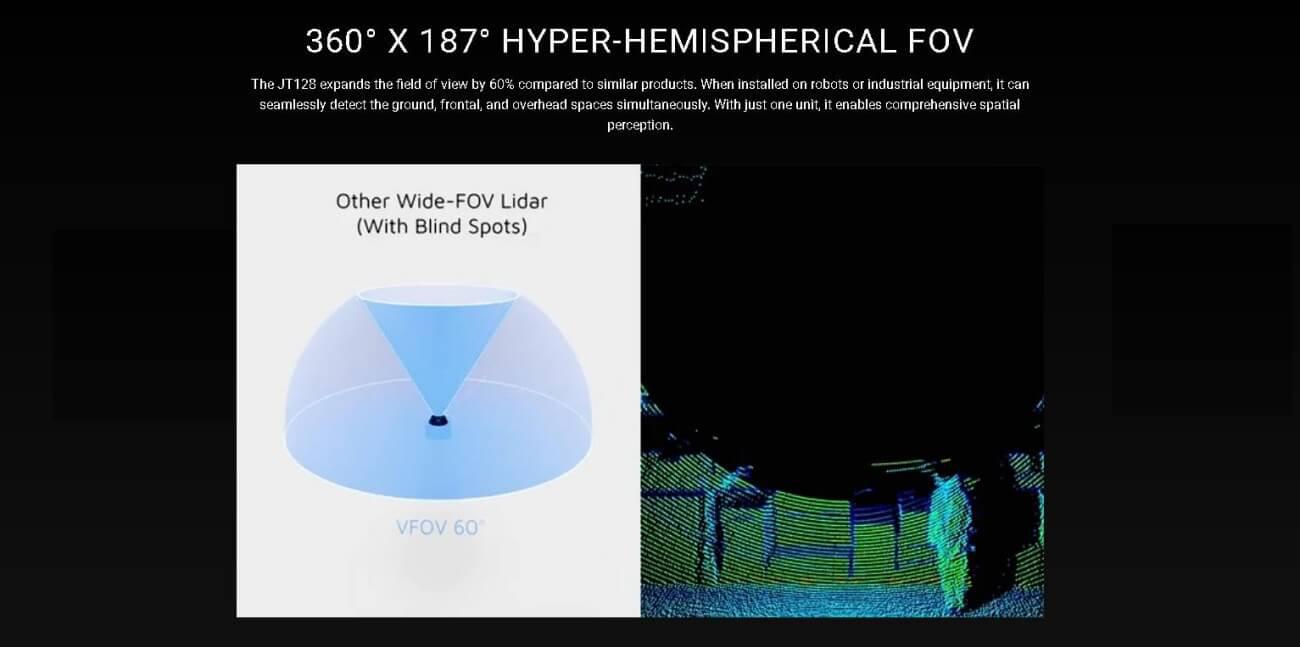

| Vertical FOV |
95° (-4.4° to 90.5°)
|
| Vertical resolution |
0.74° (average)
|
| Frame rate |
10/20 Hz
|
|
Return mode
|
Single return: First/Strongest/Last
Dual return: Last and Strongest (default) / Last and First / First and Strongest
|
| Wavelength |
905 nm
|
|
Laser class
|
Class 1 Eye Safe
|
|
Ingress protection
|
IP6K7
|
|
Dimensions
|
Height: 73.0 mm
Bottom: Φ62.5 mm
|
|
Rated voltage range
|
DC 9 to 32 V
|
|
Power consumption
|
9.5 W
|
|
Operating temperature
|
-20℃ to 65℃
|
|
Storage temperature
|
-40℃ to 85℃
|
|
Weight
|
＜250g
|
|
Data transmission
|
Standard 100Base-TX
|
|
Measurements
|
Distance, azimuth angle, and reflectivity
|
|
Point rate
|
Single Return: 1 152 000 points/sec
Dual Return: 2 304 000 points/sec
|
|
Point cloud data rate
|
82.3 Mbps
|
|
Clock source
|
GNSS/PTP (1588v2, 802.1AS)
|
HESAI_JT128.stp
JT128_User_Manual.pdf
-
