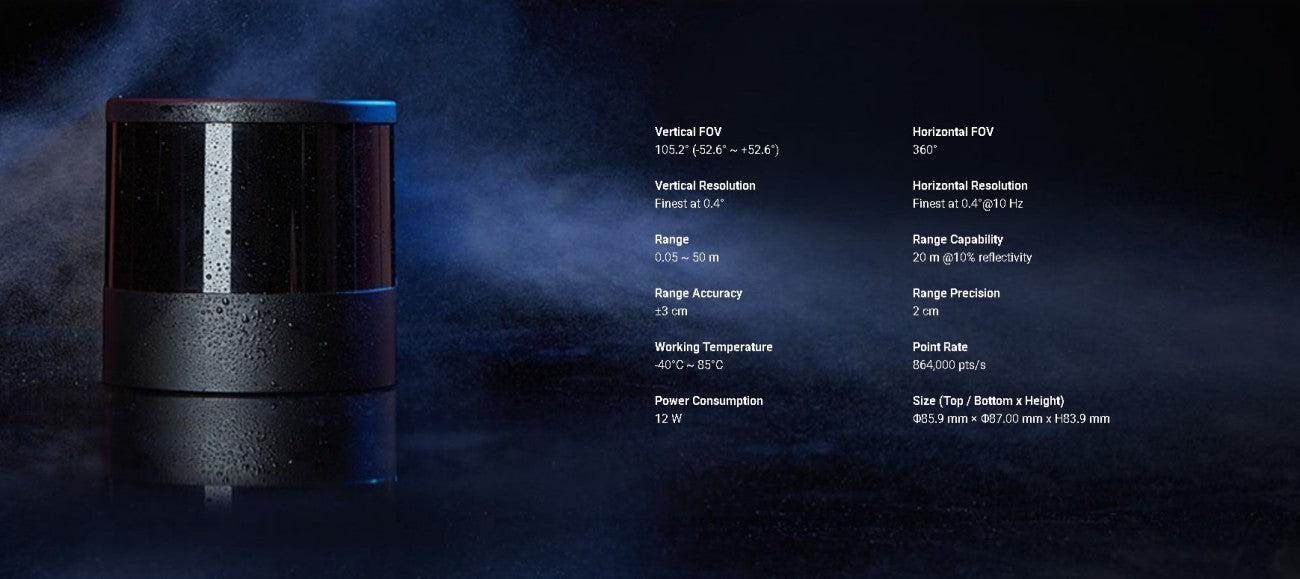

Technical Specifications
| Parameter | Value |
|---|---|

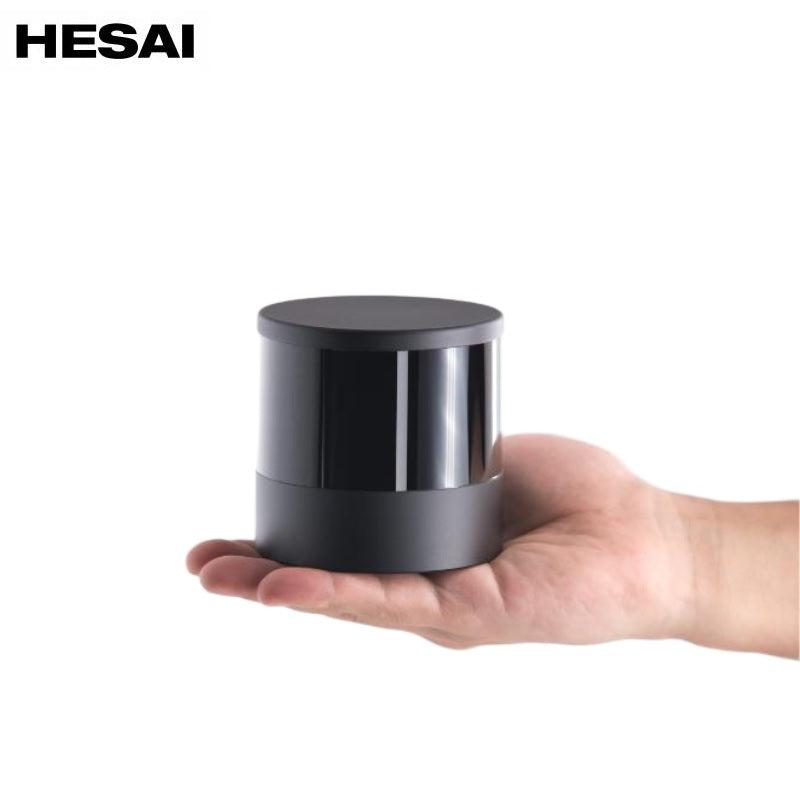

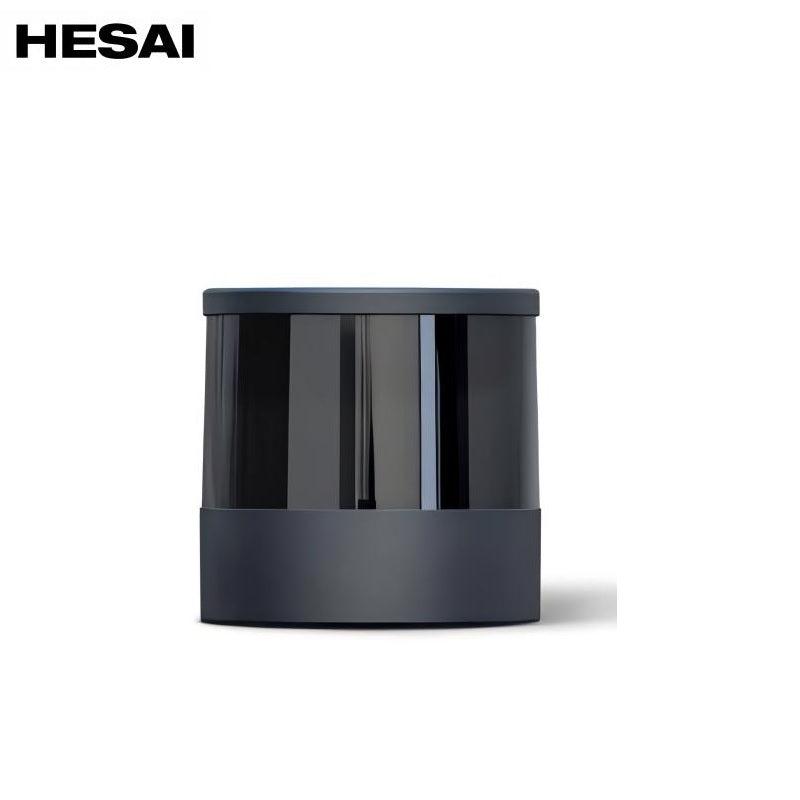

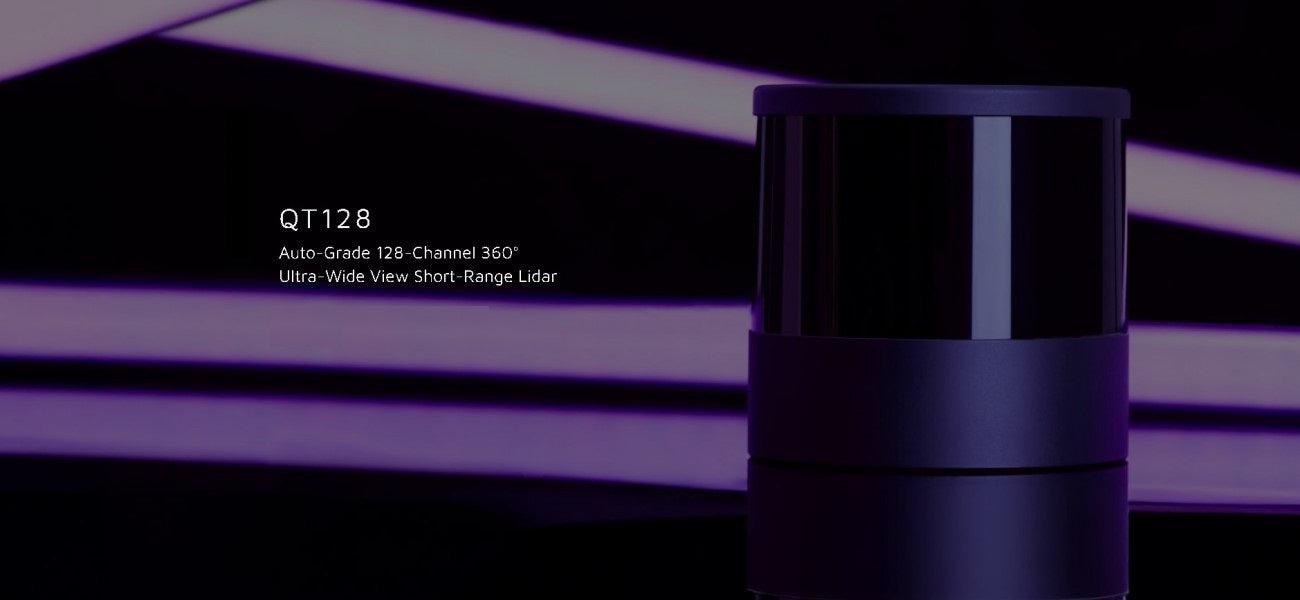

| Model | QT128 |
|
Scanning method
|
Mechanical rotation
|
| Number of channels |
128
|
| Instrumented range | 0.5 to 50 m |
| Ranging capability | 20 m (at 10% reflectivity, channels 9 to 120) 15 m (at 10% reflectivity, channels 1 to 8 and 121 to 128) |
| Ranging accuracy | ±3 cm (typical) |
|
Ranging precision
|
2 cm (typical)
|
| Horizontal FOV | 360° |
| Horizontal resolution | 0.4° (10 Hz) (Channels 65 to 128) 0.8° (20 Hz) (Channels 65 to 128) 0.8° (10 Hz) (Channels 1 to 64) 1.6° (20 Hz) (Channels 1 to 64) |
| Vertical FOV |
105.2° (-52.6° to +52.6°)
|
| Vertical resolution | 0.4° to 0.5° (Channels 78 to 115) 0.8° to 1.6° (other channels) |
| Frame rate | 10 Hz, 20 Hz |
|
Return mode
|
Single return: First/Second/Last/Strongest Dual return: 5 modes |
| Wavelength |
940 nm
|
|
Laser class
|
Class 1 Eye Safe
|
|
Ingress protection
|
IP6K7 & IP6K9K
|
|
Dimensions
|
Top/Bottom: Φ85.9/87.0 mm |
|
Rated voltage range
|
DC 12 to 24 V
|
|
Power consumption
|
12 W
|
|
Operating temperature
|
-40℃ to 85℃
|
|
Storage temperature
|
-40℃ to 95℃
|
|

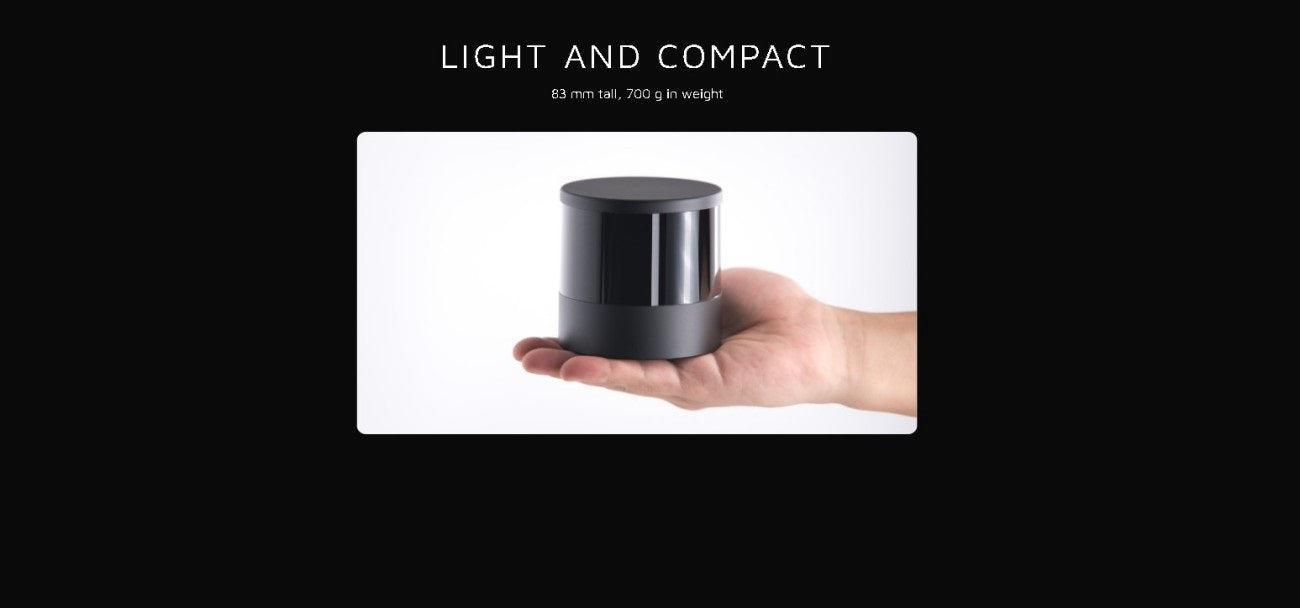

Weight
|
700 g
|
|
Data transmission
|
Automotive Ethernet, 1000BASE-T1, slave mode
|
|
Measurements
|
Distance, azimuth angle, and reflectivity
|
|
Valid point rate
|
Single Return: 864000 pts/sec
Dual Return: 1728000 pts/sec |
|
Point cloud data rate
|
Single Return: 42.23 Mbps
Dual Return: 84.46 Mbps |
|
Clock source
|
PTP
|
|
PTP clock accuracy
|
≤1 μs
|
|
PTP clock drift
|
≤1 μs/s
|
-
