Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection Distance (90% reflectivity) | 0.05 m ~ 4 m |
| Detection Distance (10% reflectivity) | 0.05 m ~ 1.5 m |

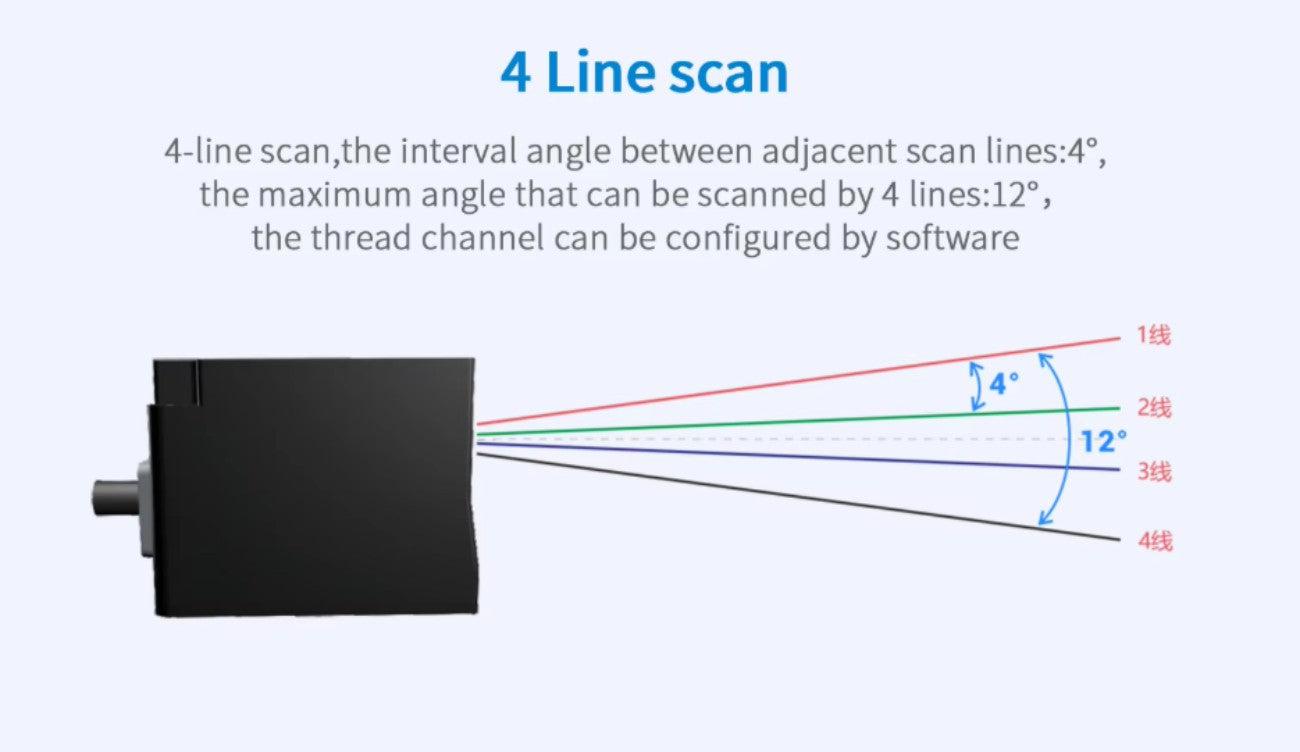

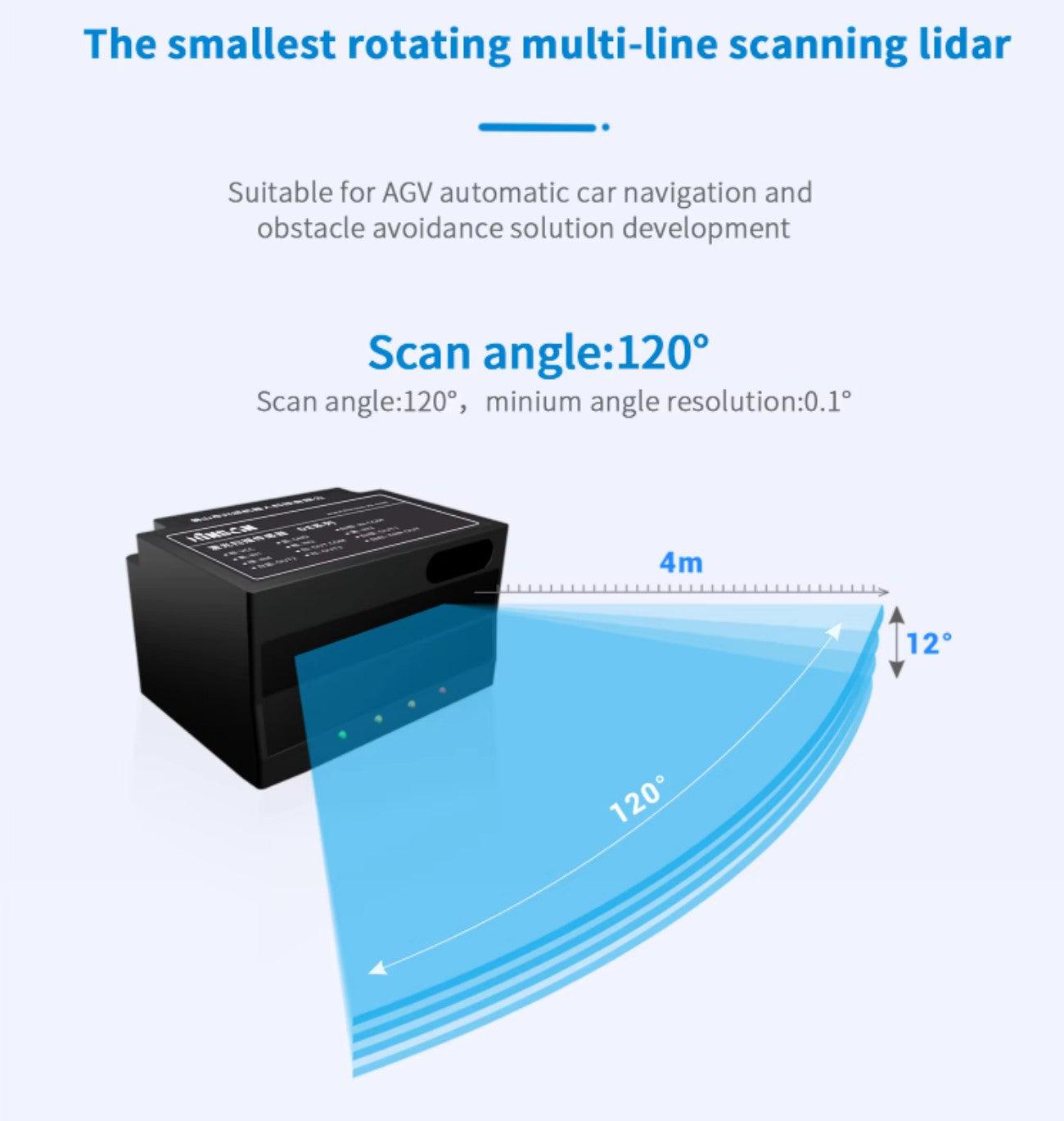

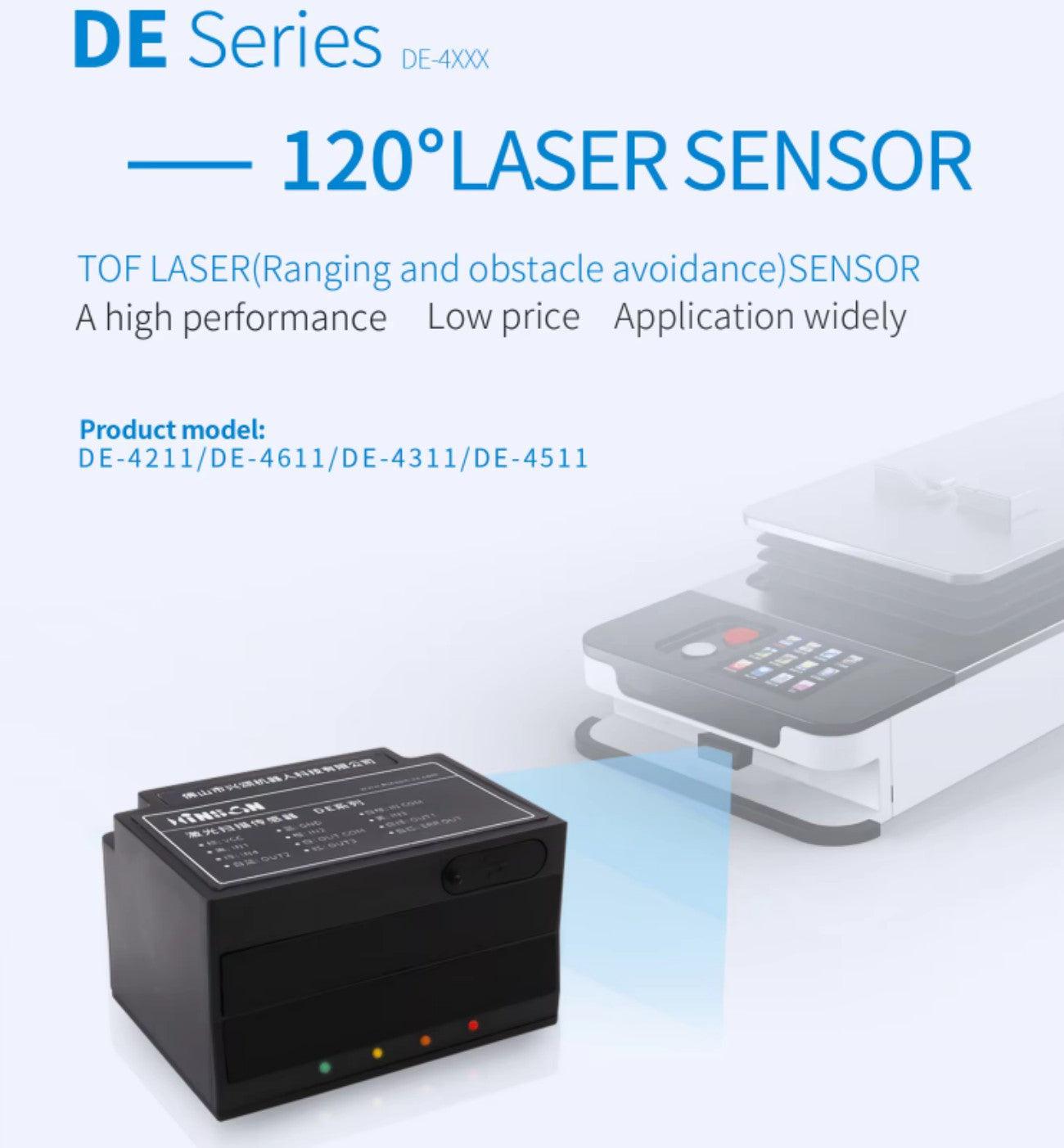

| Detection Angle | 120° (4-line, vertical angle 12°) |
| Scan Frequency | 10 Hz × 4 |
| Point Cloud Resolution | 0.5° (minimum resolution for obstacle detection) |
| Measurement Accuracy | ±40 mm |
| Measurement Noise | ±10 mm |
| Detection Output Delay | 0‑500 ms configurable |
| Detection Hold Delay | 0‑500 ms configurable |
| Recognizable Object Shape | Any shape, resolution depends on detection distance |

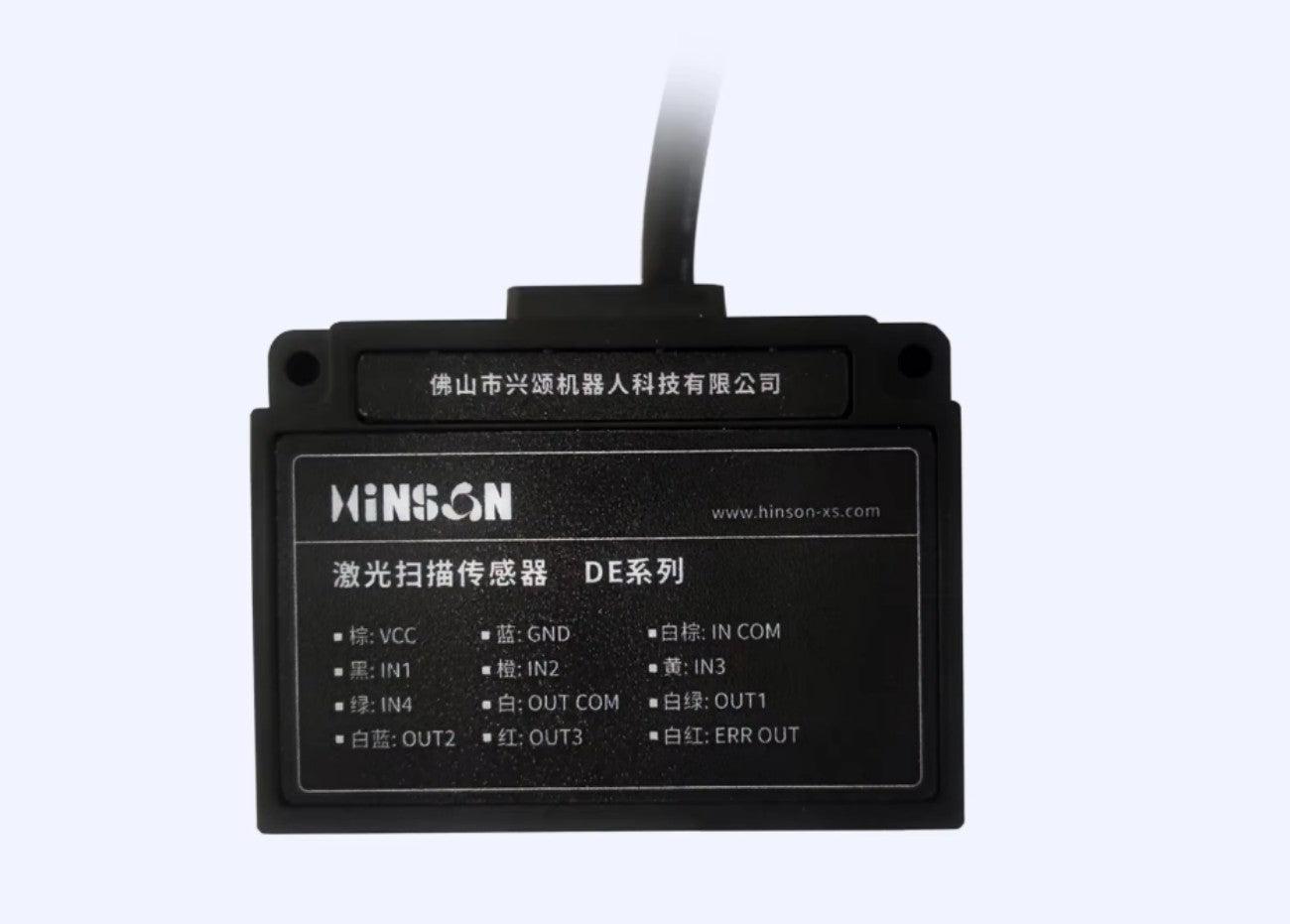

| Digital Input | 4 × NPN |
| Digital Output | 4 × NPN |

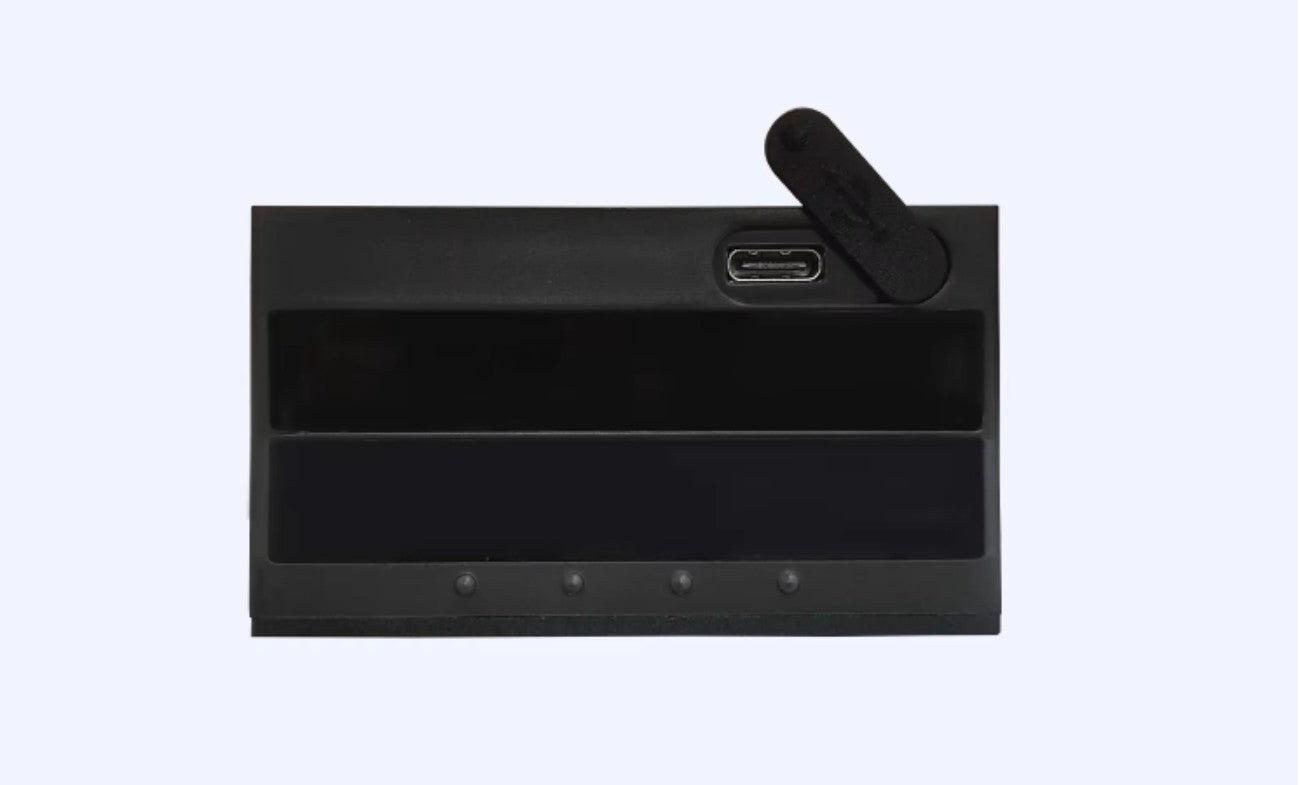

| Type‑C | Supported |
| Number of Channels | 16 (each channel provides 3 independent detection zones) |
| Operating Voltage | DC 12 ~ 30 V |
| Rated Power | < 2 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) |
| Indicator LEDs | Green (Power), Yellow (Output 1), Orange (Output 2), Red (Output 3) |
| Cable | 1.5 m (custom length available) |
| Object Reflectivity | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) |
| Operating Environment | Indoor, -10°C ~ 50°C, < 80% RH (non‑condensing) |
-
Contact Seller:
+861368646****
Hinson presents 20 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from Hinson.
