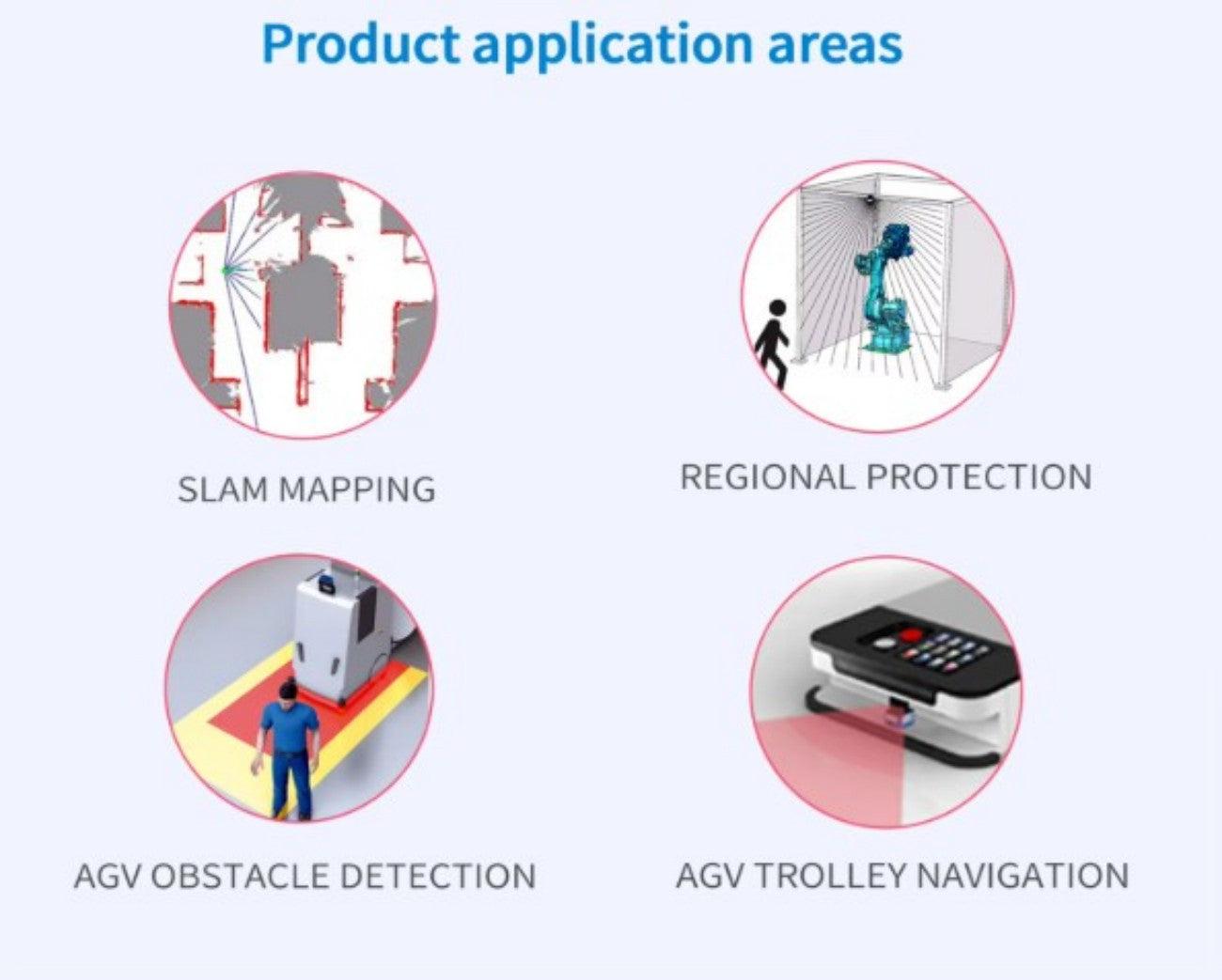

Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|

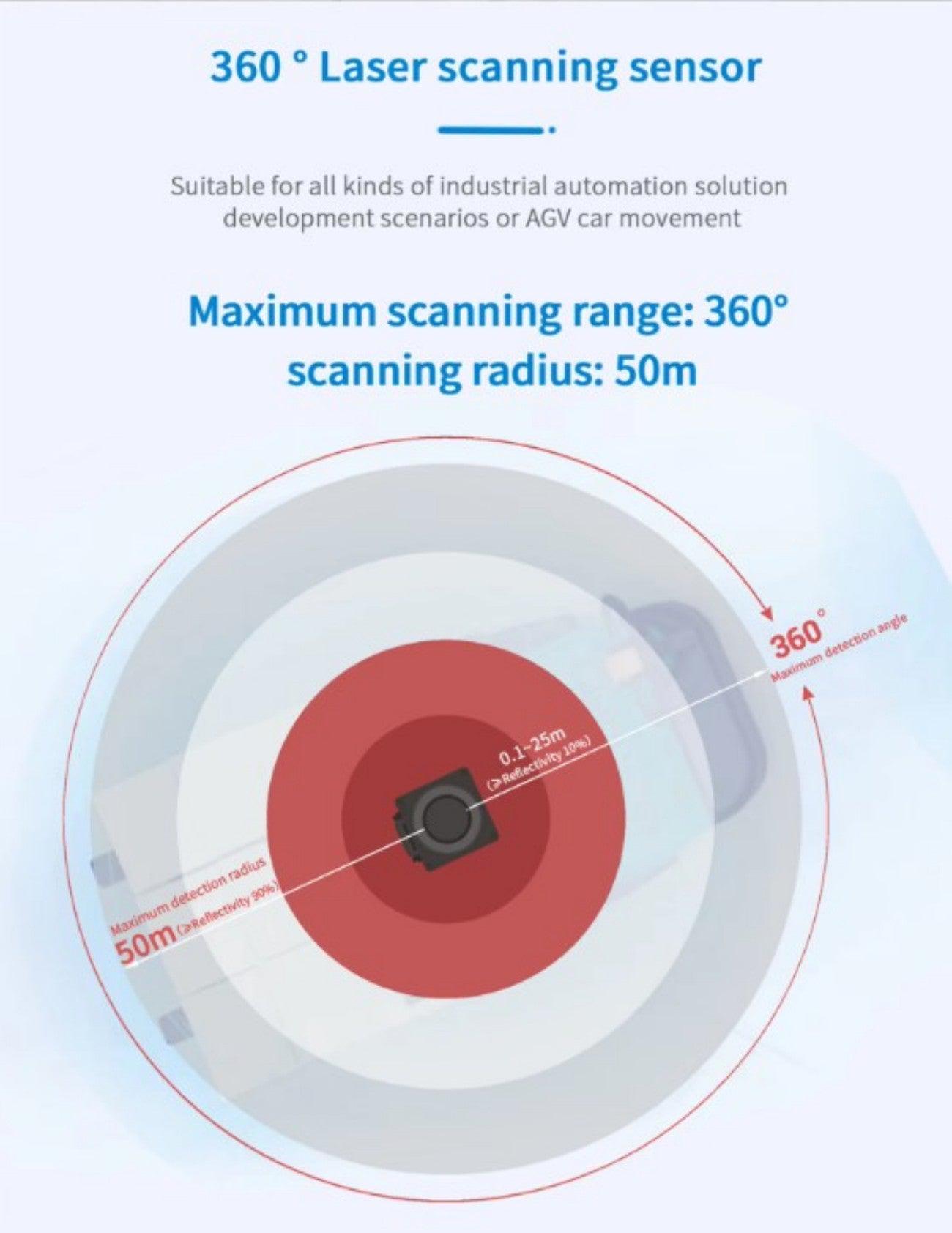

| Detection Distance (90% reflectivity) | 0.05m ~ 50m |
| Detection Distance (10% reflectivity) | 0.05m ~ 20m |
| Detection Angle | 360° (2D) |

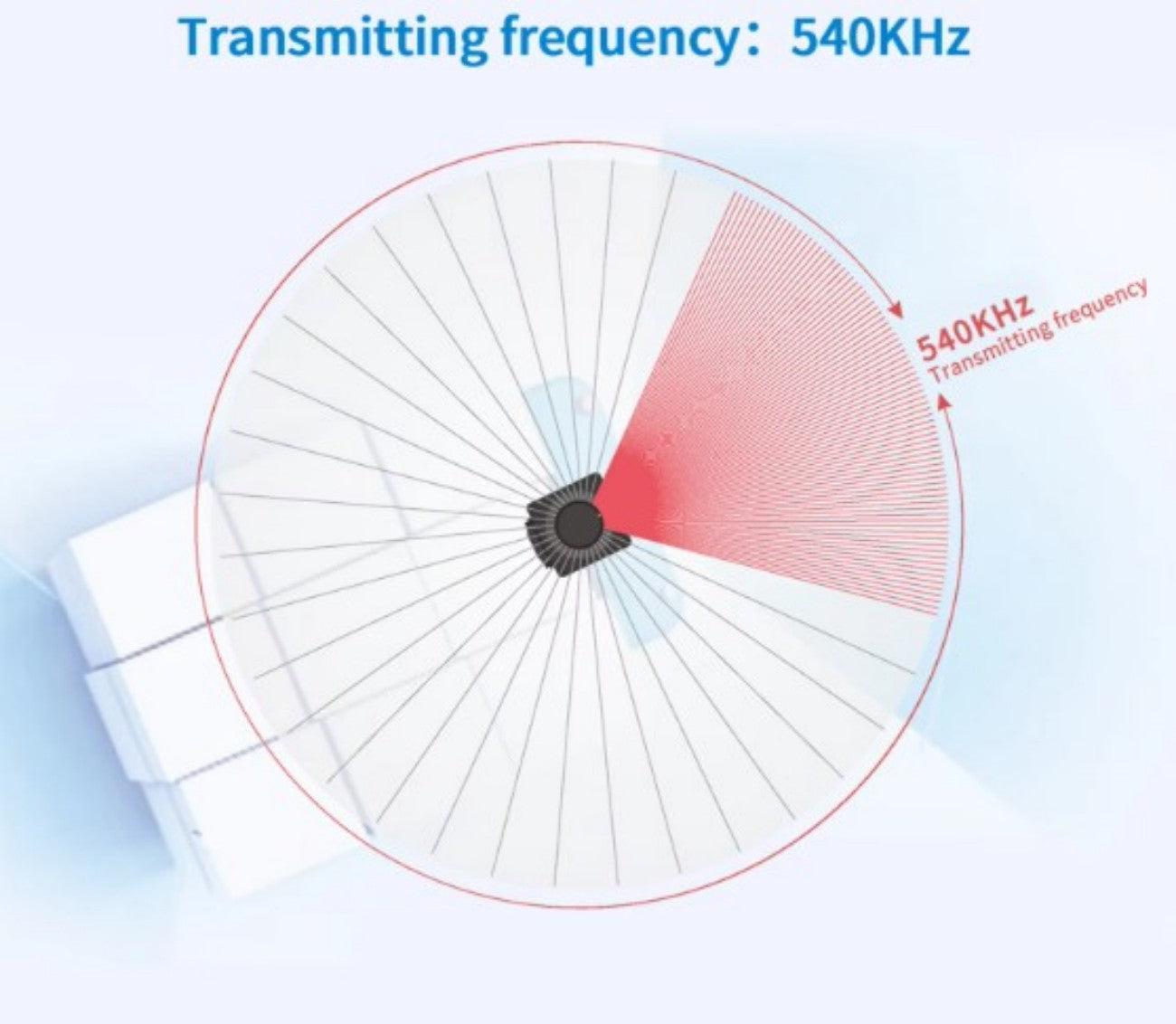

| Scan Frequency | 540 KHz |
| Angular Resolution | 0.025% / 0.05% / 0.1° / 0.25° / 0.5° (depends on scan frequency, motor speed, and single-point sampling count) |
| Scan Motor Speed (12.5Hz) | 750 r/min (0.025°, 0.05°, 0.1°, 0.25°, 0.5° resolution) |
| Scan Motor Speed (25.0Hz) | 1500 r/min (0.05°, 0.1°, 0.25°, 0.5° resolution) |
| Scan Motor Speed (50.0Hz) | 3000 r/min (0.1°, 0.2°, 0.5° resolution) |
| Recognizable Object Shape | Any shape, resolution depends on detection distance |
| Measurement Resolution | 1 mm |
| Absolute Accuracy | ±20 mm |
| Repeat Accuracy | ±10 mm |
| Measurement Noise | ±5 mm |
| Digital Input | 4 × NPN |
| Digital Output | 4 × NPN |
| CAN | Yes |
| Ethernet | TCP / UDP |

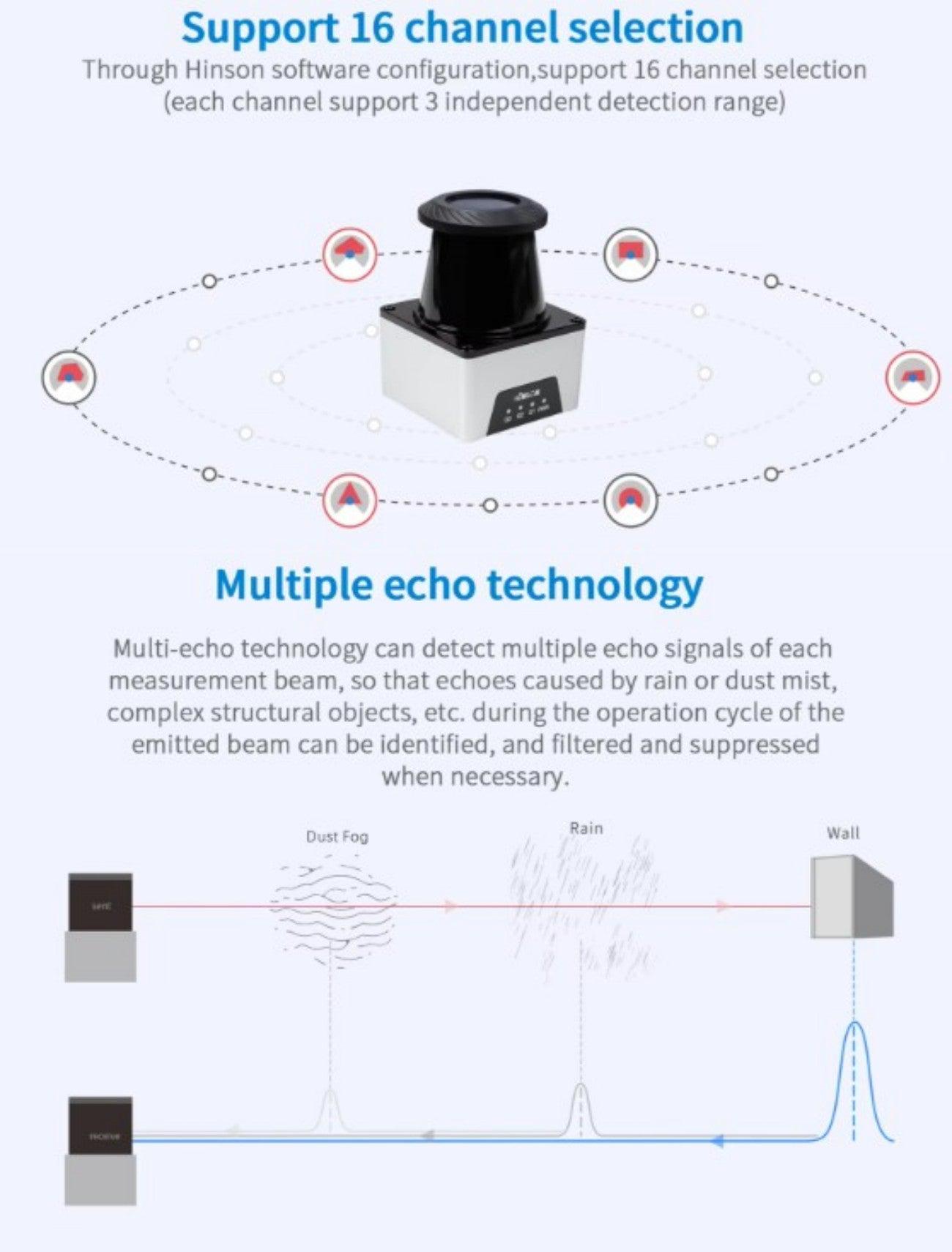

| Number of Echoes | 3 (1st, 2nd, last, max. energy) |
| Raw Measurement Data Output | Yes |
| Obstacle Avoidance Channels | 64 (communication), 16 (I/O) — each channel provides 3 independent detection zones |
| Operating Voltage | DC 10 ~ 30 V |
| Rated Power | < 3.4 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) |
| Indicator Lights | Green (Power), Red (Fault), Yellow / Orange / Red (Output status) |
| Cable | 1 m straight cable (custom length available) |
| Material | Aluminum alloy, PMMA |
| Scanning Window Process | Nano electroplating, with dust cover |
| Protection Rating | IP65 |
| Object Reflectivity | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) |
| Operating Environment | Indoor, -10°C ~ 50°C, < 80% RH (non-condensing) |
-
