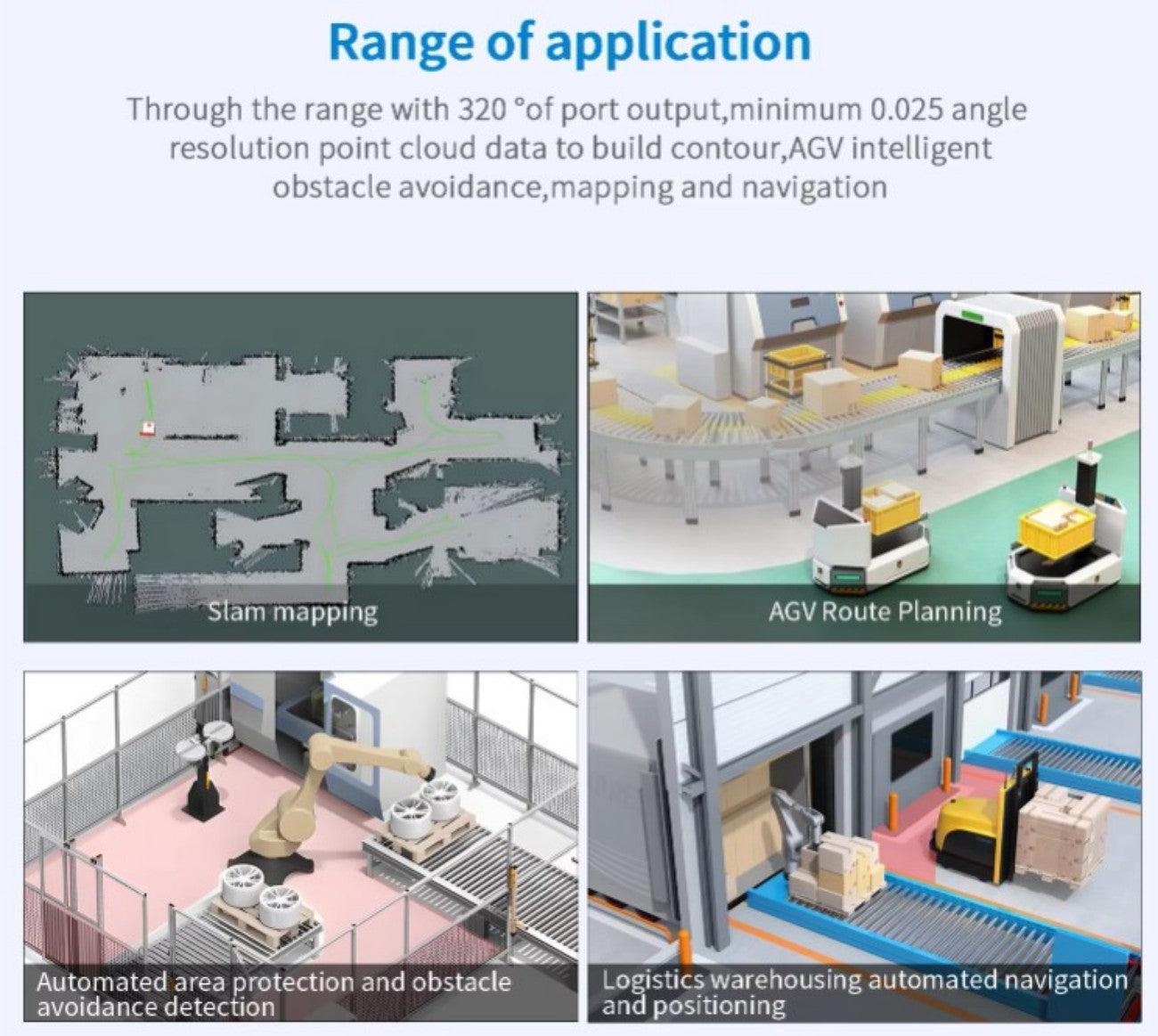

Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection Distance (90% reflectivity) | 0.05 ~ 30 m |
| Detection Distance (10% reflectivity) | 0.05 ~ 10 m |

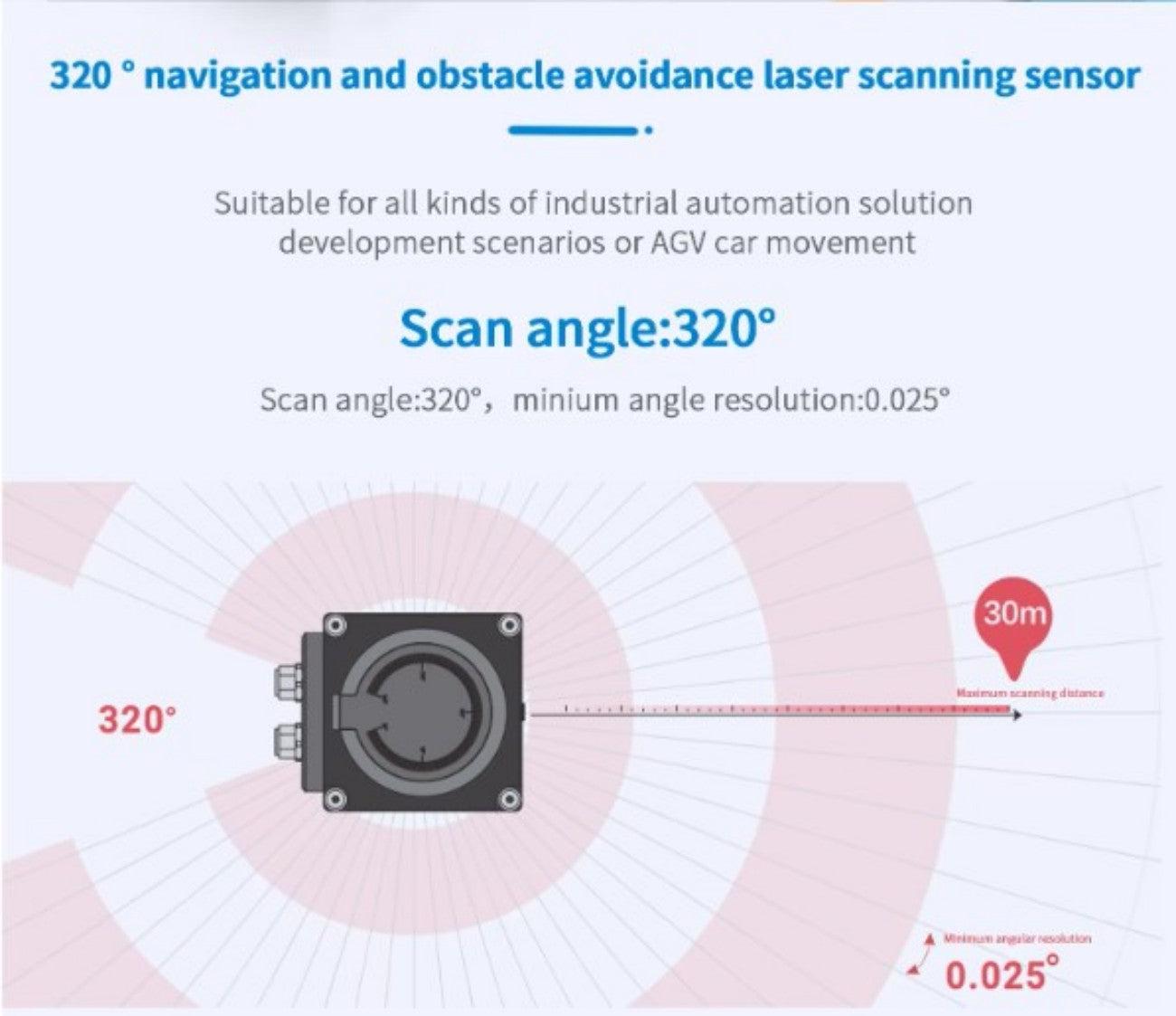

| Detection Angle | 320° (2D) |
| Measurement Frequency | 144 kHz |
| Scan Frequency | 10 Hz / 20 Hz (configurable) |
| Point Cloud Angular Resolution | 0.025° / 0.05° / 0.1° / 0.25° / 0.5° |
| Recognizable Object Shape | Any shape, resolution depends on detection distance |
| Absolute Accuracy | ±20 mm |
| Repeat Accuracy | ±20 mm |
| Measurement Noise | ±10 mm |
| Detection Output Delay | 0‑500 ms configurable |
| Detection Hold Delay | 0‑500 ms configurable |
| Digital Output | 4 × PNP |

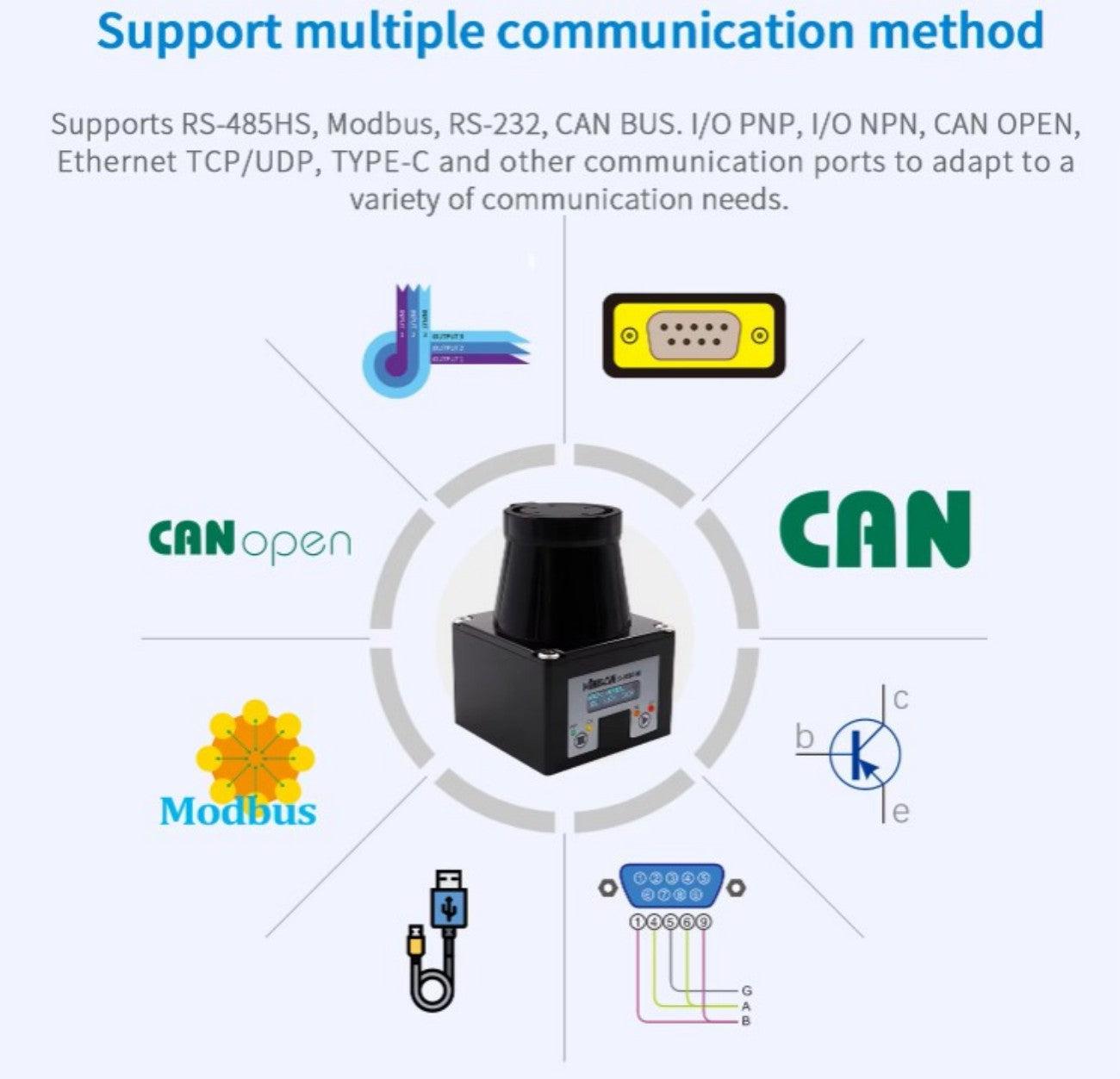

| Configuration Port | TCP/UDP |

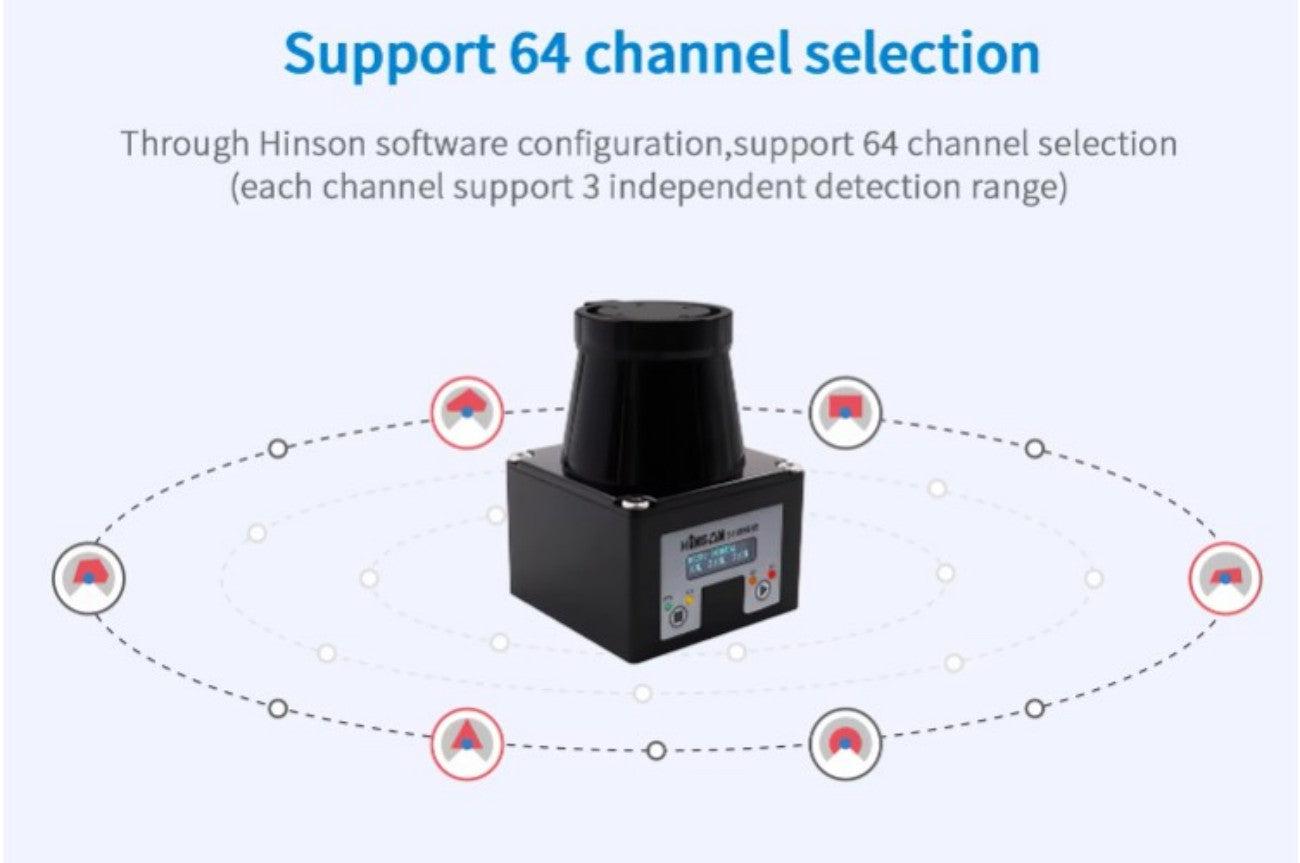

| Obstacle Avoidance Channels | 64 (each channel provides 3 independent detection zones) |

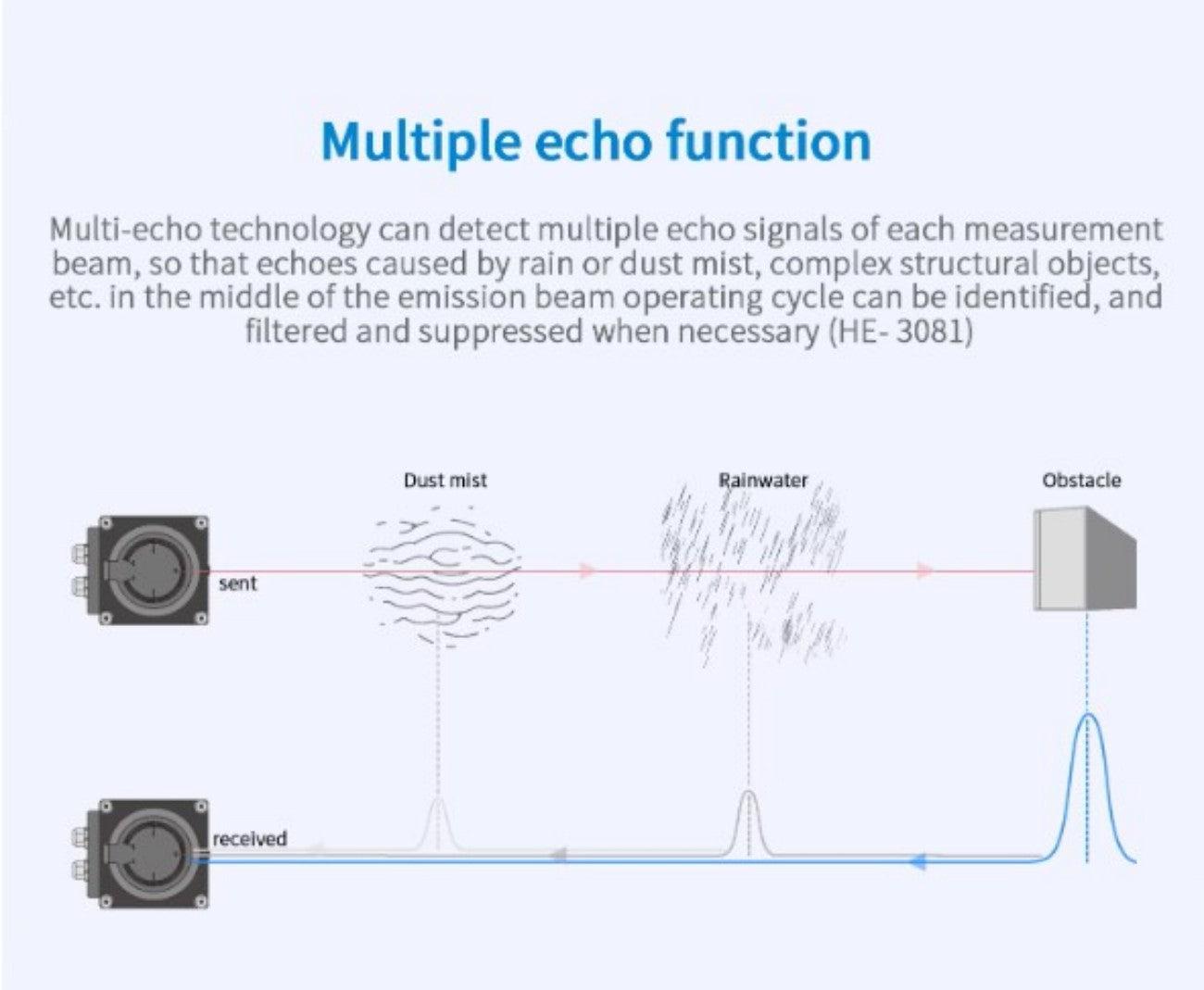

| Number of Echoes | 3 (1st, 2nd, last, max. energy) |
| Operating Voltage | DC 12 ~ 30 V |
| Rated Power | < 3 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) |
| Indicator LEDs | 4 × LED (Green, Red, Yellow, Orange) |

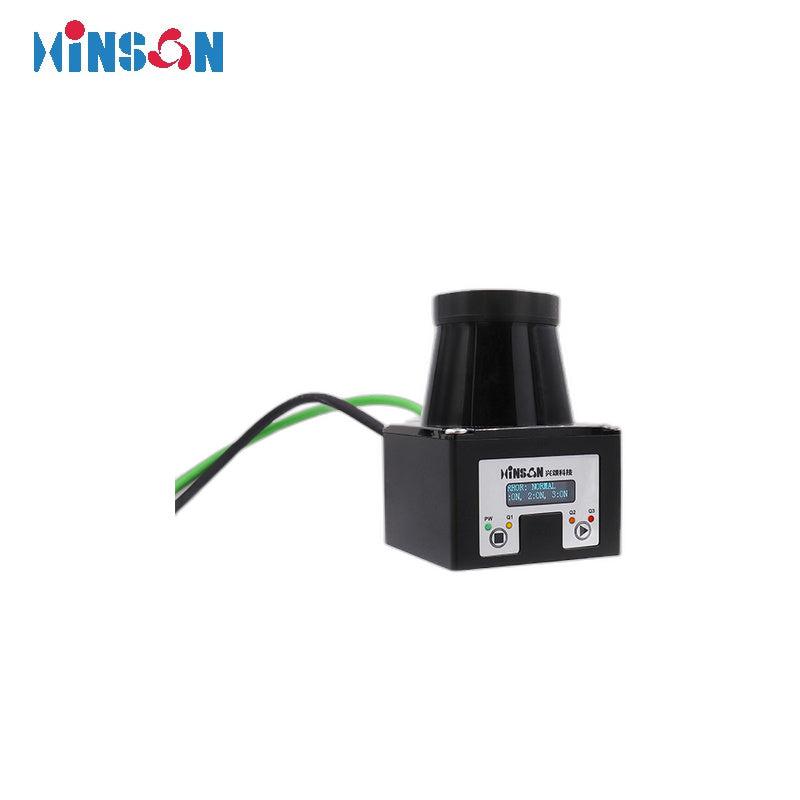

| Display | 128 × 64 pixel OLED screen |

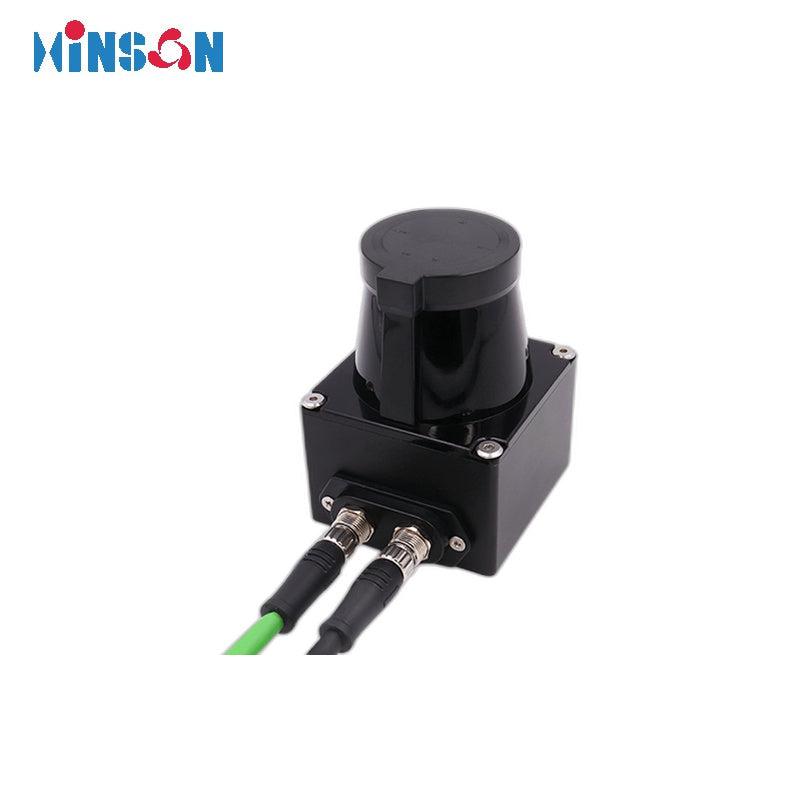

| Cable | M8‑4, M8‑8 aviation connector (cable sold separately) |

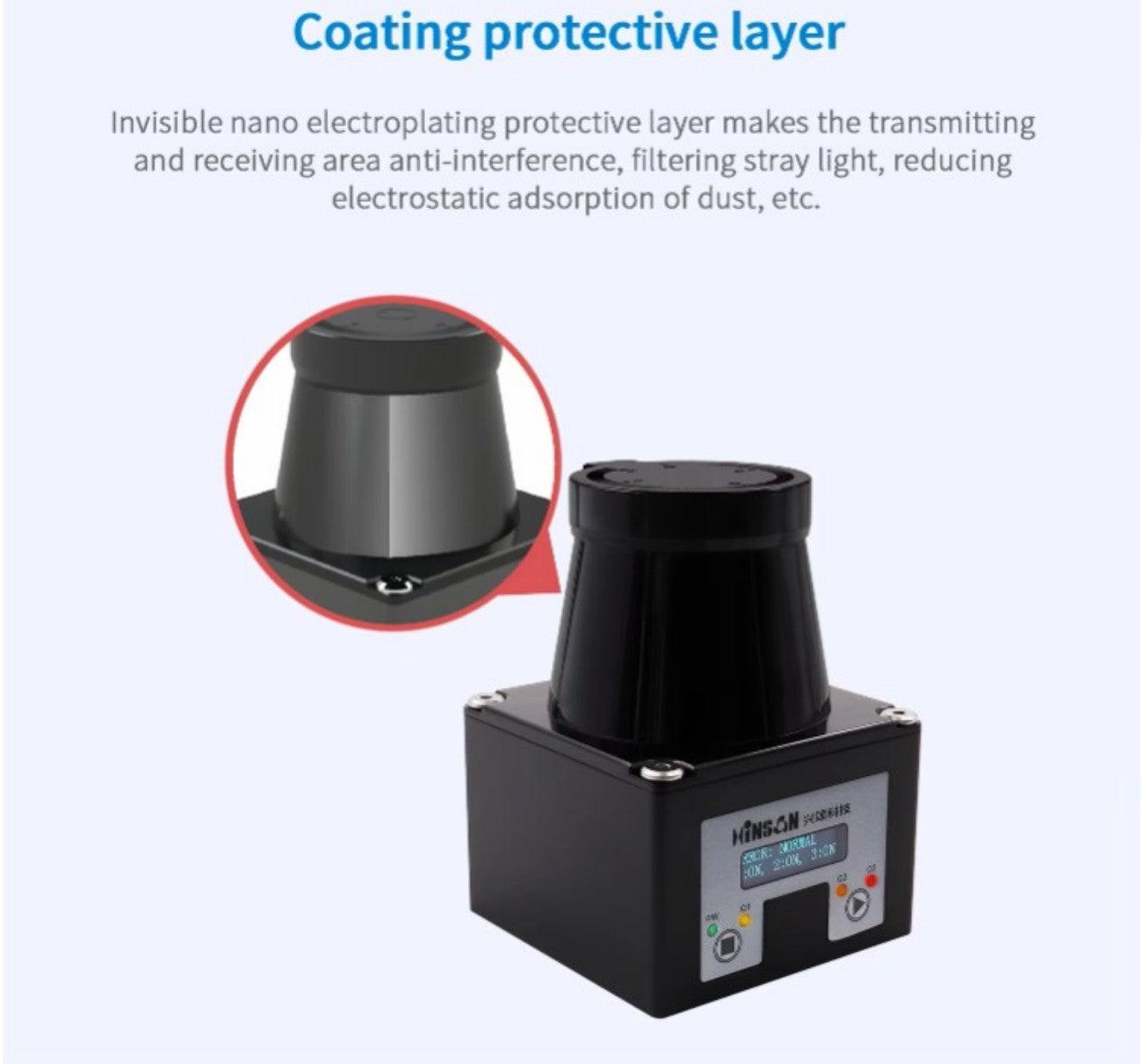

| Material | Base: aluminum alloy; Scanning window: PMMA |
| Protection Rating | IP65 |
| Object Reflectivity | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) |
| Operating Environment | Indoor, -10°C ~ 50°C, < 80% RH (non‑condensing) |
-
