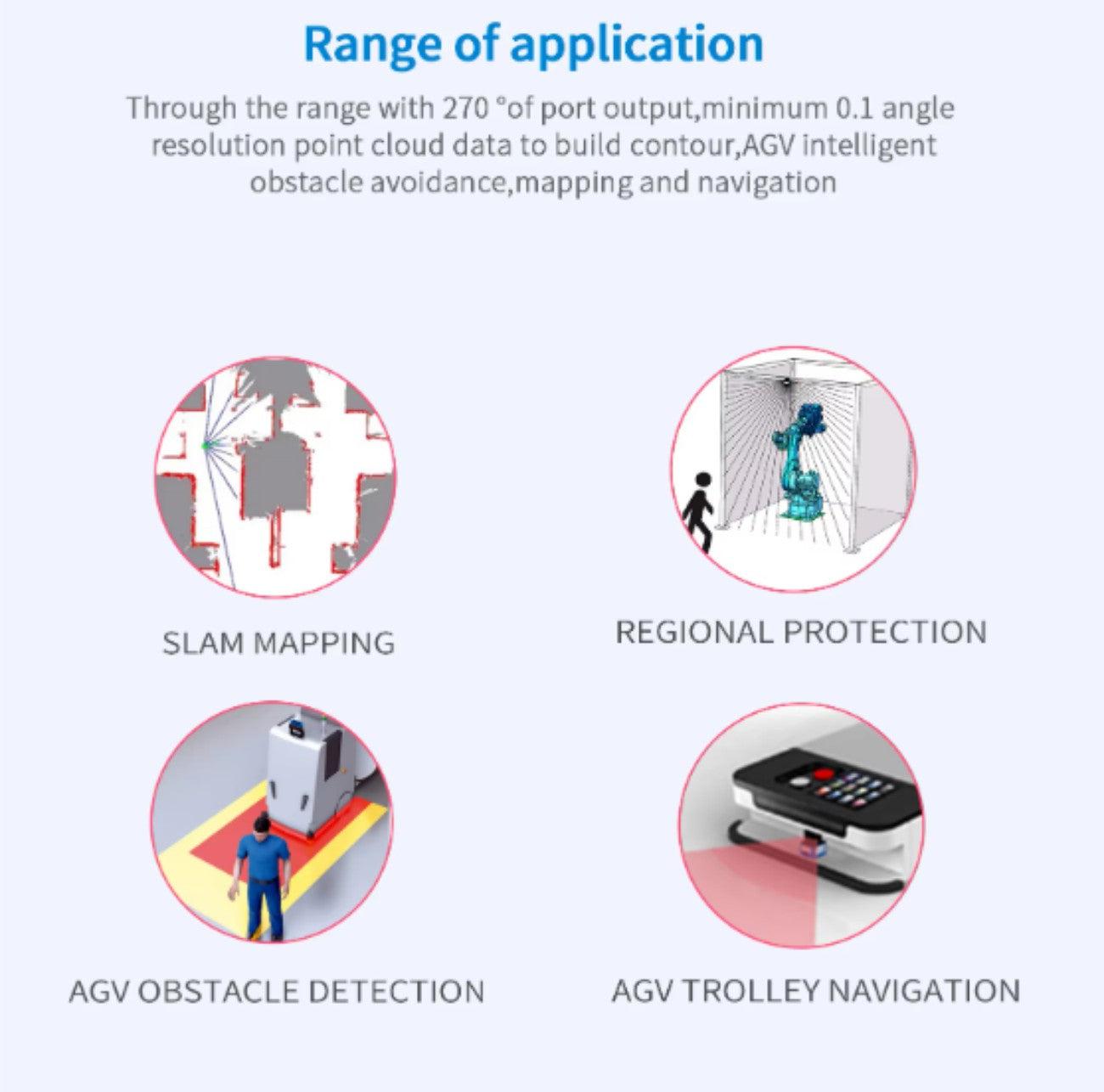

Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | SE-0526 | SE-0526F11 |
|---|---|---|

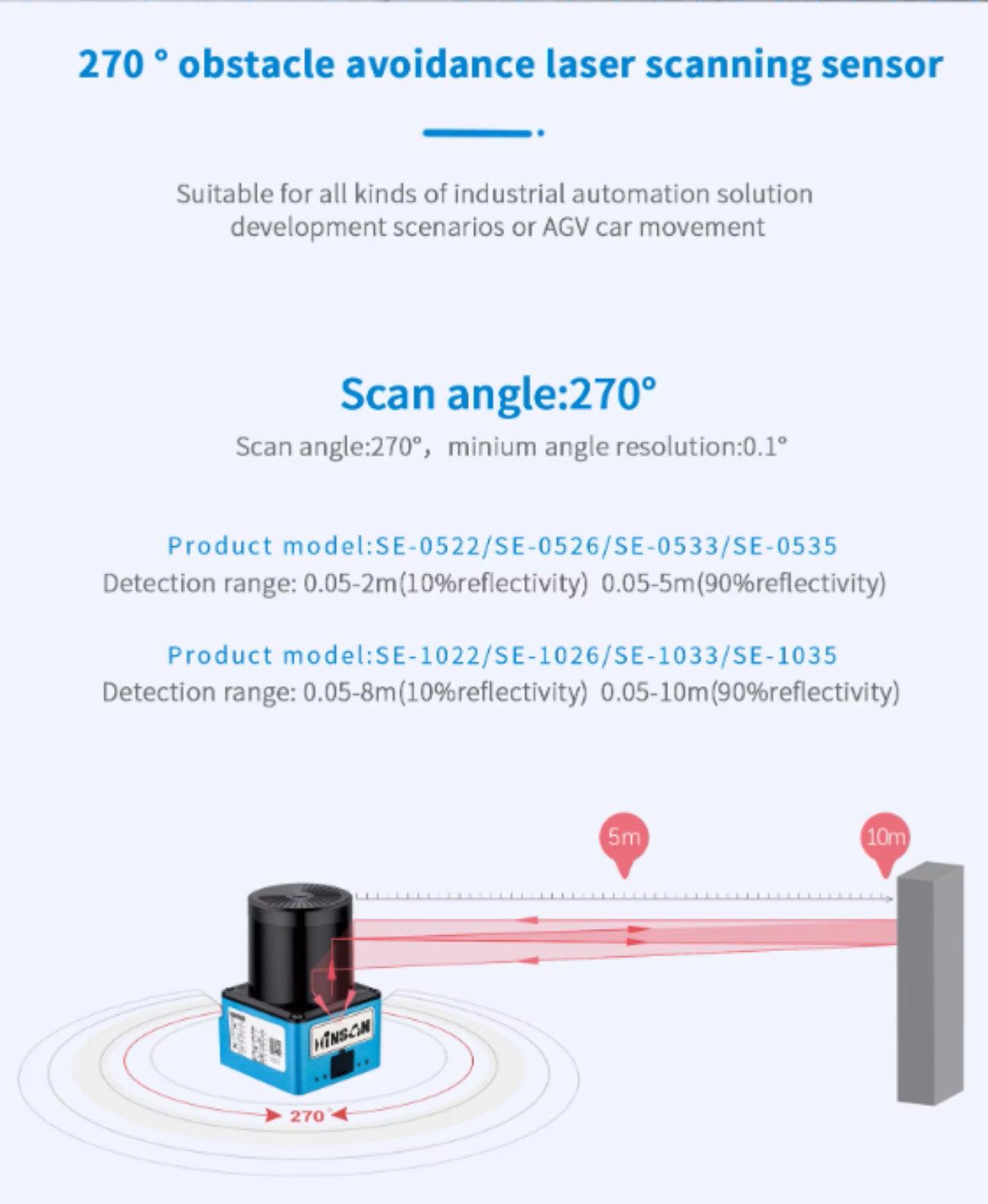

| Detection Distance | 0.05‑5 m (90% reflectivity) 0.05‑2 m (10% reflectivity) |
0.05‑5 m (90% reflectivity) 0.05‑2 m (10% reflectivity) |

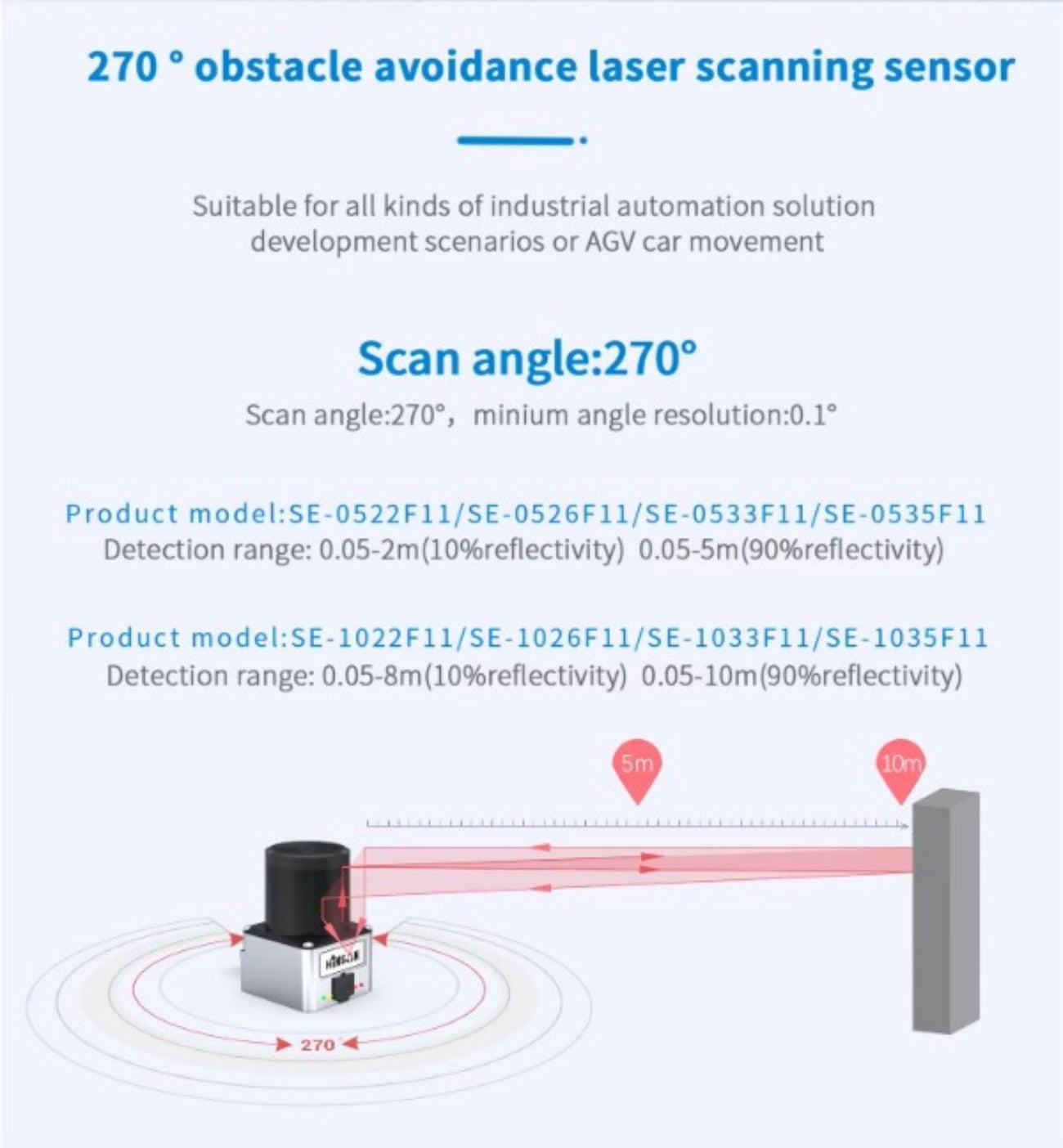

| Detection Angle | 270° (2D) | 270° (2D) |
| Angular Resolution | 0.1° / 0.2° (software configurable) | 0.1° / 0.2° (software configurable) |
| Scan Frequency | 20 Hz | 20 Hz |
| Recognizable Object Shape | Any shape, resolution depends on detection distance | Any shape, resolution depends on detection distance |
| Absolute Accuracy | ±30 mm | ±30 mm |
| Repeat Accuracy | ±30 mm | ±30 mm |
| Measurement Noise | ±10 mm | ±10 mm |
| Detection Output Delay | 0‑500 ms configurable | 0‑500 ms configurable |
| Detection Hold Delay | 0‑500 ms configurable | 0‑500 ms configurable |
| Digital Input | 6 × PNP | 6 × PNP |
| Digital Output | 4 × PNP | 4 × PNP |
| Micro‑USB | Supported | Supported |

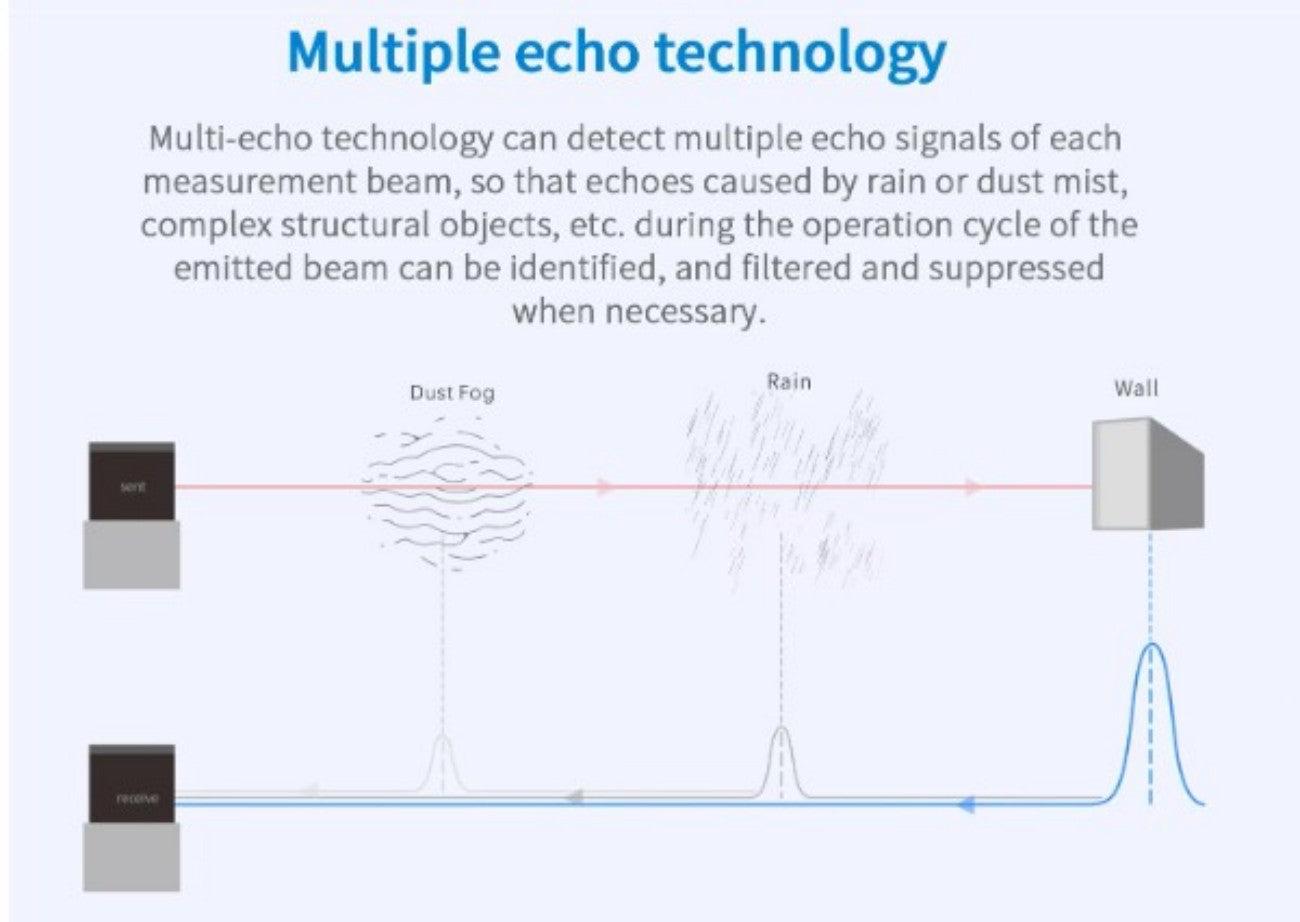

| Number of Echoes | 3 (1st, 2nd, last, max. energy) | |

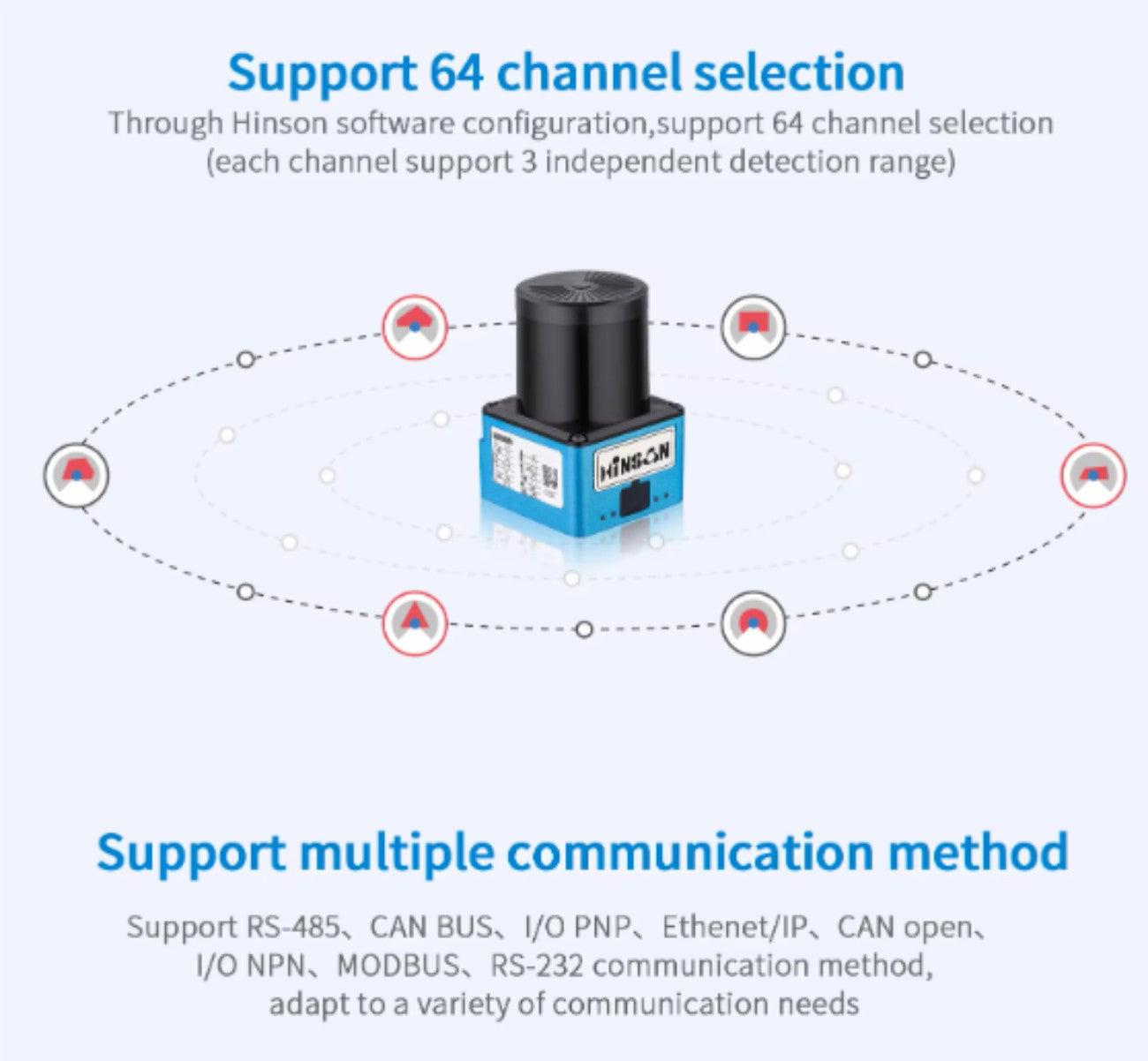

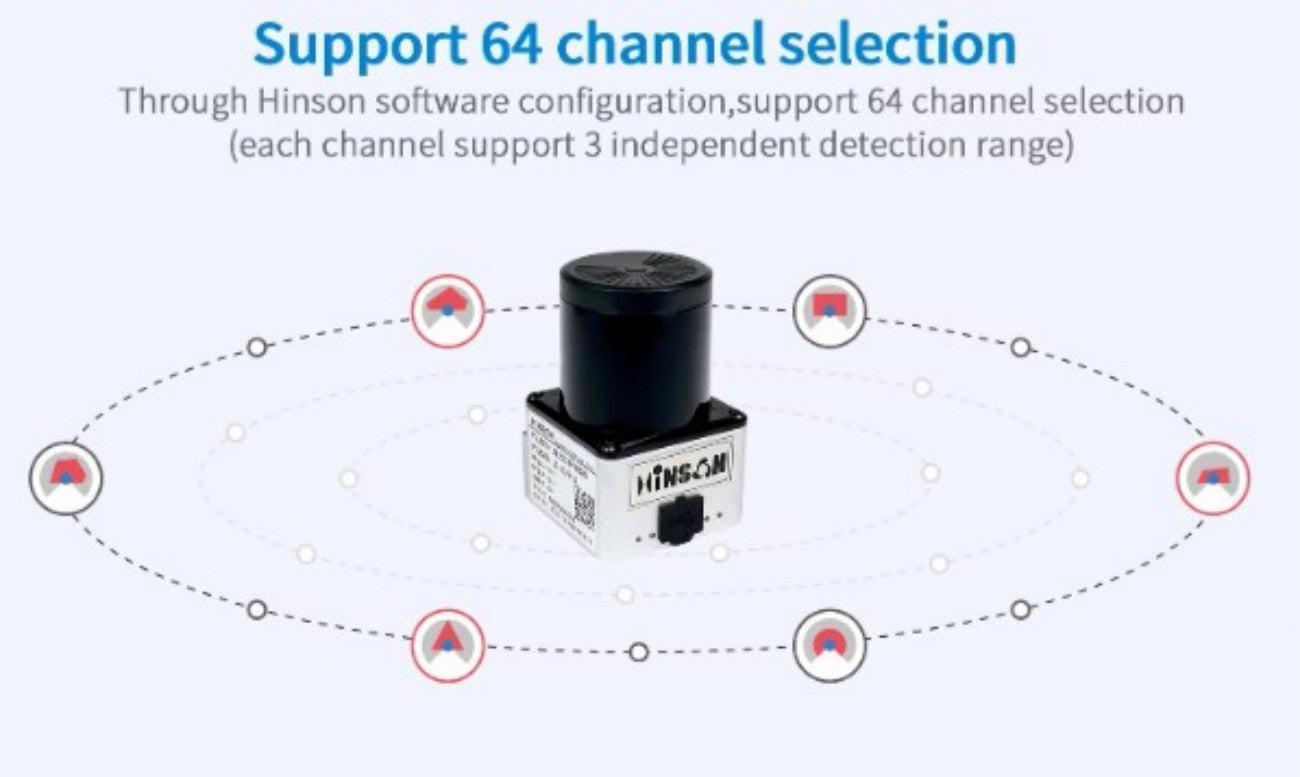

| Obstacle Avoidance Channels | 64 (each channel provides 3 independent detection zones) | 64 (each channel provides 3 independent detection zones) |
| Operating Voltage | DC 18 ~ 32 V | DC 18 ~ 32 V |
| Rated Power | < 2 W | < 2 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) | 905 nm Class 1 (IEC 60825-1:2014) |
| Indicator LEDs | 4 × LED (Green, Yellow, Orange, Red) | 4 × LED (Green, Yellow, Orange, Red) |
| Material | Aluminum alloy, scanning window / PMMA | Aluminum alloy, scanning window / PMMA |
| Cable | 1 m (custom length available) | 1 m (custom length available) |

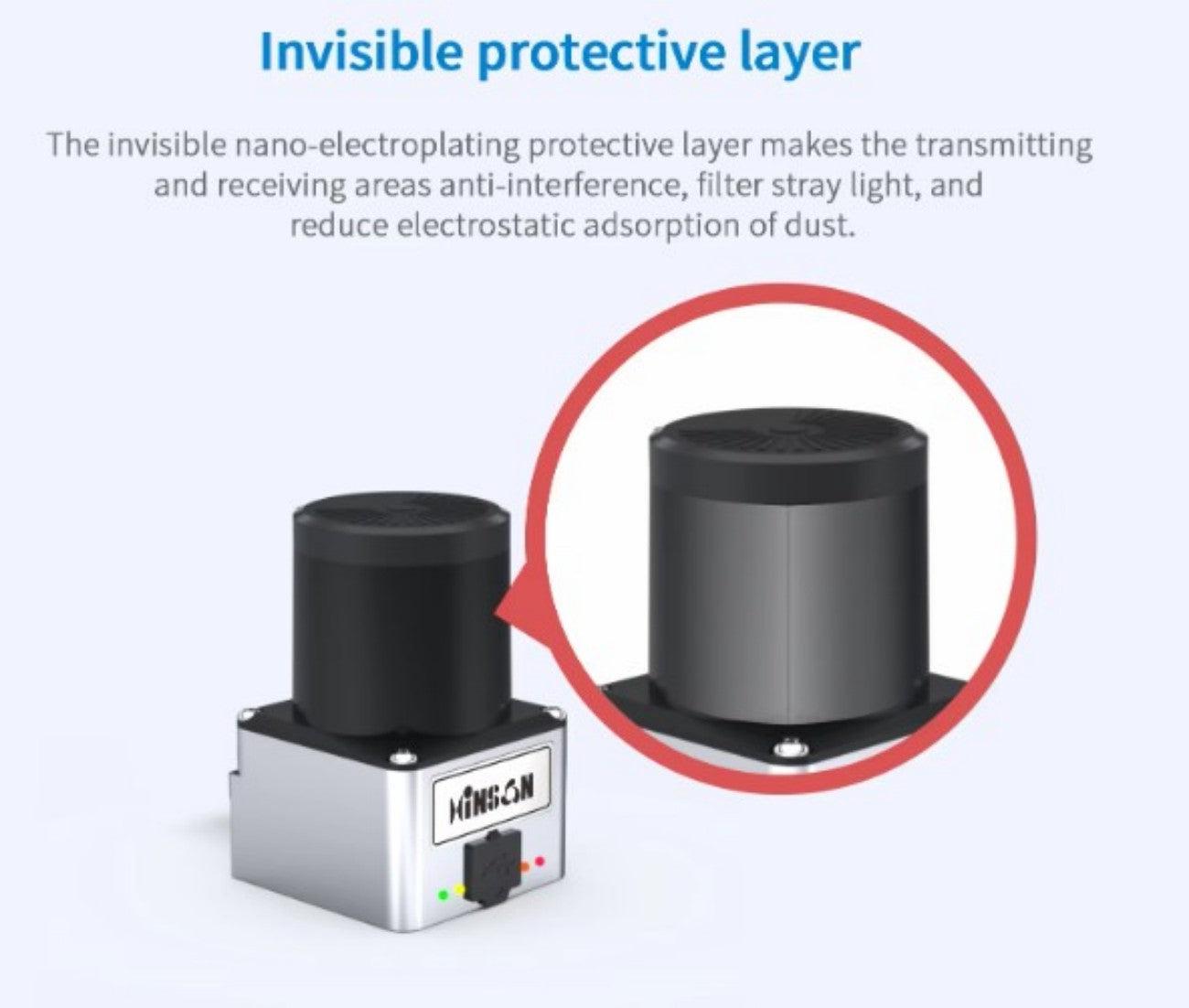

| Scanning Window Process | Nano electroplating | Nano electroplating |
| Object Reflectivity | 2 ~ 1000% | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) | < 80000 Lux (sunlight resistant) |
| Operating Environment | -10°C ~ 50°C (indoor use), < 80% RH (non‑condensing) | -10°C ~ 50°C (indoor use), < 80% RH (non‑condensing) |
| Durability Test | 10 Hz – 1000 Hz; 5g; 10 cycles per axis (GB/T 2423.10-2019) | 10 Hz – 1000 Hz; 5g; 10 cycles per axis (GB/T 2423.10-2019) |
| Vibration Resistance | 55‑250 Hz, RMS = 42.4 m/s², 5 h per axis (GB/T 2423.56-2018) | 55‑250 Hz, RMS = 42.4 m/s², 5 h per axis (GB/T 2423.56-2018) |
| Shock Resistance | 50g, 6ms, 3 shocks per axis; 25g, 6ms, 1000 shocks per axis; 50g, 3ms, 5000 shocks per axis (GB/T 2423.5-2019) |
50g, 6ms, 3 shocks per axis; 25g, 6ms, 1000 shocks per axis; 50g, 3ms, 5000 shocks per axis (GB/T 2423.5-2019) |
| Temperature Cycling Test | -25°C … +55°C (GB/T 2423.22-2012) | -25°C … +55°C (GB/T 2423.22-2012) |
-
