Product Overview

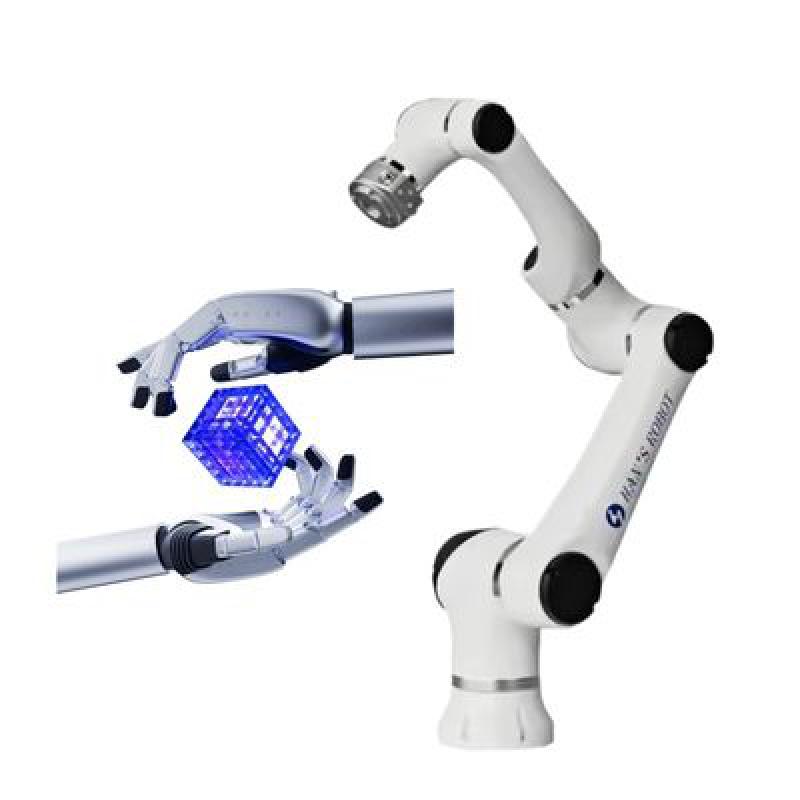

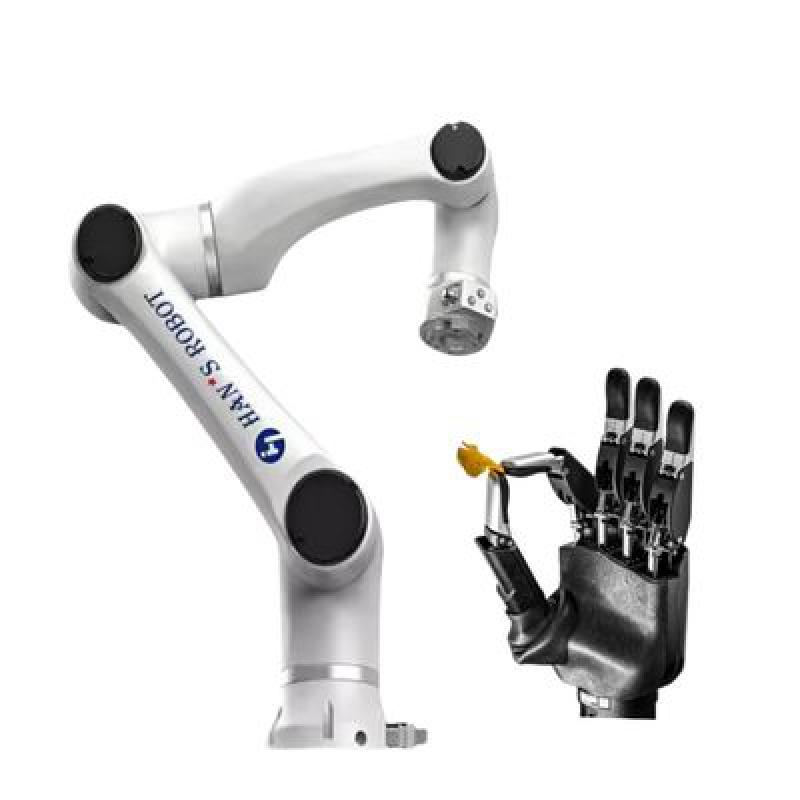

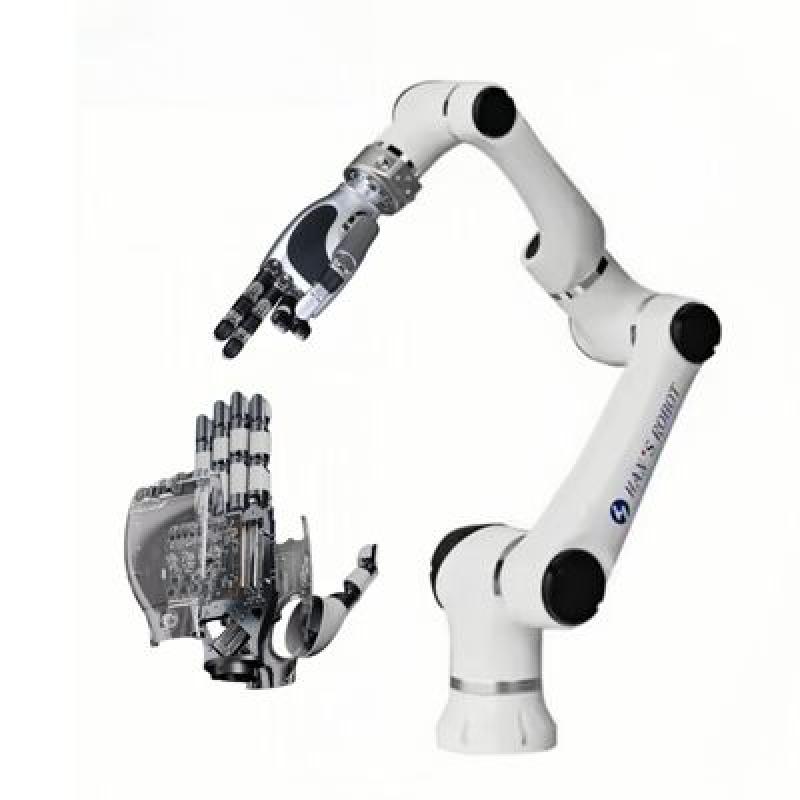

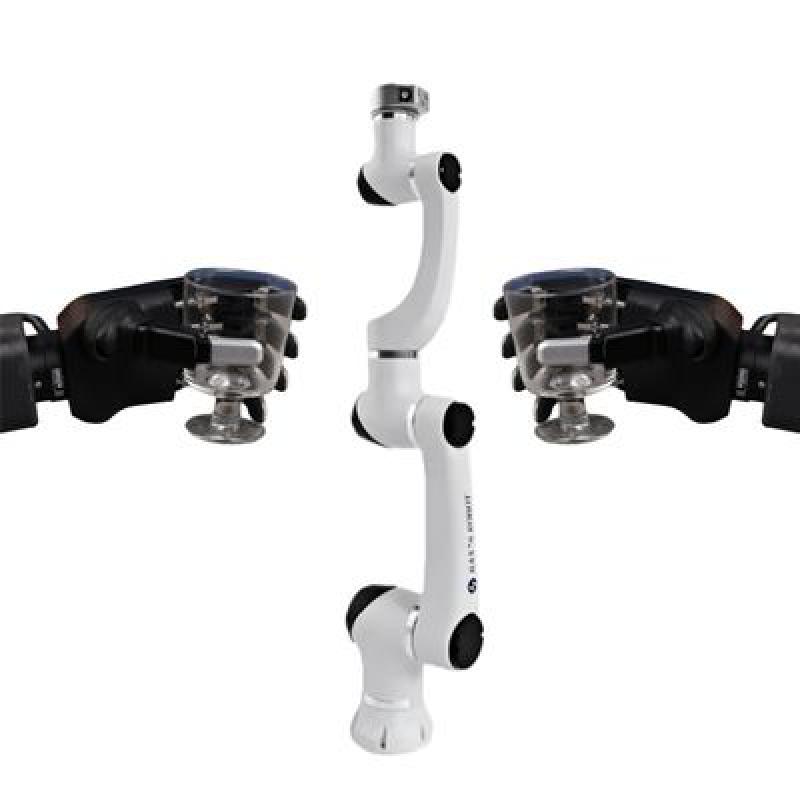

The Dahua SmartGrip + Huayan E05 is an intelligent bin picking and sorting solution integrating the Huayan E05 cobot with Dahuaâs AI-powered SmartGrip and 3D vision system. The E05 provides 900 mm reach and 5 kg payload with collision detection, while the SmartGrip uses dual adaptive fingers and embedded force sensing to grasp random objects from bins. The integrated 3D camera enables part recognition, pose estimation, and collision-free path planning in unstructured environments. Perfect for e-commerce order fulfillment, kitting, and warehouse automation, this turnkey system deploys in hours and scales from 1 to 100+ units with centralized fleet management.
Key Features
- 3D Vision Guidance: Dahua AI camera with 0.5 mm accuracy.
- Adaptive Gripping: Handles 10â150 mm parts, 10 gâ3 kg.
- Bin Picking Software: Pre-trained for 100+ common parts.
- No-Code Interface: Drag-and-drop workflow builder.
- Fleet Management: Cloud dashboard for multiple robots.
- 900 mm Reach: Large bin and conveyor access.
- Collision Detection: 10 N force limit safety.
- Mobile Base Ready: Optional AGV integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Robot | Huayan E05 |
| Gripper | Dahua SmartGrip-2F |
| Payload | 5 kg |
| Reach | 900 mm |
| Repeatability | ±0.03 mm |
| Vision | Dahua 3D AI Camera (1080p, 30 fps) |
| Grip Range | 10â150 mm |
| Pick Rate | Up to 60 picks/min |
| Power | 24 VDC, 300 W peak |
| Connectivity | Ethernet, Wi-Fi, 4G optional |
Applications
- E-Commerce Fulfillment: Order picking from totes.
- Kitting: Assembly kit preparation.
- Warehouse Sorting: SKU consolidation.
- Returns Processing: Item identification and repacking.
- Third-Party Logistics: Multi-client operations.
Frequently Asked Questions
How long to deploy?
Under 4 hours with pre-trained models.
Can it handle shiny parts?
Yes, AI vision suppresses reflections.
Does it need part CAD?
No, auto-learns from 3D scan.
Can multiple robots share one bin?
Yes, with fleet coordination.
Is mobile base included?
Optional AGV integration available.
Contact Us
Contact our team for inquiries about the Dahua SmartGrip + Huayan E05, pricing, or to schedule a demo:
- Email: jessieliu@gbsxj.com
- Phone: +8618855092962
Related Products
- E05 Mobile Cobot: AGV base version.
- Dahua 3D Vision Pro: High-speed scanner.
- Huayan Fleet Manager: Cloud control platform.
- SmartGrip-Suction: Vacuum variant.
-
