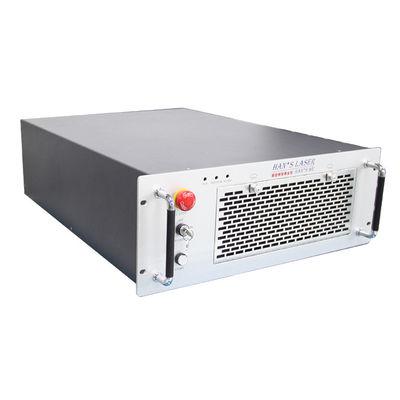

Large beam size plastic laser welder WFD 10 Plastic bottle
sealing welding for HAN'S welding machine
Specification
| Laser Model | WFD10 | WFD50 | WFD100 |
| Laser Type | Diode | Diode | Diode |
| Wavelength (nm) | 915 | 915 | 915 |
| Work Mode | CW | CW | CW |
| Maximum Average Power (W) | 10 | 50 | 100 |
| Pulse Width (ms) | 0.1~80000 | 0.1~80000 | 0.1~80000 |
| Wave Form | 16 x 16 sections | 16 x 16 sections | 16 x 16 sections |
| Fiber Output | 1 | 1 | 1 |
| Fiber Diameter (um) | 200 | 200 | 200 |
| Positioning Method | CCD Camera | CCD Camera | CCD Camera |
| Cooling System | Air-cooled | Air-cooled | Air-cooled |
| Power Input | 220V±10%,50/60 Hz | 220V±10%,50/60 Hz | 220V±10%,50/60 Hz |
Product Information
The WFD series is a diode laser that uses diode materials to illuminate between energy bands. Two parallel mirror surfaces inside the diode are formed as a resonant cavity, which illuminates the light, and outputs laser of wavelength 915 nm.
With fiber transmission, a non-contact long-distance operation is convenient for integration with the automated production line. The laser has current feedback closed-loop control, real-time monitoring and adjustment of the output laser to ensure the stability; uniform beam energy distribution, large beam size.
For metal welding it is suitable for wide welding, the surface of the weld is smooth and clean. For welding plastic, with large beam size, the plastic at the joint is evenly melted, to create strong welding and perfect sealing.
Application:
Widely applied to the reinforcement and sealing welding of plastics Medical plastic parts.
1. Auto plastic parts.
2. Plastic bottle sealing welding.
3. Plastic pipe sealing welding.
4. Oxygen mask sealing welding.
