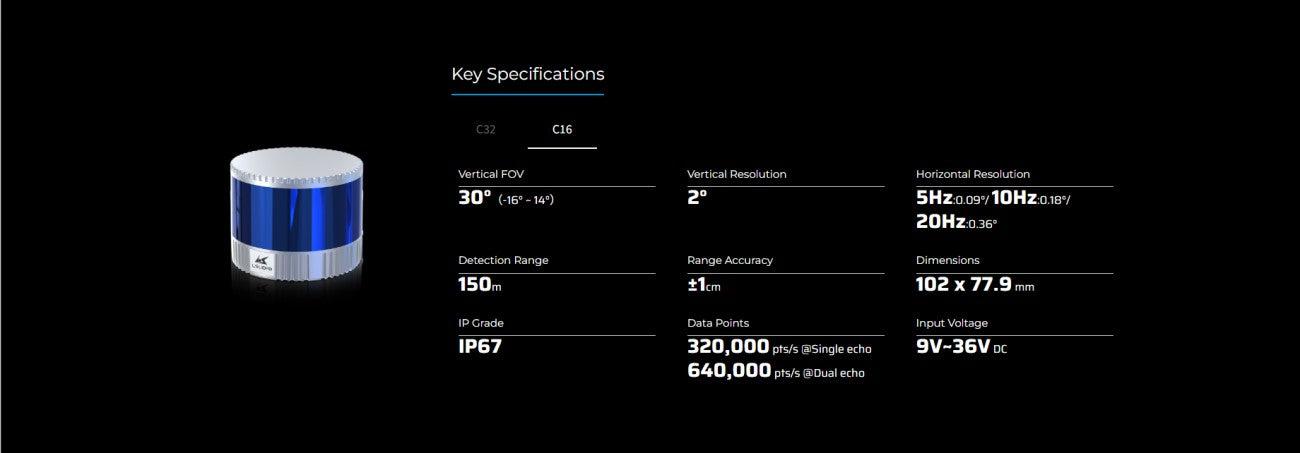

Technical Specifications
| Parameter | Value |
|---|---|

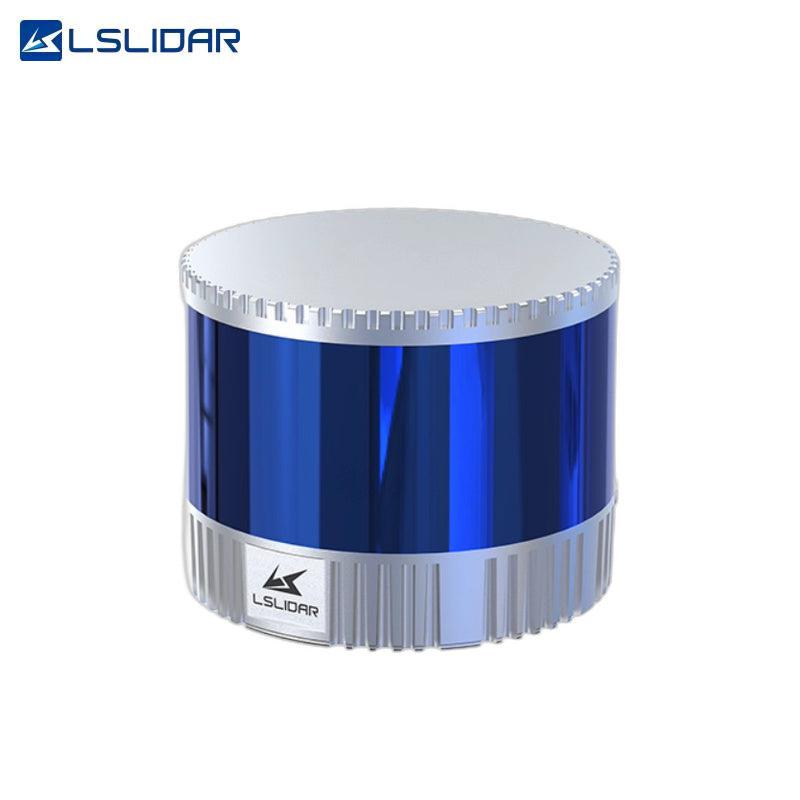

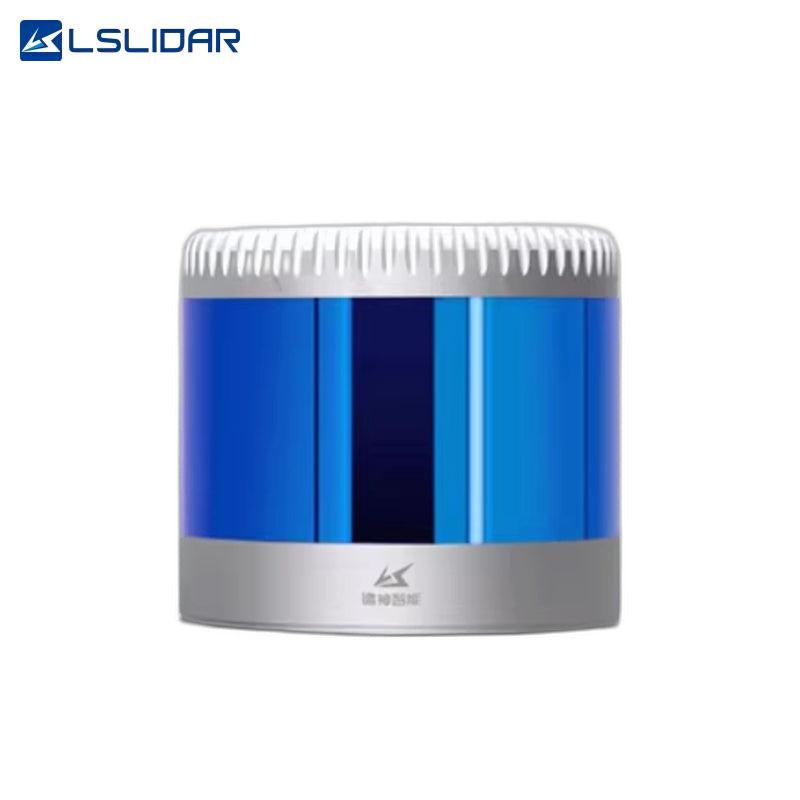

| Model | C16 |
| Wavelength | 905nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 16 channels |
| Ranging Principle | TOF (Time-of-Flight) |

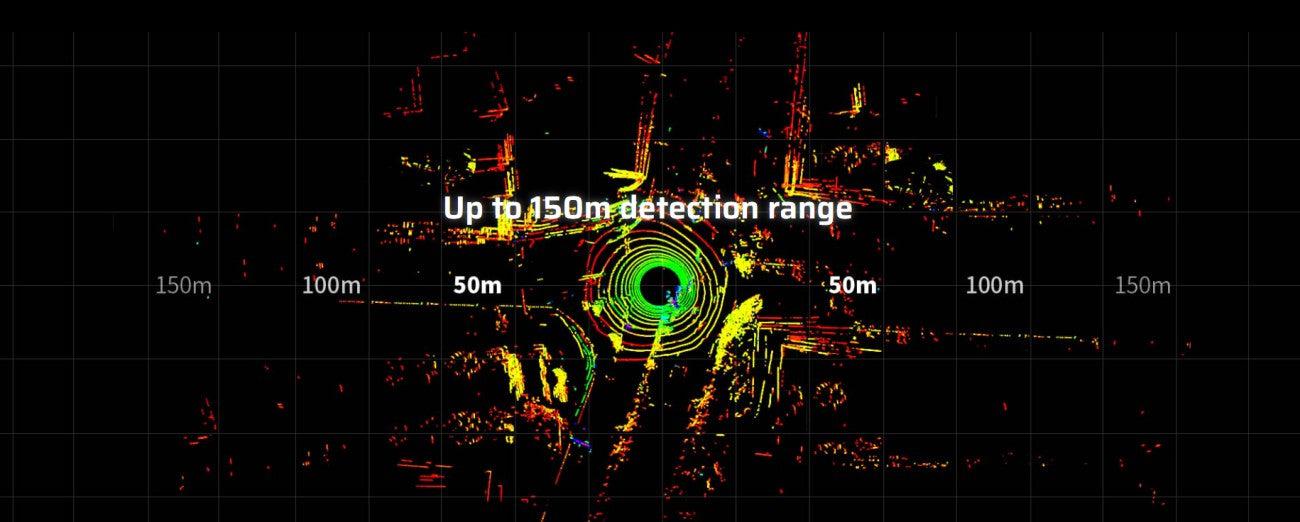

| Detection Range | 150m @ 70%, 100m @ 10% |
| Ranging Accuracy | ±3cm |
| Ranging Precision | ±1cm (1σ) |
| Horizontal FOV (Field of View) | 360° |

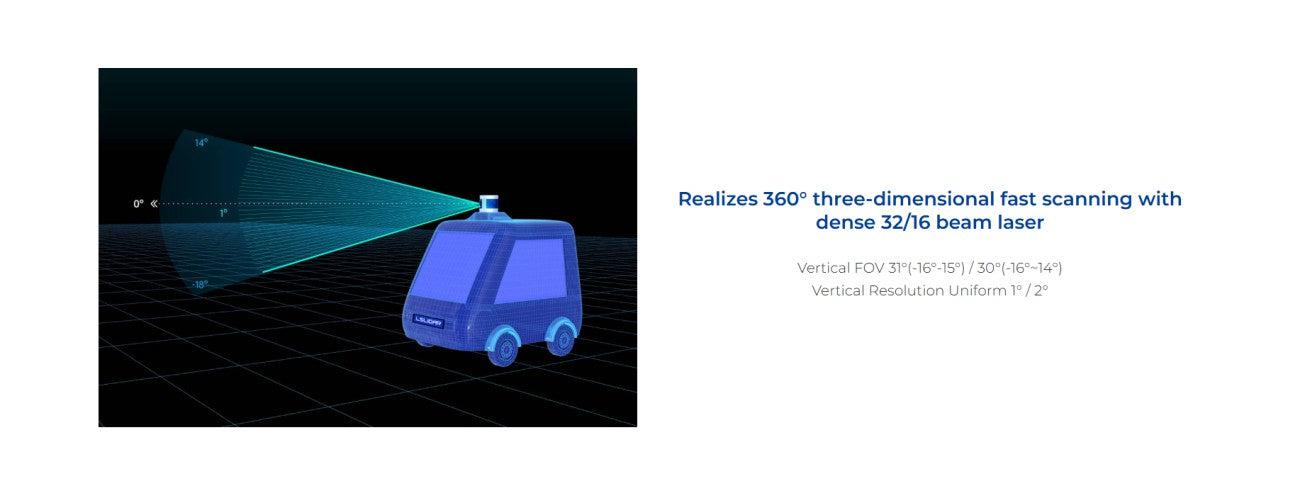

| Vertical FOV (Field of View) | -16° ~ 14° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Uniform 2° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate |
Single Return: 320000 points/sec
|
| Communication Interface | Ethernet 100base-TX, PPS |
| Power Supply Range | 12V~32V DC |
| Power Consumption | 10W (Typical at 10Hz) |
| IP Rating | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | 1040g (Standard) |
| Dimensions (D×H) | Φ102×77.9 mm |
| Parameter | Value |
|---|---|

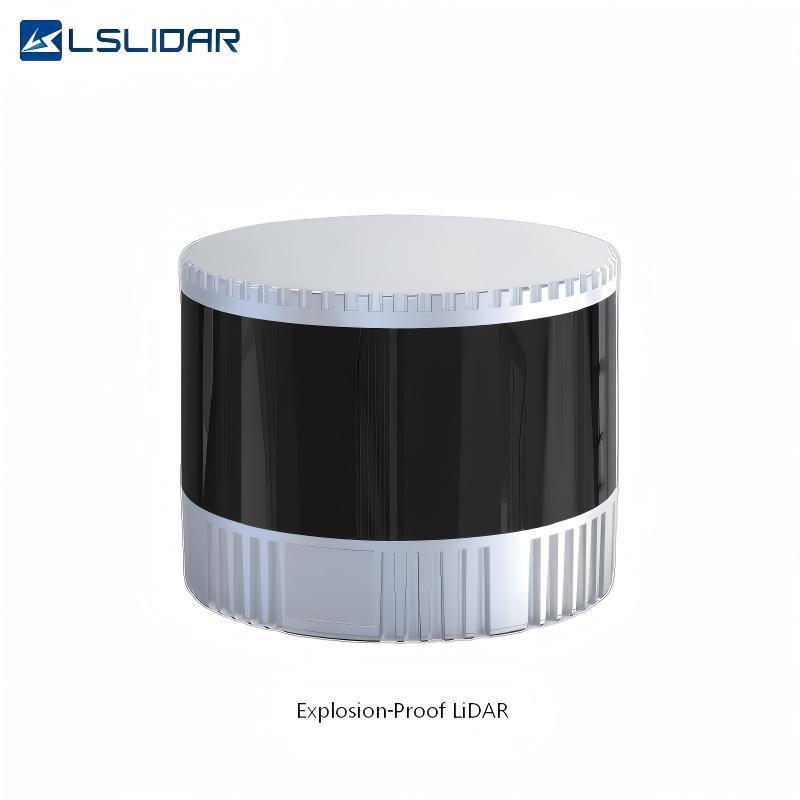

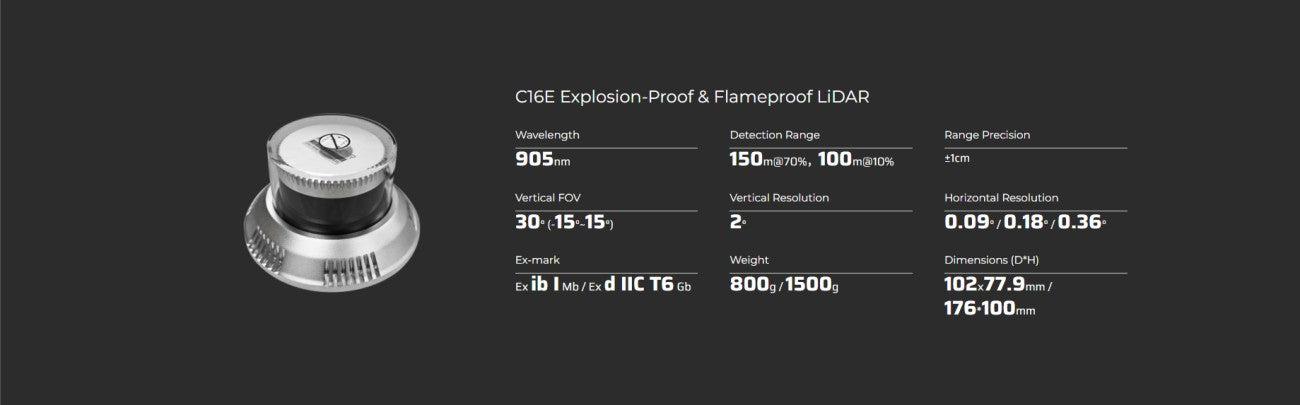

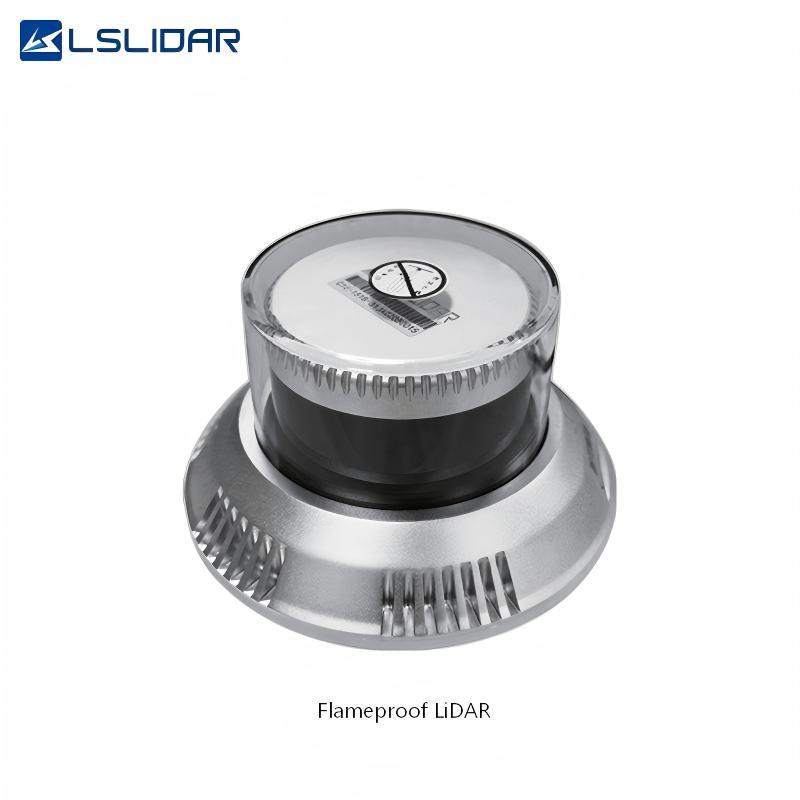

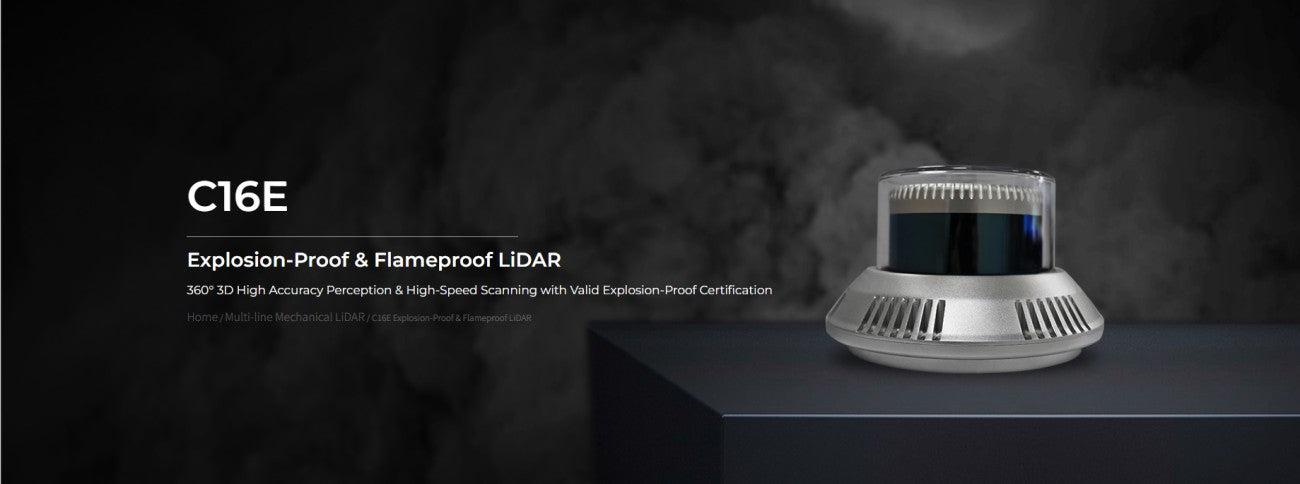

| Model | C16 (Explosion-Proof & Flameproof LiDAR) |
| Ranging Method | Time-of-Flight (TOF) |
| Laser Wavelength | 905 nm |
| Laser Class | Class I (Eye-safe) |
| Laser Channels | 16 channels |
| Detection Range | 100m @ 10%; 150m @ 70% |
| Ranging Accuracy | ±3 cm |
| Ranging Precision | ±1 cm |
| Single Return Data Rate | Approx. 320000 points/sec |
| Dual Return Data Rate | Approx. 640000 points/sec |
| Vertical FOV | -16° ~ +14° |
| Horizontal FOV | 360° |
| Vertical Angular Resolution | Uniform 2° |
| Horizontal Angular Resolution | 0.09° / 0.18° / 0.36° |
| Scan Rate | 5Hz / 10Hz / 20Hz |
| Data Transmission Interface | Ethernet, PPS |
| Time Source | GPS, gPTP |
| Power Supply Range (Intrinsically Safe / Flameproof) | 12~32 V DC / 9~30 V DC |
| Power Consumption (Intrinsically Safe / Flameproof) | 10W / 10W (Typical) |
| Operating Temperature (Intrinsically Safe / Flameproof) | -20°C ~ +60°C / -40°C ~ +50°C |
| Shock | 500 m/sec², 11 ms duration |
| Vibration | 5 Hz ~ 2000 Hz, 3G rms |
| Intrinsically Safe Protection Rating | IP67 |
| Flameproof Enclosure Protection Rating | IP66 |
| Compliance Standards |
GB/T 3836.1-2021
|
| Explosion-Proof Marking (Flameproof Type) | Ex d II CT6 Gb |
| Explosion-Proof Marking (Intrinsically Safe Type) | Ex ib I Mb |
| Dimensions (Flameproof Type) |
Φ152 mm * 127 mm (bottom outlet)
|
| Dimensions (Intrinsically Safe Type) | Φ102 x 77.9 mm (side outlet) |
-
