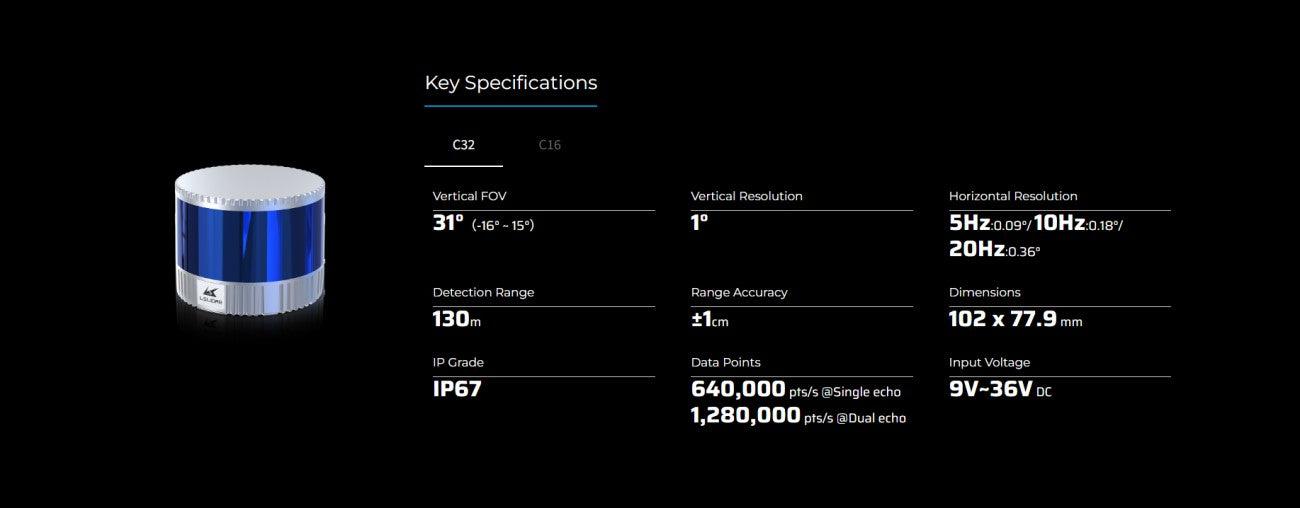

Technical Specifications
| Parameter | Value |
|---|---|

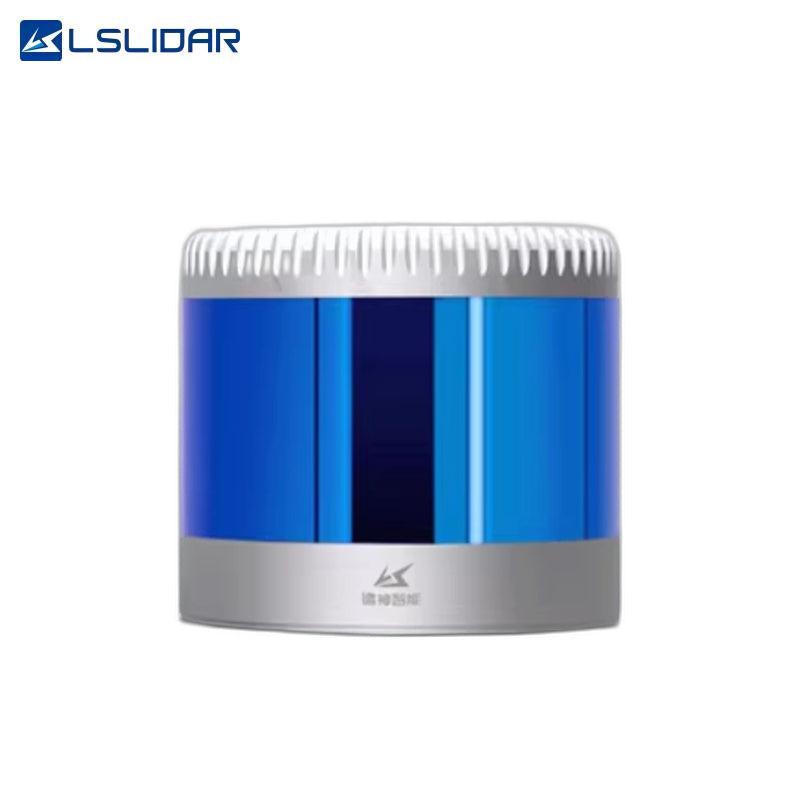

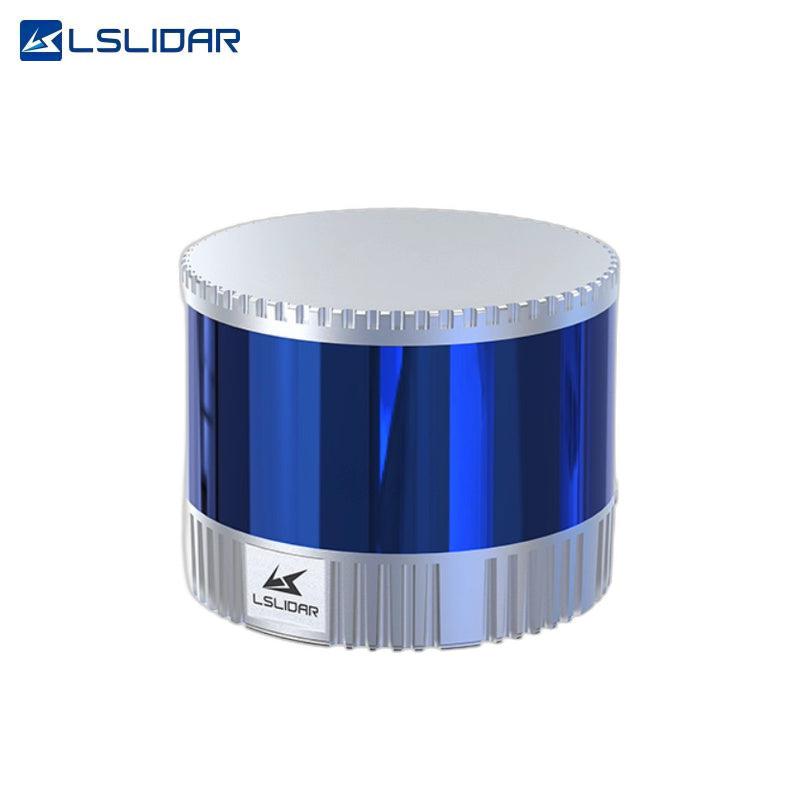

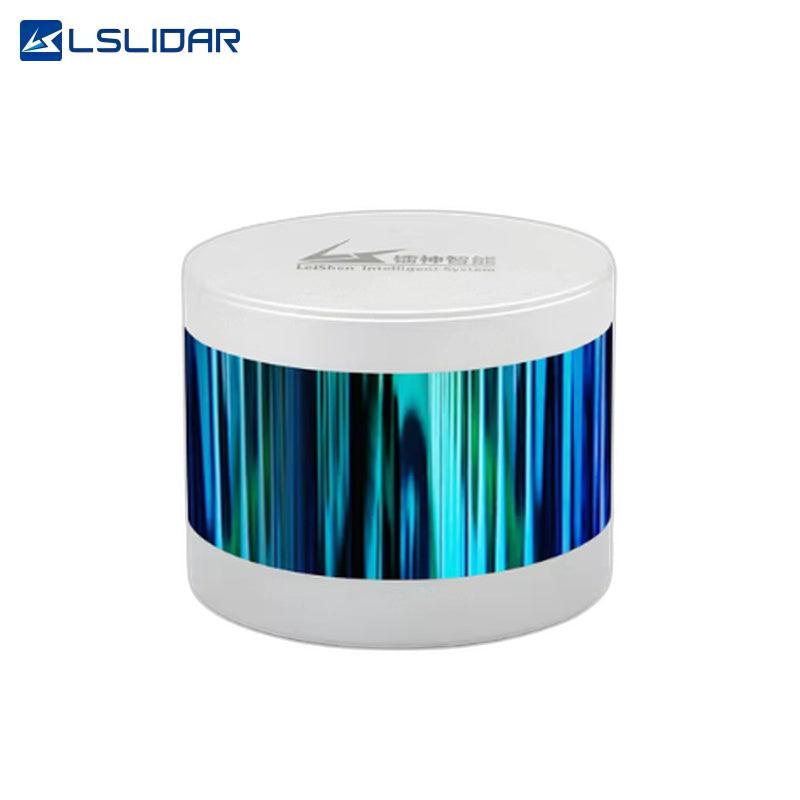

| Model | C32 |
| Wavelength | 905nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 32 channels |
| Ranging Principle | TOF (Time-of-Flight) |

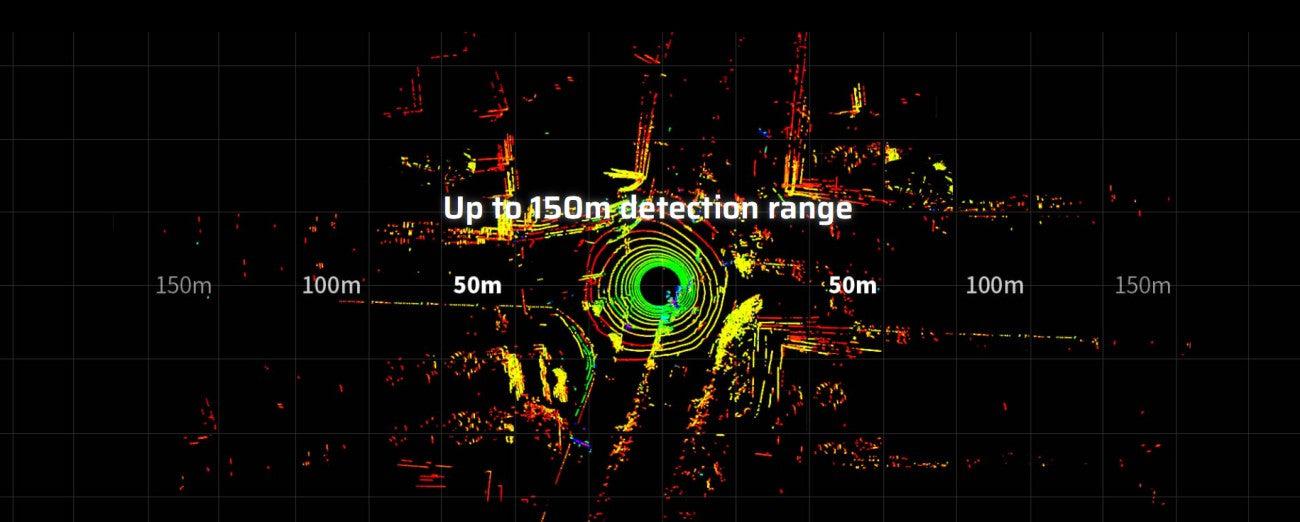

| Detection Range | 150m @ 70%, 100m @ 10% |
| Ranging Accuracy | ±3cm |
| Ranging Precision | ±1cm (1σ) |
| Horizontal FOV (Field of View) | 360° |

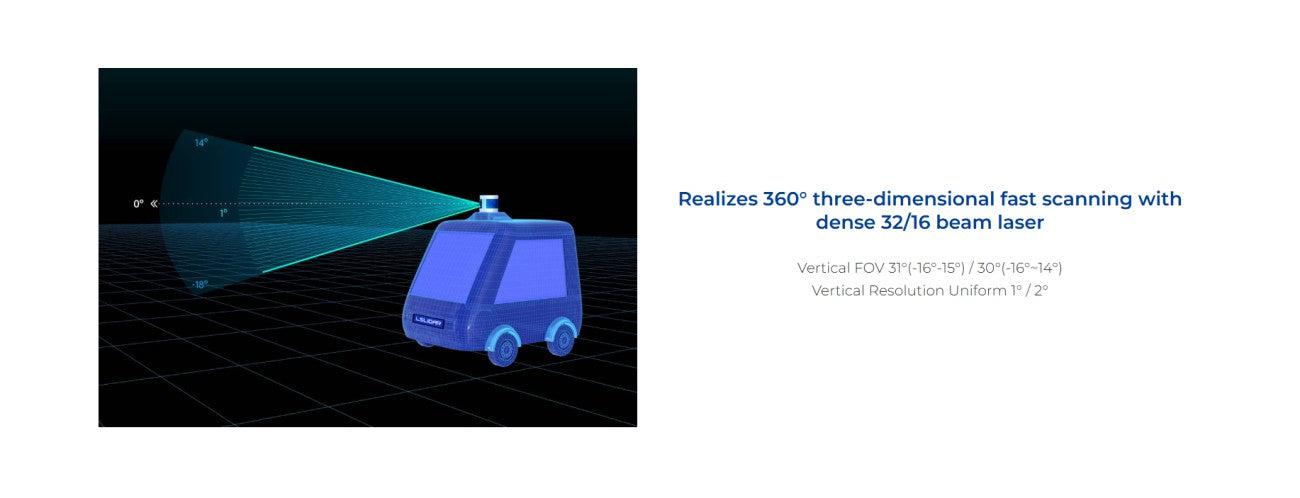

| Vertical FOV (Field of View) | -16° ~ 15° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Uniform 1° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate |
Single Return: 640000 points/sec
|
| Communication Interface | Ethernet 100base-TX, PPS |
| Power Supply Range | 12V~32V DC |
| Power Consumption | 12W (Typical at 10Hz) |
| IP Rating | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | 1040g (Standard) |
| Dimensions (D×H) | Φ102×77.9 mm |
| Parameter | Value |
|---|---|

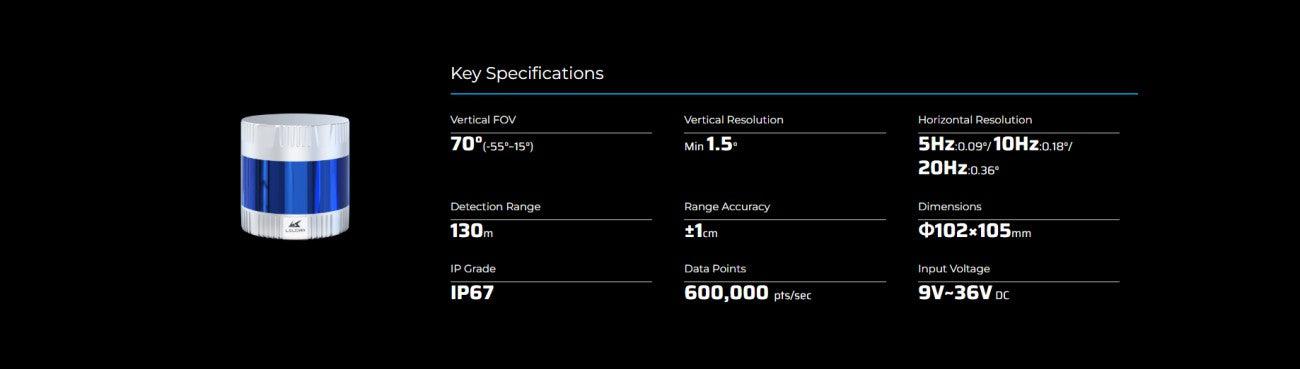

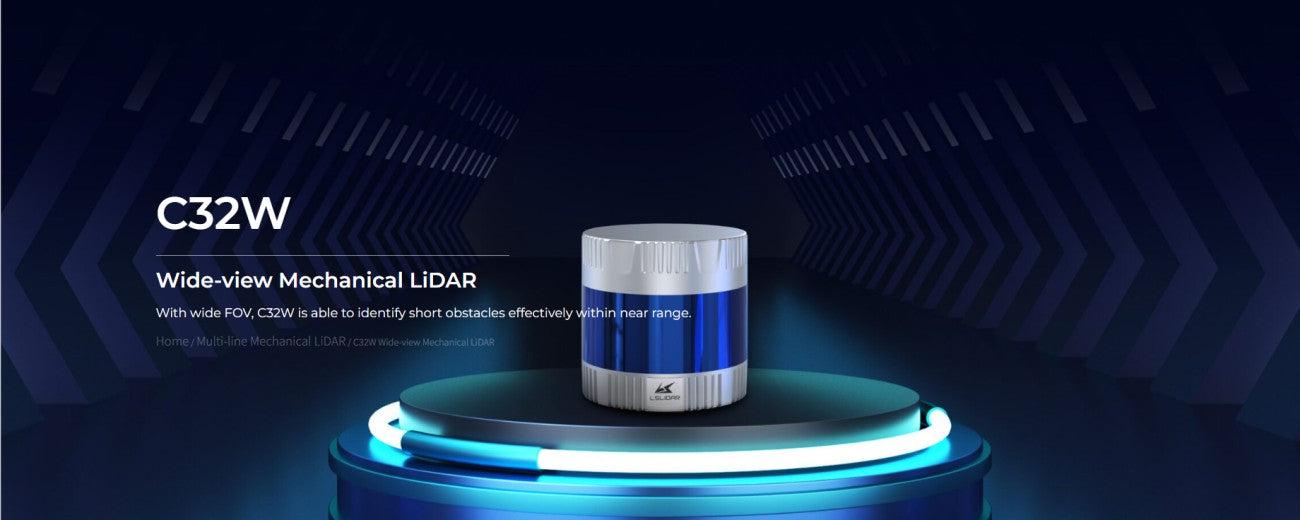

| Model | C32W |
| Wavelength | 905 nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 32 channels |
| Ranging Principle | TOF (Time-of-Flight) |
| Detection Range |
10~60 m (Channel 0-1: 10m, Channel 2-9: 20m, Channel 10-31: 60m) @10% reflectivity
|
| Ranging Accuracy | ±3 cm |
| Ranging Precision | ±1 cm (1σ) |
| Horizontal FOV | 360° |

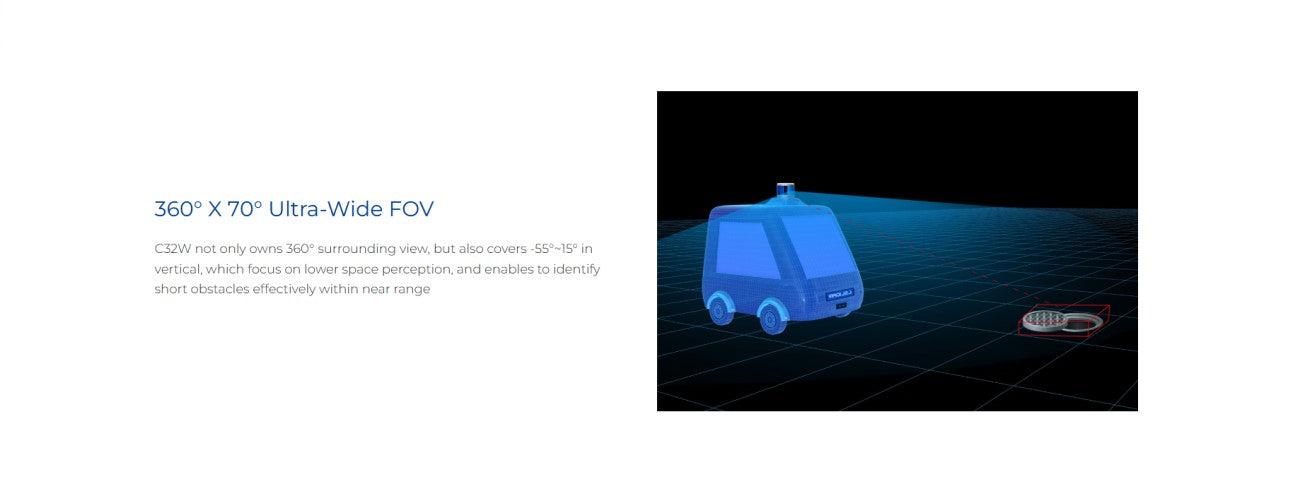

| Vertical FOV | -54.7° ~ 15° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Non-uniform, minimum 1.5° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate | Approx. 600,000 points/sec (single return); 1,200,000 points/sec (dual return) |
| Communication Interface | Ethernet 100base-TX, PPS |
| Power Supply Range | 9V~32V DC |
| Power Consumption | 12W |
| IP Rating | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | Approx. 1115g |
| Dimensions (D×H) |
Φ102×102 mm |
-
