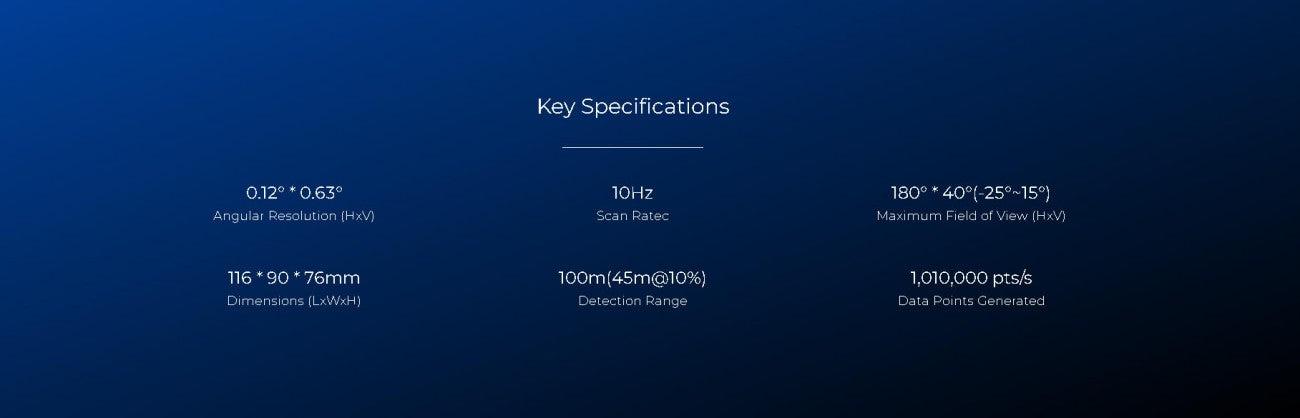

Technical Specifications
| Parameter | CB64S1 |
|---|---|
| Wavelength | 905 nm |
| Laser Class | Class I (IEC-60825) |
| Channels | 64 |
| Detection Method | TOF |
| Detection Range | 100m(45m@10%) |
| Range Accuracy | ±3cm |

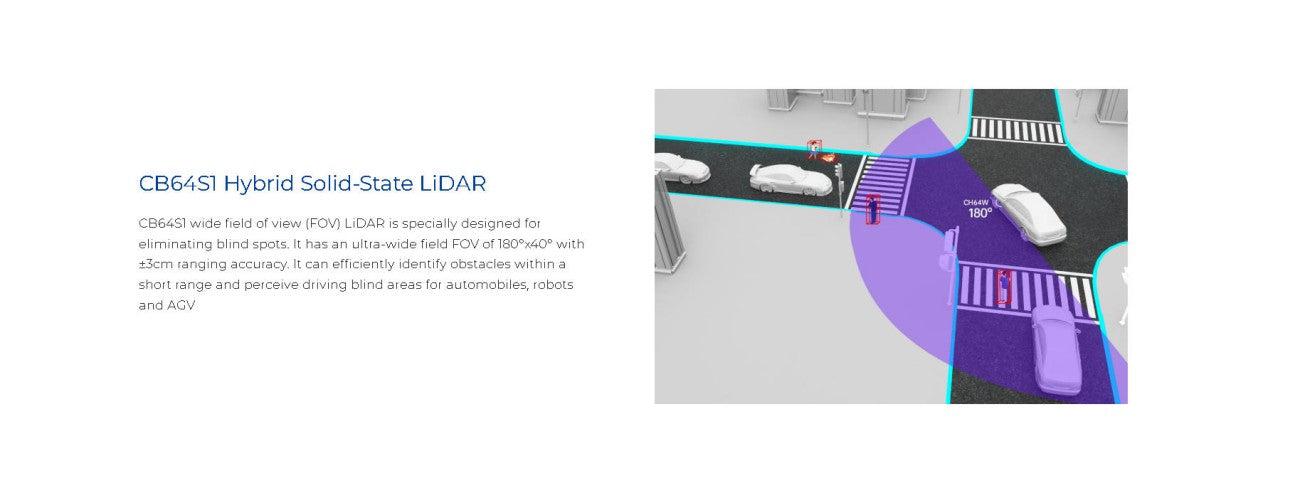

| Horizontal(FOV) | 180° |
| Vertical | 40°(-25°~15°) |
| Horizontal(Angular Resolution) | 0.12°:10Hz / 0.16°:10Hz / 0.24°:10Hz / 0.36°:10Hz |
| Vertical | 0.63° |
| FPS | 10Hz、20Hz |
| Data Point Generating Rate(pts/sec) | 1,010,000 l 760,000 l 500,000 l 330,000 |
| Communication Interface |
Automotive Ethernet
|
| Input Voltage | 9V~36V DC |
| Power Consumption | 15W |
| Anti-interference | Laser Code |
| AUTOSAR | Support (A) / Not support (I) |
| IP Grade | IP6K9K |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~105℃ |
| Vibration Test | 5Hz-2000Hz，3G rms |
| Shock Test | 500m/sec², lasting for 11ms |
| Weight | 1kg |
| Dimensions (LxWxH) | 116x90x76 mm |
-
