Technical Specifications
| Parameter | Value | |
|---|---|---|

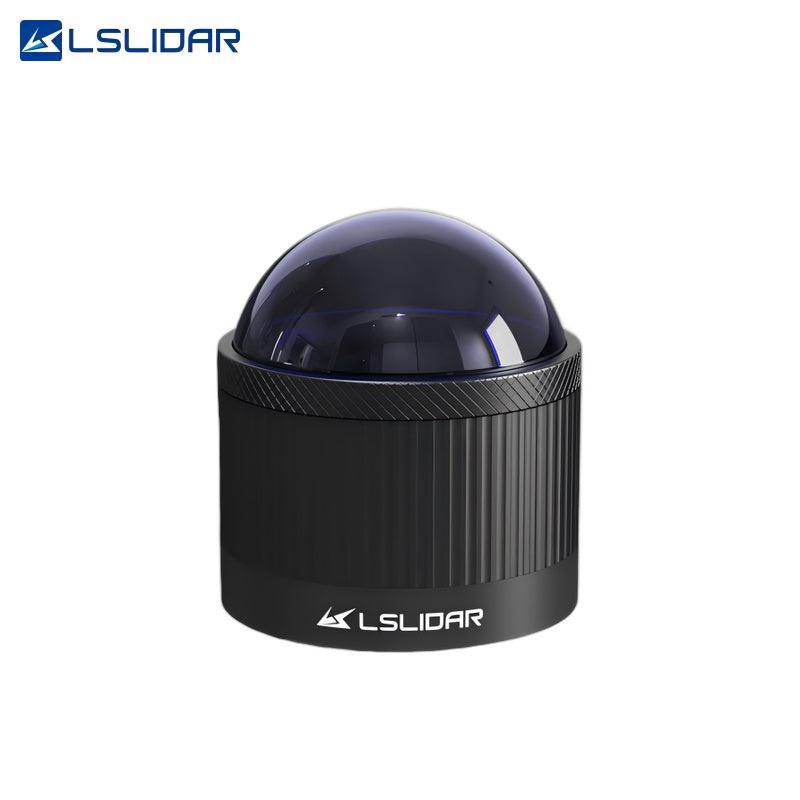

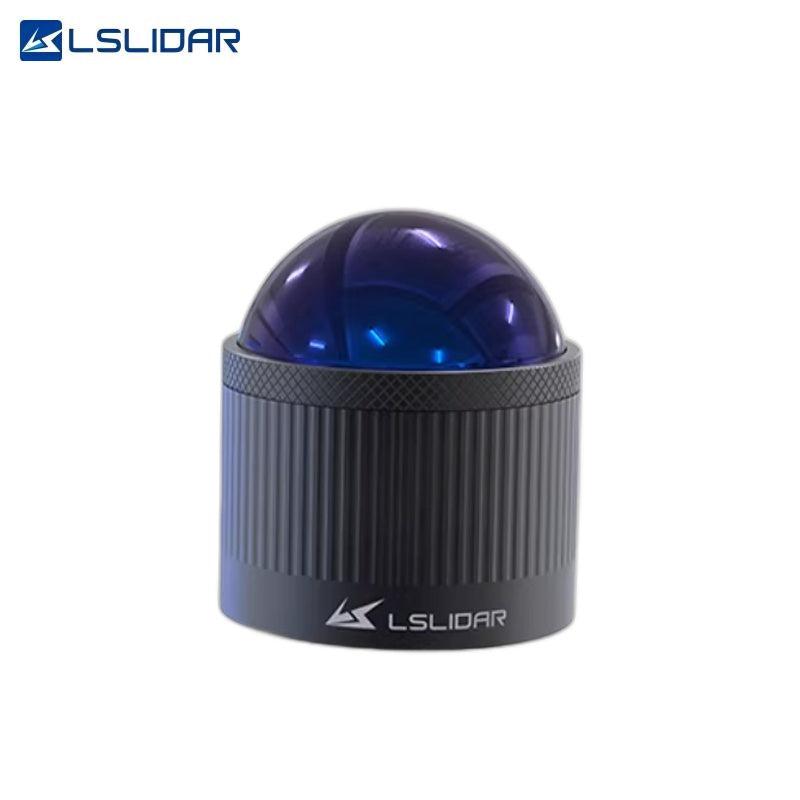

| Model | CH16R | CH32R |
| Wavelength | 905nm | 905nm |
| Safety Class | Class I (Eye-safe) | Class I (Eye-safe) |
| Scanning Channels | 16 channels | 32 channels |
| Ranging Principle | TOF (Time-of-Flight) | TOF (Time-of-Flight) |
| Detection Range | 120 m @ 70%, 30 m @ 10% | 120 m @ 70%, 30 m @ 10% |
| Ranging Accuracy | ±3cm | ±3cm |
| Ranging Precision | ±1cm (1σ) | ±1cm (1σ) |

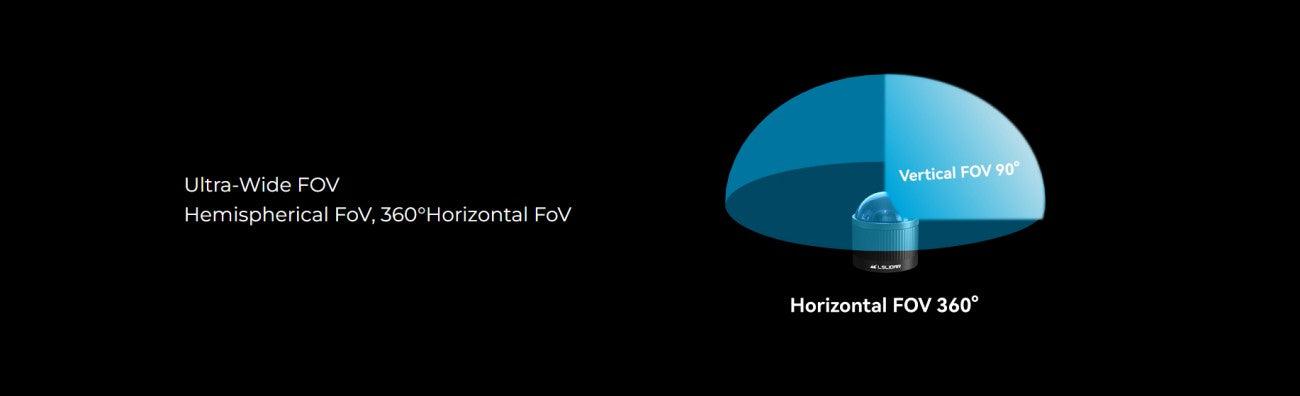

| Horizontal FOV | 360° | 360° |

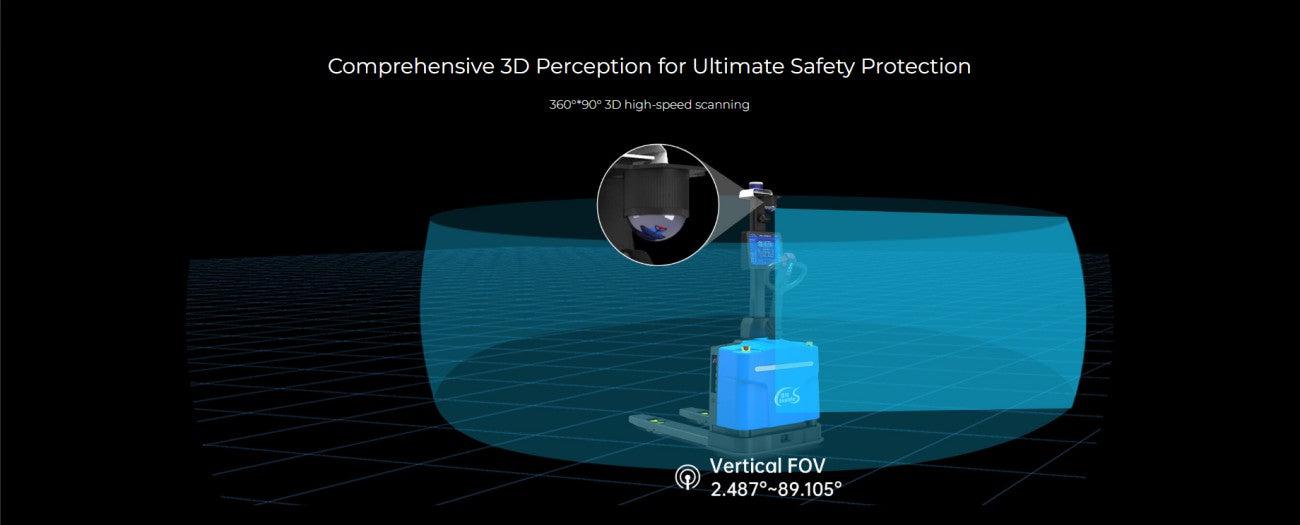

| Vertical FOV | 2.487° ~ 52.798° | 2.487° ~ 89.105° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Min. 2.618° | Min. 2.61° |
| Scan Frequency | 5Hz / 10Hz / 20Hz | 5Hz / 10Hz / 20Hz |
| Point Rate (Single Return) |
320000 points/sec |
640000 points/sec |

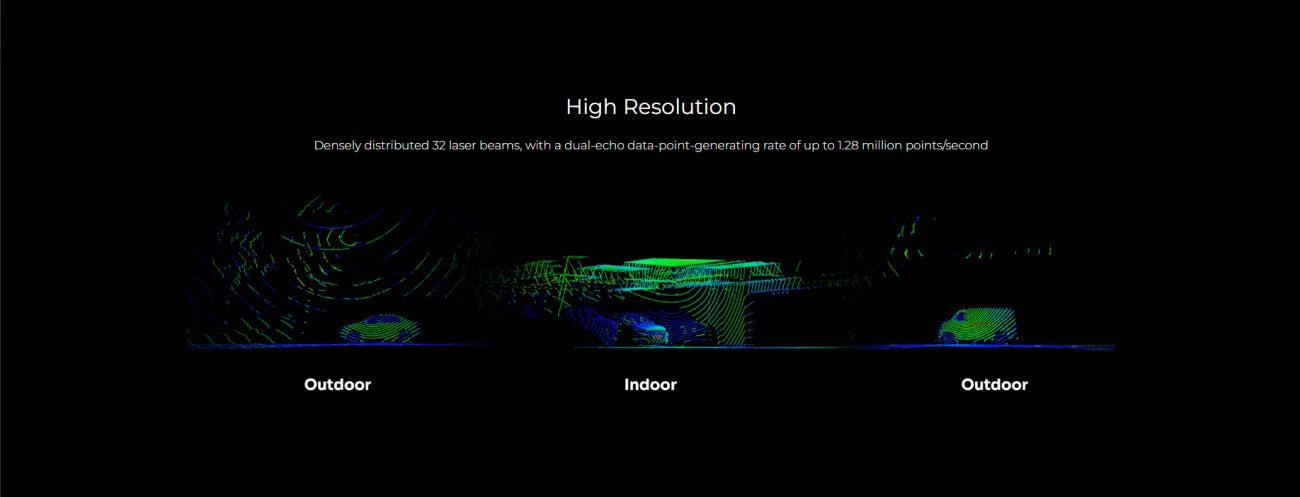

| Point Rate (Dual Return) | 640000 points/sec | 1280000 points/sec |
| Communication Interface | 100BASE-TX Ethernet, PPS | 100BASE-TX Ethernet, PPS |
| Power Supply Range | 12V~32V DC | 12V~32V DC |
| Power Consumption | 10 W (Typical at 10 Hz) | 12 W (Typical at 10 Hz) |
| IP Rating | IP67 | IP67 |
| Operating Temperature | -20°C ~ 60°C | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration | 500m/sec², 11ms duration |
| Weight | 1000 g (Standard) | 1000 g (Standard) |
| Dimensions (D×H) | Φ100 × 110 mm | Φ100 × 110 mm |
-
