Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications

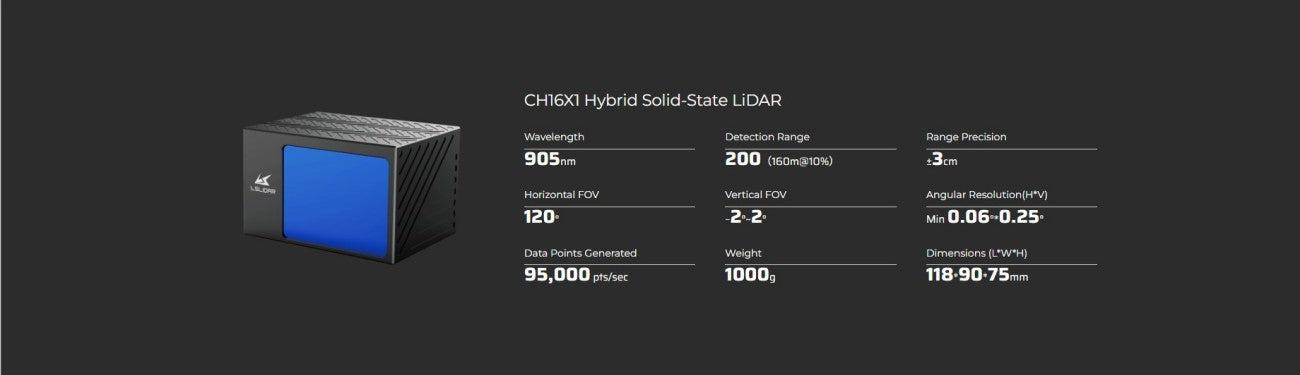

| Parameter | Value |
|---|---|

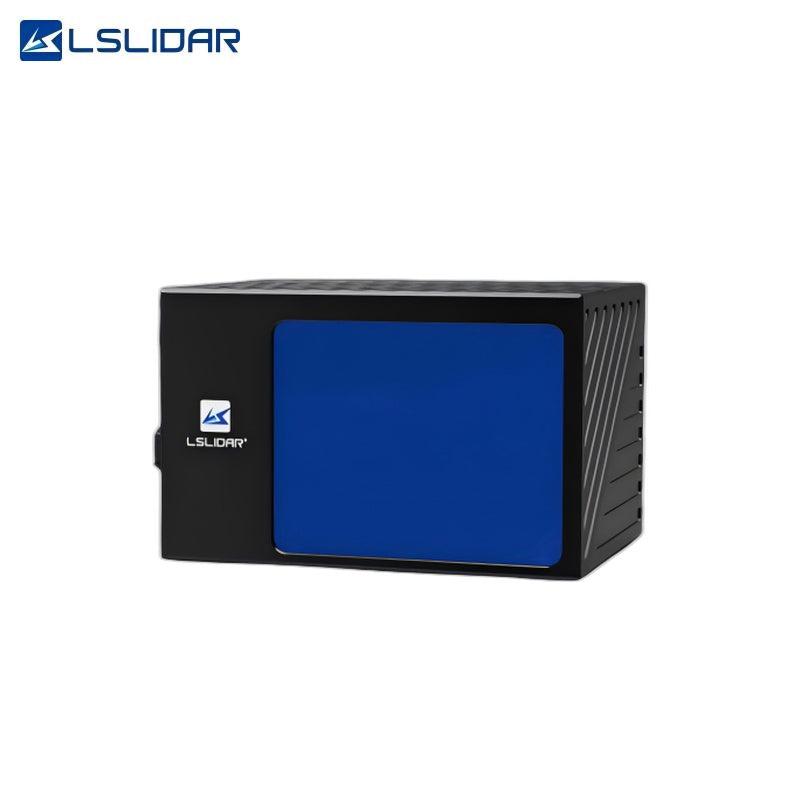

| Model | CH16X1 |
| Wavelength | 905nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 16 channels |
| Ranging Principle | TOF (Time-of-Flight) |
| Detection Range | 200 m (160 m @ 10% reflectivity) |
| Ranging Accuracy | ±3cm |
| Horizontal FOV | 120° |
| Vertical FOV | -2° ~ 2° |
| Horizontal Resolution |
0.06° / 0.12° / 0.24° (Industrial Ethernet)
|
| Vertical Resolution | 0.25° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate | 95000 points/sec |
| Communication Interface | Industrial 100M Ethernet / Automotive Ethernet |
| Power Supply Range | 9V~36V DC |
| Power Consumption | 12W |
| IP Rating | IP6K9K |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +105°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | 1000 g (Standard) |
| Dimensions (L×W×H) | 118 × 90 × 75 mm |
-
