Technical Specifications

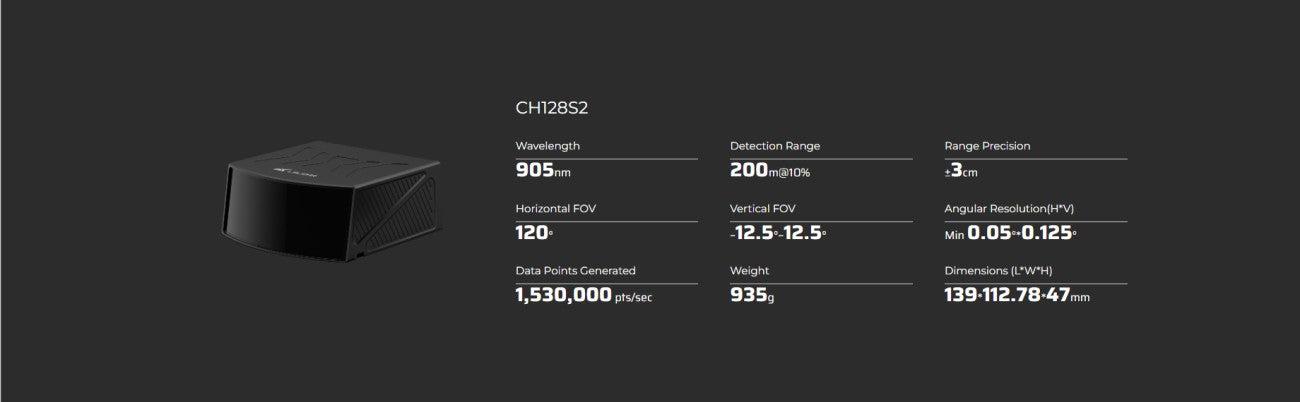

| Parameter | Value |
|---|---|

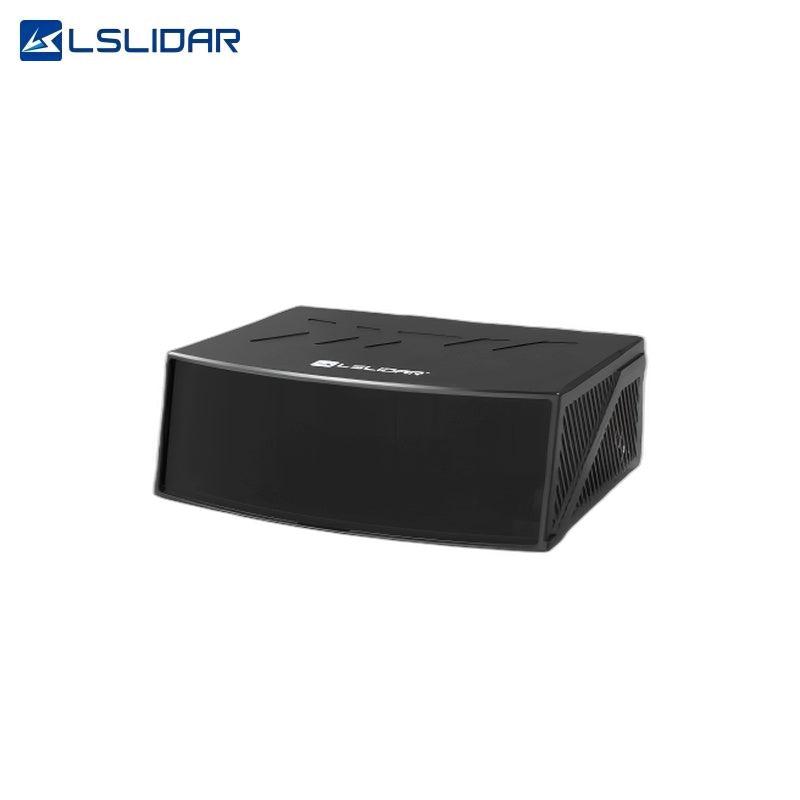

| Model | CX128S2 |
| Wavelength | 905nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 128 channels |
| Ranging Principle | TOF (Time-of-Flight) |
| Detection Range | 200 m @ 10% reflectivity |
| Ranging Accuracy | ±3cm |
| Horizontal FOV | 120° |
| Vertical FOV | 25° (-12.5° ~ 12.5°) |
| Horizontal Resolution | 0.05° / 0.1° / 0.2° |
| Vertical Resolution | 0.125° @ ROI, 0.25° @ non-ROI |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate |
1530000 points/sec |
| Communication Interface | Industrial Ethernet |
| Power Supply Range | 9V~32V DC |
| Power Consumption | 15W |
| IP Rating | IP6K9K |
| Operating Temperature | -40°C ~ +85°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | < 1000 g |
| Dimensions |
139×115.7×47 mm (rear outlet, curved surface)
|
-
Contact Seller:
+861368646****
LSLIDAR presents 19 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from LSLIDAR.
