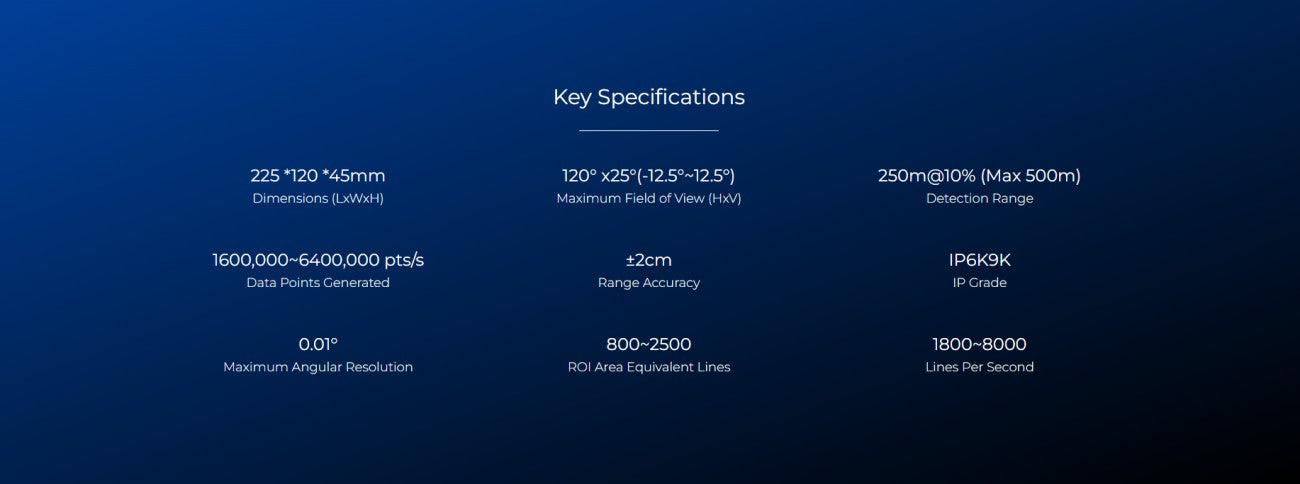

Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Model | LS128S2 | LS180S2 | LS320S2 | LS400S2 |
| Scanning Channels | 128 channels | 180 channels | 320 channels | 400 channels |
| Scan Lines per Second | 1280 lines | 1800 lines | 3200 lines | 4000 lines |
| Horizontal FOV | 120° | 120° | 120° | 120° |
| Vertical FOV | 25° (±12.5°) | 25° (±12.5°) | 25° (±12.5°) | 25° (±12.5°) |
| Horizontal Angular Resolution | B: 0.103° | B: 0.13° | B: 0.0518° | A: 0.0646° |

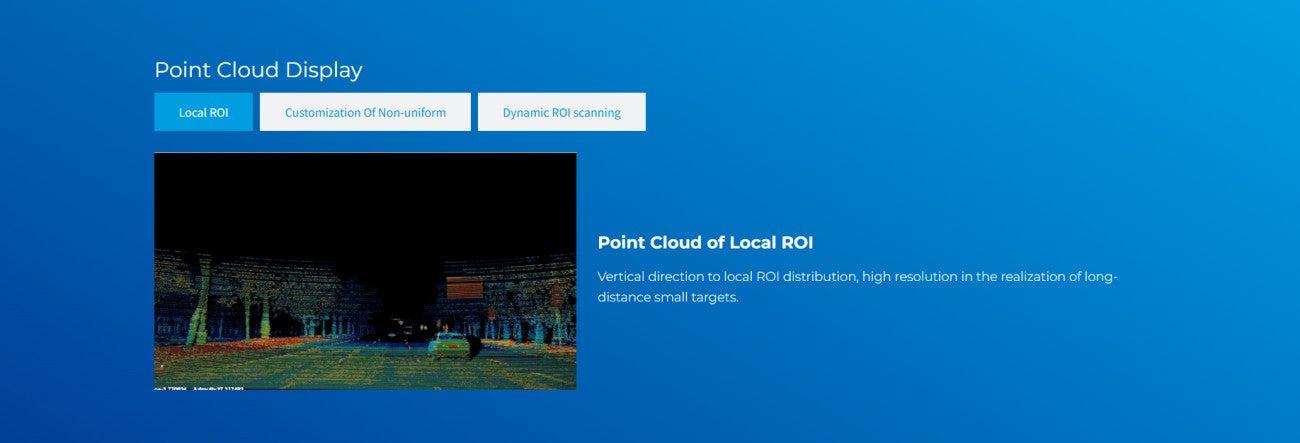

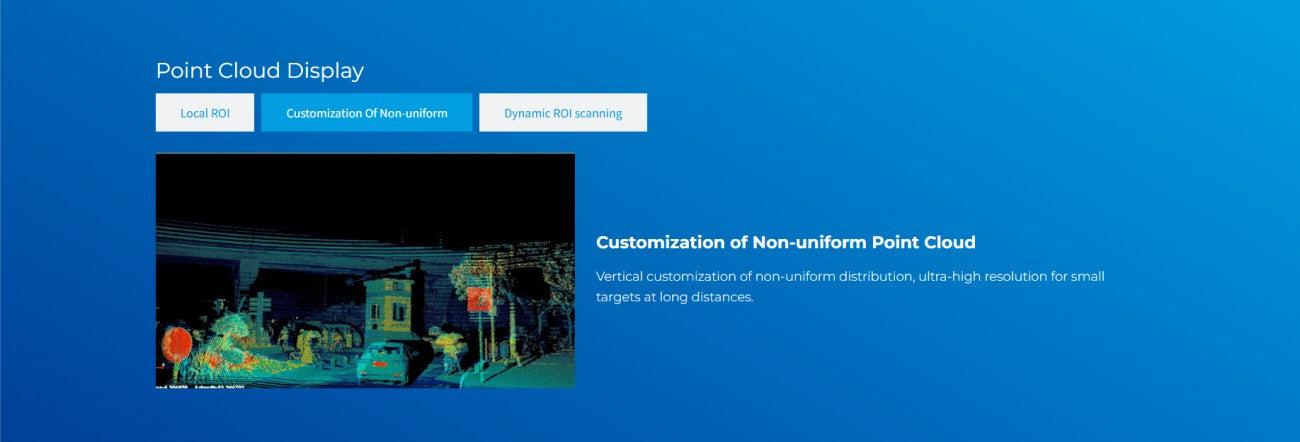

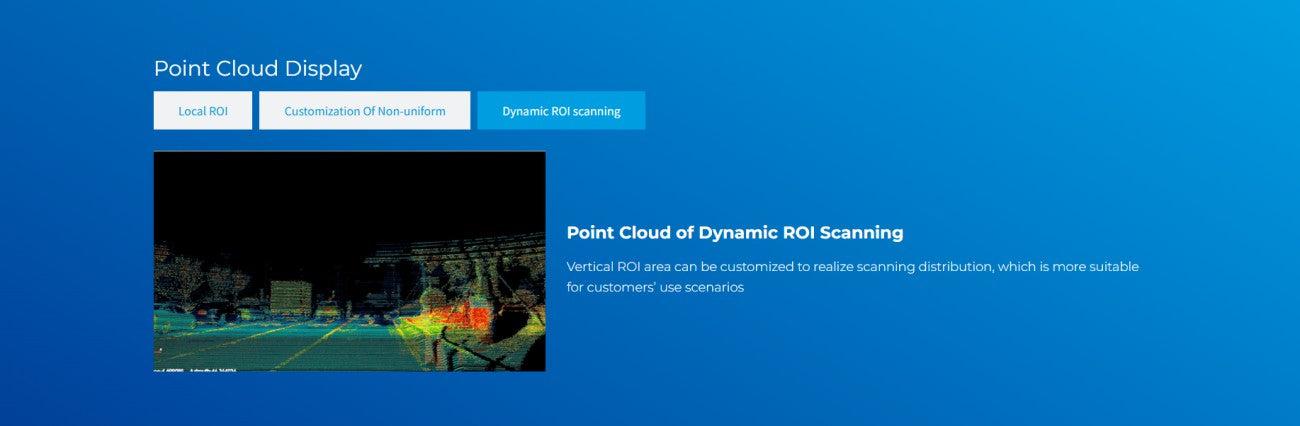

| Vertical Angular Resolution | B: 0.076° (ROI), 0.33° (non-ROI) | B: 0.1° (ROI) | B: 0.09° (ROI), 0.2° (full field) | A: 0.05° (non-full field) |
| Point Rate | 1.48 million points/sec | 1.65 million points/sec | 1.85 million points/sec | 1.85 million points/sec |
| Laser Wavelength | 1550 nm | 1550 nm | 1550 nm | 1550 nm |
| Safety Class |
Class I (Eye-safe) |
Class I (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) |
| Ranging Principle | TOF (Time-of-Flight) | TOF (Time-of-Flight) | TOF (Time-of-Flight) | TOF (Time-of-Flight) |
| Detection Range | 1.5 m ~ 250 m @ 10% reflectivity | 1.5 m ~ 250 m @ 10% reflectivity | 1.5 m ~ 250 m @ 10% reflectivity | 1.5 m ~ 250 m @ 10% reflectivity |
| Ranging Accuracy |
±2 cm |
±2 cm | ±2 cm | ±2 cm |
| Frame Rate | 10 FPS | 10 FPS | 10 FPS | 10 FPS |
| Communication Interface | Automotive Ethernet | Automotive Ethernet | Automotive Ethernet | Automotive Ethernet |
| Power Supply Range | 12–36 V DC | 12–36 V DC | 12–36 V DC | 12–36 V DC |
| Power Consumption | ≤28 W | ≤28 W | ≤28 W | ≤28 W |
| IP Rating | IP6K9K | IP6K9K | IP6K9K | IP6K9K |
| Operating Temperature | -40°C ~ +75°C | -40°C ~ +75°C | -40°C ~ +75°C | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +105°C | -40°C ~ +105°C | -40°C ~ +105°C | -40°C ~ +105°C |
| Vibration | 5 Hz ~ 2000 Hz, 3G rms | 5 Hz ~ 2000 Hz, 3G rms | 5 Hz ~ 2000 Hz, 3G rms | 5 Hz ~ 2000 Hz, 3G rms |
| Shock | 500 m/sec², 11 ms duration | 500 m/sec², 11 ms duration | 500 m/sec², 11 ms duration | 500 m/sec², 11 ms duration |
| Weight |
Base: ≤1800 g
|
Base: ≤1800 g
|
Base: ≤1800 g
|
Base: ≤1800 g
|
| Dimensions (L×W×H) |

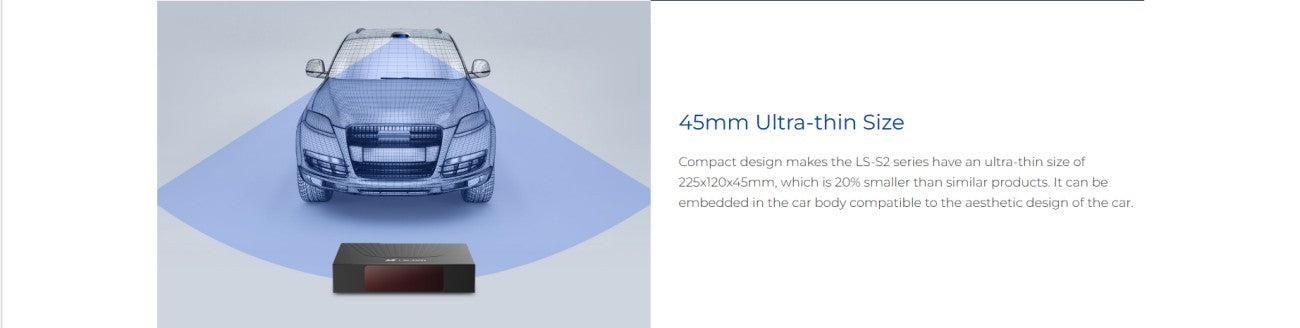

Base: 236×125×49 mm
|
Base: 236×125×49 mm
|
Base: 236×125×49 mm
|
Base: 236×125×49 mm
|
-
Contact Seller:
+861368646****
LSLIDAR presents 19 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from LSLIDAR.
