Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

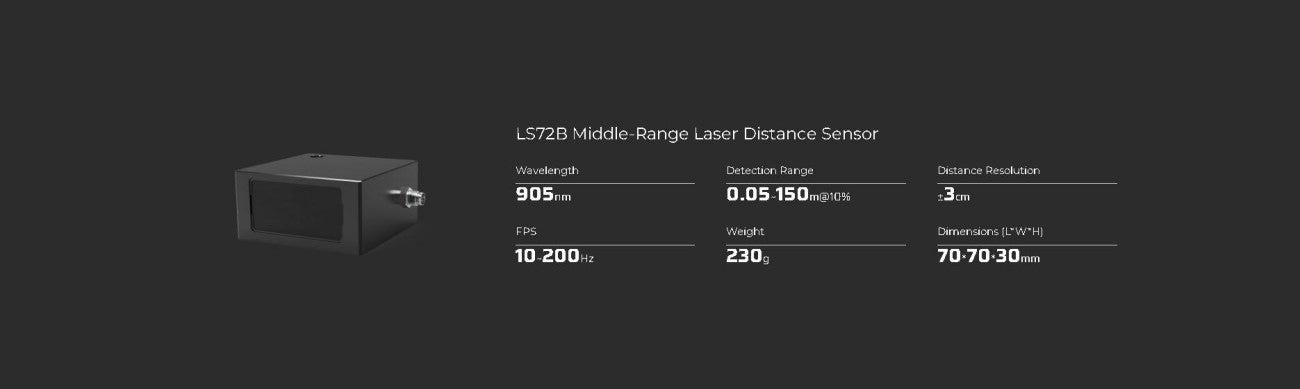

Technical Specifications
| Parameter | LS72B |
|---|---|
| Wavelength | 905 nm |
| Laser Class | Class I |
| Detection Range | 0.05~ 150 m (@10%) |
| Range Precision | ±3 cm (1σ) |
| FPS | 10 Hz~ 200 Hz（Adjustable） |
| Echo Frequency | Single / Dual Echo |
| Communication Interface | CAN / RS232 |
| Power Consumption | 2W |
| Input Voltage | 6~18 V |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -50℃～105℃ |
| IP Grade |
IP67
|
| Weight | ≈230g |
| Dimensions (LxWxH) | 70*70*30mm（Interface Excluded） |
-
Contact Seller:
+861368646****
LSLIDAR presents 19 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from LSLIDAR.
