Technical Specifications
| Parameter | ||
|---|---|---|
| Model | LUS2 | LUS2 Pro |
| Mechanical Specifications | ||
| Height | 160 cm | 160 cm |
| Weight | 57 kg | 57 kg |
| Material | Aluminum alloy | Aluminum alloy |

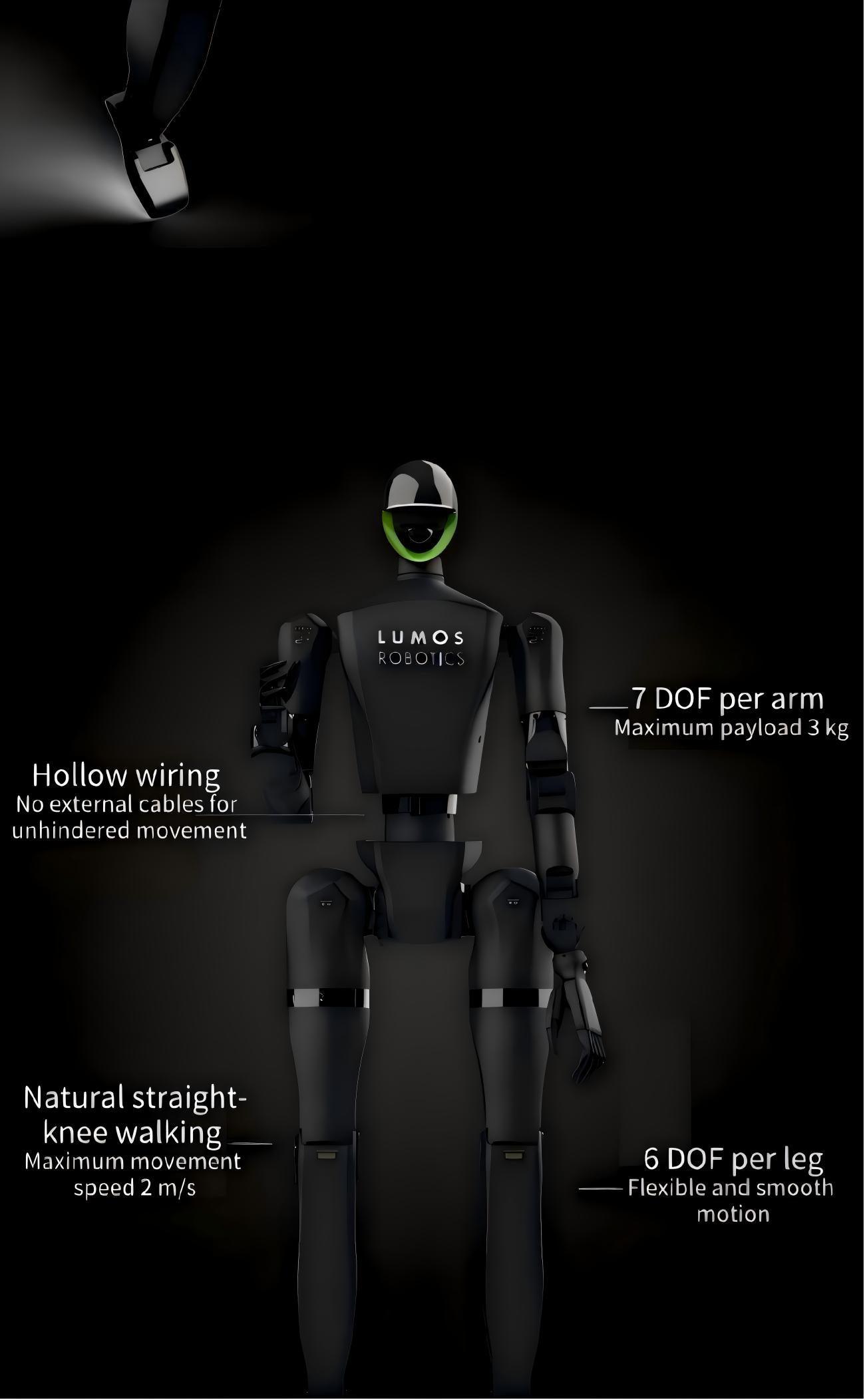

| Total DOF (Joint Modules) | 28 | 30 |
| Single Leg DOF | 6 | 6 |
| Waist DOF | 1 | 1 |
| Single Arm DOF | 7 | 7 |
| Gripper DOF | / | 2 |
| Maximum Joint Torque | 360 N·m | 360 N·m |
| Maximum Movement Speed | 2 m/s | 2 m/s |
| Forearm + Upper Arm Length | 520 mm | 520 mm (excluding gripper) |
| Lower Leg + Upper Leg Length | 800 mm | 800 mm |
| Gripper | Not included | Included |
| Gripper Weight | / | 737.7 g |
| Single Arm Weight | 5.5 kg | 5.5 kg (excluding gripper) |
| Electrical Characteristics | ||
| Joint Encoder | Dual absolute encoder | Dual absolute encoder |
| Rated Voltage | 54V | 54V |
| Power Supply | Ternary lithium battery | Ternary lithium battery |
| Cooling System | Local air cooling | Local air cooling |
| Battery Capacity | 10Ah | 10Ah |
| Sensors & Perception | / | 3D LiDAR + Stereo Depth Camera |
| 4-Microphone Array | Yes | Yes |
| Speaker | Yes | Yes |
| Wi-Fi, Bluetooth | Yes | Yes |
| Accessories | ||
| High-performance processor | / | NVIDIA Orin 275 TOPS |
| Charger | 54V 5A | 54V 5A |
| Handheld remote controller | Yes | Yes |
| Other | ||
| Battery life | 2h | 2h |
| Smart OTA update | Yes | Yes |
| Voice | Supported | Supported |
| Secondary development | Not supported | Supported |
-
