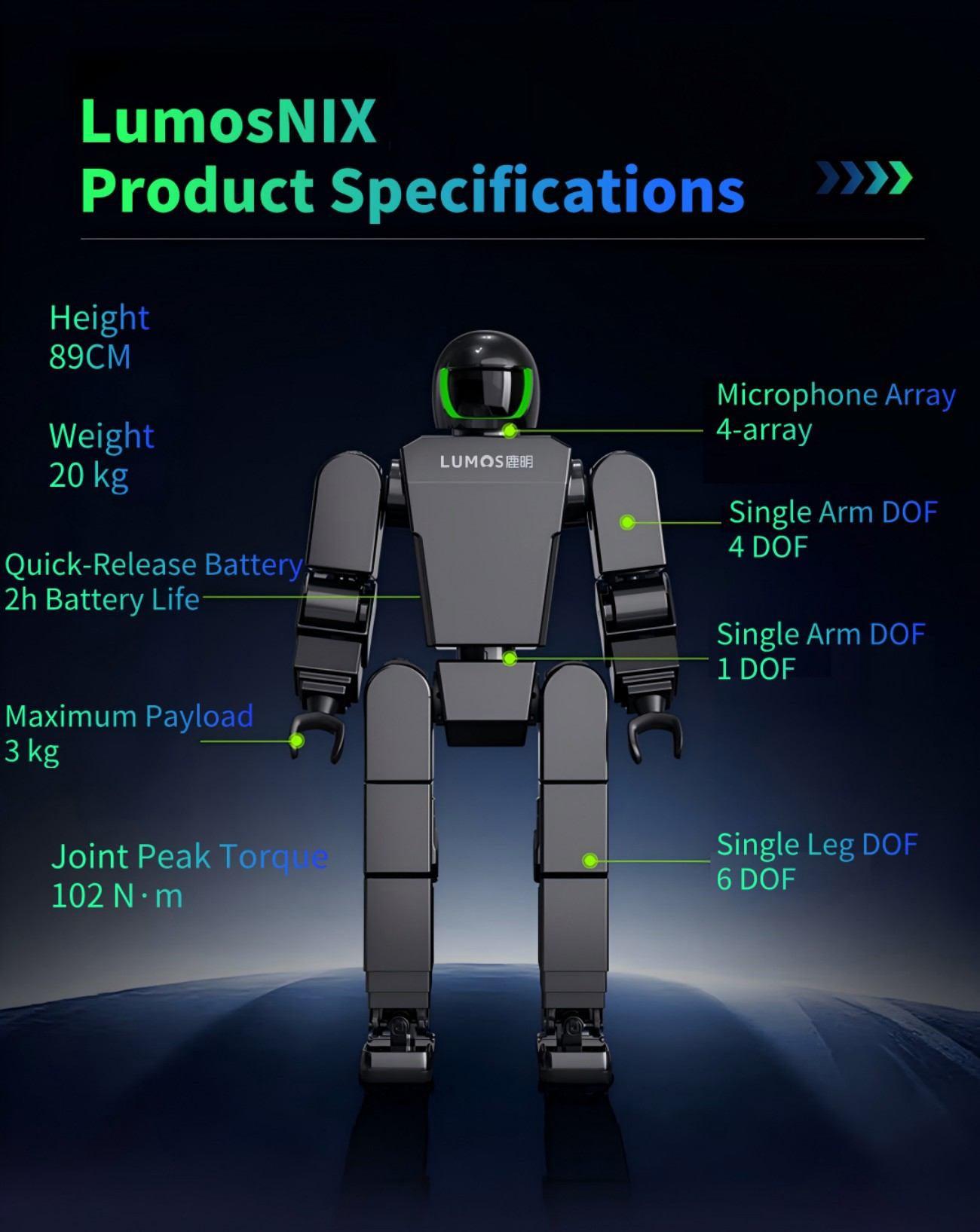

Technical Specifications
| Parameter | ||
|---|---|---|
| Model | Youth Edition | Flagship Edition |
| Basic Parameters | ||
| Dimensions | 890 × 408 × 169 mm | 890 × 408 × 169 mm |
| Weight (excluding gripper and dexterous hand) | 20 kg | 20 kg |

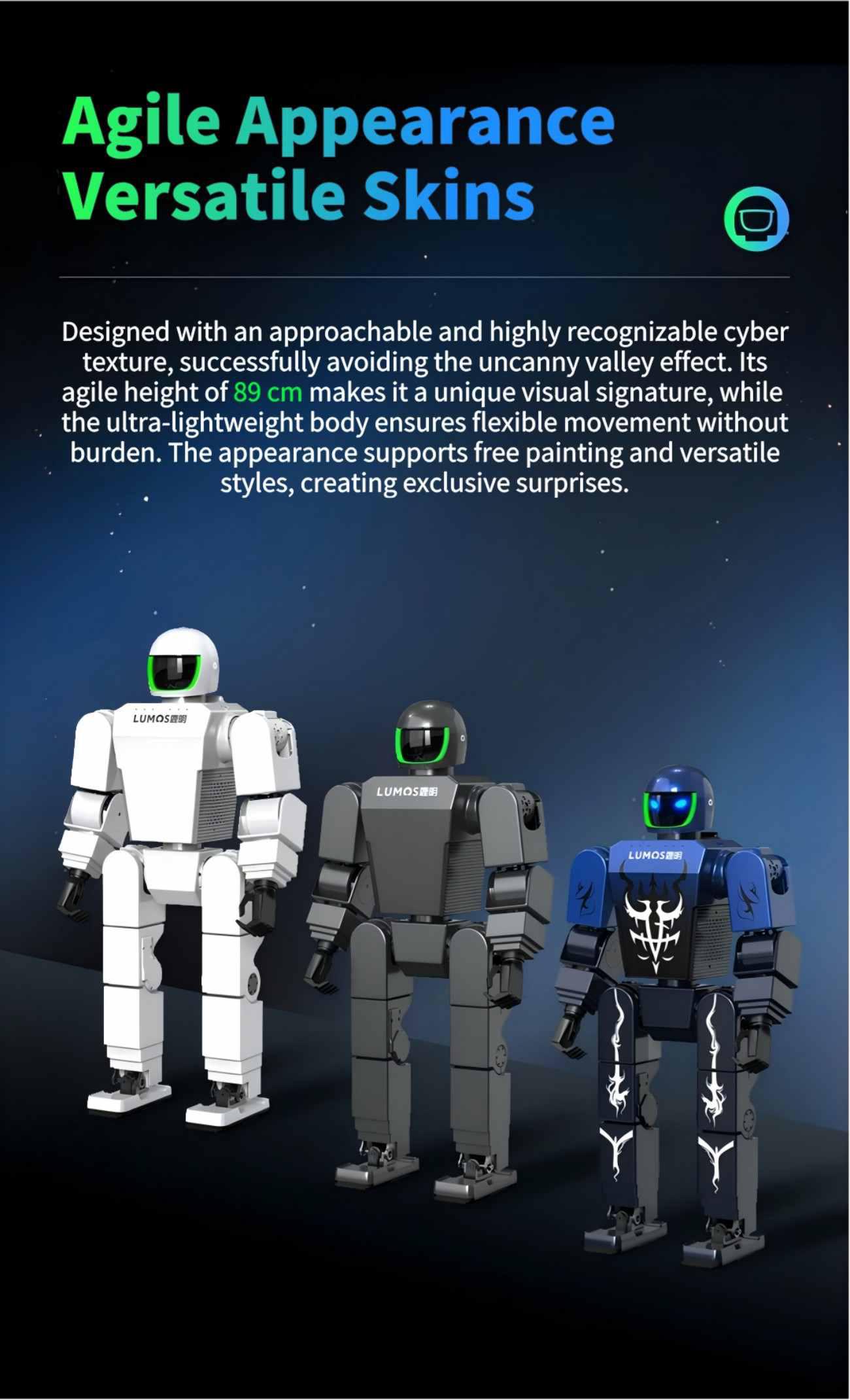

| Height | 89 cm | 89 cm |
| Single Arm Length | 353 mm | 353 mm |
| Degrees of Freedom (DOF) | ||
| Total DOF | 21 | 21 |
| Single Arm DOF | 4 | 4 |
| Waist DOF | 1 | 1 |
| Single Leg DOF | 6 | 6 |
| Quick‑Release Hand Accessories | 1 | 2 |
| Perception | ||
| RGB Camera | / | Included |
| Interaction Module | ||
| Voice | 4‑Microphone Array | 4‑Microphone Array |
| Speaker | Speaker | |
| / | Mini Wireless Microphone | |

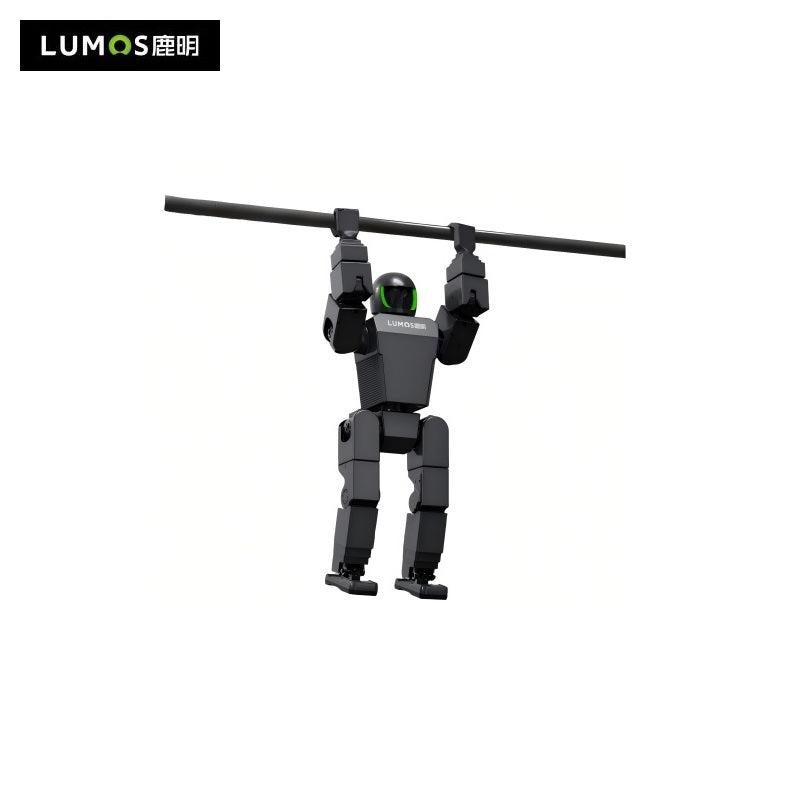

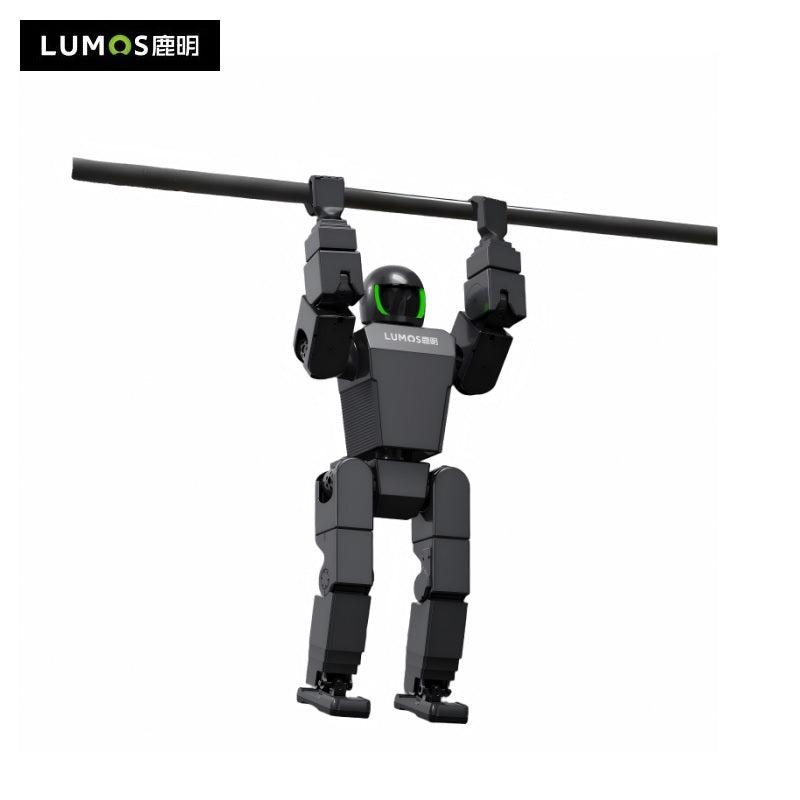

| Motions | Walking, Fast Running | Walking, Fast Running, Getting Up, Push‑ups, Pull‑ups |
| Dances | 1 piece | 5 pieces (with updates) |
| Energy & Power | ||
| Battery Capacity | 331 Wh | 331 Wh |
| Battery Life | 2h | 2h |
| Battery Type | Quick‑Release | Quick‑Release |
| Charging Time | 2h | 2h |
| Charging Voltage | 220V | 220V |
| Charger Output | 66.2V 3A | 66.2V 3A |
| Performance Parameters | ||

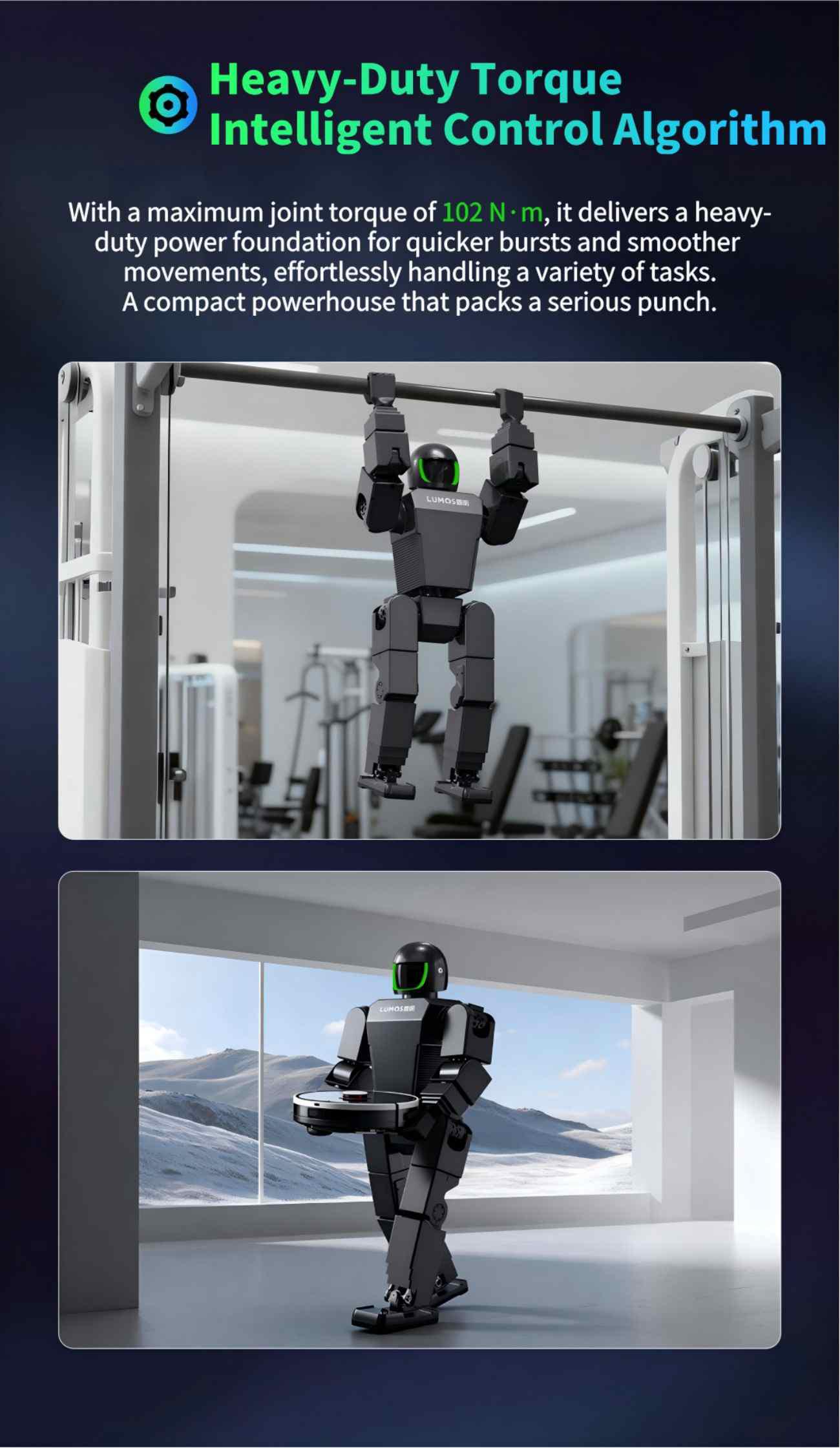

| Joint Peak Torque | 102 N·m | 102 N·m |
| Maximum Payload | 3 kg | 3 kg |
| Hardware Expansion Interfaces | ||
| Ethernet | RJ45 | RJ45 |
| Communication | ||
| Communication Method | Wi‑Fi | Wi‑Fi, 4G/5G |
| Computing Power | ||
| Basic Computing Power | RK3588 | RK3588 |
| Other | ||

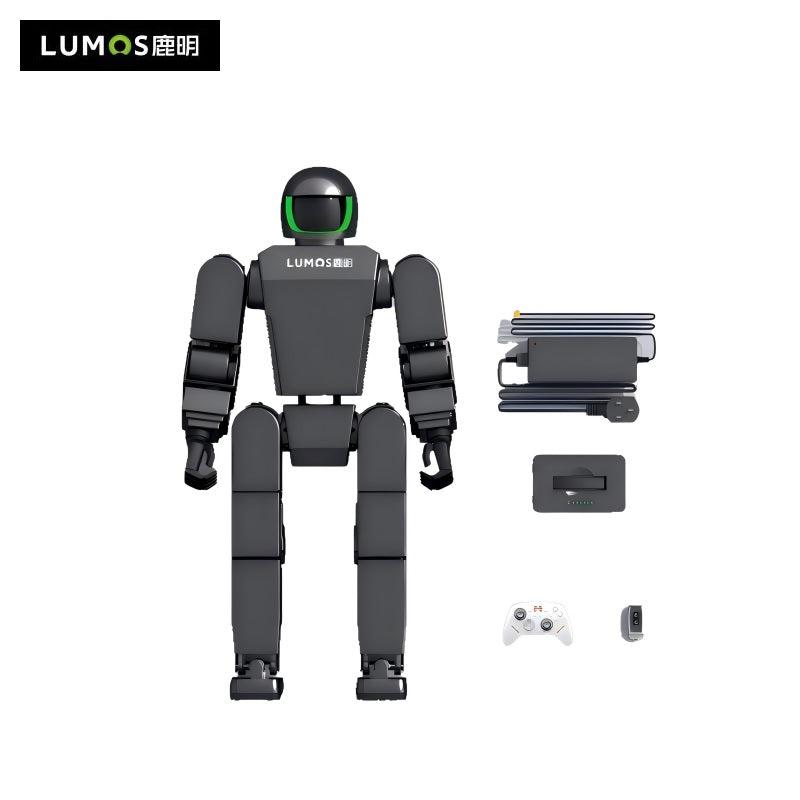

| Remote Controller | Yes | Yes |
| Secondary Development | / | Supported |
| OTA Update | Supported | Supported |
-
