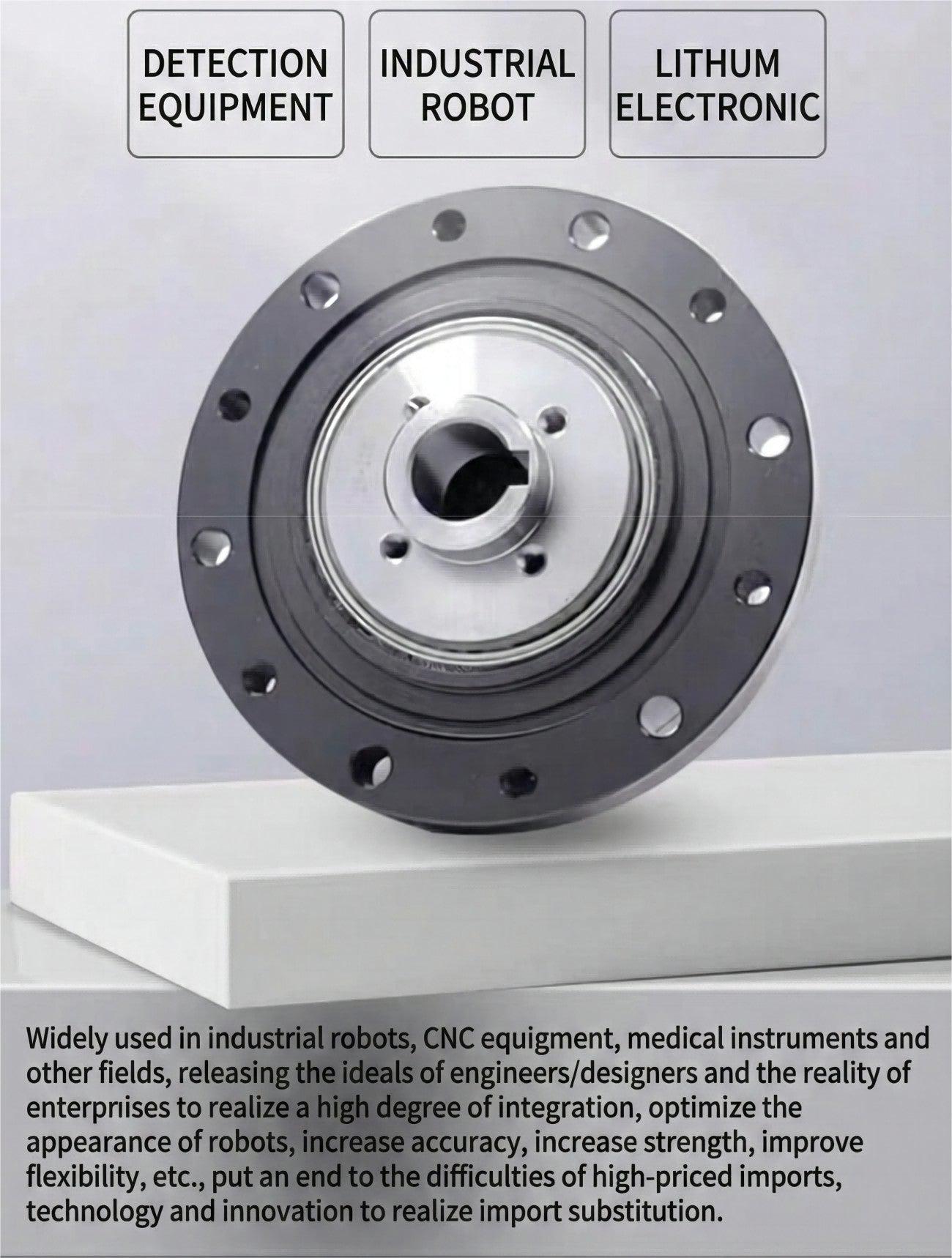

Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

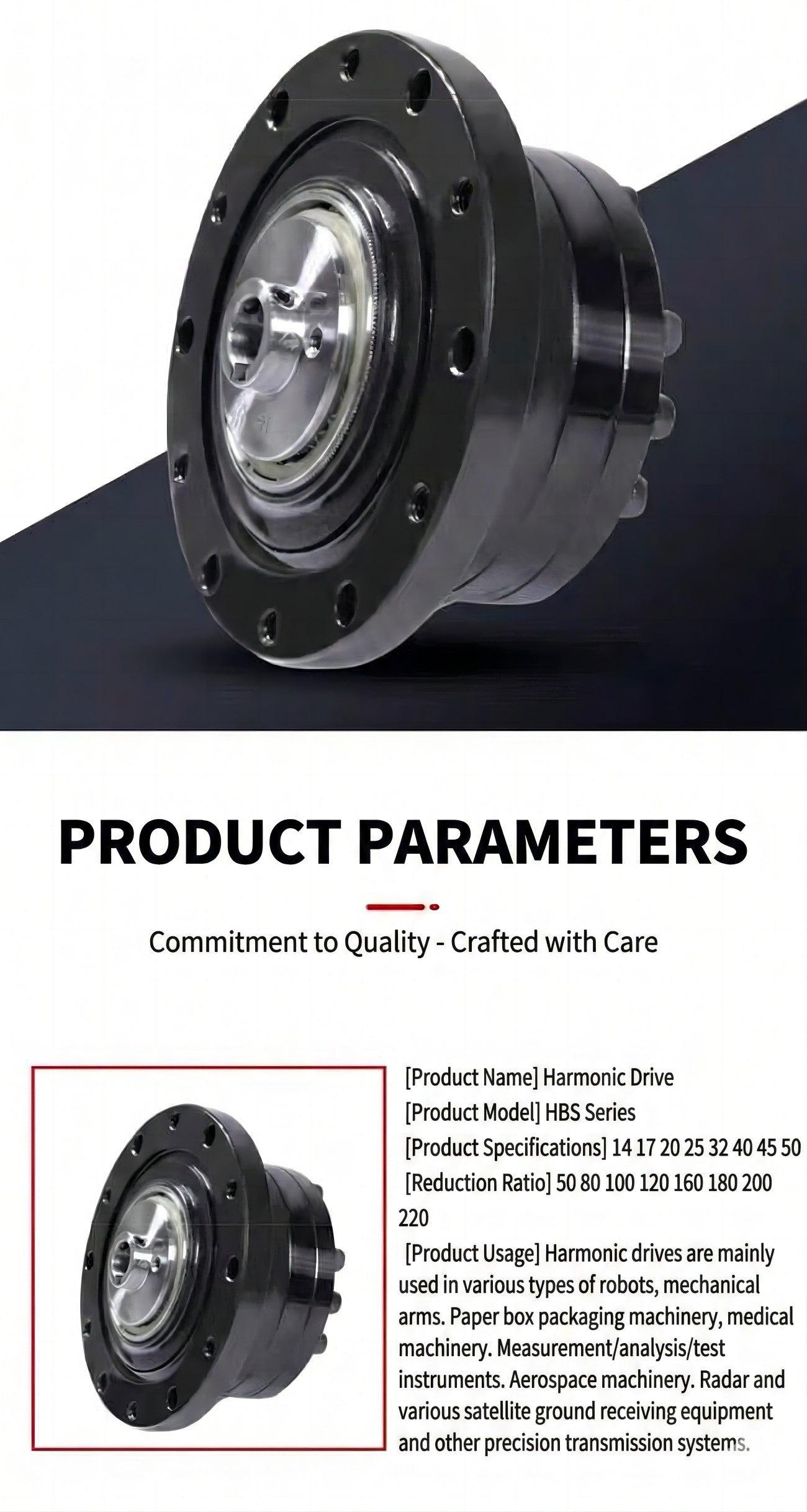

Technical Specifications
| Parameter | Value (Ratio 30) | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) |
|---|---|---|---|---|
| Model | HBS-14 | HBS-14 | HBS-14 | HBS-14 |
| Reduction Ratio | 30 | 50 | 80 | 100 |
| Weight (kg) | 0.51 | 0.51 | 0.51 | 0.51 |
| Rated Torque at Input Speed of 2000 r/min (Nm) | 4.0 | 7.0 | 10.0 | 10.0 |
| Rated Torque at Input Speed of 2000 r/min (Kgf·m) | 0.41 | 0.7 | 1.0 | 1.0 |
| Allowable Peak Torque at Start/Stop (Nm) | 9 | 23 | 30 | 36 |
| Allowable Peak Torque at Start/Stop (Kgf·m) | 0.92 | 2.3 | 3.1 | 3.7 |
| Permissible Max Average Load Torque (Nm) | 6.8 | 23.0 | 30.0 | 36 |
| Permissible Max Average Load Torque (Kgf·m) | 0.69 | 0.9 | 1.4 | 1.4 |
| Instantaneous Permissible Max Torque (Nm) | 17 | 46 | 61 | 70 |
| Instantaneous Permissible Max Torque (Kgf·m) | 1.7 | 4.7 | 6.2 | 7.2 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 14000 | 14000 | 14000 | 14000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 8500 | 8500 | 8500 | 8500 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 6500 | 6500 | 6500 | 6500 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (x10^4 kgm²) | 0.033 | 0.033 | 0.033 | 0.033 |
| Moment of Inertia (x10^5 kgf·ms²) | 0.034 | 0.034 | 0.033 | 0.033 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 30) | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 120) |
|---|---|---|---|---|---|
| Model | HBS-17 | HBS-17 | HBS-17 | HBS-17 | HBS-17 |
| Reduction Ratio | 30 | 50 | 80 | 100 | 120 |
| Weight (kg) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Rated Torque at Input Speed of 2000 r/min (Nm) | 8.8 | 21 | 29 | 31 | 31 |
| Rated Torque at Input Speed of 2000 r/min (Kgf·m) | 0.9 | 2.1 | 2.9 | 3.2 | 3.2 |
| Allowable Peak Torque at Start/Stop (Nm) | 16 | 44 | 56 | 70 | 70 |
| Allowable Peak Torque at Start/Stop (Kgf·m) | 1.6 | 4.5 | 5.7 | 7.2 | 7.2 |
| Permissible Max Average Load Torque (Nm) | 12 | 34 | 35 | 51 | 51 |
| Permissible Max Average Load Torque (Kgf·m) | 1.2 | 3.4 | 3.6 | 5.2 | 5.2 |
| Instantaneous Permissible Max Torque (Nm) | 30 | 91 | 113 | 143 | 143 |
| Instantaneous Permissible Max Torque (Kgf·m) | 3.1 | 9 | 12 | 15 | 15 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 10000 | 10000 | 10000 | 10000 | 10000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 7300 | 7300 | 7300 | 7300 | 7300 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 6500 | 6500 | 6500 | 6500 | 6500 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (x10^4 kgm²) | 0.079 | 0.079 | 0.079 | 0.079 | 0.079 |
| Moment of Inertia (x10^5 kgf·ms²) | 0.081 | 0.081 | 0.081 | 0.081 | 0.081 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 30) | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 120) |
|---|---|---|---|---|---|
| Model | HBS-20 | HBS-20 | HBS-20 | HBS-20 | HBS-20 |
| Reduction Ratio | 30 | 50 | 80 | 100 | 120 |
| Weight (kg) | 0.91 | 0.91 | 0.91 | 0.91 | 0.91 |
| Rated Torque at 2000 r/min (Nm) | 15 | 33 | 44 | 52 | 52 |
| Rated Torque at 2000 r/min (Kgf·m) | 1.5 | 3.3 | 4.5 | 5.3 | 5.3 |
| Permissible Peak Torque (Start/Stop) (Nm) | 27 | 73 | 96 | 107 | 113 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 2.8 | 7.4 | 9.8 | 10.9 | 11.5 |
| Allowable Average Load Torque (Nm) | 20 | 44 | 61 | 64 | 64 |
| Allowable Average Load Torque (Kgf·m) | 2.0 | 4.5 | 6.2 | 6.5 | 6.5 |
| Instantaneous Permissible Maximum Torque (Nm) | 50 | 127 | 165 | 191 | 191 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 5.1 | 13 | 17 | 20 | 20 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 10000 | 10000 | 10000 | 10000 | 10000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 6500 | 6500 | 6500 | 6500 | 6500 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 6500 | 6500 | 6500 | 6500 | 6500 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (x10^4 kgm²) | 0.193 | 0.193 | 0.193 | 0.193 | 0.193 |
| Moment of Inertia (x10^5 kgf·ms²) | 0.197 | 0.197 | 0.197 | 0.197 | 0.197 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 30) | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 120) | Value (Ratio 160) |
|---|---|---|---|---|---|---|
| Model | HBS-25 | HBS-25 | HBS-25 | HBS-25 | HBS-25 | HBS-25 |
| Reduction Ratio | 30 | 50 | 80 | 100 | 120 | 160 |
| Weight (kg) | 1.47 | 1.47 | 1.47 | 1.47 | 1.47 | 1.47 |
| Rated Torque at 2000 r/min (Nm) | 27 | 51 | 82 | 87 | 87 | 87 |
| Rated Torque at 2000 r/min (Kgf·m) | 2.8 | 5.2 | 8.4 | 8.9 | 8.9 | 8.9 |
| Permissible Peak Torque (Start/Stop) (Nm) | 50 | 127 | 178 | 204 | 217 | 229 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 5.1 | 13 | 18 | 21 | 22 | 23 |
| Allowable Average Load Torque (Nm) | 38 | 72 | 113 | 140 | 140 | 140 |
| Allowable Average Load Torque (Kgf·m) | 3.9 | 7.3 | 12 | 14 | 14 | 14 |
| Instantaneous Permissible Maximum Torque (Nm) | 95 | 242 | 332 | 369 | 395 | 408 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 9.7 | 25 | 34 | 38 | 40 | 42 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 7500 | 7500 | 7500 | 7500 | 7500 | 7500 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 5600 | 5600 | 5600 | 5600 | 5600 | 5600 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 5600 | 5600 | 5600 | 5600 | 5600 | 5600 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (x10^4 kgm²) | 0.413 | 0.413 | 0.413 | 0.413 | 0.413 | 0.413 |
| Moment of Inertia (x10^5 kgf·ms²) | 0.421 | 0.421 | 0.421 | 0.421 | 0.421 | 0.421 |
| Backlash (Arc sec) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Parameter | Value (Ratio 30) | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 120) | Value (Ratio 160) |
|---|---|---|---|---|---|---|
| Model | HBS-32 | HBS-32 | HBS-32 | HBS-32 | HBS-32 | HBS-32 |
| Reduction Ratio | 30 | 50 | 80 | 100 | 120 | 160 |
| Weight (kg) | 3 | 3 | 3 | 3 | 3 | 3 |
| Rated Torque at 2000 r/min (Nm) | 54 | 99 | 153 | 178 | 178 | 178 |
| Rated Torque at 2000 r/min (Kgf·m) | 5.5 | 10 | 16 | 18 | 18 | 18 |
| Permissible Peak Torque (Start/Stop) (Nm) | 100 | 281 | 395 | 433 | 459 | 484 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 10 | 29 | 40 | 44 | 47 | 49 |
| Allowable Average Load Torque (Nm) | 75 | 140 | 217 | 281 | 281 | 281 |
| Allowable Average Load Torque (Kgf·m) | 7.7 | 14 | 22 | 29 | 29 | 29 |
| Instantaneous Permissible Maximum Torque (Nm) | 200 | 497 | 738 | 841 | 892 | 892 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 20 | 51 | 75 | 86 | 91 | 91 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 7000 | 7000 | 7000 | 7000 | 7000 | 7000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 4800 | 4800 | 4800 | 4800 | 4800 | 4800 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 4600 | 4600 | 4600 | 4600 | 4600 | 4600 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (x10^4 kgm²) | 1.69 | 1.69 | 1.69 | 1.69 | 1.69 | 1.69 |
| Moment of Inertia (x10^5 kgf·ms²) | 1.72 | 1.72 | 1.72 | 1.72 | 1.72 | 1.72 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 120) | Value (Ratio 160) |
|---|---|---|---|---|---|
| Model | HBS-40 | HBS-40 | HBS-40 | HBS-40 | HBS-40 |
| Reduction Ratio | 50 | 80 | 100 | 120 | 160 |
| Weight (kg) | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 |
| Rated Torque at 2000 r/min (Nm) | 178 | 268 | 345 | 382 | 382 |
| Rated Torque at 2000 r/min (Kgf·m) | 18 | 27 | 35 | 39 | 39 |
| Permissible Peak Torque (Start/Stop) (Nm) | 523 | 675 | 738 | 802 | 841 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 53 | 69 | 75 | 82 | 86 |
| Allowable Average Load Torque (Nm) | 255 | 369 | 484 | 586 | 586 |
| Allowable Average Load Torque (Kgf·m) | 26 | 38 | 49 | 60 | 60 |
| Instantaneous Permissible Maximum Torque (Nm) | 892 | 1270 | 1400 | 1530 | 1530 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 91 | 130 | 143 | 156 | 156 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 5600 | 5600 | 5600 | 5600 | 5600 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 4000 | 4000 | 4000 | 4000 | 4000 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Moment of Inertia (x10^4 kgm²) | 4.50 | 4.50 | 4.50 | 4.50 | 4.50 |
| Moment of Inertia (x10^5 kgf·ms²) | 4.59 | 4.59 | 4.59 | 4.59 | 4.59 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 50) | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 160) |
|---|---|---|---|---|
| Model | HBS-45 | HBS-45 | HBS-45 | HBS-45 |
| Reduction Ratio | 50 | 80 | 100 | 160 |
| Weight (kg) | 6.77 | 6.77 | 6.77 | 6.77 |
| Rated Torque at 2000 r/min (Nm) | 229 | 407 | 459 | 523 |
| Rated Torque at 2000 r/min (Kgf·m) | 23 | 41 | 47 | 53 |
| Permissible Peak Torque (Start/Stop) (Nm) | 650 | 918 | 982 | 1147 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 66 | 94 | 100 | 117 |
| Allowable Average Load Torque (Nm) | 345 | 507 | 650 | 819 |
| Allowable Average Load Torque (Kgf·m) | 35 | 52 | 66 | 84 |
| Instantaneous Permissible Maximum Torque (Nm) | 1235 | 1651 | 2041 | 2483 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 126 | 168 | 208 | 253 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 5000 | 5000 | 5000 | 5000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 3800 | 3800 | 3800 | 3800 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 3300 | 3300 | 3300 | 3300 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3000 | 3000 | 3000 | 3000 |
| Moment of Inertia (x10^4 kgm²) | 8.68 | 8.68 | 8.68 | 8.68 |
| Moment of Inertia (x10^5 kgf·ms²) | 8.86 | 8.86 | 8.86 | 8.86 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 100) | Value (Ratio 160) |
|---|---|---|
| Model | HBS-50 | HBS-50 |
| Reduction Ratio | 100 | 160 |
| Weight (kg) | 8.45 | 8.45 |
| Rated Torque at 2000 r/min (Nm) | 611 | 688 |
| Rated Torque at 2000 r/min (Kgf·m) | 62 | 70 |
| Permissible Peak Torque (Start/Stop) (Nm) | 1274 | 1534 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 130 | 156 |
| Allowable Average Load Torque (Nm) | 866 | 1096 |
| Allowable Average Load Torque (Kgf·m) | 88 | 112 |
| Instantaneous Permissible Maximum Torque (Nm) | 2678 | 3185 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 273 | 325 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 4500 | 4500 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 3000 | 3000 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 2500 | 2500 |
| Moment of Inertia (x10^4 kgm²) | 12.5 | 12.5 |
| Moment of Inertia (x10^5 kgf·ms²) | 12.8 | 12.8 |
| Backlash (Arc sec) | ≤20 | ≤20 |
| Parameter | Value (Ratio 80) | Value (Ratio 100) | Value (Ratio 160) |
|---|---|---|---|
| Model | HBS-58 | HBS-58 | HBS-58 |
| Reduction Ratio | 80 | 100 | 160 |
| Weight (kg) | 13.8 | 13.8 | 13.8 |
| Rated Torque at 2000 r/min (Nm) | 714 | 905 | 969 |
| Rated Torque at 2000 r/min (Kgf·m) | 73 | 92 | 99 |
| Permissible Peak Torque (Start/Stop) (Nm) | 1924 | 2067 | 2392 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 196 | 211 | 244 |
| Allowable Average Load Torque (Nm) | 1001 | 1378 | 1573 |
| Allowable Average Load Torque (Kgf·m) | 102 | 141 | 160 |
| Instantaneous Permissible Maximum Torque (Nm) | 3185 | 4134 | 4459 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 325 | 422 | 455 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 4000 | 4000 | 4000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 3000 | 3000 | 3000 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 2700 | 2700 | 2700 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 2200 | 2200 | 2200 |
| Moment of Inertia (x10^4 kgm²) | 27.3 | 27.3 | 27.3 |
| Moment of Inertia (x10^5 kgf·ms²) | 27.9 | 27.9 | 27.9 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 |
| Parameter | Value (Ratio 100) | Value (Ratio 160) |
|---|---|---|
| Model | HBS-65 | HBS-65 |
| Reduction Ratio | 100 | 160 |
| Weight (kg) | 20.7 | 20.7 |
| Rated Torque at 2000 r/min (Nm) | 1236 | 1236 |
| Rated Torque at 2000 r/min (Kgf·m) | 126 | 126 |
| Permissible Peak Torque (Start/Stop) (Nm) | 2990 | 3419 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 305 | 349 |
| Allowable Average Load Torque (Nm) | 1976 | 2041 |
| Allowable Average Load Torque (Kgf·m) | 202 | 208 |
| Instantaneous Permissible Maximum Torque (Nm) | 6175 | 6175 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 630 | 630 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 3500 | 3500 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 2800 | 2800 |
| Permissible Average Input Speed (Oil Lubrication) (r/min) | 2400 | 2400 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 1900 | 1900 |
| Moment of Inertia (x10^4 kgm²) | 46.8 | 46.8 |
| Moment of Inertia (x10^5 kgf·ms²) | 47.8 | 47.8 |
| Backlash (Arc sec) | ≤20 | ≤20 |
-
Contact Seller:
+861368646****
PY TECHNOLOGY presents 12 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across 6-Axis Articulated and Precision Reducers.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from PY TECHNOLOGY.
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
