Technical Specifications

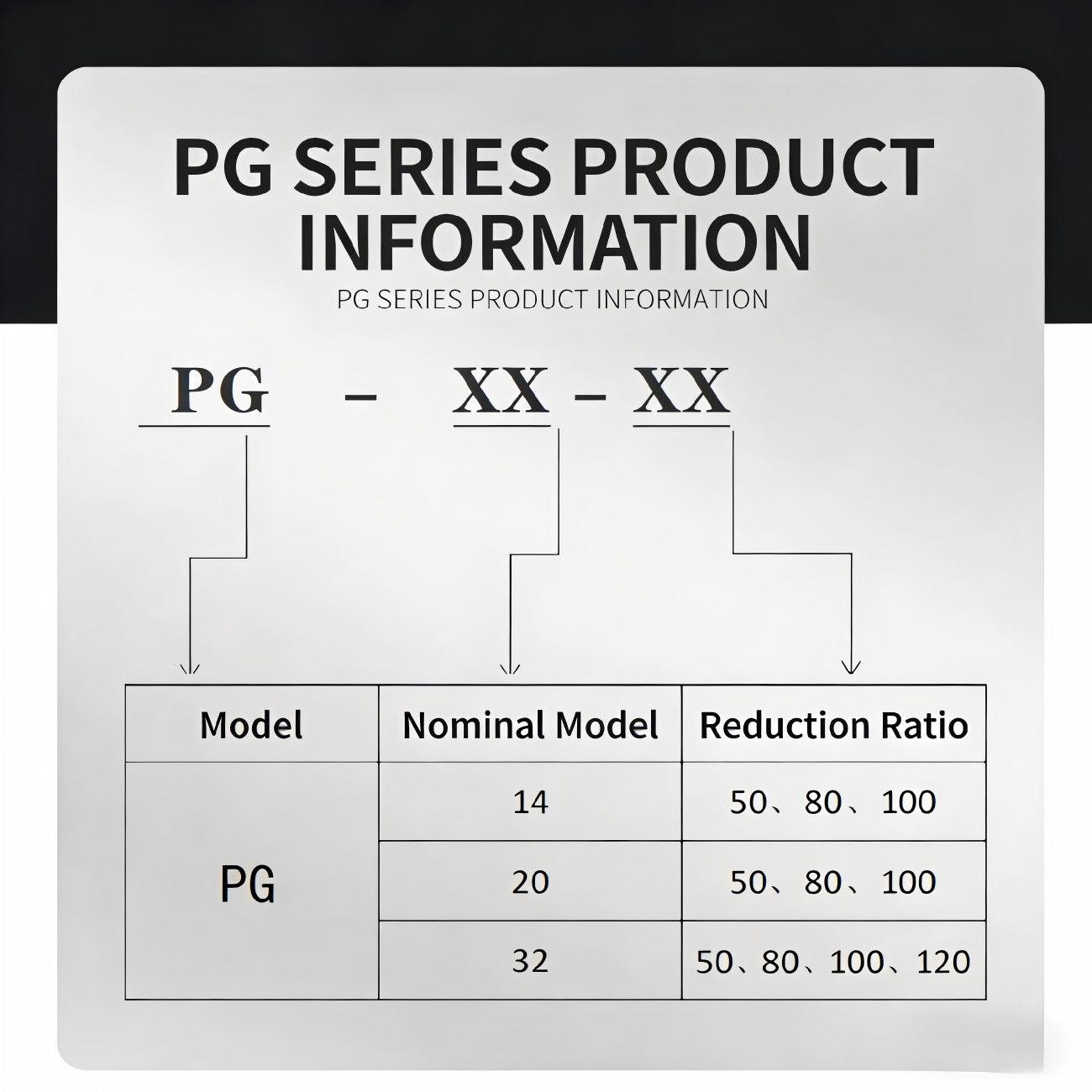

| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | PG-14 | PG-14 | PG-14 |
| Reduction Ratio | 50 | 80 | 100 |
| Weight (Shaft Output) (kg) | 0.62 | 0.62 | 0.62 |
| Weight (Flange Output) (kg) | 0.5 | 0.5 | 0.5 |
| Rated Torque at 2000 r/min (Nm) | 7 | 10 | 10 |
| Rated Torque at 2000 r/min (Kgf·m) | 0.71 | 1 | 1 |
| Rated Torque at 3000 r/min (Nm) | 6.1 | 8.7 | 8.7 |
| Rated Torque at 3000 r/min (Kgf·m) | 0.62 | 0.89 | 0.89 |
| Allowable Average Load Torque (Nm) | 23 | 30 | 36 |
| Allowable Average Load Torque (Kgf·m) | 2.35 | 3.06 | 3.67 |
| Average Load Torque (Nm) | 9 | 14 | 14 |
| Average Load Torque (Kgf·m) | 0.92 | 1.43 | 1.43 |
| Instantaneous Permissible Maximum Torque (Nm) | 46 | 61 | 70 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 4.69 | 6.22 | 7.14 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 8500 | 8500 | 8500 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 |

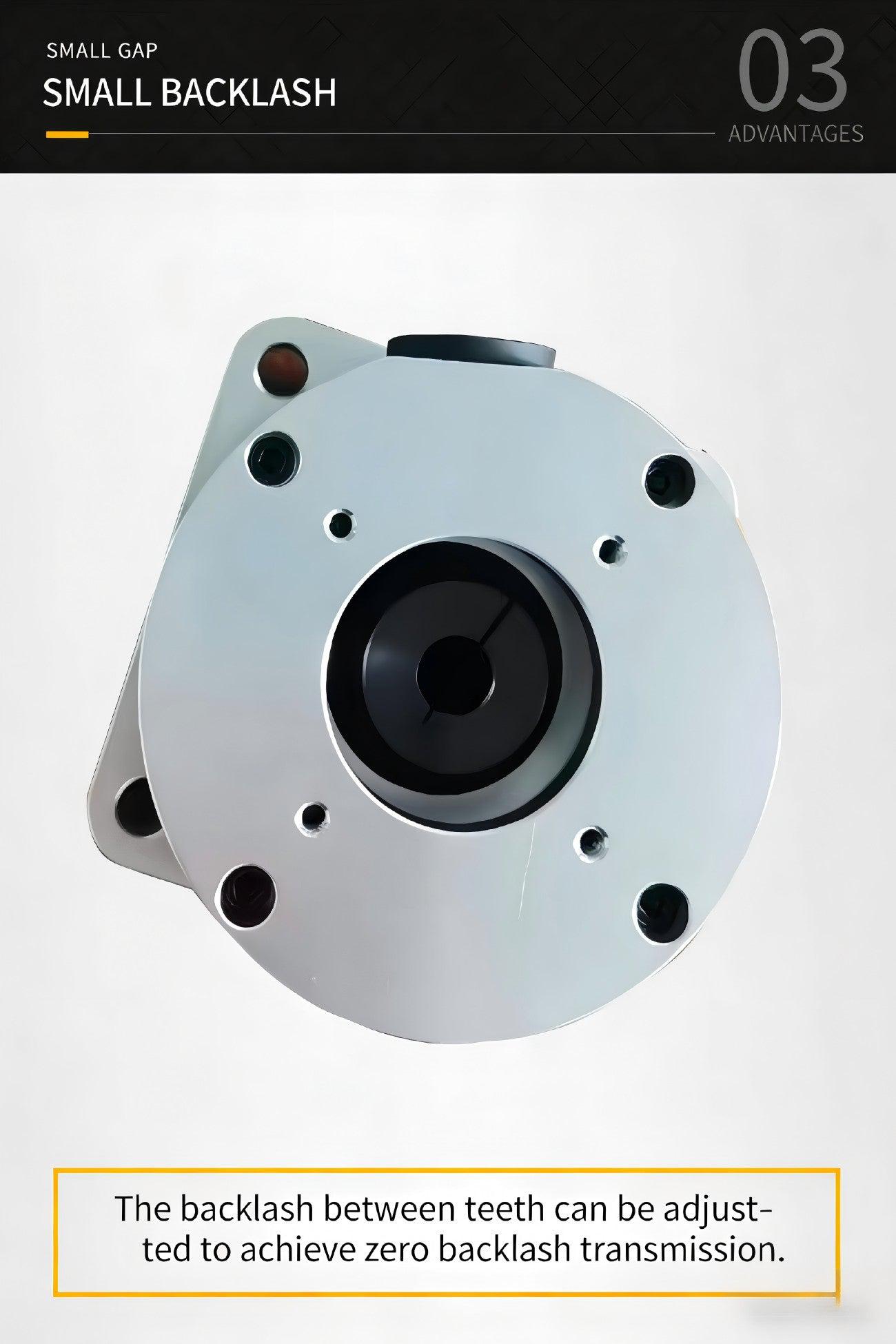

| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 |
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | PG-20 | PG-20 | PG-20 |
| Reduction Ratio | 50 | 80 | 100 |
| Weight (Shaft Output) (kg) | 1.8 | 1.8 | 1.8 |
| Weight (Flange Output) (kg) | 1.4 | 1.4 | 1.4 |
| Rated Torque at 2000 r/min (Nm) | 33 | 44 | 52 |
| Rated Torque at 2000 r/min (Kgf·m) | 3.37 | 4.49 | 5.3 |
| Rated Torque at 3000 r/min (Nm) | 29 | 38 | 45 |
| Rated Torque at 3000 r/min (Kgf·m) | 2.96 | 3.97 | 4.59 |
| Allowable Average Load Torque (Nm) | 73 | 96 | 107 |
| Allowable Average Load Torque (Kgf·m) | 7.44 | 9.79 | 10.91 |
| Average Load Torque (Nm) | 44 | 61 | 64 |
| Average Load Torque (Kgf·m) | 4.87 | 6.22 | 6.52 |
| Instantaneous Permissible Maximum Torque (Nm) | 127 | 165 | 191 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 12.95 | 16.83 | 19.48 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 6500 | 6500 | 6500 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 |
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Model | PG-32 | PG-32 | PG-32 | PG-32 |
| Reduction Ratio | 50 | 80 | 100 | 120 |
| Weight (Shaft Output) (kg) | 4.6 | 4.6 | 4.6 | 4.6 |
| Weight (Flange Output) (kg) | 3.2 | 3.2 | 3.2 | 3.2 |
| Rated Torque at 2000 r/min (Nm) | 99 | 153 | 178 | 178 |
| Rated Torque at 2000 r/min (Kgf·m) | 10 | 16 | 18 | 18 |
| Permissible Peak Torque (Start/Stop) (Nm) | 281 | 395 | 433 | 459 |
| Permissible Peak Torque (Start/Stop) (Kgf·m) | 29 | 40 | 44 | 47 |
| Allowable Average Load Torque (Nm) | 140 | 217 | 281 | 281 |
| Allowable Average Load Torque (Kgf·m) | 14 | 22 | 29 | 29 |
| Instantaneous Permissible Maximum Torque (Nm) | 497 | 738 | 841 | 892 |
| Instantaneous Permissible Maximum Torque (Kgf·m) | 51 | 75 | 86 | 91 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 7000 | 7000 | 7000 | 7000 |
| Permissible Max Input Speed (Grease Lubrication) (r/min) | 5800 | 5800 | 5800 | 5800 |
| Permissible Max Input Speed (Oil Lubrication) (r/min) | 4600 | 4600 | 4600 | 4600 |
| Permissible Average Input Speed (Grease Lubrication) (r/min) | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (1/4GD²) (×10⁴ kg·cm²) | 1.69 | 1.69 | 1.69 | 1.69 |
| Moment of Inertia (1/4GD²) ×10⁵ kgf·m·s²) | 1.72 | 1.72 | 1.72 | 1.72 |
| Backlash (Arc sec) | ≤20 | ≤20 | ≤20 | ≤20 |
-
