Technical Specifications
| Parameter | Value |
|---|---|
| Reducer Standalone Speed Ratio (R₁) | 35.61 (2778/78) |
| Bending Moment Stiffness | 12740（1300） Nm/arc.min. (kgf-m/arc.min.) |
| Permissible Bending Moment | 202580 Nm (2100 kgf-m) |
| Max. Momentary Permissible Bending Moment | 39200 Nm (4000 kgf-m) |
| Permissible Max. Output Speed | 25 r/min |
| Permissible Torque for Start/Stop | 7840 Nm (800 kgf-m) |
| Max. Momentary Permissible Torque | 15680 Nm (1600 kgf-m) |

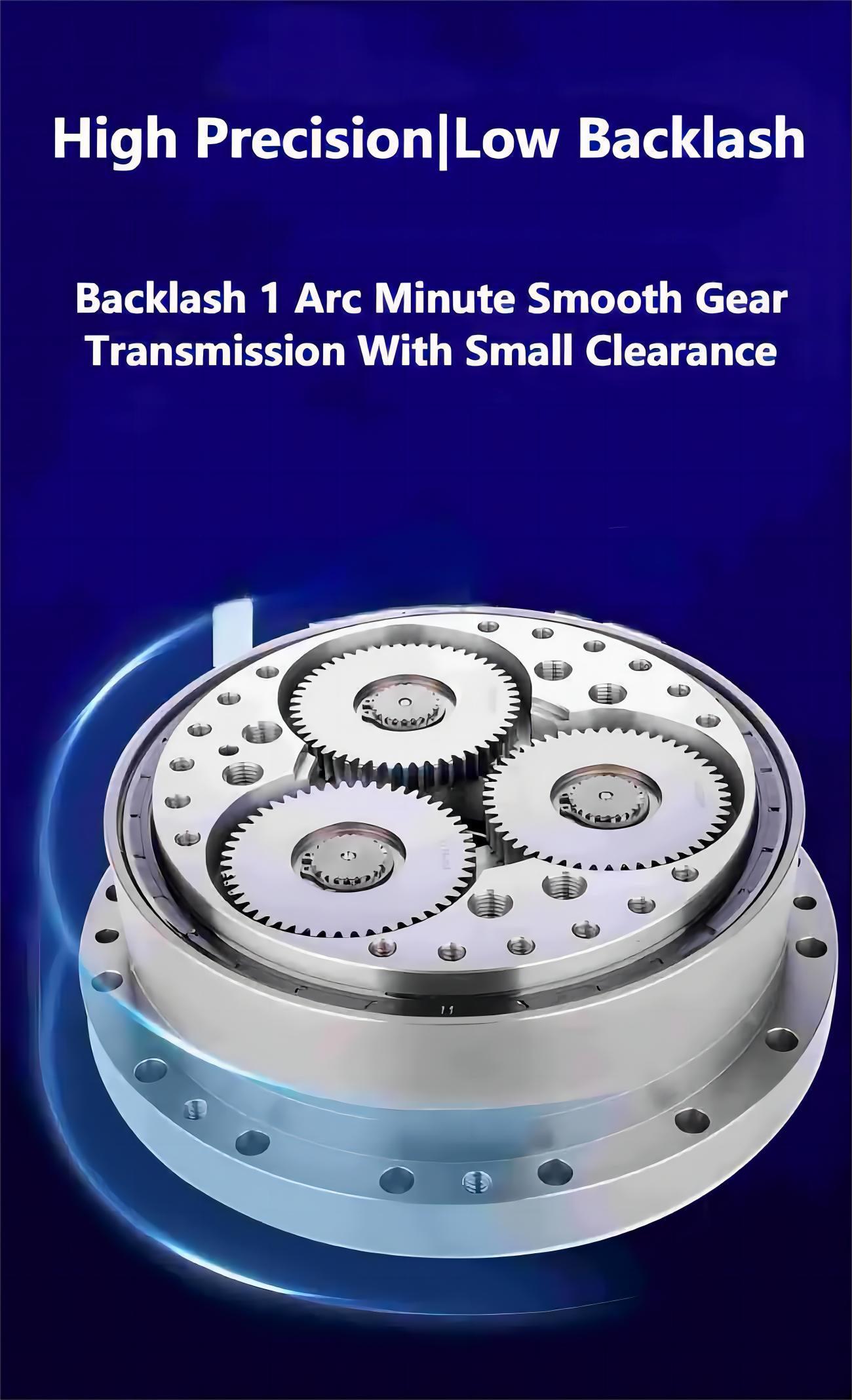

| Lost Motion (MAX) | 1′ Arc.min. |

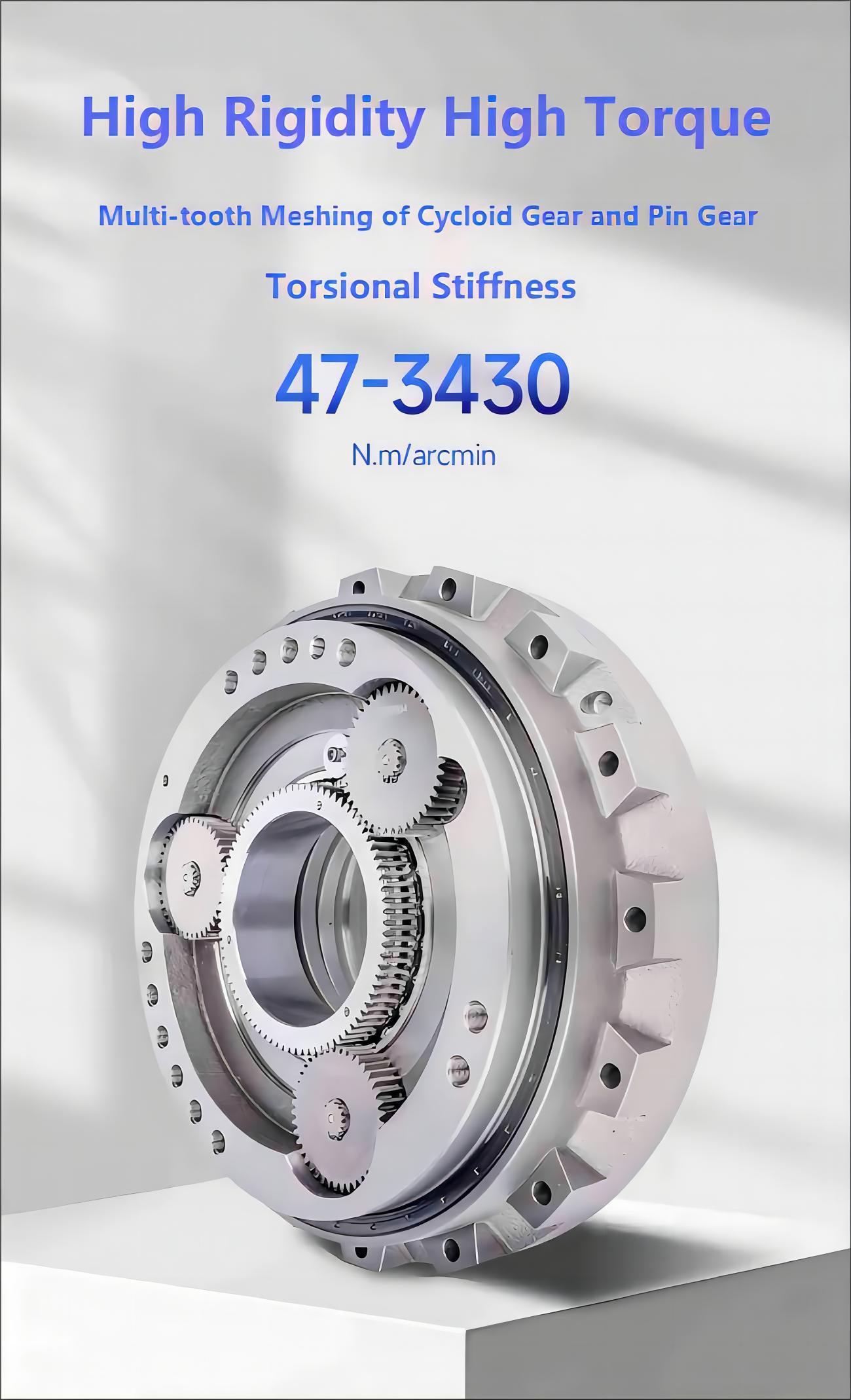

| Torsional Stiffness | 1960（200） Nm/arc.min. (kgf-m/arc.min.) |
| Moment of Inertia (Reducer Standalone) | 0.518×10⁻² Kg-m² |
| Moment of Inertia (Standard Center Gear) | 0.405×10-1 Kg-m² |
| Weight | 79.5 Kg |
| Output Speed (r/min) | Output Torque | Input Power |
|---|---|---|
| 5 | 4361 Nm (445 kgf-m) | 3.04 kW |
| 10 | 3538 Nm (361 kgf-m) | 4.94 kW |
| 15 | 3136 Nm (320 kgf-m) | 6.57 kW |
| 20 | 2881 Nm (294 kgf-m) | 8.05 kW |
| 25 | 2690 Nm (275 kgf-m) | 9.41 kW |
-
