Technical Specifications
| Parameter | Value |
|---|---|

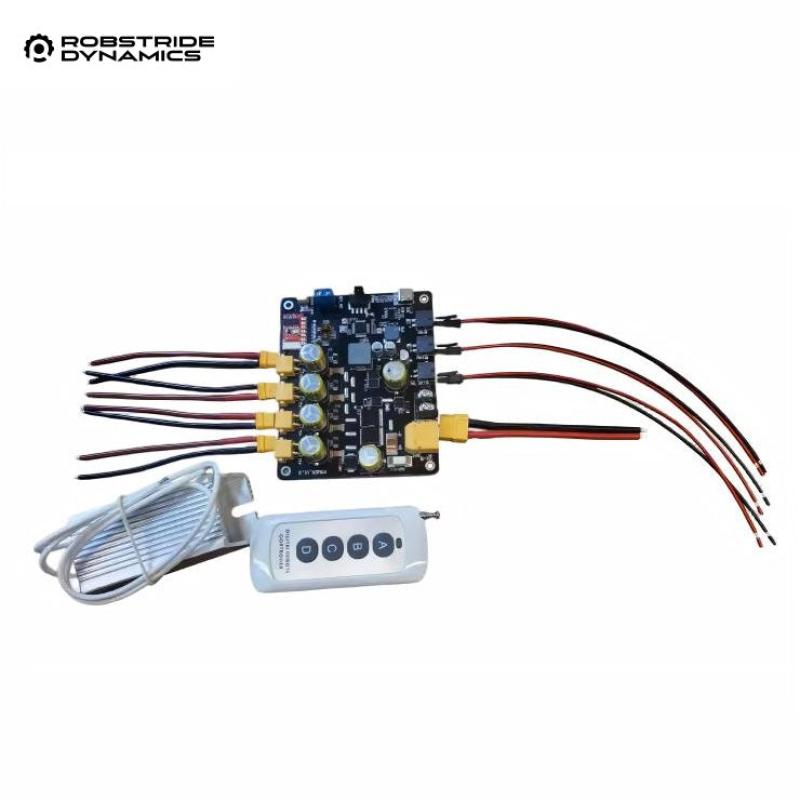

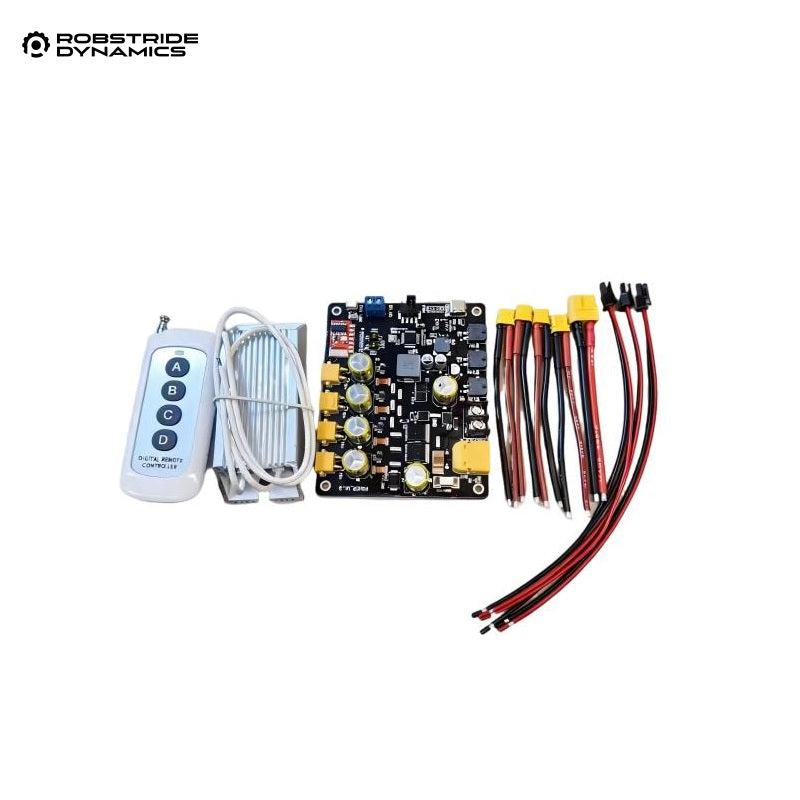

| Product Name | Power Board |
| Max Height | 16.5mm |
| Input Voltage Range | 20V~65V (24V output disabled when <30V) |
| Under‑Voltage Protection | <20V (recoverable fault) |
| Over‑Voltage Protection | >65V (non‑recoverable fault) |
| Main Branch Supply | Rated 20A, peak 40A |
| 24V Supply Interface | Rated 4A, current limit 6A, short‑circuit protection |
| 12V Supply Interface | Rated 2A, current limit 3A, short‑circuit protection |
| 5V Supply Interface | Rated 2A, current limit 3A, short‑circuit protection |
| Main Branch Overcurrent Protection | 80A/30ms (software) 100A/1ms (hardware) 150A/1.2us |
| Main Branch Short‑Circuit Protection | Additional disposable fuse A²S=5270 |
| Branch Overcurrent/Short‑Circuit | Non‑recoverable fault, requires power cycle to recover |
| 24V/12V/5V Overcurrent/Short‑Circuit | Recoverable fault |
| Over‑Temperature Protection | 100°C |
| Voltage Sampling Accuracy | ±1% |
| Total Current Sampling Accuracy | ±2% |
| Total Current Sampling Accuracy | ±1% |
| Communication Interface | CAN communication / COM communication (USB) |
| Pre‑charge/Bleed Resistor | Recommended resistance 3~10Ω/50W+ (power to be adjusted according to actual situation) |
| Pre‑charge/Bleed Resistor (Configurable) | Default turn‑on voltage 64V, turn‑off voltage 60V (configurable) |
| Remote Pairing | Pairing methods: long press pairing button + quick press any button twice, etc. |
| Power‑up/down Mode | MODE00: Default power‑up, 24V, 12V, 5V power up simultaneously, motor power after 1s MODE01: Default no power, power‑up controlled by remote or communication command |
-
