Technical Specifications
| Parameter | Value |
|---|---|

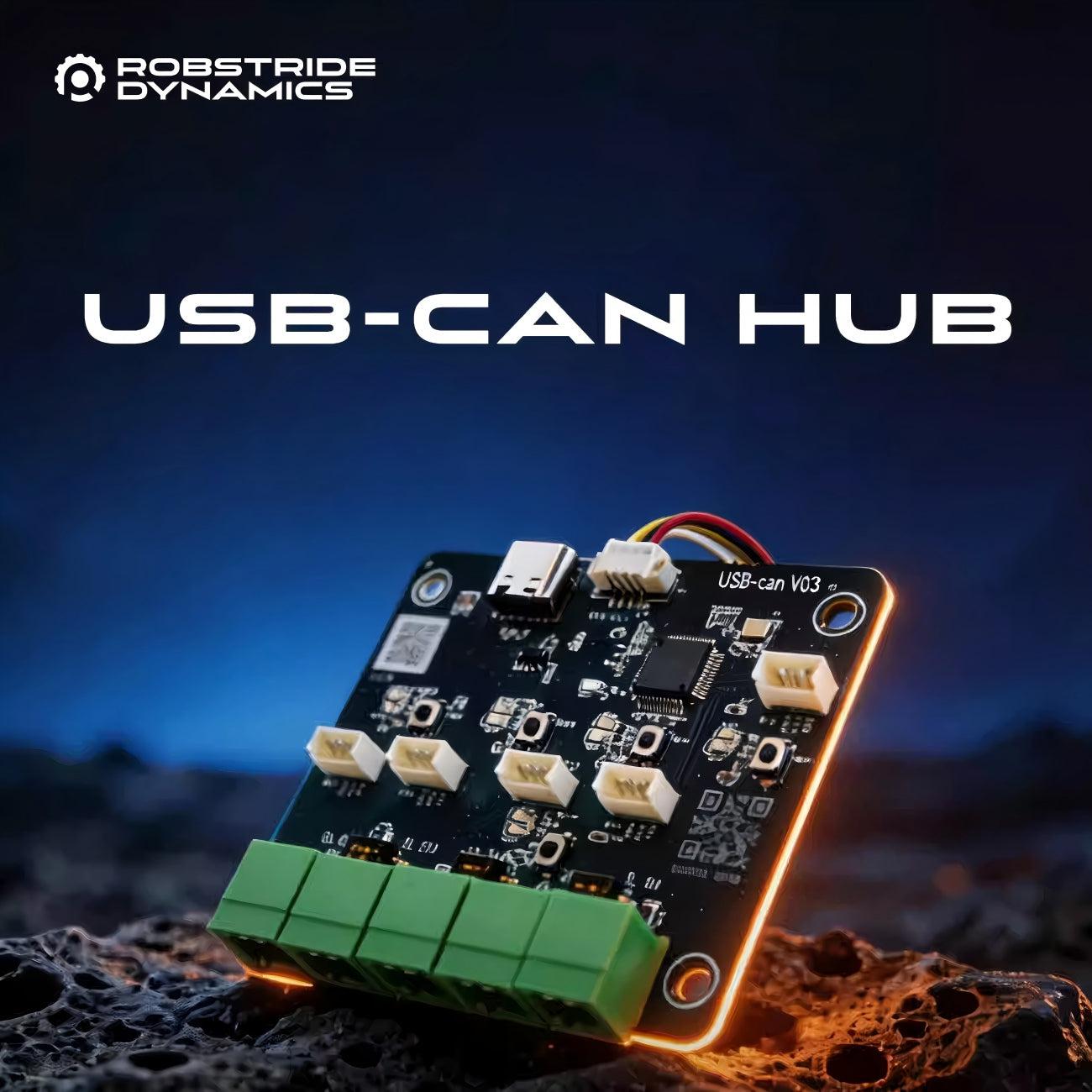

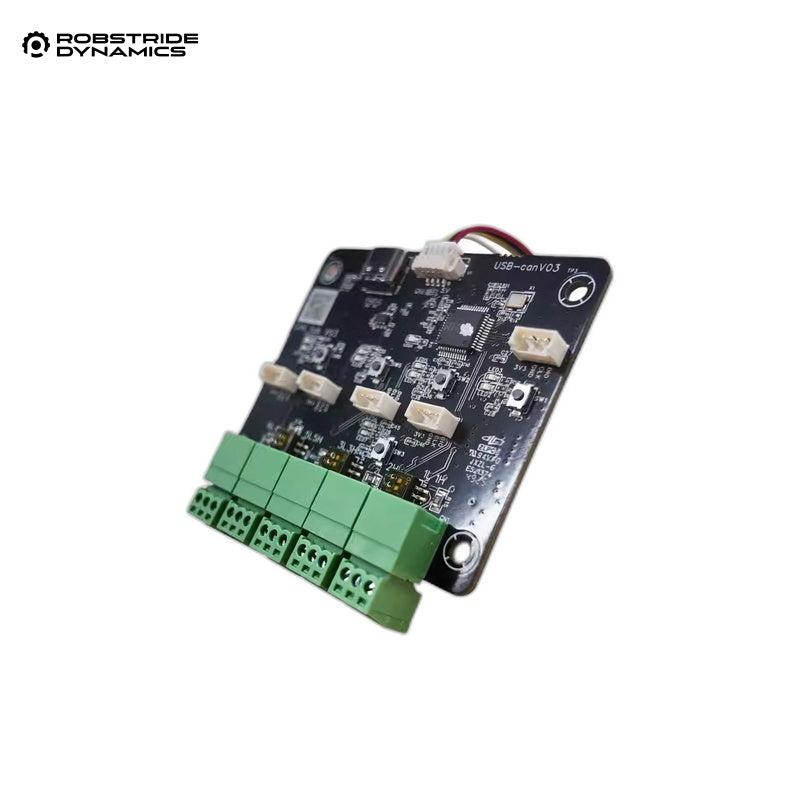

| Product Name | USB-CAN-HUB |
| Standard Operating Temperature | 25±5°C |
| Operating Temperature Range | -20~50°C |
| Operating Humidity Range | 5~85% (non-condensing) |
| Power Supply | USB Type-C / USB 2.0 (5V) |
| CAN Interface | 2.54-3P mating terminal, total 5 channels |
| Host Interface | Type-C (USB 2.0 and 5V power) |
| Termination Resistor | DIP switch controlled, 120Ω when ON |
| CAN Baud Rate | Configurable (1Mbps in example) |
| Data Indicators | Green LED (CAN Rx) / Red LED (CAN Tx) |
| Status Indicator | LED1: USB chip status |
| Reset Button | Black button, short BOOT0 for firmware update via USB |
| Supported OS | Linux / Windows |
| Supported Software | C++ (ROS examples) / Python SDK link |
-
